Product Description

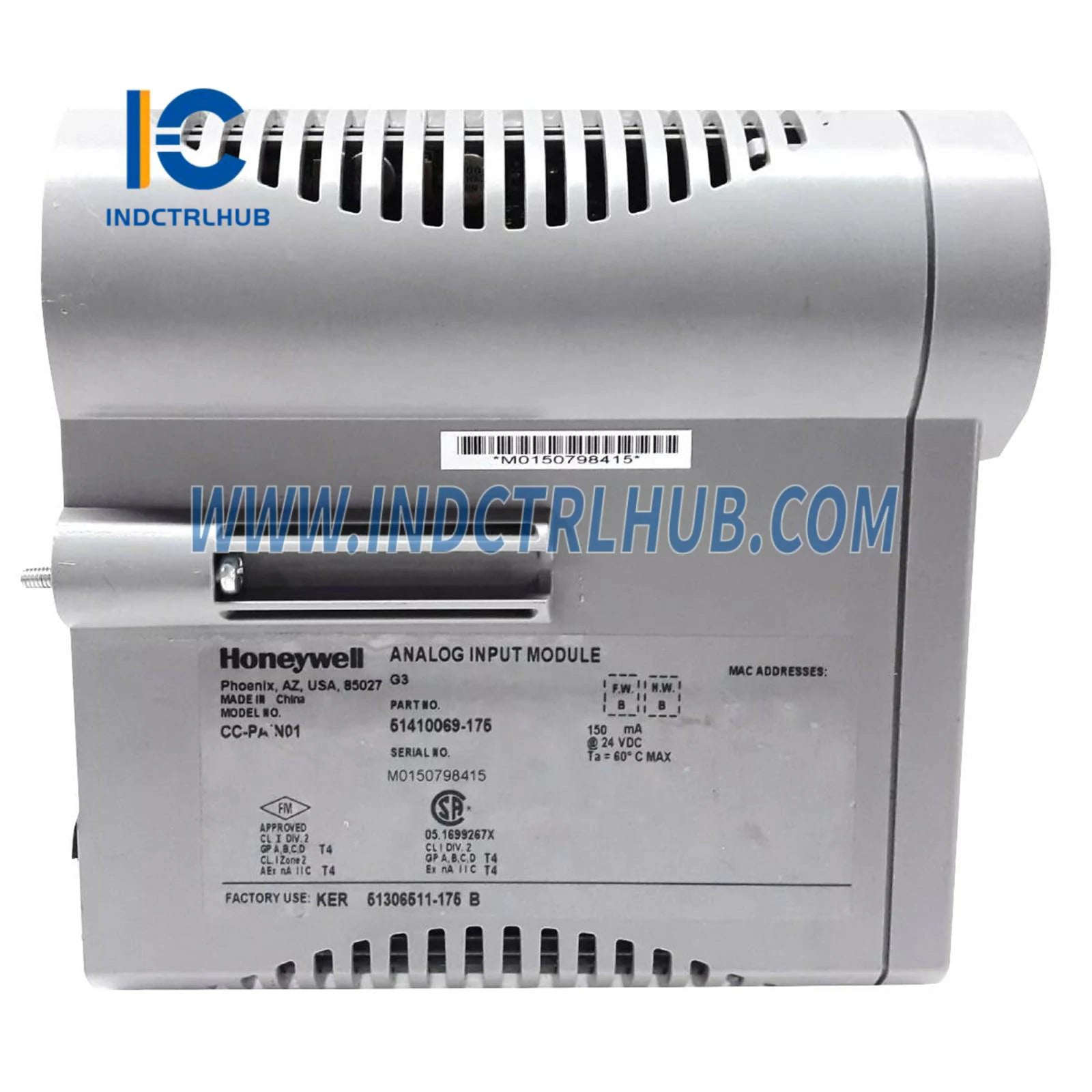

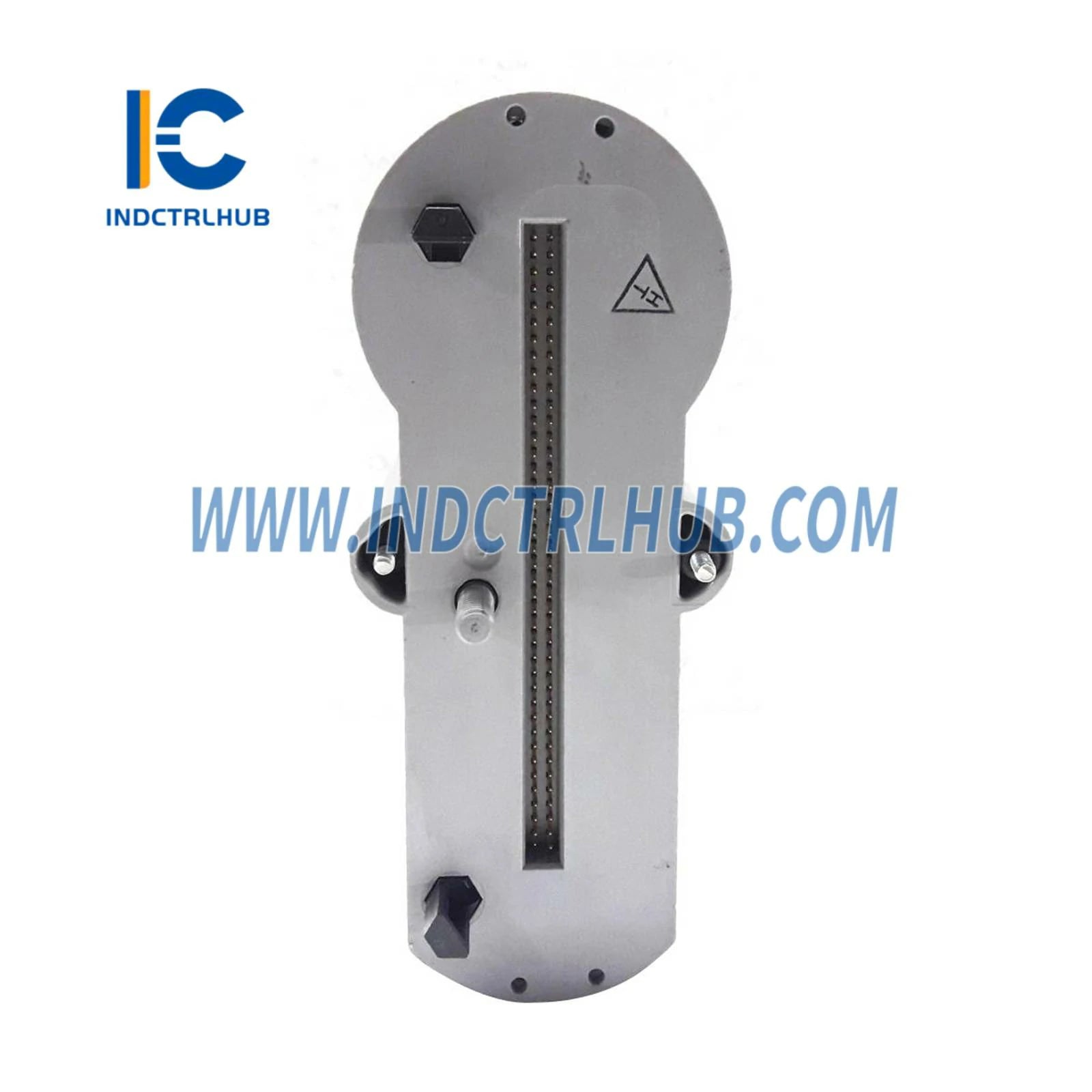

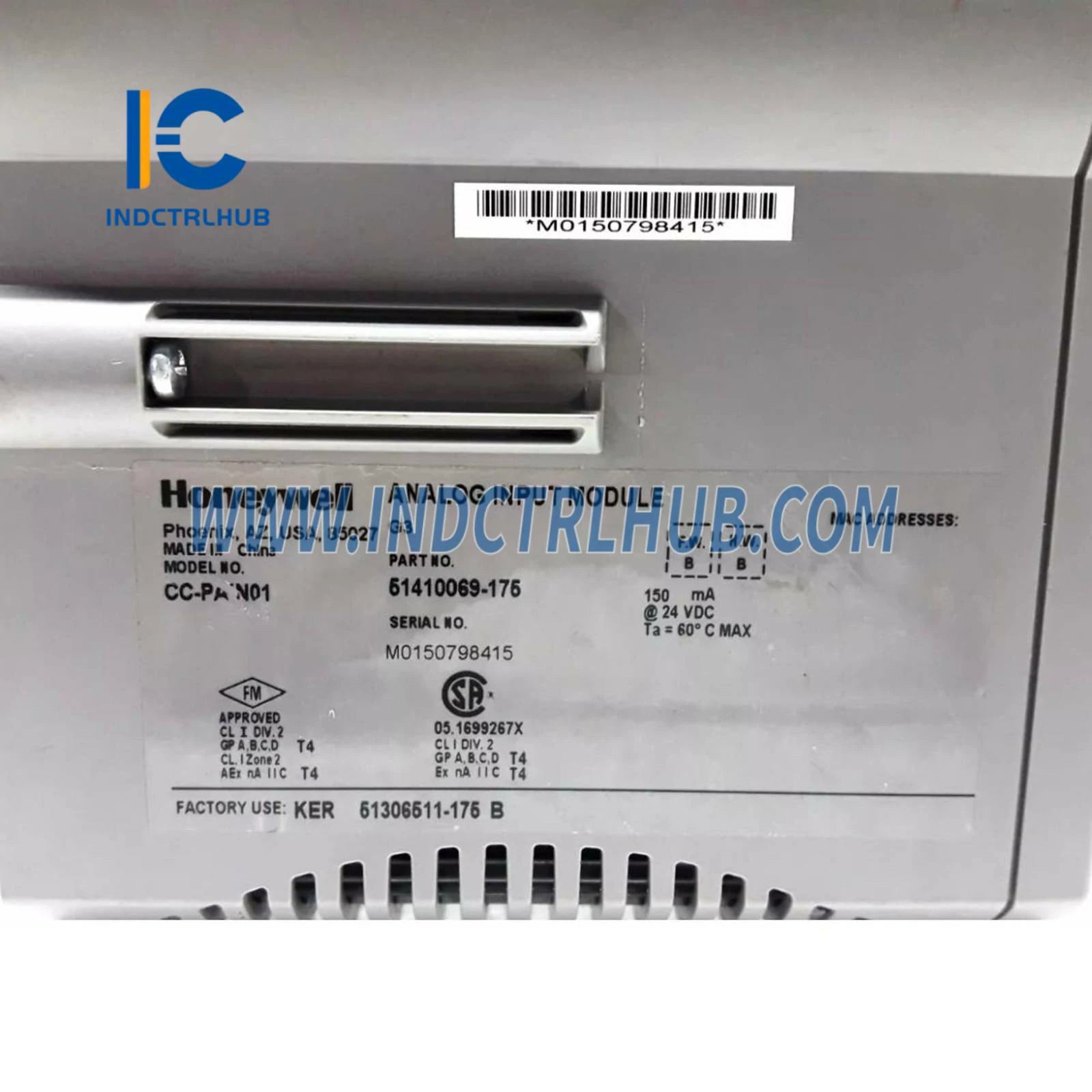

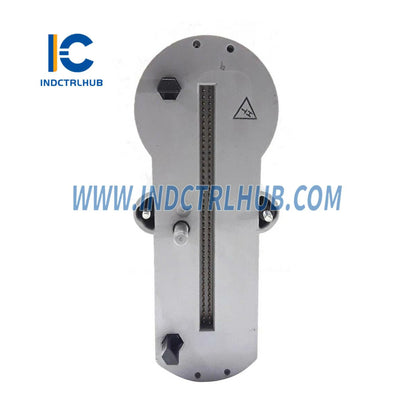

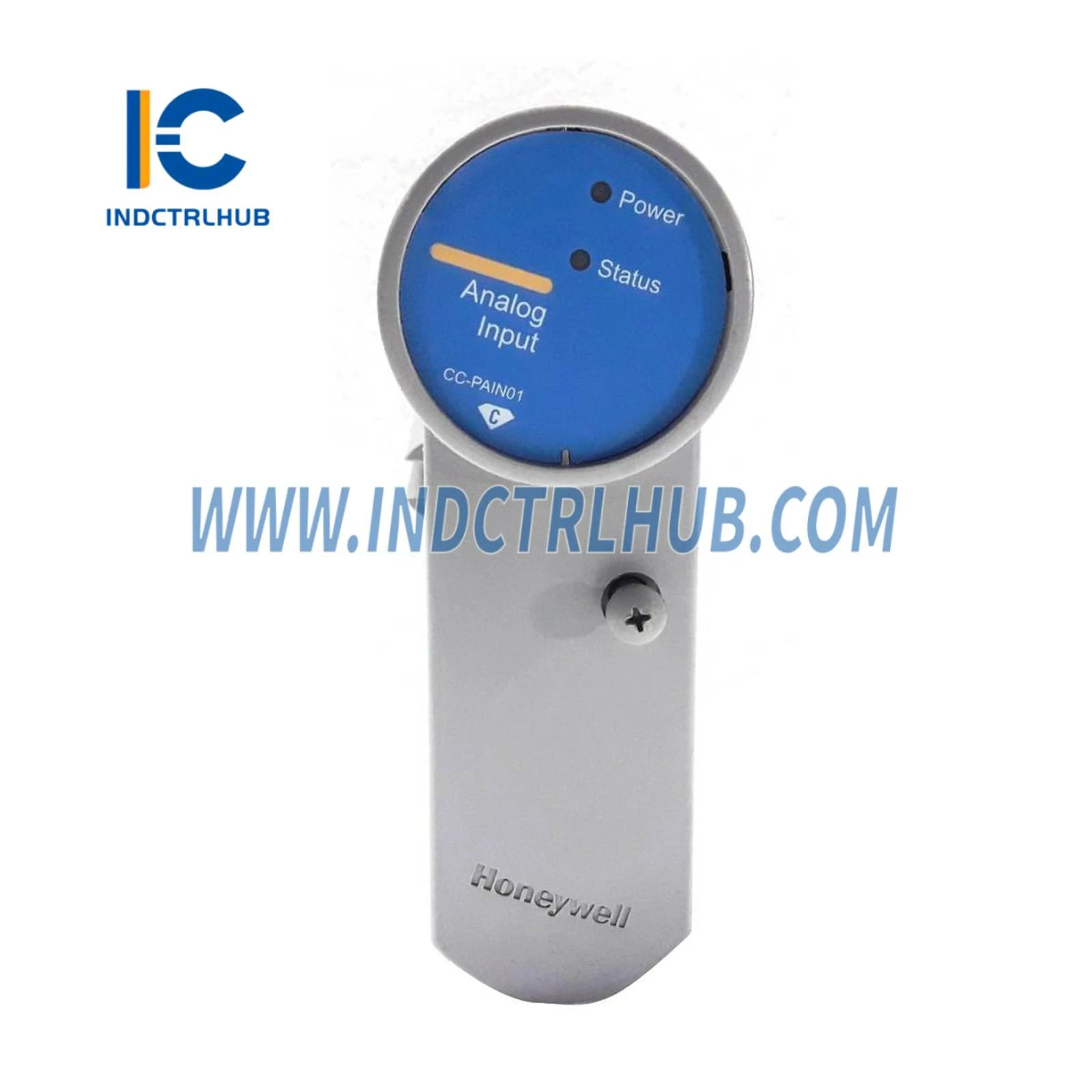

Honeywell CC-PAIN01 51410069-175 Analog Input Module
Product Overview
- The Honeywell CC-PAIN01 51410069-175 is a High-Level Analog Input Module designed for the Experion Process Knowledge System (PKS) Series C platform, specifically for use with the C300 Controller. This module supports 16 single-ended analog input channels, processing high-level current inputs (4-20 mA) from sensing devices like transmitters and sensors. It is designed for non-redundant configurations and is ideal for industrial automation applications in industries such as oil and gas, chemical, and manufacturing.
Technical Specifications
- The CC-PAIN01 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | CC-PAIN01 51410069-175 |
| Manufacturer | Honeywell |
| Description | High-Level Analog Input Module, Non-Redundant, 16 Channels |
| Series | Experion PKS Series C |
| Input Channels | 16 single-ended analog inputs |
| Input Type | 4-20 mA (current), supports 2-wire and 4-wire transmitters |
| Power Supply | 24 VDC nominal (via system backplane) |
| Current Consumption | Approx. 0.18 A at 24 VDC |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approx. 0.35 kg |
