Product Description
Product Overview

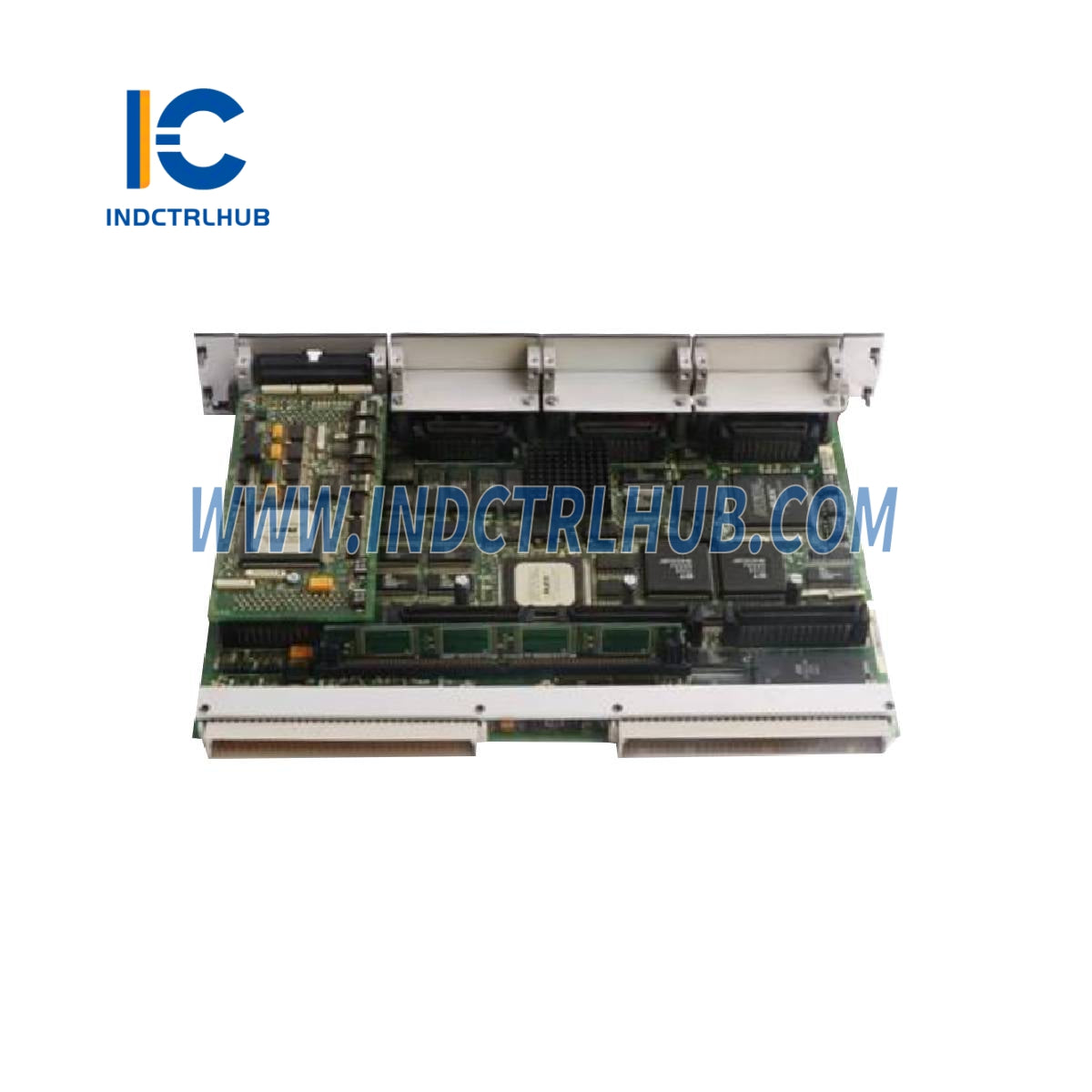

The General Electric DS200DSPCH1A is a Digital Signal Processor Control Board designed for the Mark V Turbine Control System Series. Manufactured by General Electric, this board provides computational capacity and communication bandwidth for direct control of high-performance drives and power converter applications, such as gas and steam turbines. It is widely used in industrial settings, particularly power generation, and supports integration with the Load Commutated Inverter (LCI) systems, enhancing real-time signal processing and control precision.
Technical Specifications
The DS200DSPCH1A has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model/Part Number | DS200DSPCH1A |
| Manufacturer | General Electric |
| Description | Digital Signal Processor Control Board |
| Series | Mark V |
| Processor | Texas Instruments TMS320C32 DSP, 50 MHz |
| Memory | 8K dual-ported SRAM (VME interface), onboard RAM |
| Power Supply | 5 V DC via VME bus |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | 0.45 kg (1 lb) |
Additional Details
The DS200DSPCH1A includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Processes signals for turbine control and LCI applications |
| Mounting | VME rack slot |
| Connectivity | VME bus interface, UART for serial communication |
| Features | 6 LEDs (1 green, 1 red, 4 amber), 2 pushbutton switches (reset, serial boot), expandable I/O |
| Certifications | Designed to support SIL 3 per IEC 61508 (system-dependent) |
