Product Description
Product Details
| Manufacturer | Yokogawa |
|---|---|

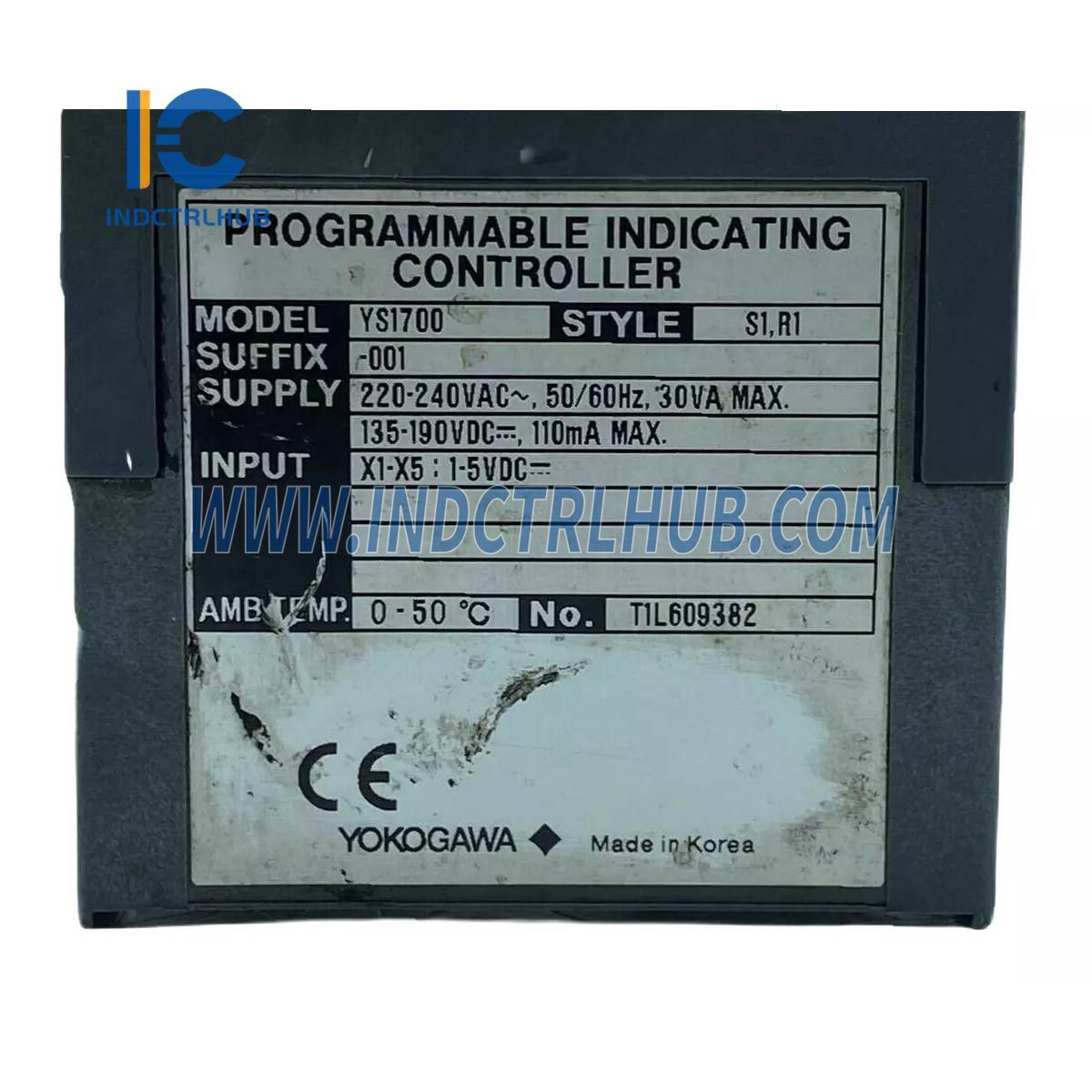

| Model/Part Number | YS1700-001S01 |
| Description | Programmable Indicating Controller |
General Description

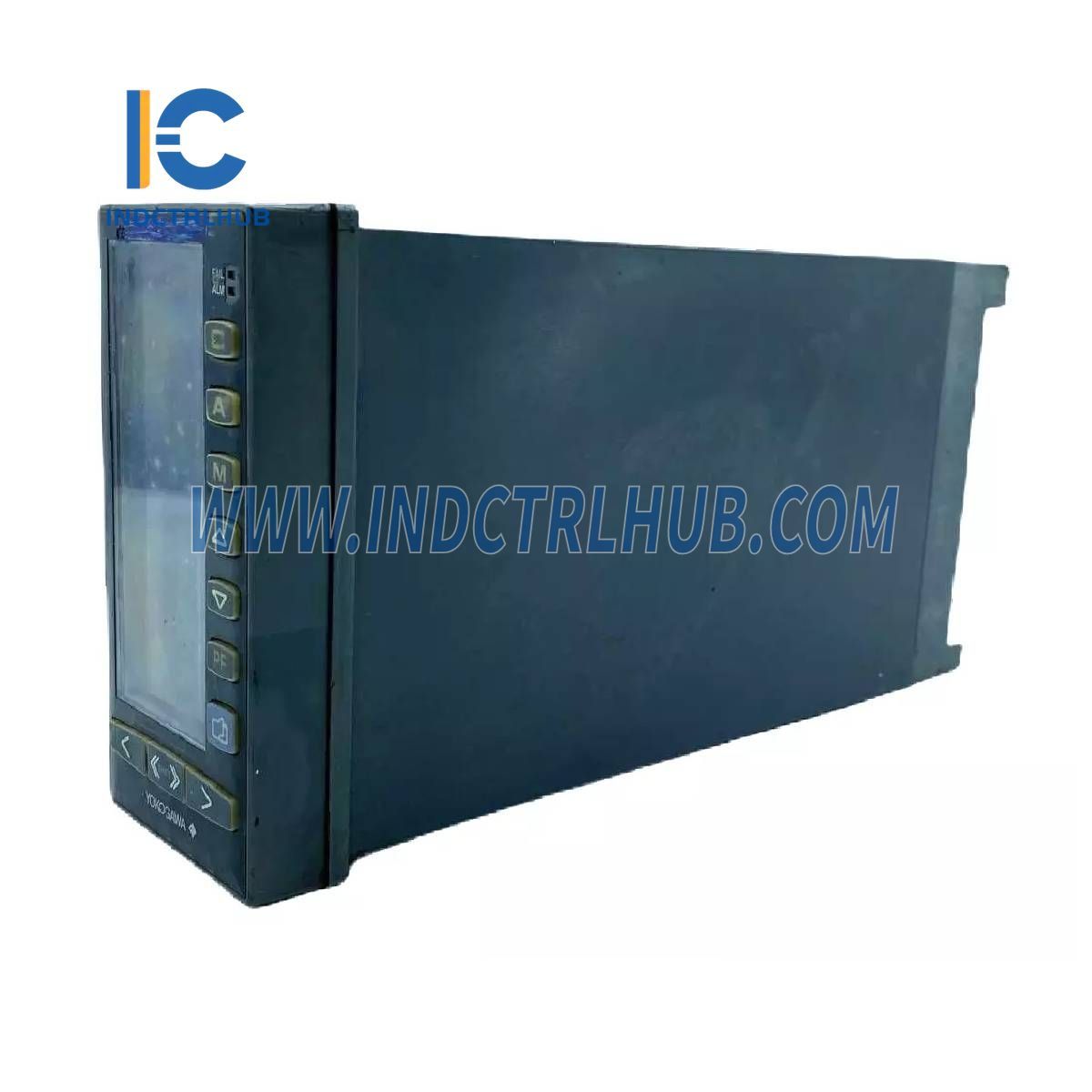

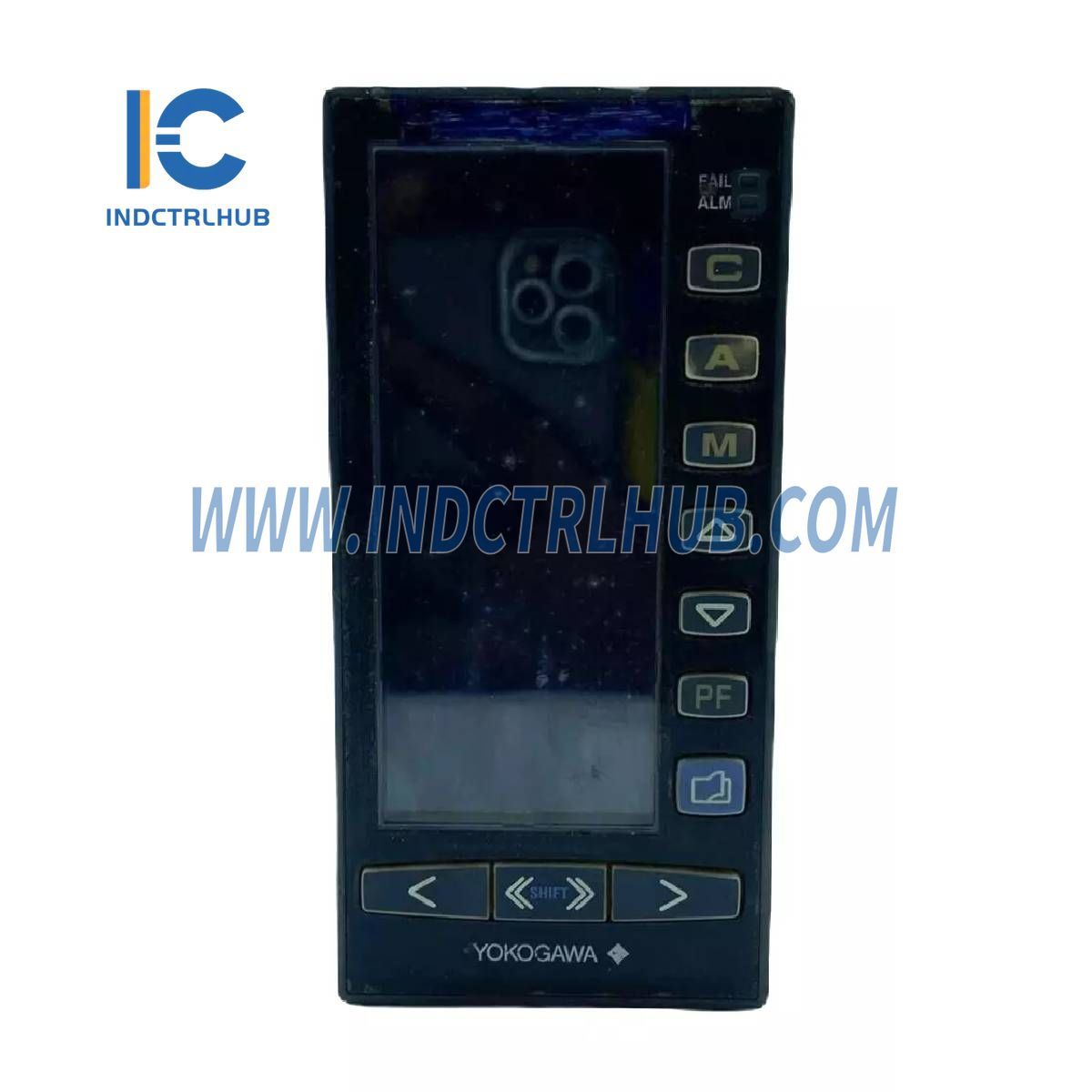

The YS1700 Programmable Indicating Controller is designed for various applications where it can run a user program, providing flexibility and reliability. The controller offers:
- High reliability with Yokogawa’s proprietary technology.
- User friendliness and expandability for easy integration into various systems.
- Compact size: Smaller and lighter than previous models, allowing for easier installation and saving space.
- Compliance with international safety standards: Includes the CE Mark and FM, CSA non-incendive (optional) approvals.
- Compatibility with earlier controllers: Panel cutout dimensions and depth are compatible with earlier models for easier replacement.
Structure and Mounting (Basic Type)
| Item | Specification |
|---|---|
| Case Protection Class | Dust- and splash-proof (IP54-compliant) faceplate |
| Mounting | Indoor panel mounting |
| Panel Mounting Device | Mounting brackets (top and bottom) |
| Panel Cutout | 137 + 2 × 68 + 0.7 mm |
| Wiring Terminals | M4 screw terminals |
| Power Supply and Ground Terminals | M4 screw terminals |
| Dimensions | 144 × 72 × 250 mm (H x W x D from panel plate) |
| Weight | 1.6 kg |
Model and Suffix Codes
The model can be customized using the suffix and option codes for various features.
Model Options:
-
YS1700 Programmable Indicating Controller
- -1 With hard manual unit
- -2 Without hard manual unit
Type Options:
- 0 Basic type
- 1 Basic type with expandable I/O
- 2 Compatible type for YS100 (with YS100 case)
- 3 Compatible type for YS80 internal unit/compatible for EBS, I, EK, HOMAC
- 4 Compatible type for YS80 (compatible size for YS80 with YS100 terminal)
- 5 Compatible type for 100 line (with YS100 terminal)
Power Supply Options:
- 0 100 V AC, 24 V DC common power
- 1 220 V AC power
Direct Input Options:
- /A01 mV input
- /A02 Thermocouple input
- /A03 RTD input
- /A04 Potentiometer input
- /A05 Isolator
- /A06 Two-wire transmitter input (isolated)
- /A07 Two-wire transmitter input (non-isolated)
- /A08 Frequency input
- /DF Direct input with Fahrenheit temperature range function
Communication Options:
- /A31 RS-485 communication (PC-link, Modbus, YS protocol, Peer-to-Peer communication)
- /A32 DCS-LCS communication
- /A34 Ethernet communication (Modbus/TCP)
Certification Options:
- /FM FM non-incendive approved (FM Class I, DIV 2)
- /CSA CSA safety and non-incendive approved (Class I, DIV 2)
