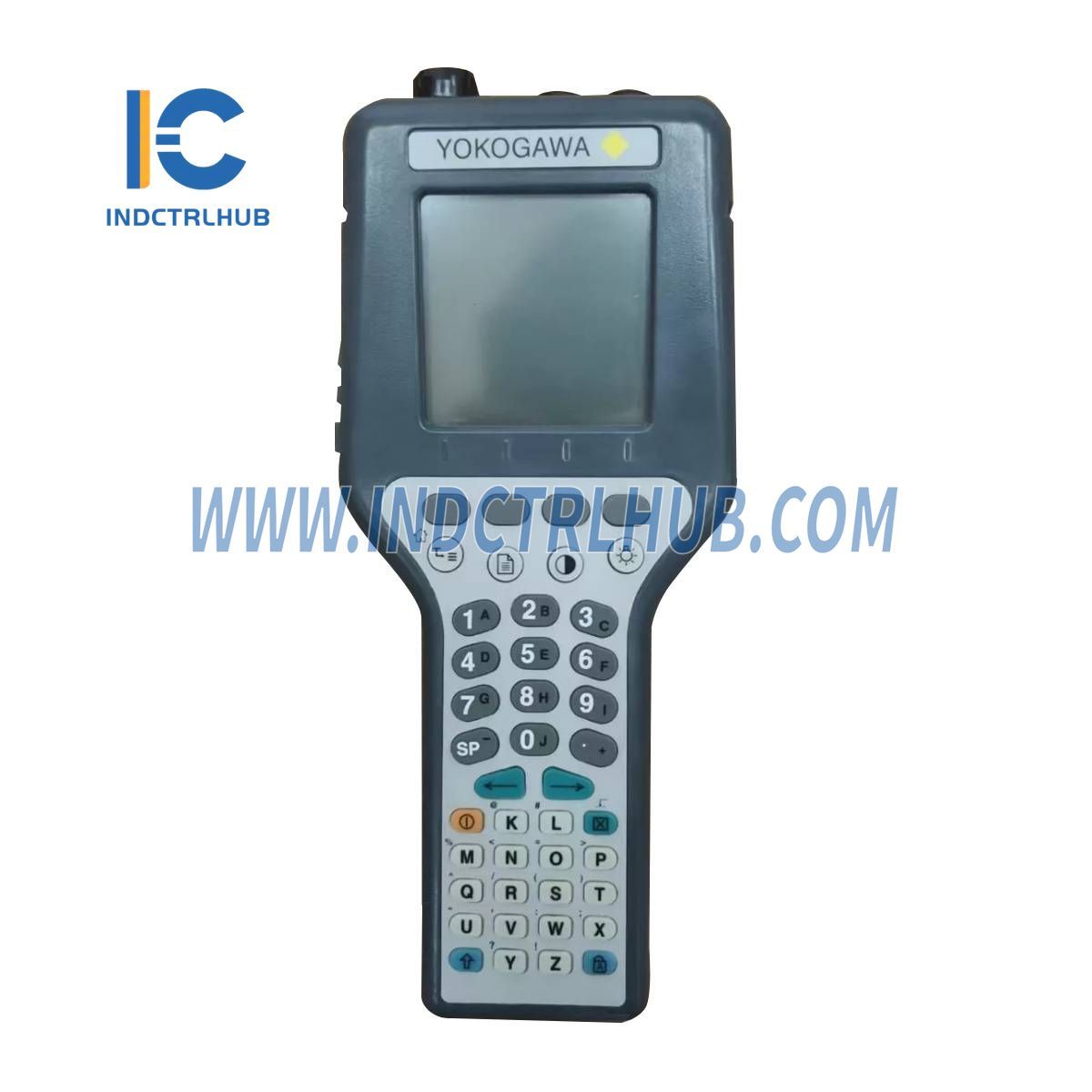

Product Description
Standard Features:
- Battery Life: 60 hours (without backlight) using AA alkaline batteries.
- Quick Startup: 15 seconds to power up and connect.
- Firmware Updates: Ability to update new device profiles and firmware via the internet, ensuring the communicator is never outdated.
- Device Configuration: Supports Clone, Upload, and Download configurations.
- Off-line Mode: Allows configuration development and review without being connected to devices.
- History: Tracks As-found / As-left history with DMS software.
- Display: 13-line, 128 x 128 pixel graphic backlit display.
- Keypad: Full alpha-numeric keypad with dedicated text-editing keys and a Quick Menu access key.
- Programmable Lock-out Settings: To ensure secure operation.
- Ergonomics: Comes with an elastic hand strap, adjustable shoulder strap, and thumb keys for easy operation.
- Custom Soft Case: “Use-in-place” soft case with lead kit compartment for easy portability and organization.
Specifications:
-

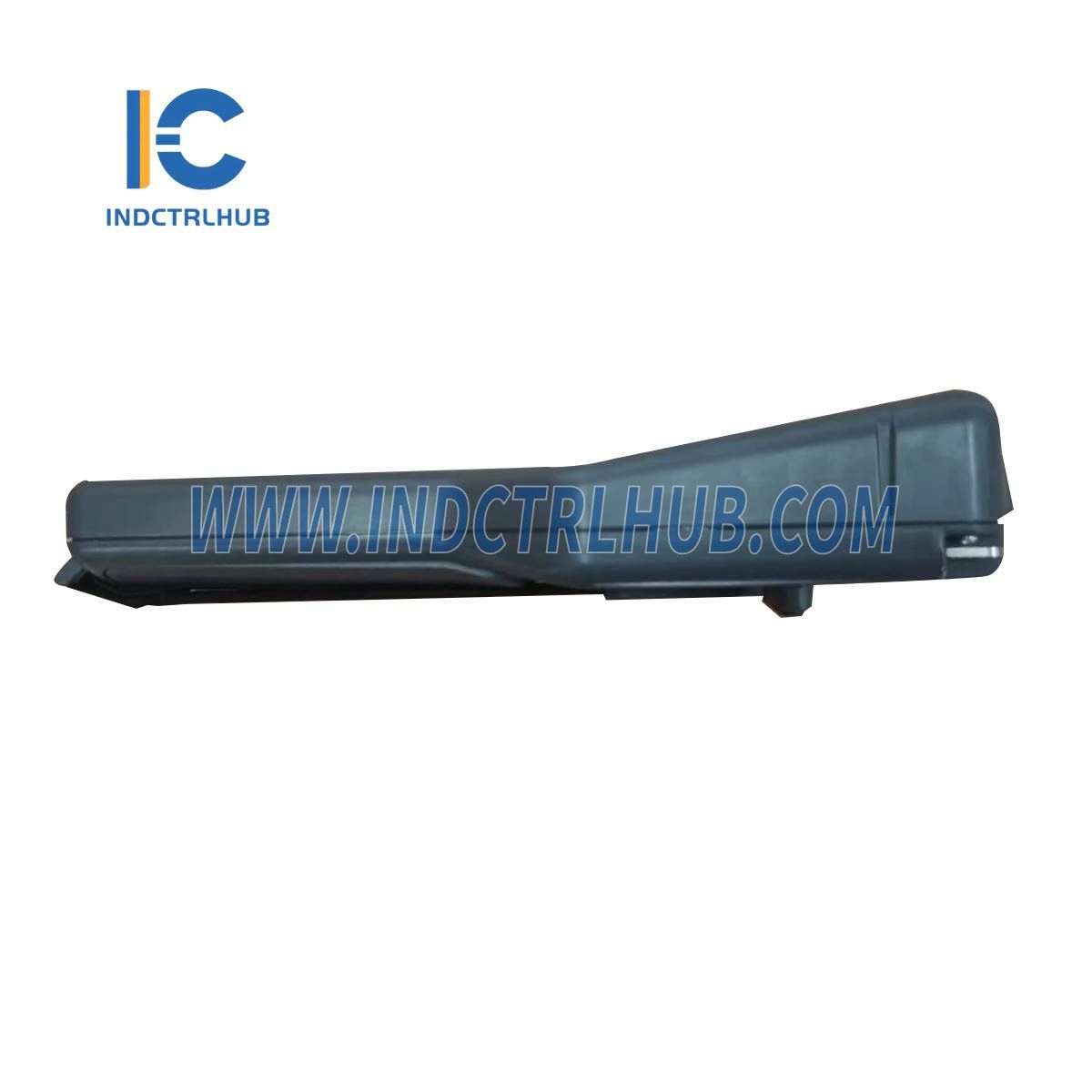

Base Unit Dimensions:
- Length: 103/8”
- Width: 4 1/4” to 2 ½”
- Depth: 1 ¼” to 1 7/8”
- Weight: 1.7 lbs (with batteries)
- Material: ABS plastic case
-
Keypad:
- Membrane keypad with 4 soft keys, 8 single-function keys, 30 dual-function keys, and 3 thumb keys for easy navigation.
-
Display:
- 13-line, 128 x 128 pixel graphic display
- Viewable area: 2.1” x 2.1”
- Backlight for low-light environments
-
Power:
- 6 AA alkaline batteries
- AC power via a 100–240 Vac power adapter (approved alkaline batteries only for intrinsically safe use)
-
Temperature Specifications:
- Storage Temperature: -40°F to 140°F (-40°C to 60°C)
- Operating Temperature: 23°F to 122°F (-5°C to 50°C)
-
Connections:
- Standard banana jacks (¾” center) for HART®
- Odu connector for the dongle (coordinates AC power and DB-9 serial communication)
-

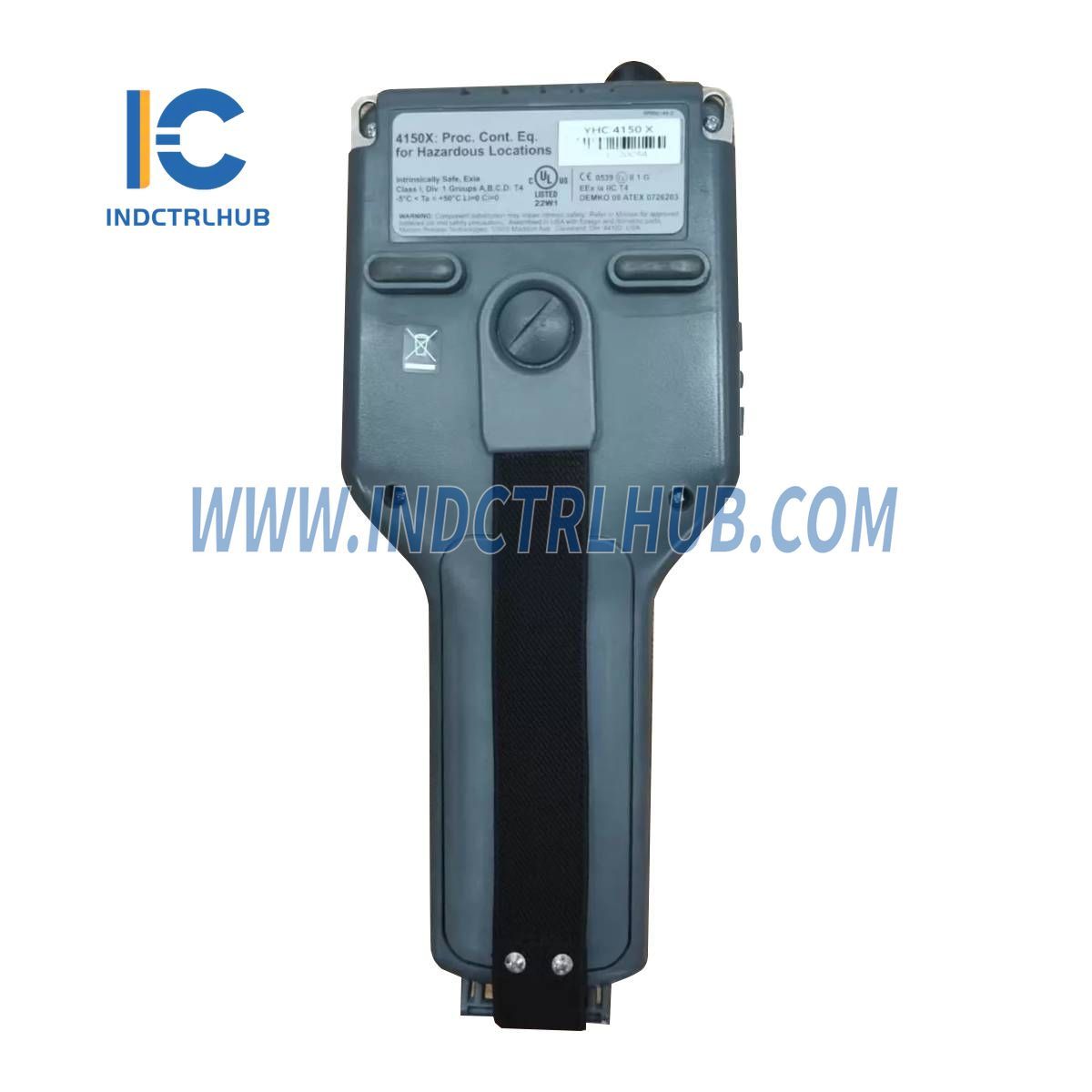

Certification:
- Intrinsically Safe: ATEX, CULUS (approved AA alkaline batteries only)
Included Accessories:
- HART Lead Kit with 250Ω adapter
- Batteries
- AC Power Adapter Dongle
- RS-232 Serial Cable
- Universal Power Adapter
- Protective Boot
- Soft Carrying Case
- Adjustable Shoulder Strap
- User Manual and CD (includes User’s Manual and DPC Manager Utility)
Available Accessories:
- A900529-00014: HART Test Lead Kit
- A36821: 250 Ohm Shunt Resistor
- A900447-00052: DB-9 cable, Male x Female, 6 ft
- 4150-13: Custom Carrying Case
- A36937: Adjustable Detachable Hanging Strap
- 4150-10A: Dongle
- 4150-7G: Protective Boot (green)
- 1078: Keyspan USB to Serial Converter
- A36800: AA Alkaline Batteries (6-pack)
- 9B000007: Power Adapter, Universal Plug Kit
Software Options:
-
DPC Manager Utility (documentation option)
- DPCMAN-CFG-1: 1 client
- DPCMAN-CFG-5: 5 clients
- DPCMAN-CFG-10: 10 clients
- DPCMAN-CFG-15: 15 clients
-
Standard 3-year DOF Download Subscription Renewal:
- DLS-Subscript-1: Per unit
