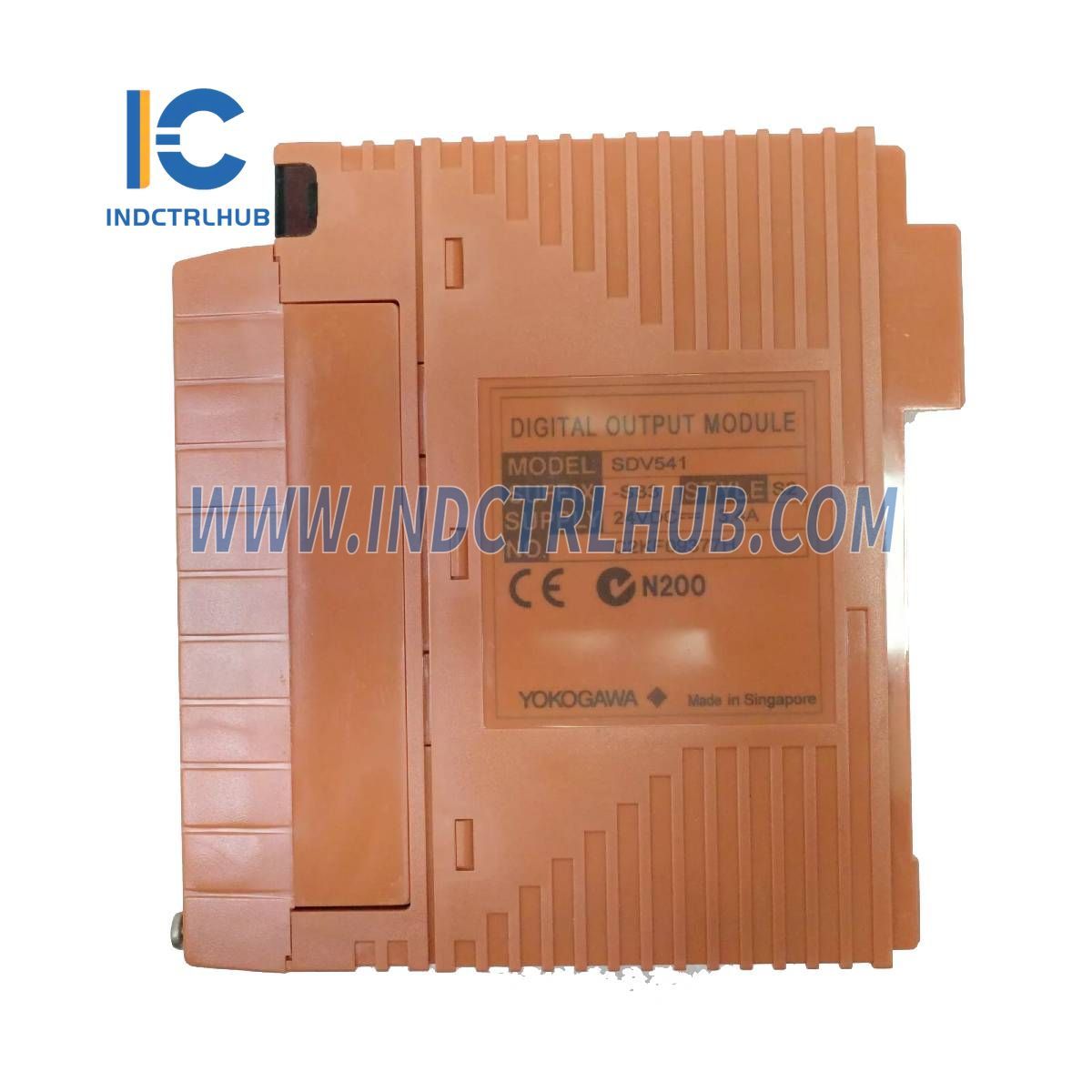

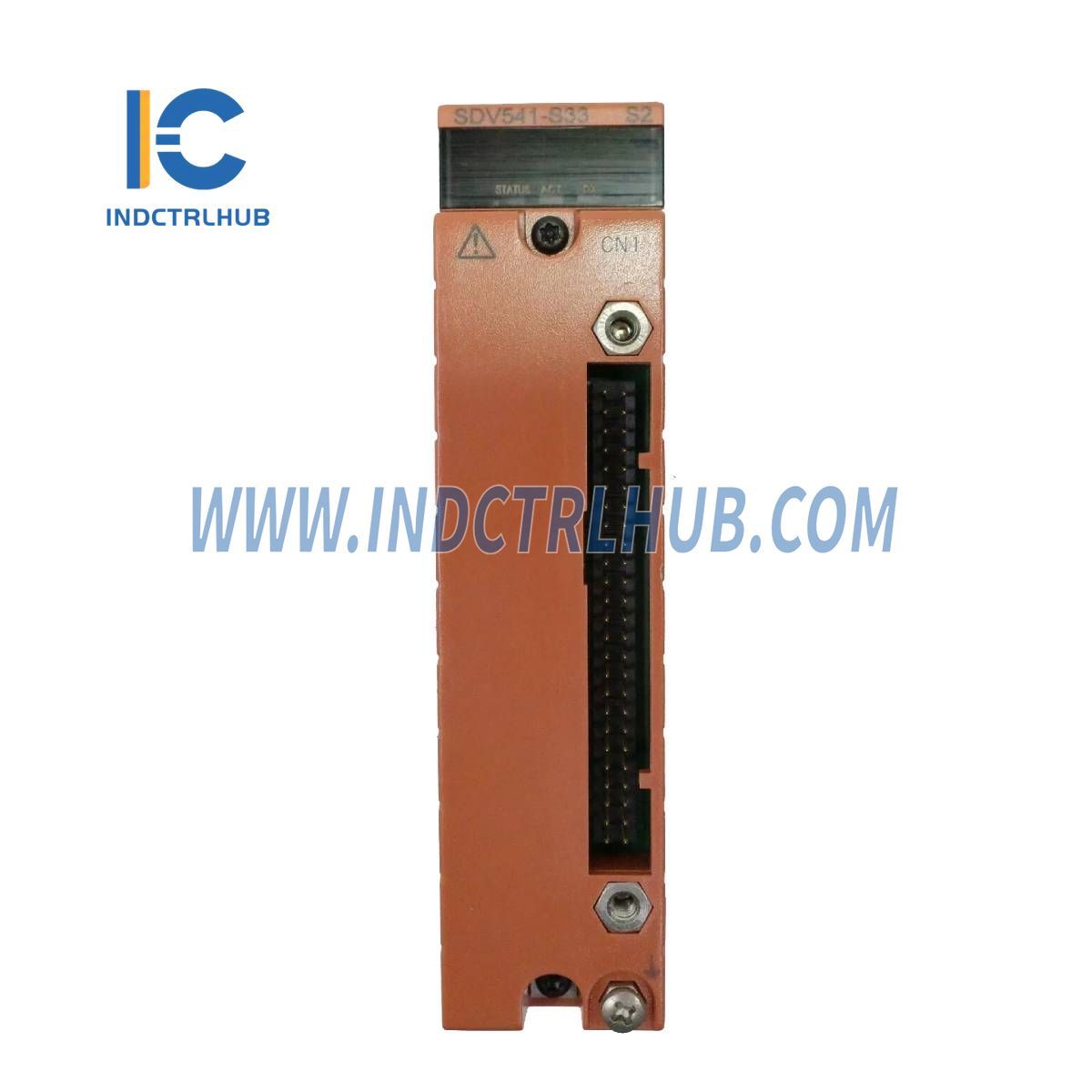

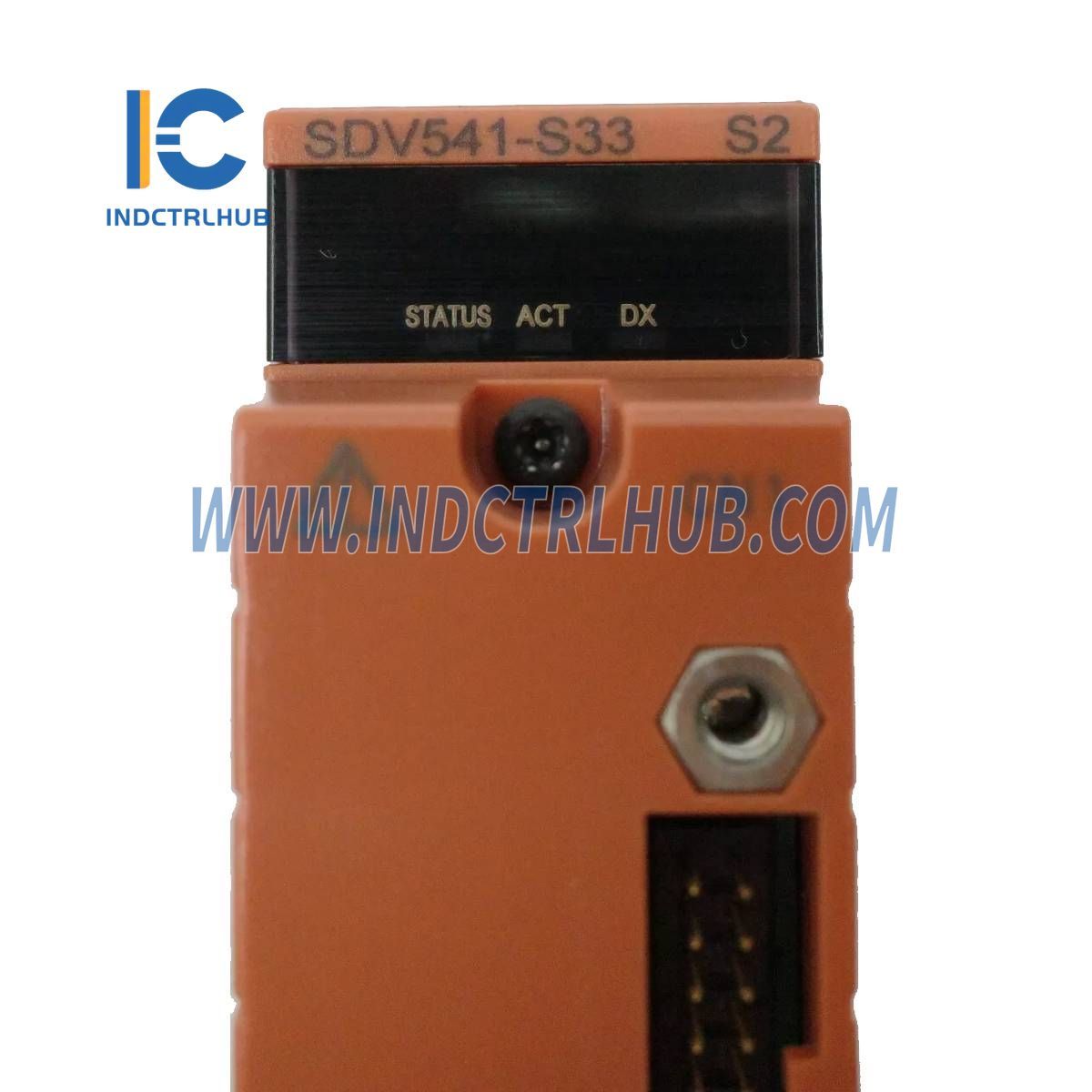

Product Description
General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
SDV541-S33 S2 |
|
Description |
Digital Output Module |
Item Specifications
|
Item |
Specification |
|---|---|
|
Number of Outputs |
16-channel, module isolation (*3) |
|
Output Voltage |
24 V DC |
|
Output Voltage Drop |
1 V maximum |
|
External Power Supply Rating |
24 V DC, 3.4 A minimum |
|
External Power Supply |
24 V DC + 20 % / -10 % (*4) |
|
Current Capacity |
3.4 A |
|
Maximum Leak Current (Output Off) |
1.6 mA |
|
Output Format |
Current source |
|
Maximum Load Current |
0.2 A/output line (3.2 A in total output line) (*3) (*5) |
|
Minimum Load Current |
35 mA |
|
Load Resistance Range |
120 to 685 Ω (*6) |
|
Output Response Time |
30 ms maximum |
|
Withstand Voltage (*1) (*2) |
2 kV AC between output signal lines and system for 1 minute, 16-point input lines collectively connected (negative lines) (*7) |
|
Current Consumption |
300 mA maximum (5 V DC), 150 mA maximum (24 V DC) |
|
Weight |
Approx. 0.29 kg (For pressure clamp terminal block or MIL cable), Approx. 0.31 kg (With dedicated signal cable interface adapter) |
|
External Connection |
Pressure clamp terminal, MIL cable, Dedicated signal cable (AKB331, AKB651) |
Model and Suffix Codes
|
Description |
Model |
Suffix Code |
Specification |
|---|---|---|---|
|
Digital Output Module (16-channel, 24 V DC, module isolation) |
SDV541 |
-S |
Standard type |
|
5 |
For pressure clamp terminal block or MIL cable with no explosion protection |
||
|
6 |
With signal cable interface adapter and no explosion protection (*1) |
||
|
E |
For pressure clamp terminal block or MIL cable with explosion protection |
||
|
F |
With signal cable interface adapter and explosion protection (*1) |
||
|
3 |
With ISA Standard G3 and temperature (-20 to 70 °C) |
||
|
C |
With ISA Standard G3 and high-density installation (-20 to 70 ºC) |
Option Codes
|
Option Code |
Description |
|---|---|
|
/B4S00 |
With pressure clamp terminal block for digital output (without surge absorber) [Model: STB4S-00] |
|
/B4S10 |
With pressure clamp terminal block for digital output (with surge absorber) [Model: STB4S-10] |
|
/B4D00 |
With dual-redundant pressure clamp terminal block for digital output (without surge absorber) (*2) [Model: STB4D-00] |
|
/B4D10 |
With dual-redundant pressure clamp terminal block for digital output (with surge absorber) (*2) [Model: STB4D-10] |
|
/PRP |
With prevention pin of false insertion (*3) |
|
/CCC01 |
With connector cover for MIL cable (for flat ribbon cable) [Model: SCCC01] |
|
/CCC02 |
With connector cover for MIL cable (for discrete wire cable) [Model: SCCC02] |
