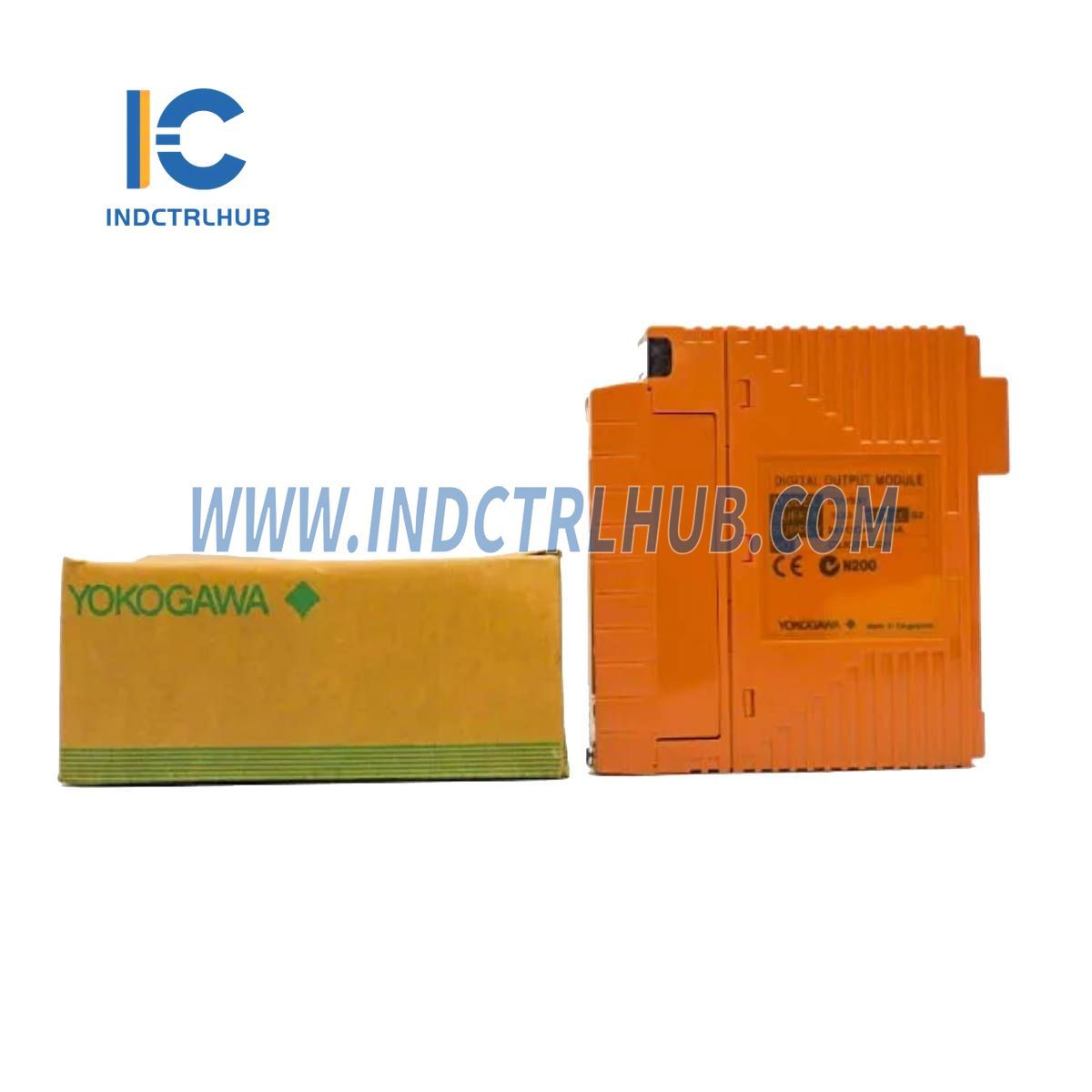

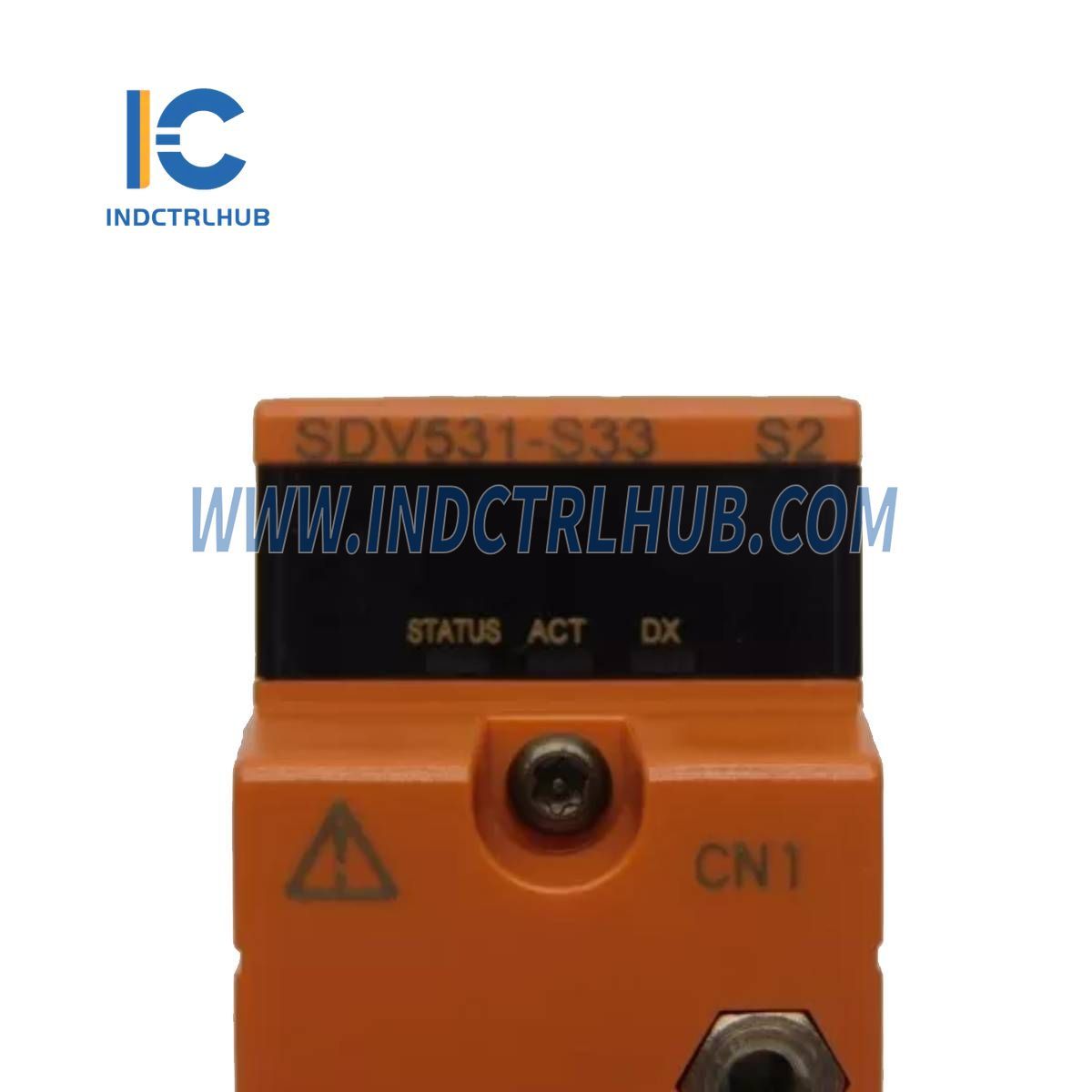

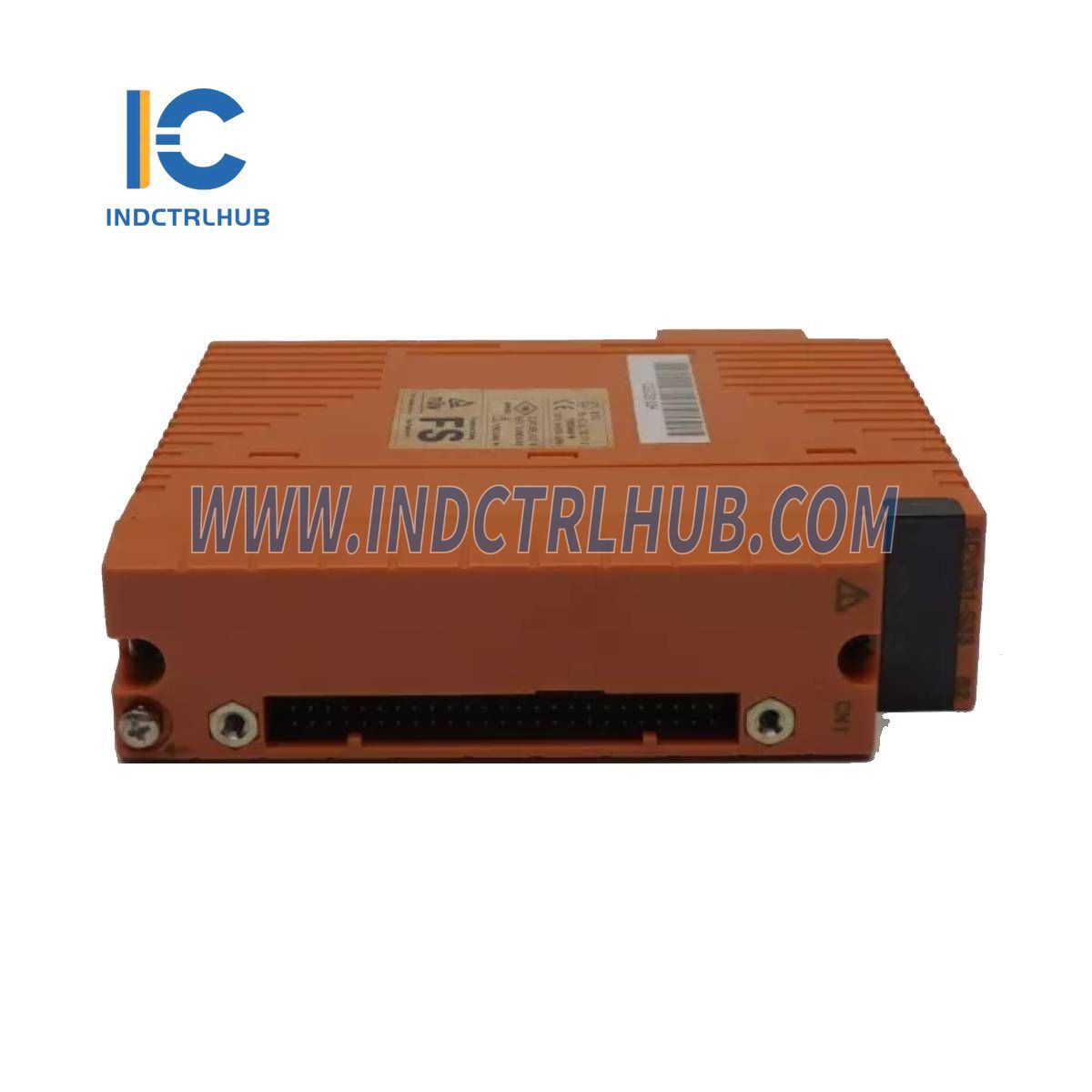

Yokogawa SDV531-S33 S2 Digital output modul

Yokogawa SDV531-S33 S2 Digital output modul

  • Manufacturer: Yokogawa

  • Product No.: SDV531-S33 S2

  • Condition:1000 in stock

  • Product Type: Digital output module

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 280g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

Parameter

Value

Manufacturer

Yokogawa

Model/Part Number

SDV531-S33 S2

Product Description

Digital Output Module (8-channel, 24 V DC, module isolation)

Standard Specifications

Item

Specification

Number of Outputs

8-channel, module isolation (*3)

Output Voltage

24 V DC

Output Voltage Drop

1 V maximum

External Power Supply Rating

24 V DC, 5 A minimum

External Power Supply

24 V DC +20% / -10% (*4)

Current Capacity

5 A

Maximum Leak Current (Output Off)

1.6 mA

Output Format

Current source

Maximum Load Current

0.6 A/output line (4.8 A total) (*3) (*5)

Minimum Load Current

35 mA

Load Resistance Range

40 to 685 Ω (*6)

Output Response Time

30 ms maximum

Withstand Voltage

2 kV AC between output signal lines and system for 1 min, 8-point input lines collectively connected (negative lines) (*7)

Current Consumption

280 mA max (5 V DC) / 140 mA max (24 V DC)

Weight

Approx. 0.28 kg (For pressure clamp terminal block or MIL cable) Approx. 0.34 kg (With dedicated signal cable interface adapter)

External Connection

Pressure clamp terminal / MIL cable / Dedicated signal cable (AKB331, AKB651 (*8))

Model Variations & Options


Model Variations (Suffix Codes)

Suffix Code

Description

-L

Long distance type

-S

Standard type

5

For pressure clamp terminal block or MIL cable (no explosion protection)

6

With signal cable interface adapter (no explosion protection) (*1)

E

For pressure clamp terminal block or MIL cable (explosion protection)

F

With signal cable interface adapter (explosion protection) (*1)

3

With ISA Standard G3 and temperature range (-20 to 70 °C)

C

With ISA Standard G3 and high-density installation (-20 to 70 ºC) (*4)

Option Codes

Option Code

Description

/B4S00

With pressure clamp terminal block for digital output (without surge absorber) [Model: STB4S-00]

/B4S10

With pressure clamp terminal block for digital output (with surge absorber) [Model: STB4S-10]

/B4D00

With dual-redundant pressure clamp terminal block for digital output (without surge absorber) (*2) [Model: STB4D-00]

/B4D10

With dual-redundant pressure clamp terminal block for digital output (with surge absorber) (*2) [Model: STB4D-10]

/PRP

With prevention pin of false insertion (*3)

/CCC01

With connector cover for MIL cable (for flat ribbon cable) [Model: SCCC01]

/CCC02

With connector cover for MIL cable (for discrete wire) [Model: SCCC02]



View full details

Product Description

General Information

Parameter

Value

Manufacturer

Yokogawa

Model/Part Number

SDV531-S33 S2

Product Description

Digital Output Module (8-channel, 24 V DC, module isolation)

Standard Specifications

Item

Specification

Number of Outputs

8-channel, module isolation (*3)

Output Voltage

24 V DC

Output Voltage Drop

1 V maximum

External Power Supply Rating

24 V DC, 5 A minimum

External Power Supply

24 V DC +20% / -10% (*4)

Current Capacity

5 A

Maximum Leak Current (Output Off)

1.6 mA

Output Format

Current source

Maximum Load Current

0.6 A/output line (4.8 A total) (*3) (*5)

Minimum Load Current

35 mA

Load Resistance Range

40 to 685 Ω (*6)

Output Response Time

30 ms maximum

Withstand Voltage

2 kV AC between output signal lines and system for 1 min, 8-point input lines collectively connected (negative lines) (*7)

Current Consumption

280 mA max (5 V DC) / 140 mA max (24 V DC)

Weight

Approx. 0.28 kg (For pressure clamp terminal block or MIL cable) Approx. 0.34 kg (With dedicated signal cable interface adapter)

External Connection

Pressure clamp terminal / MIL cable / Dedicated signal cable (AKB331, AKB651 (*8))

Model Variations & Options


Model Variations (Suffix Codes)

Suffix Code

Description

-L

Long distance type

-S

Standard type

5

For pressure clamp terminal block or MIL cable (no explosion protection)

6

With signal cable interface adapter (no explosion protection) (*1)

E

For pressure clamp terminal block or MIL cable (explosion protection)

F

With signal cable interface adapter (explosion protection) (*1)

3

With ISA Standard G3 and temperature range (-20 to 70 °C)

C

With ISA Standard G3 and high-density installation (-20 to 70 ºC) (*4)

Option Codes

Option Code

Description

/B4S00

With pressure clamp terminal block for digital output (without surge absorber) [Model: STB4S-00]

/B4S10

With pressure clamp terminal block for digital output (with surge absorber) [Model: STB4S-10]

/B4D00

With dual-redundant pressure clamp terminal block for digital output (without surge absorber) (*2) [Model: STB4D-00]

/B4D10

With dual-redundant pressure clamp terminal block for digital output (with surge absorber) (*2) [Model: STB4D-10]

/PRP

With prevention pin of false insertion (*3)

/CCC01

With connector cover for MIL cable (for flat ribbon cable) [Model: SCCC01]

/CCC02

With connector cover for MIL cable (for discrete wire) [Model: SCCC02]
