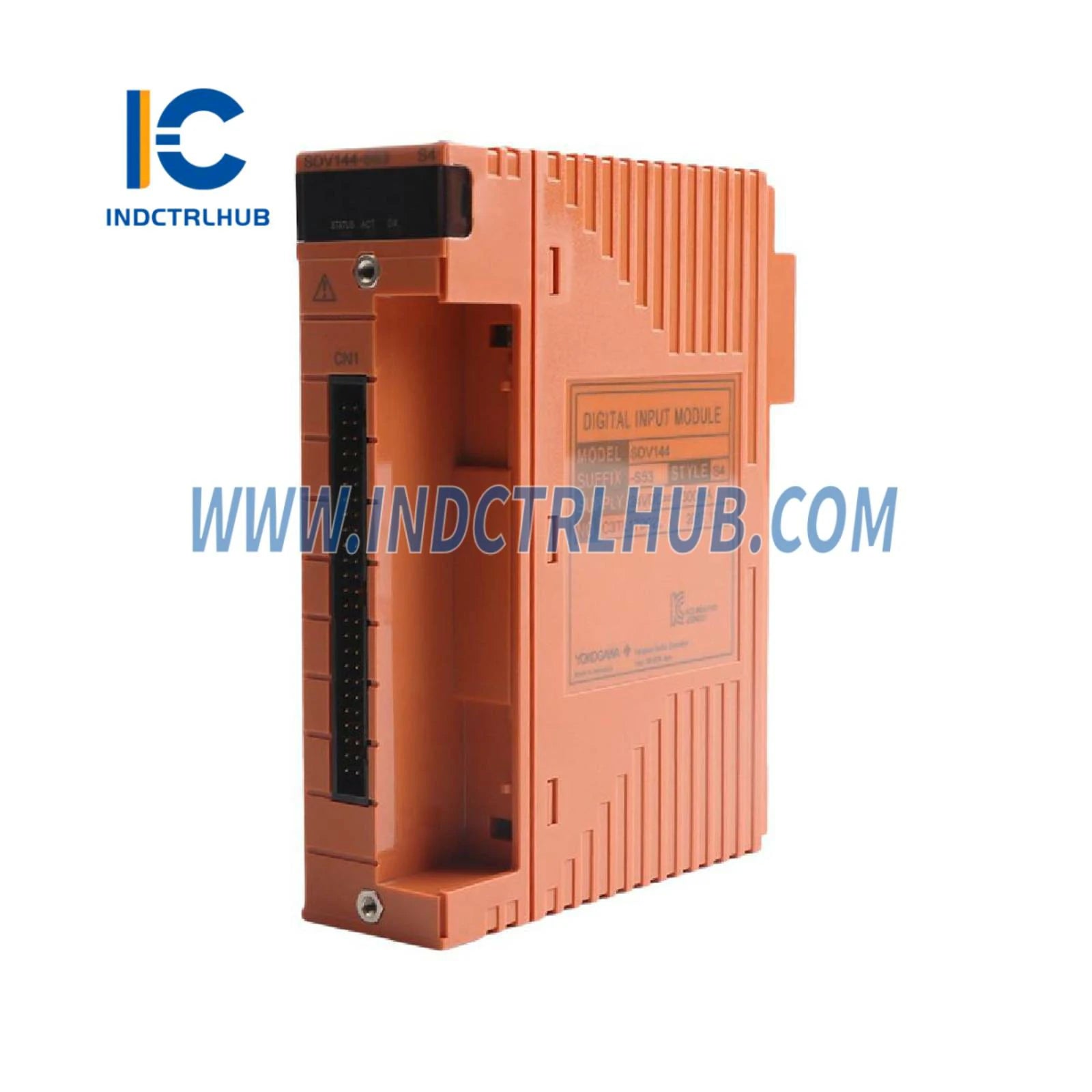

Yokogawa SDV144-S63 Digital Input Module

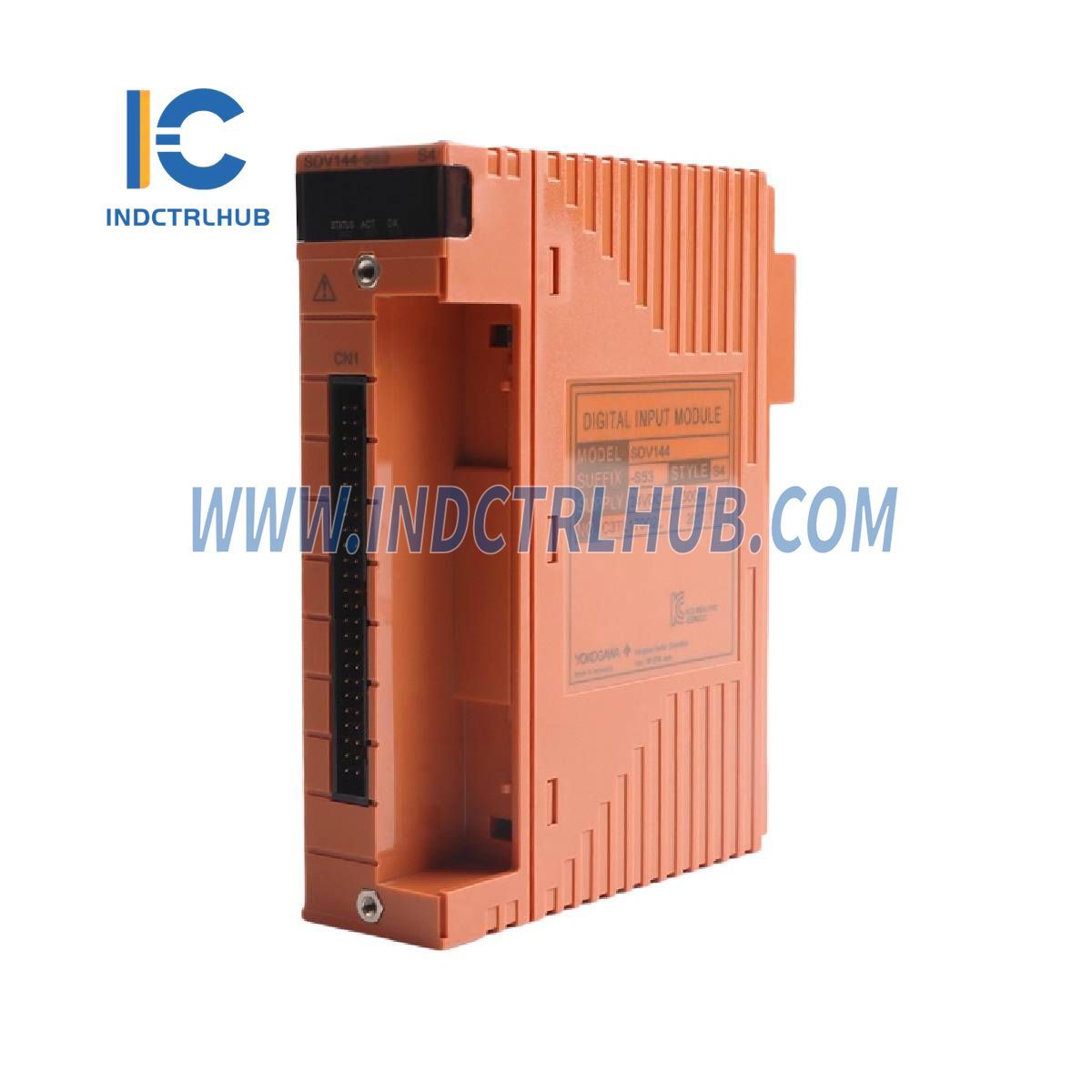

Yokogawa SDV144-S63 Digital Input Module

  • Manufacturer: Yokogawa

  • Product No.: SDV144-S63

  • Condition:1000 in stock

  • Product Type: Digital Input Module

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 360g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

Parameter

Value

Manufacturer

Yokogawa

Model/Part Number

SDV144-S63

Product Description

Digital Input Module (16-channel, 24 V DC, module isolation)

Standard Specifications

Item

Specification

Number of Inputs

16-channel, module isolation (*3)

Input Signal

No-voltage contact

ON Resistance

1 kΩ maximum

OFF Resistance

100 kΩ minimum

Input Current

6 mA ± 20% (External power supply, 24 V DC at 0 Ω input)

Contact Rating

24 V DC +20% / -10%, 10 mA or greater

External Power Supply

24 V DC +20% / -10% (*3) (*4)

Current Capacity

200 mA

Instantaneous Maximum Permissible Input Voltage

30.0 V DC

Input Response Time

40 ms maximum

Withstand Voltage

2 kV AC between input signal and system for 1 minute, 16-input line collectively connected (*5)

Current Consumption

290 mA max (5 V DC) / 140 mA max (24 V DC)

Weight

Approx. 0.36 kg (For pressure clamp terminal block or MIL cable) Approx. 0.41 kg (With signal cable interface adapter)

External Connection

Pressure clamp terminal / MIL cable / Dedicated signal cable (AKB331)

Model Variations & Options


Model Variations (Suffix Codes)

Suffix Code

Description

-S

Standard type

5

For pressure clamp terminal block or MIL cable (no explosion protection)

6

With signal cable interface adapter (no explosion protection) (*1)

E

For pressure clamp terminal block or MIL cable (explosion protection)

F

With signal cable interface adapter (explosion protection) (*1)

3

With ISA Standard G3 and temperature range (-20 to 70 °C)

C

With ISA Standard G3 and high-density installation (-20 to 70 ºC)

Option Codes

Option Code

Description

/B4S00

With pressure clamp terminal block for digital input (without surge absorber) [Model: STB4S-00]

/B4S10

With pressure clamp terminal block for digital input (with surge absorber) [Model: STB4S-10]

/B4D00

With dual-redundant pressure clamp terminal block for digital input (without surge absorber) (*2) [Model: STB4D-00]

/B4D10

With dual-redundant pressure clamp terminal block for digital input (with surge absorber) (*2) [Model: STB4D-10]

/PRP

With prevention pin of false insertion (*3)

/CCC01

With connector cover for MIL cable (for flat ribbon cable) [Model: SCCC01]

/CCC02

With connector cover for MIL cable (for discrete wire) [Model: SCCC02]
