Product Description
Product Details
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
SDV144-S53 |
|
Description |

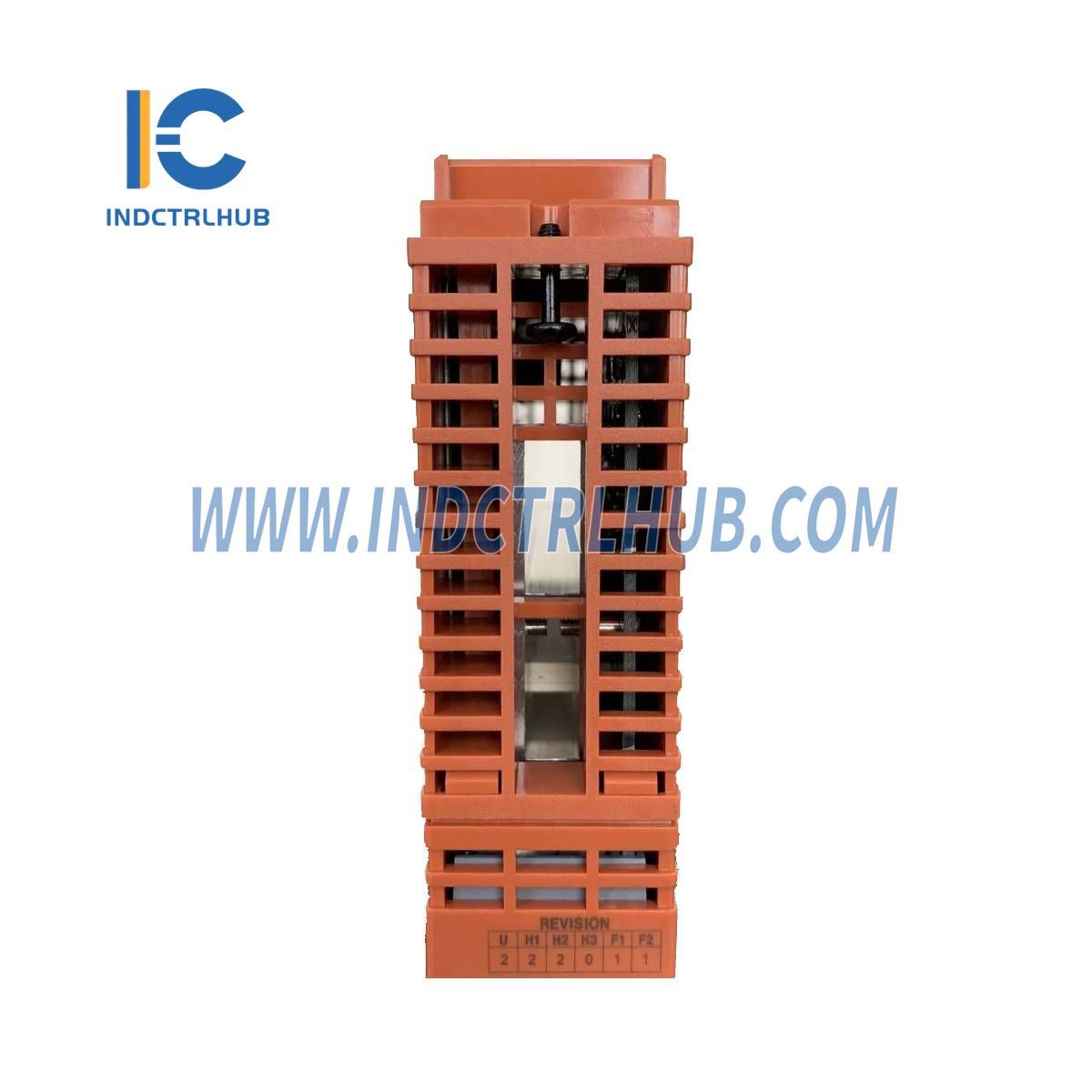

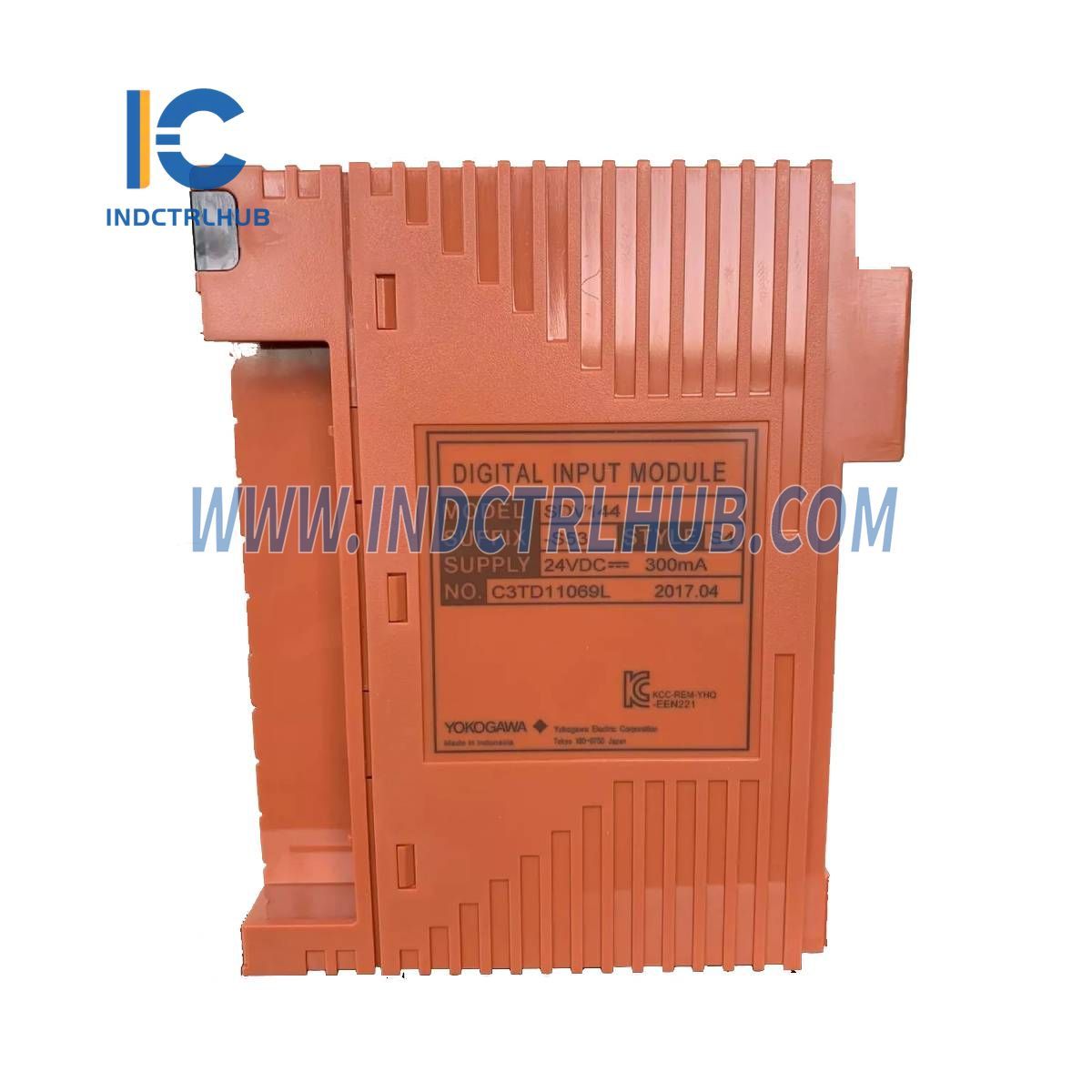

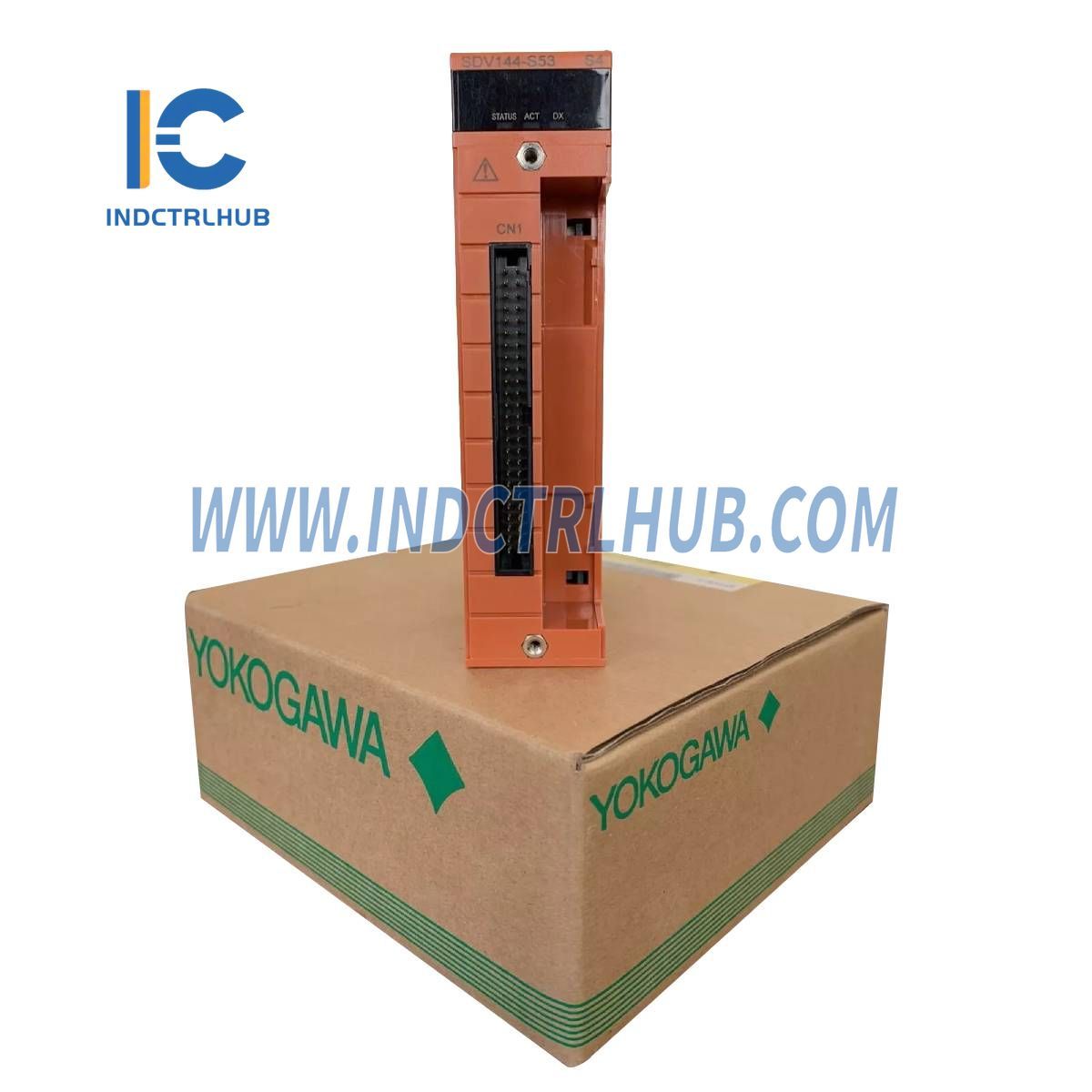

Digital Input Module |
Standard Specifications
|
Item |
SDV144 |
|---|---|
|
Number of Inputs |
16-channel, module isolation |
|
Input Signal |
No-voltage contact |
|
ON Resistance |
1 kΩ maximum |
|
OFF Resistance |
100 kΩ minimum |
|
Input Current |
6 mA ± 20% (at 24 V DC, 0 Ω input) |
|
Contact Rating |
24 V DC +20% / -10%, 10 mA or greater |
|
External Power Supply |
24 V DC +20% / -10%, 200 mA capacity |
|
Instantaneous Max. Permissible Input Voltage |
30.0 V DC |
|
Input Response Time |
40 ms maximum |
|
Withstand Voltage |
2 kV AC (between input signal and system for 1 min, 16-input line collectively connected) |
|
Current Consumption |
290 mA max. (5 V DC) 140 mA max. (24 V DC) |
|
Weight |
Approx. 0.36 kg (Pressure clamp terminal block or MIL cable) Approx. 0.41 kg (With signal cable interface adapter) |
|
External Connection |
- Pressure clamp terminal - MIL cable - Dedicated signal cable (AKB331) |
Model and Suffix Codes
|
Description |
Code |
|---|---|
|
Digital Input Module (16-channel, 24 V DC, module isolation) |
SDV144 |
|
Suffix Codes |
|
|
Standard Type |
-S |
|
Pressure Clamp Terminal Block or MIL Cable (No Explosion Protection) |
5 |
|
With Signal Cable Interface Adapter (No Explosion Protection) |
6 |
|
Pressure Clamp Terminal Block or MIL Cable (With Explosion Protection) |
E |
|
With Signal Cable Interface Adapter (With Explosion Protection) |
F |
|
ISA Standard G3 & Temperature (-20 to 70°C) |
3 |
|
ISA Standard G3 & High-Density Installation (-20 to 70°C) |
C |
Option Codes
|
Option |
Code |
|---|---|
|
Pressure Clamp Terminal Block (Without Surge Absorber) |
/B4S00 |
|
Pressure Clamp Terminal Block (With Surge Absorber) |
/B4S10 |
|
Dual-Redundant Pressure Clamp Terminal Block (Without Surge Absorber) |
/B4D00 |
|
Dual-Redundant Pressure Clamp Terminal Block (With Surge Absorber) |
/B4D10 |
|
Prevention Pin for False Insertion |
/PRP |
|
Connector Cover for MIL Cable (Flat Ribbon Cable) |
/CCC01 |
|
Connector Cover for MIL Cable (Discrete Wire) |
/CCC02 |
