Product Description
General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
SDV144-S33 S2 |
|
Description |

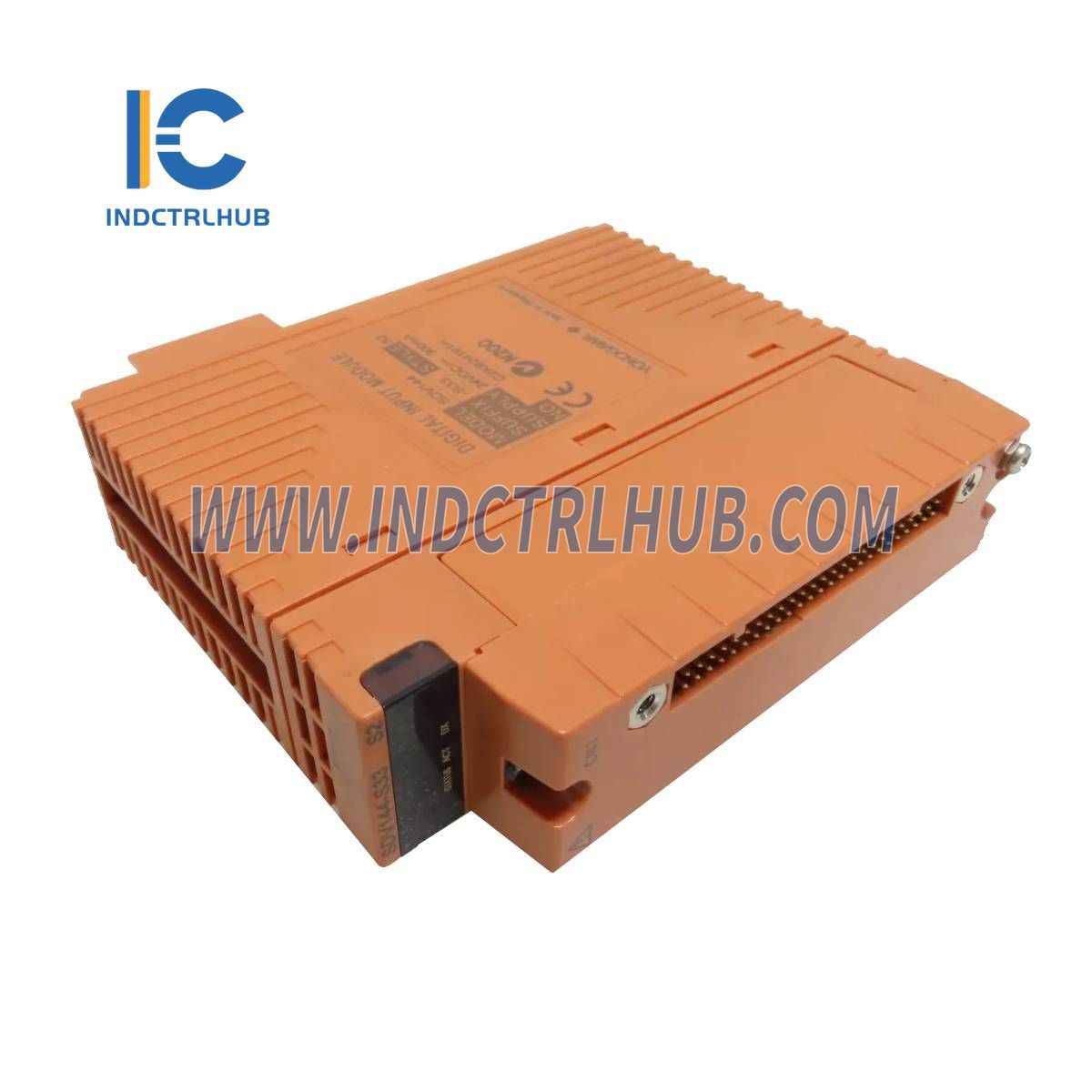

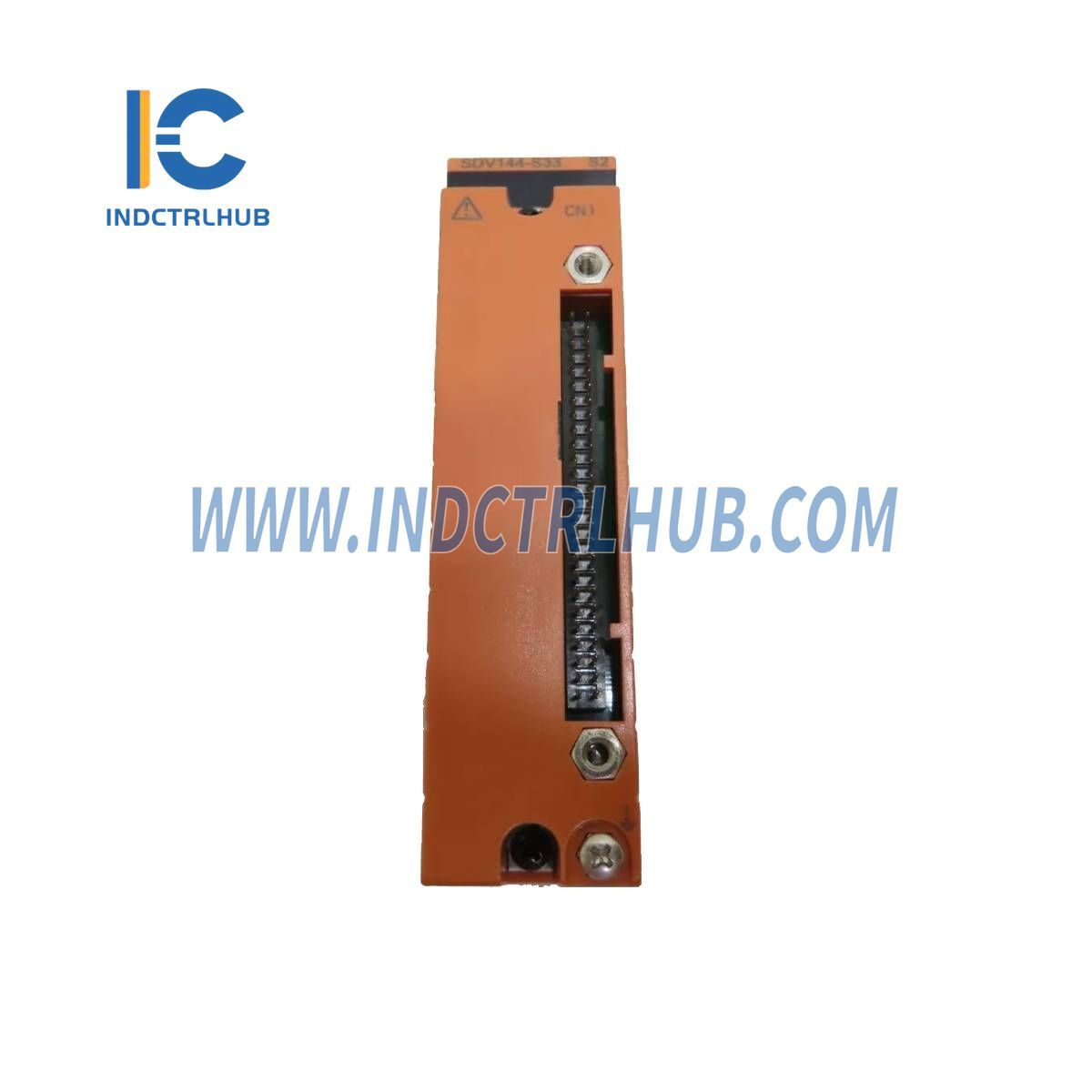

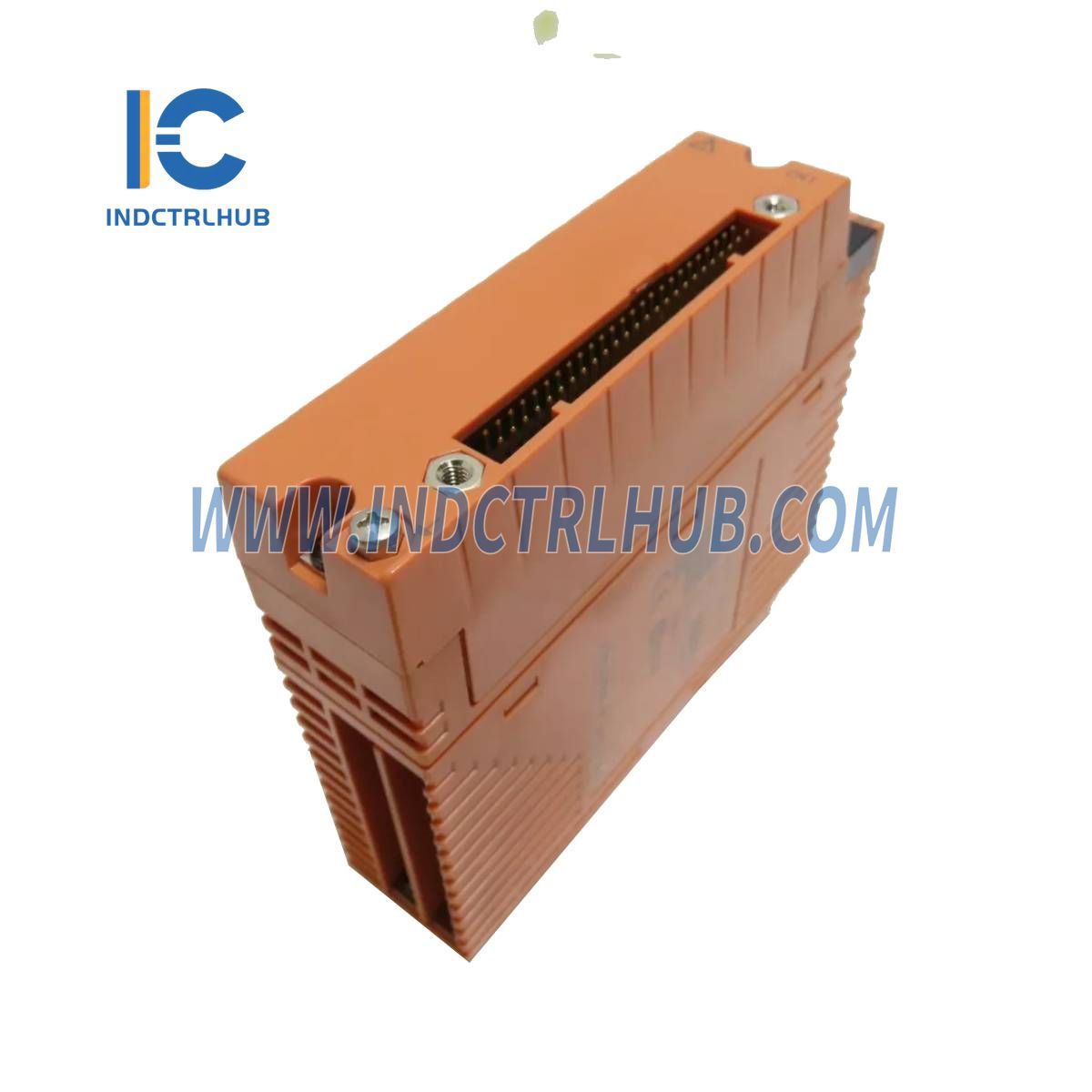

Digital Input Module |
Item Specifications
|
Item |
Specification |
|---|---|
|
Number of Inputs |
16-channel, module isolation (*3) |
|
Input Signal |
No-voltage contact |
|
ON Resistance |
1 kΩ maximum |
|
OFF Resistance |
100 kΩ minimum |
|
Input Current |
6 mA ± 20 % (External power supply, 24 V DC at 0 Ω input) |
|
Contact Rating |
24 V DC +20 % / -10 % (*4), 10 mA or greater |
|
External Power Supply |
24 V DC +20 % / -10 % (*3) (*4) |
|
Current Capacity |
200 mA |
|
Instantaneous Maximum Permissible Input Voltage |
30.0 V DC |
|
Input Response Time |
40 ms maximum |
|
Withstand Voltage (*1) (*2) |
2 kV AC between input signal and system for 1 minute, 16-input line collectively connected (*5) |
|
Current Consumption |
290 mA maximum (5 V DC), 140 mA maximum (24 V DC) |
|
Weight |
Approx. 0.36 kg (For pressure clamp terminal block or MIL cable), Approx. 0.41 kg (With signal cable interface adapter) |
|
External Connection |
Pressure clamp terminal, MIL cable, Dedicated signal cable (AKB331) |
Model and Suffix Codes
|
Description |
Model |
Suffix Code |
Specification |
|---|---|---|---|
|
Digital Input Module (16-channel, 24 V DC, module isolation) |
SDV144 |
-S |
Standard type |
|
5 |
For pressure clamp terminal block or MIL cable with no explosion protection |
||
|
6 |
With signal cable interface adapter and no explosion protection (*1) |
||
|
E |
For pressure clamp terminal block or MIL cable with explosion protection |
||
|
F |
With signal cable interface adapter and explosion protection (*1) |
||
|
3 |
With ISA Standard G3 and temperature (-20 to 70 °C) |
||
|
C |
With ISA Standard G3 and high-density installation (-20 to 70 ºC) |
Option Codes
|
Option Code |
Description |
|---|---|
|
/B4S00 |
With pressure clamp terminal block for digital input (without surge absorber) [Model: STB4S-00] |
|
/B4S10 |
With pressure clamp terminal block for digital input (with surge absorber) [Model: STB4S-10] |
|
/B4D00 |
With dual-redundant pressure clamp terminal block for digital input (without surge absorber) (*2) [Model: STB4D-00] |
|
/B4D10 |
With dual-redundant pressure clamp terminal block for digital input (with surge absorber) (*2) [Model: STB4D-10] |
|
/PRP |
With prevention pin of false insertion (*3) |
|
/CCC01 |
With connector cover for MIL cable (for flat ribbon cable) [Model: SCCC01] |
|
/CCC02 |
With connector cover for MIL cable (for discrete wire) [Model: SCCC02] |
