Product Description
General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |

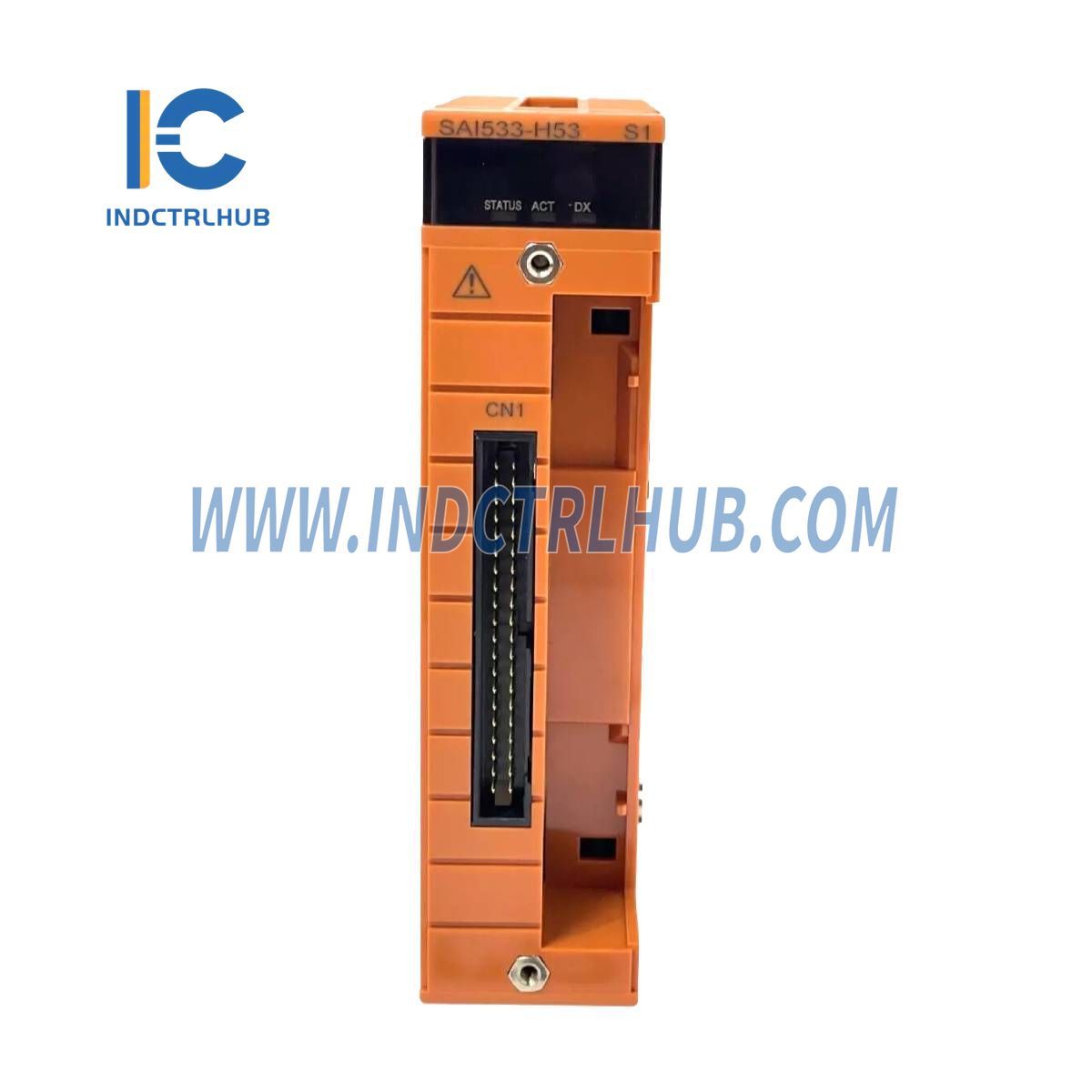

SAI533-H53 S1 |
|
Description |

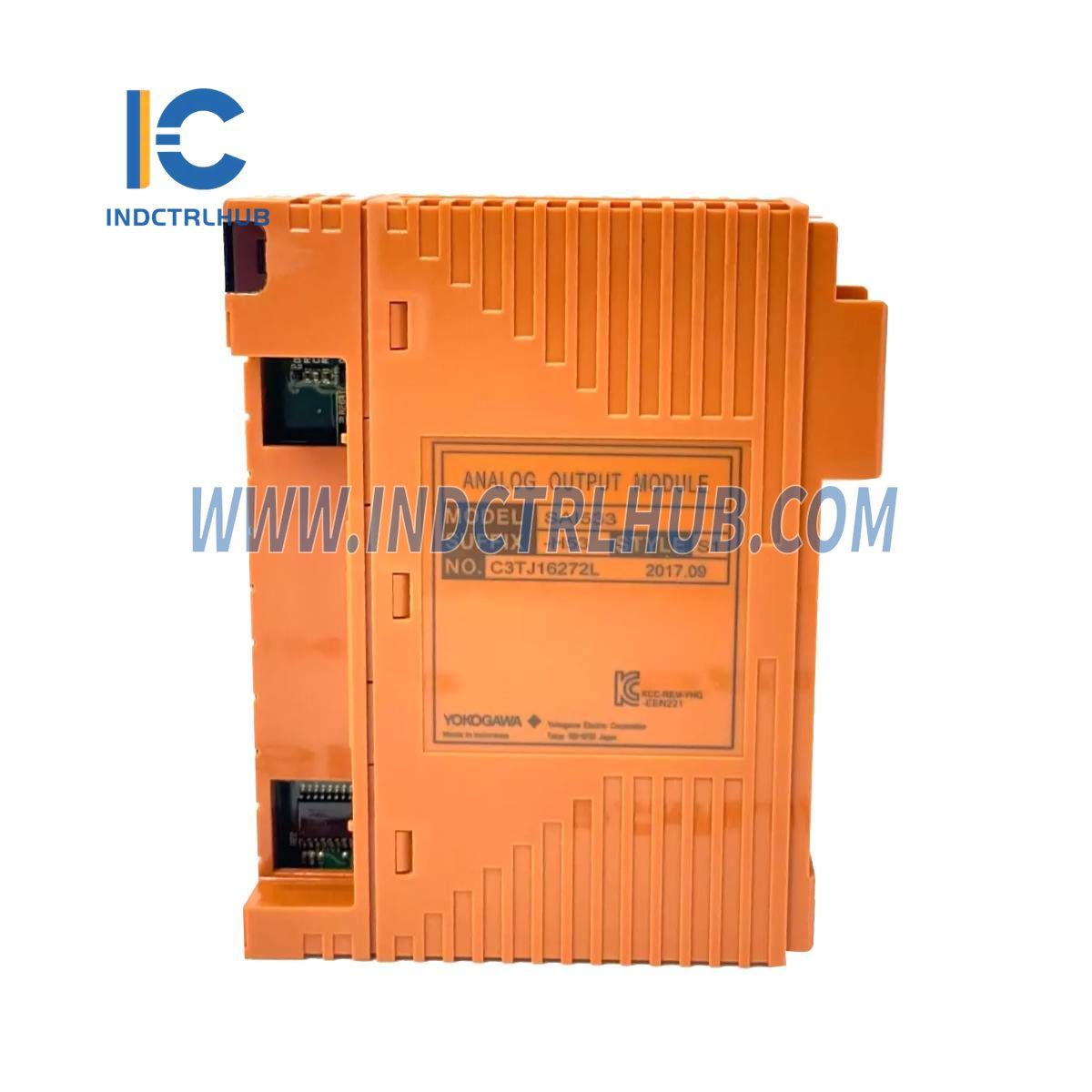

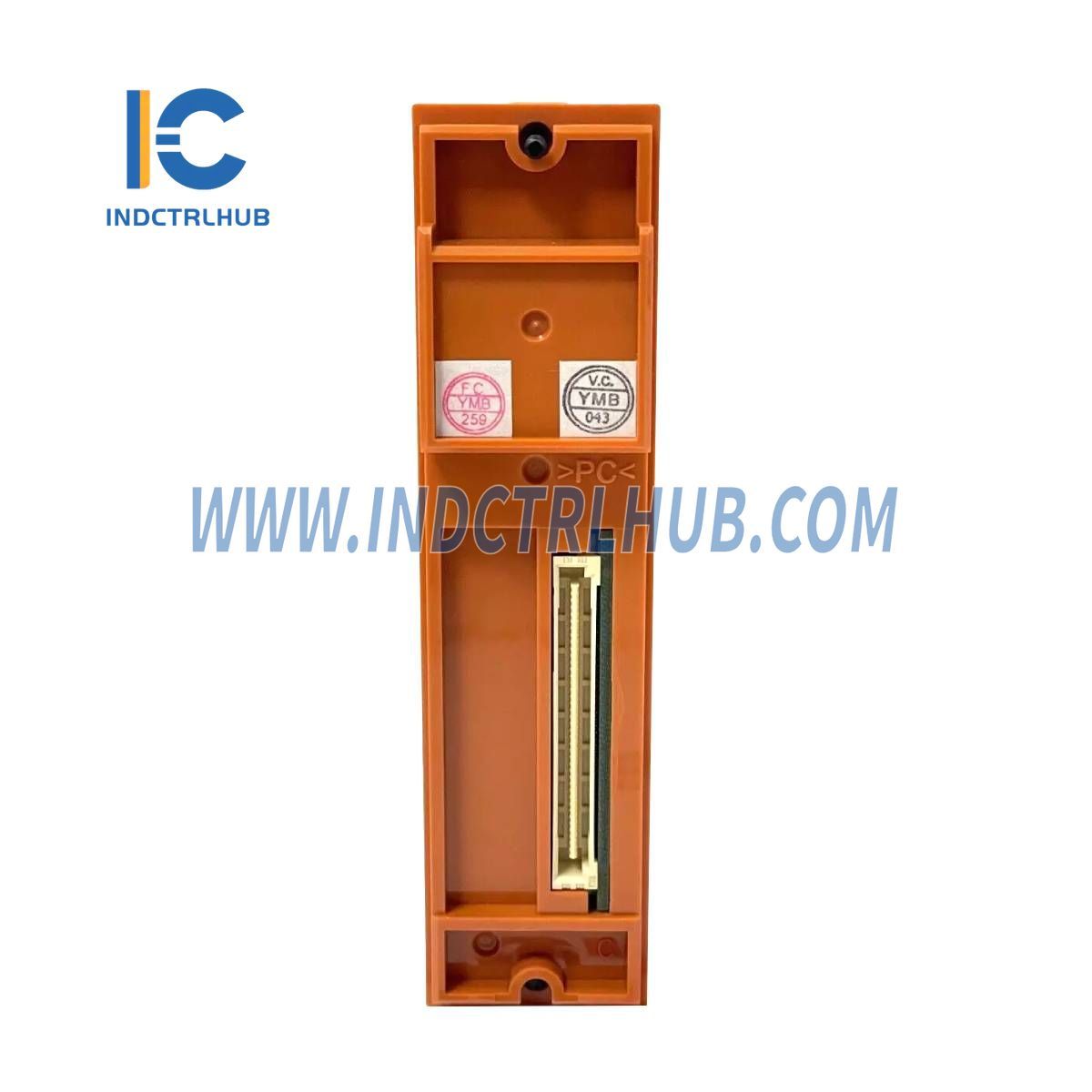

Analog Output Module (4 to 20 mA, 8 Channels, Module Isolation) |
Specifications
|
Item |
SAI533 |
|---|---|
|
Number of Output Channels |
8 Channels, Module Isolation (*3) |
|
Rated Output Range |
4 to 20 mA |
|
Maximum Range of Guaranteed Precision |
1.25 to 23 mA |
|
Output Range |
1.25 to 23 mA |
|
Allowable Load Resistance (@ Rated Range) |
230 to 600 Ω |
|
Accuracy |
±48 µA |
|
Data Update Frequency |
40 ms |
|
Temperature Drift |
±16 µA / 10 ºC |
|
Withstand Voltage |
1.5 kV AC between output signal and system for 1 minute (*1) |
|
Maximum Current Consumption |
5V System: 320 mA24V System: 300 mA |
|
Weight |
Approx. 0.26 kg (Pressure Clamp Terminal Block or MIL Cable) Approx. 0.33 kg (With Signal Cable Interface Adapter) |
|
External Connection |
Pressure Clamp Terminal MIL Cable Dedicated Signal Cable |
|
PST Support (*2) |
Available (KS1) |
Model Variations
|
Suffix Codes |
Description |
|---|---|
|
-H |
With HART Communication |
|
5 |
For Pressure Clamp Terminal Block or MIL Cable (No Explosion Protection) |
|
6 |
With Signal Cable Interface Adapter (No Explosion Protection) (*1) |
|
E |
For Pressure Clamp Terminal Block or MIL Cable (With Explosion Protection) |
|
F |
With Signal Cable Interface Adapter (With Explosion Protection) (*1) |
|
3 |
With ISA Standard G3 and Temperature (-20 to 70 ºC) |
Optional Accessories
|
Option Codes |
Description |
|---|---|
|
/A4S00 |
Pressure Clamp Terminal Block for Analog [Model: STA4S-00] |
|
/A4S10 |
Pressure Clamp Terminal Block for Analog (With Surge Absorber) [Model: STA4S-10] |
|
/A4D00 |
Dual-Redundant Pressure Clamp Terminal Block for Analog (*2) [Model: STA4D-00] |
|
/A4D10 |
Dual-Redundant Pressure Clamp Terminal Block for Analog (With Surge Absorber) (*2) [Model: STA4D-10] |
|
/PRP |
With Prevention Pin of False Insertion (*3) |
|
/CCC01 |
With Connector Cover for MIL Cable (Flat Ribbon Cable) [Model: SCCC01] |
