Product Description
Product Details
| Manufacturer | Model/Part Number | Model Type | Description |
|---|---|---|---|

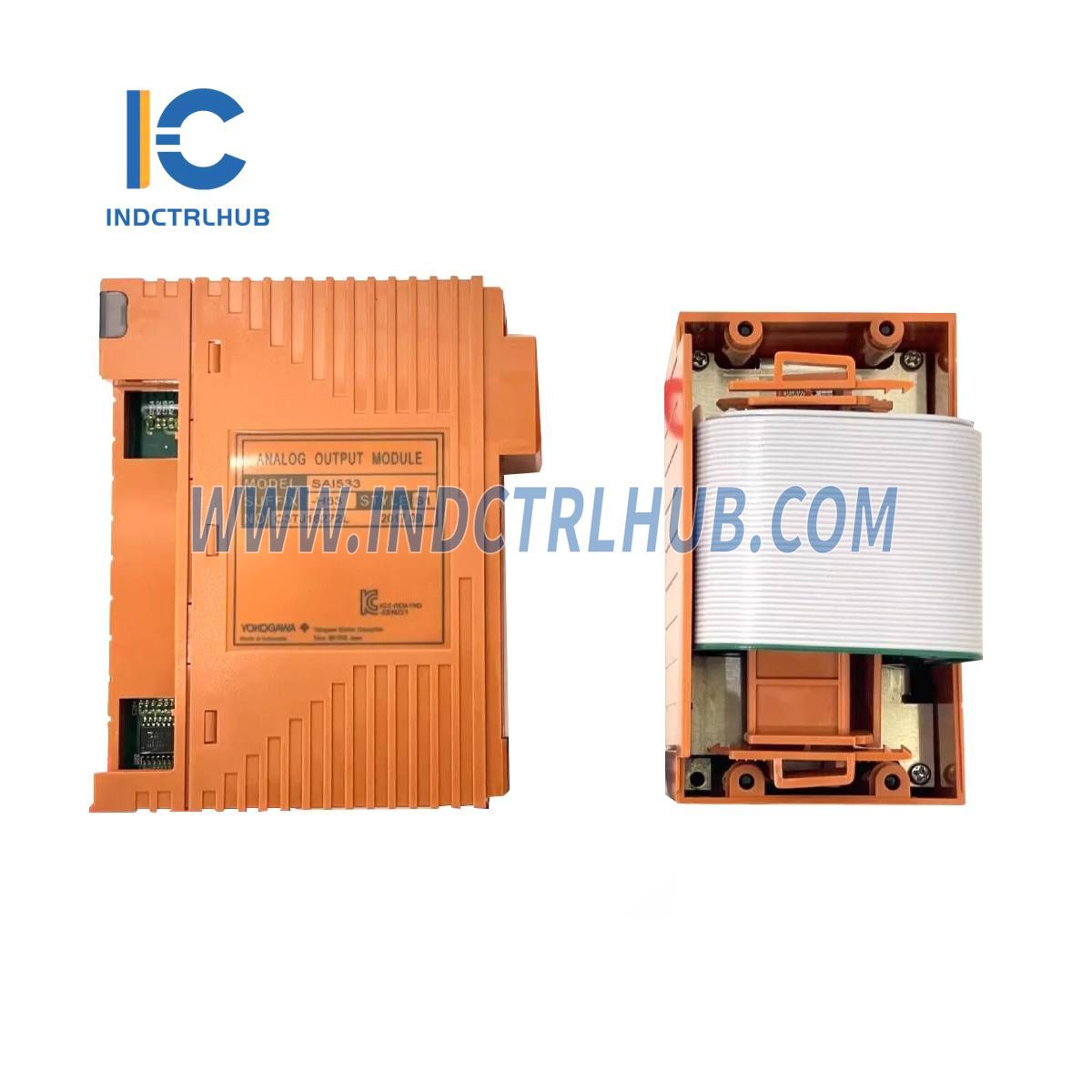

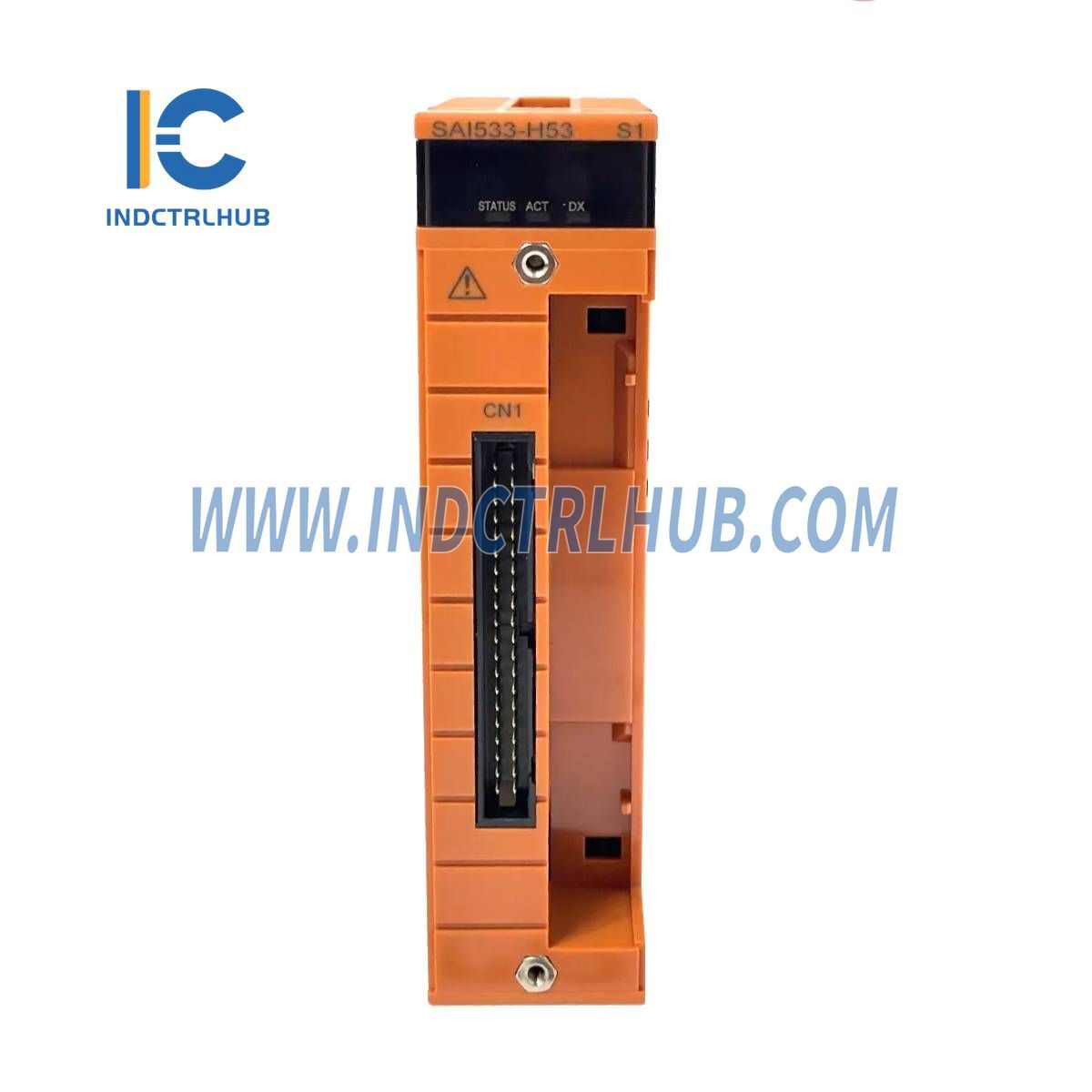

| Yokogawa | SAI533-H53/A4S00 | Analog Output Module | Current Output Module (outputs 4-20 mA signals to the field, dual redundant option available) |
Item Specifications
| Specification | Details |
|---|---|
| Model | SAI533 |
| Number of Output Channels | 8 channels, module isolation |
| Rated Output Range | 4 to 20 mA |
| Maximum Range of Guaranteed Precision | 1.25 to 23 mA |
| Output Range | 1.25 to 23 mA |
| Allowable Load Resistance | 230 to 600 Ω |
| Accuracy | ±48 µA |
| Data Update Frequency | 40 ms |
| Temperature Drift | ±16 µA/10 ºC |
| Withstand Voltage | 1.5 kV AC (1 minute, output signal and system) |
| Maximum Current Consumption | 5 V system: 320 mA, 24 V system: 300 mA |
| Weight | Approx. 0.26 kg (with pressure clamp terminal block or MIL cable) Approx. 0.33 kg (with signal cable interface adapter) |
| External Connection | Pressure clamp terminal, MIL cable, Dedicated signal cable |
| Support PST | Available (KS1) |
Description Suffix Codes
| Suffix Code | Description |
|---|---|
| -H | With HART communication |
| 5 | For pressure clamp terminal block or MIL cable with no explosion protection |
| 6 | With signal cable interface adapter and no explosion protection |
| E | For pressure clamp terminal block or MIL cable with explosion protection |
| F | With signal cable interface adapter and explosion protection |
| 3 | With ISA Standard G3 and temperature range (-20 to 70 ºC) |
Option Codes
| Option Code | Description |
|---|---|

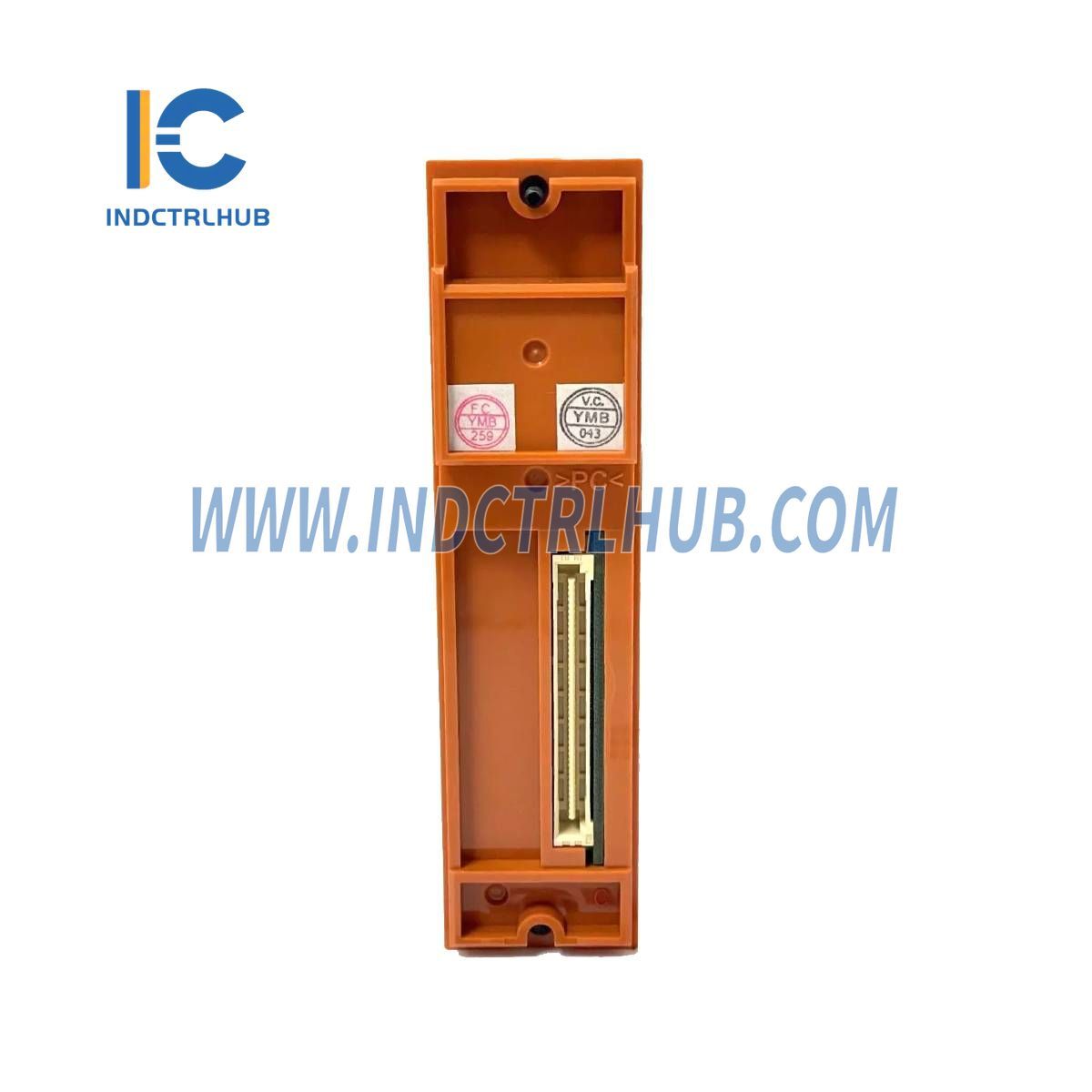

| /A4S00 | With pressure clamp terminal block for analog [Model: STA4S-00] |
| /A4S10 | With pressure clamp terminal block for analog (with surge absorber) [Model: STA4S-10] |
| /A4D00 | With dual-redundant pressure clamp terminal block for analog [Model: STA4D-00] |
| /A4D10 | With dual-redundant pressure clamp terminal block for analog (with surge absorber) [Model: STA4D-10] |
| /PRP | With prevention pin for false insertion |
| /CCC01 | With connector cover for MIL cable (for flat ribbon cable) [Model: SCCC01] |
