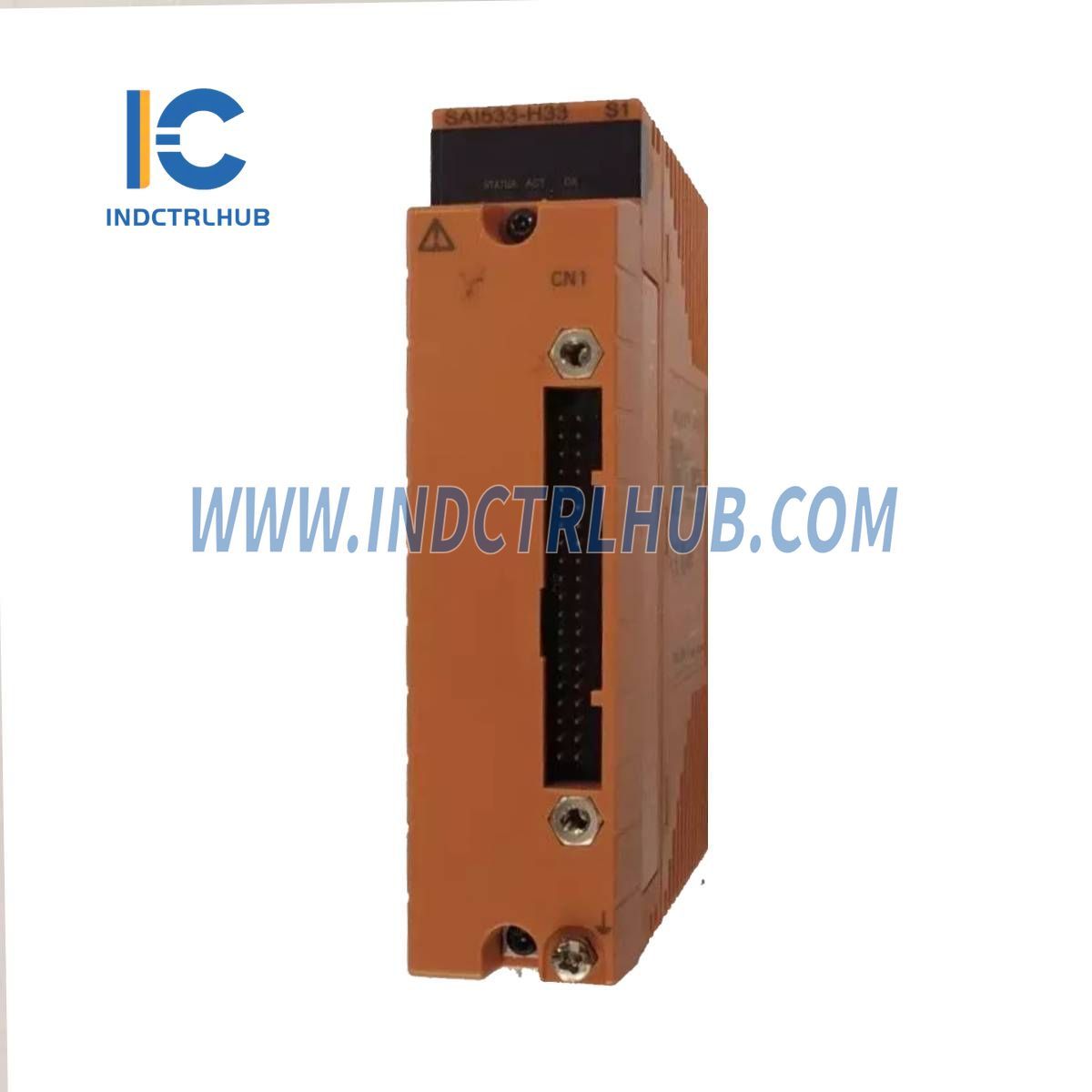

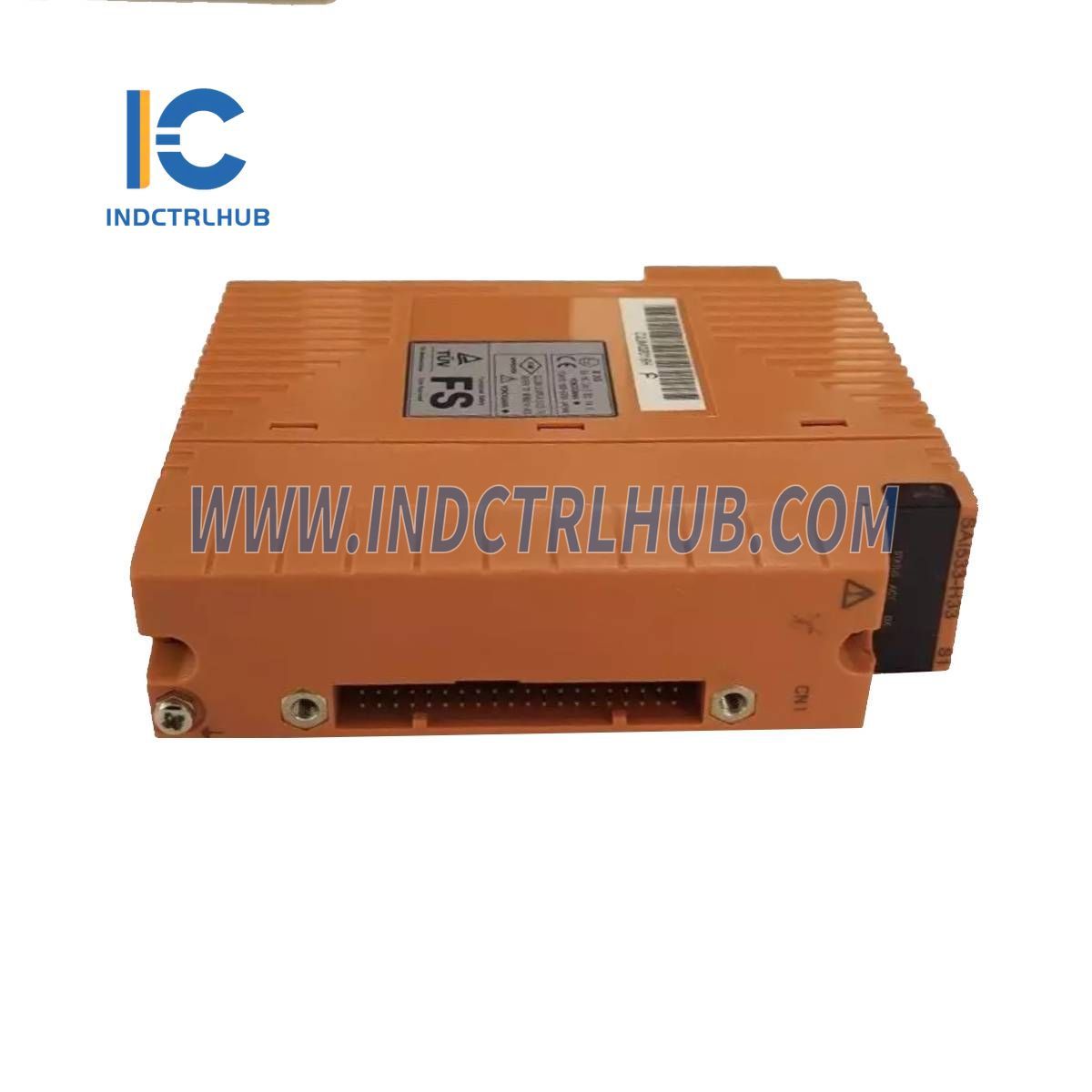

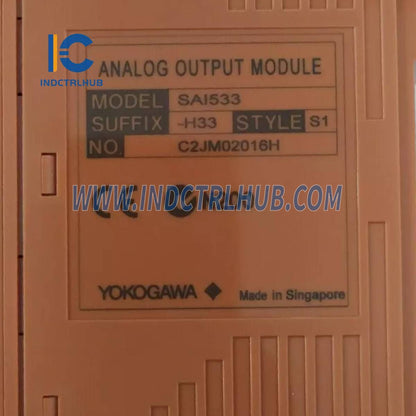

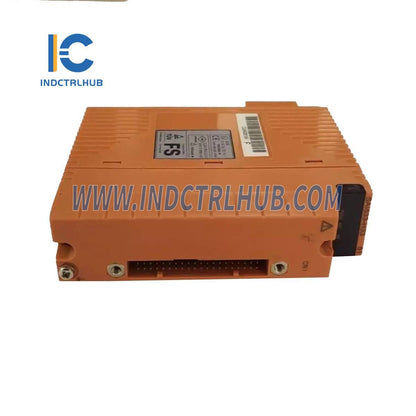

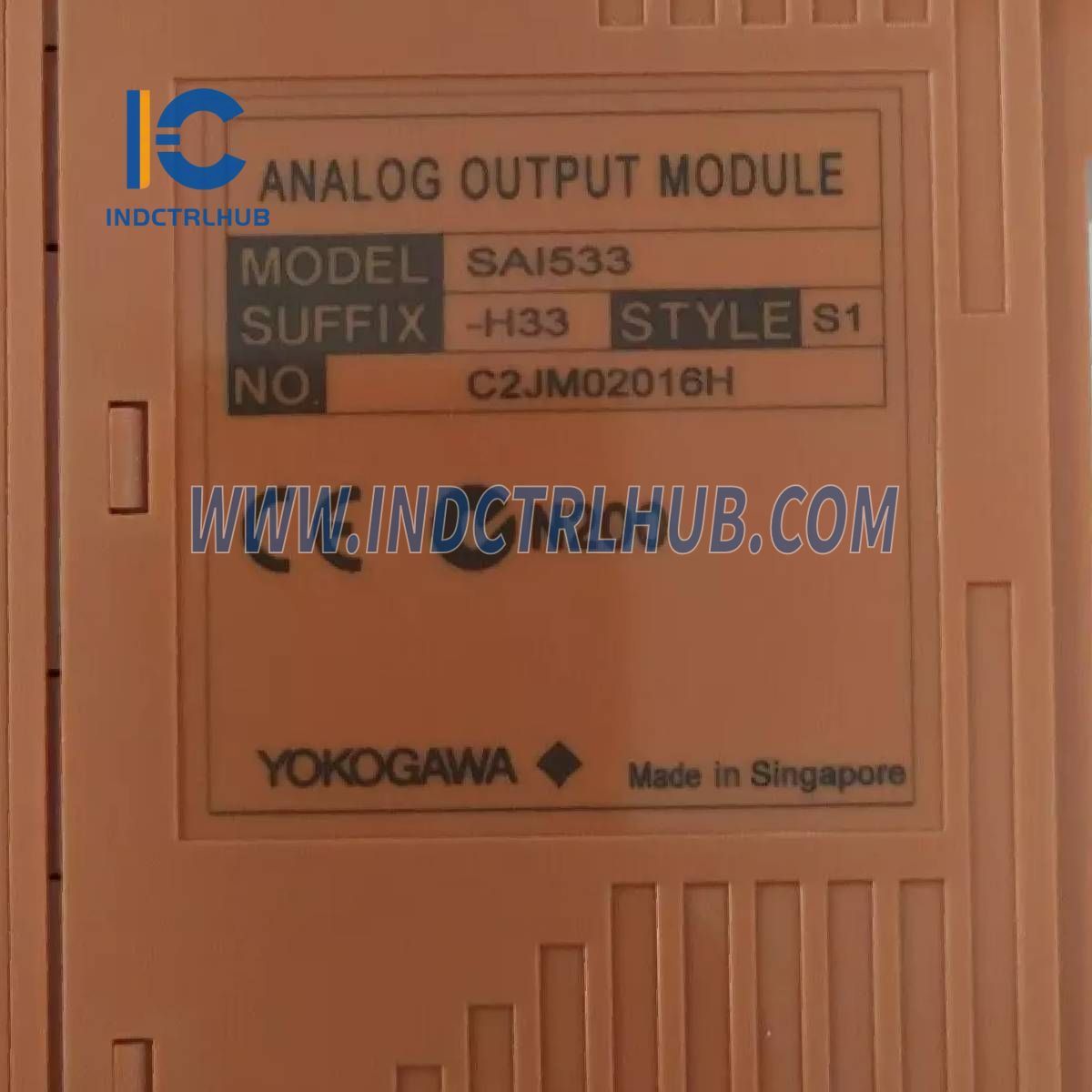

Yokogawa SAI533-H33 S1 Analog Output Module

Model/Part Number

SAI533-H33 S1

Description

Current Output Module (4 to 20 mA)

Number of Output Channels

8 channels, module isolation (*3)

Rated Output Range

4 to 20 mA

Maximum Range of Guaranteed Precision

1.25 to 23 mA

Output Range

1.25 to 23 mA

Allowable Load Resistance @ Rated Range

230 to 600 Ω

Accuracy

±48 µA

Data Update Frequency

40 ms

Temperature Drift

±16 µA/10 ºC

Withstand Voltage

1.5 kV AC between output signal and system for 1 minute (*1)

Maximum Current Consumption

5 V system: 320 mA, 24 V system: 300 mA

Weight

Approx. 0.26 kg (For pressure clamp terminal block or MIL cable), Approx. 0.33 kg (With signal cable interface adapter)

External Connection

Pressure clamp terminal, MIL cable, Dedicated signal cable

Support PST (*2)

Available (KS1)

Analog Output Module (4 to 20 mA, 8 channels, module isolation)

SAI533

-H

With HART communication

5

For pressure clamp terminal block or MIL cable with no explosion protection

6

With signal cable interface adapter and no explosion protection (*1)

E

For pressure clamp terminal block or MIL cable with explosion protection

F

With signal cable interface adapter and explosion protection (*1)

3

With ISA Standard G3 and temperature (-20 to 70 ºC)

/A4S00

With pressure clamp terminal block for analog [Model: STA4S-00]

/A4S10

With pressure clamp terminal block for analog (with surge absorber) [Model: STA4S-10]

/A4D00

With dual-redundant pressure clamp terminal block for analog (*2) [Model: STA4D-00]

/A4D10

With dual-redundant pressure clamp terminal block for analog (with surge absorber) (*2) [Model: STA4D-10]

/PR

With prevention pin of false insertion (*3)

/CCC01

With connector cover for MIL cable (for flat ribbon cable) [Model: SCCC01]
