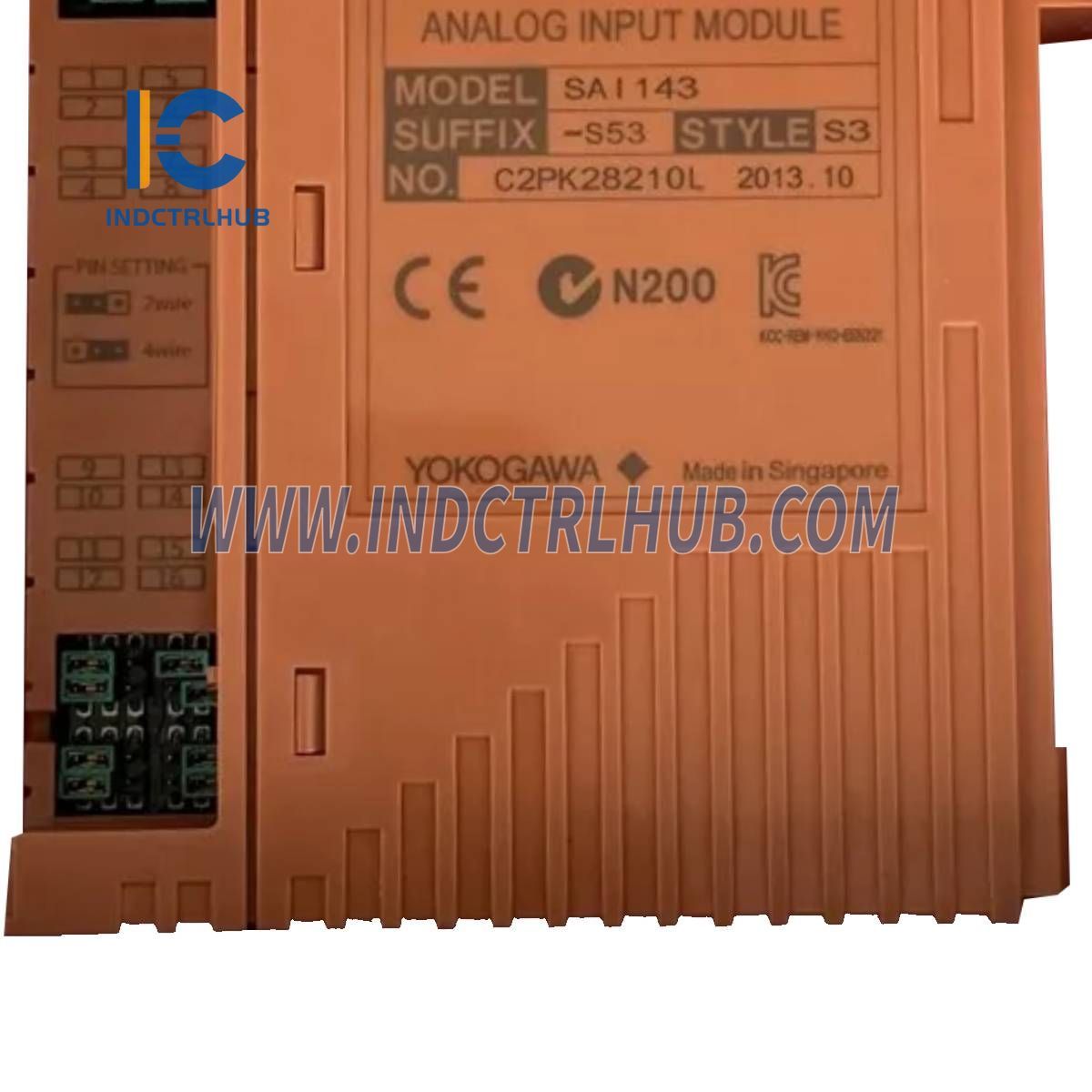

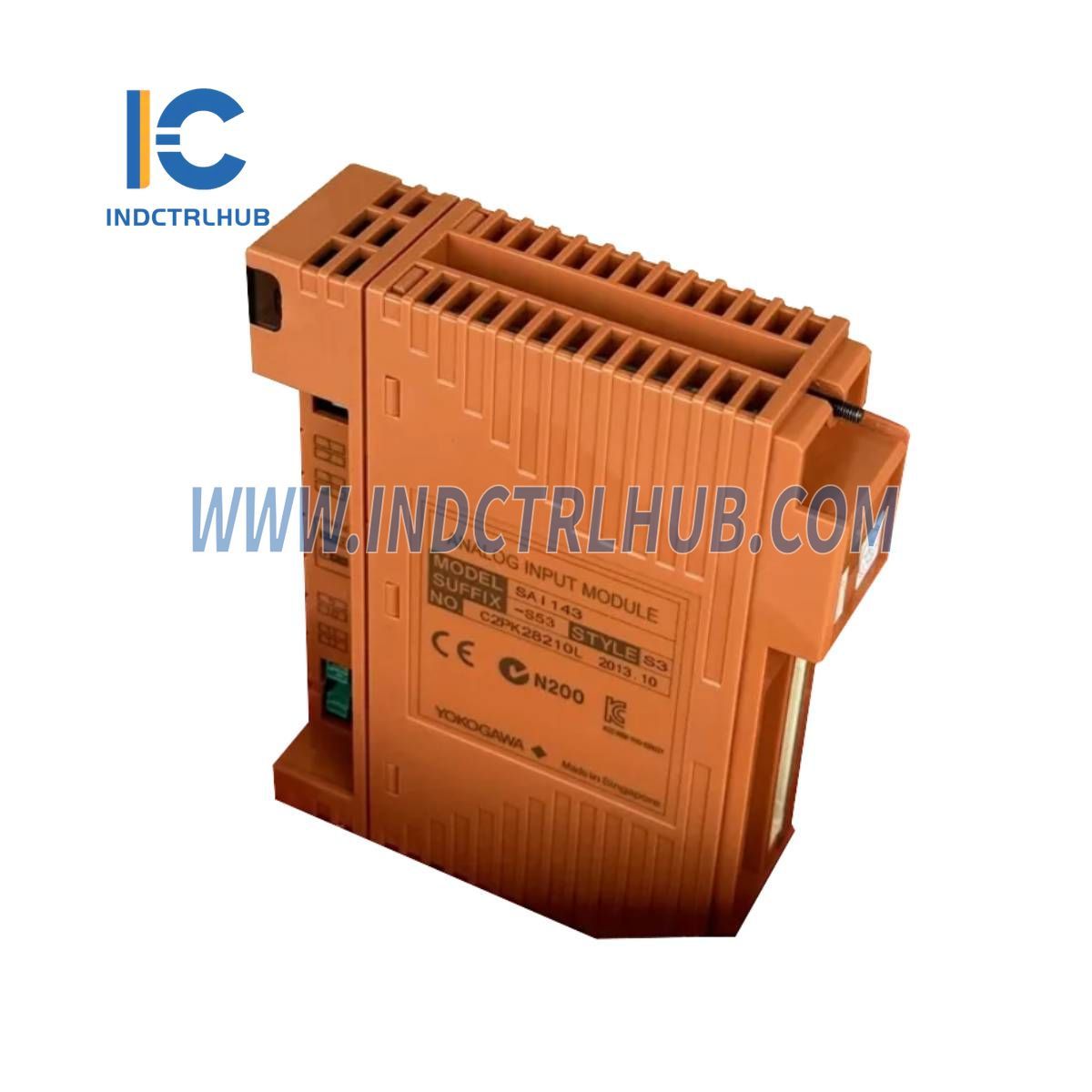

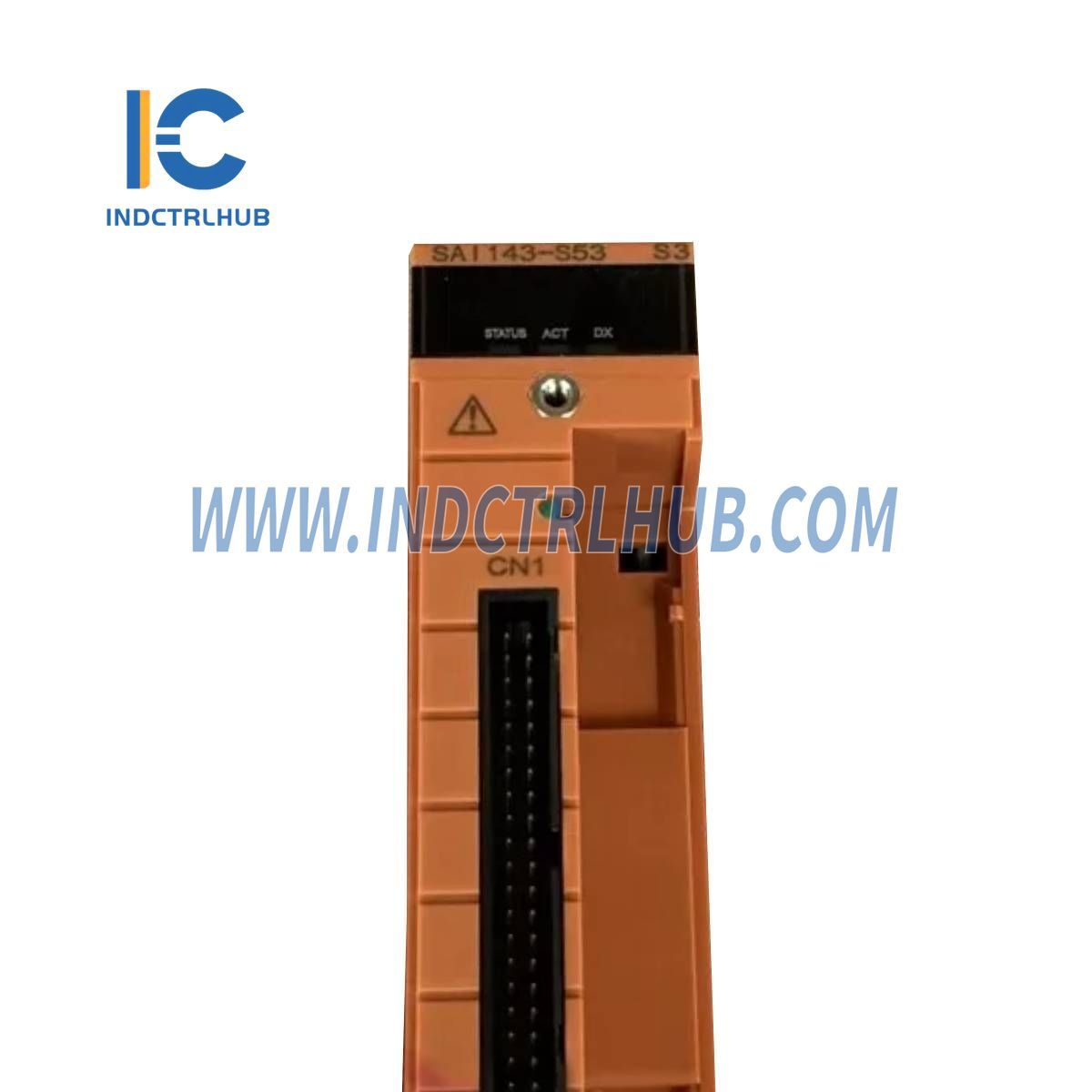

Yokogawa SAI143-S53/A4S00 Analog Input Module

Yokogawa SAI143-S53/A4S00 Analog Input Module

  • Manufacturer: Yokogawa

  • Product No.: SAI143-S53/A4S00

  • Condition:1000 in stock

  • Product Type: Analog Input Module

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 340g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Information: Yokogawa Analog Input Module (SAI143-S53/A4S00)

Manufacturer Yokogawa
Model/Part Number SAI143-S53/A4S00
Description Analog Input Module

Specifications

Specification Details
Number of Input Channels 16 channels (module isolation)
Rated Input Range 4 to 20 mA
Permissible Input Range 0 to 25 mA
Input Impedance (Power-ON) 250 Ω + Current value (voltage drop in protection circuit)
Input Impedance (Power-OFF) 500 kΩ minimum
Rated Accuracy ±16 µA (Input range 1 to 23 mA)
Data Update Frequency 40 ms
Temperature Drift ±16 µA/10 °C
Transmitter Power Supply 16.15 V minimum (at 20 mA), 26.4 V maximum (at 0 mA)
Transmitter Power Supply ON/OFF Function Available in 2-wire setting, all 16 channels
Withstand Voltage 1.5 kV AC between input signal and system for 1 minute
Maximum Current Consumption 320 mA (5 V system), 550 mA (24 V system)
Weight Approx. 0.34 kg (with pressure clamp terminal block or MIL cable)
External Connection Pressure clamp terminal, MIL cable, dedicated signal cable

Model and Suffix Codes

Suffix Code Description
-S Standard type
-H With HART communication
5 No explosion protection (pressure clamp terminal block or MIL cable)
6 No explosion protection (with signal cable interface adapter)
E With explosion protection (pressure clamp terminal block or MIL cable)
F With explosion protection (with signal cable interface adapter)
3 With ISA Standard G3 and temperature (-20 to 70 ºC)
C With ISA Standard G3 and high-density installation (-20 to 70 ºC)

Option Codes

Option Code Description
/A4S00 With pressure clamp terminal block for analog
/A4S10 With pressure clamp terminal block (surge absorber)
/A4D00 With dual-redundant pressure clamp terminal block for analog
/A4D10 With dual-redundant pressure clamp terminal block (surge absorber)
/PRP Prevention pin for false insertion
/CCC01 With connector cover for MIL cable (for flat ribbon cable)
