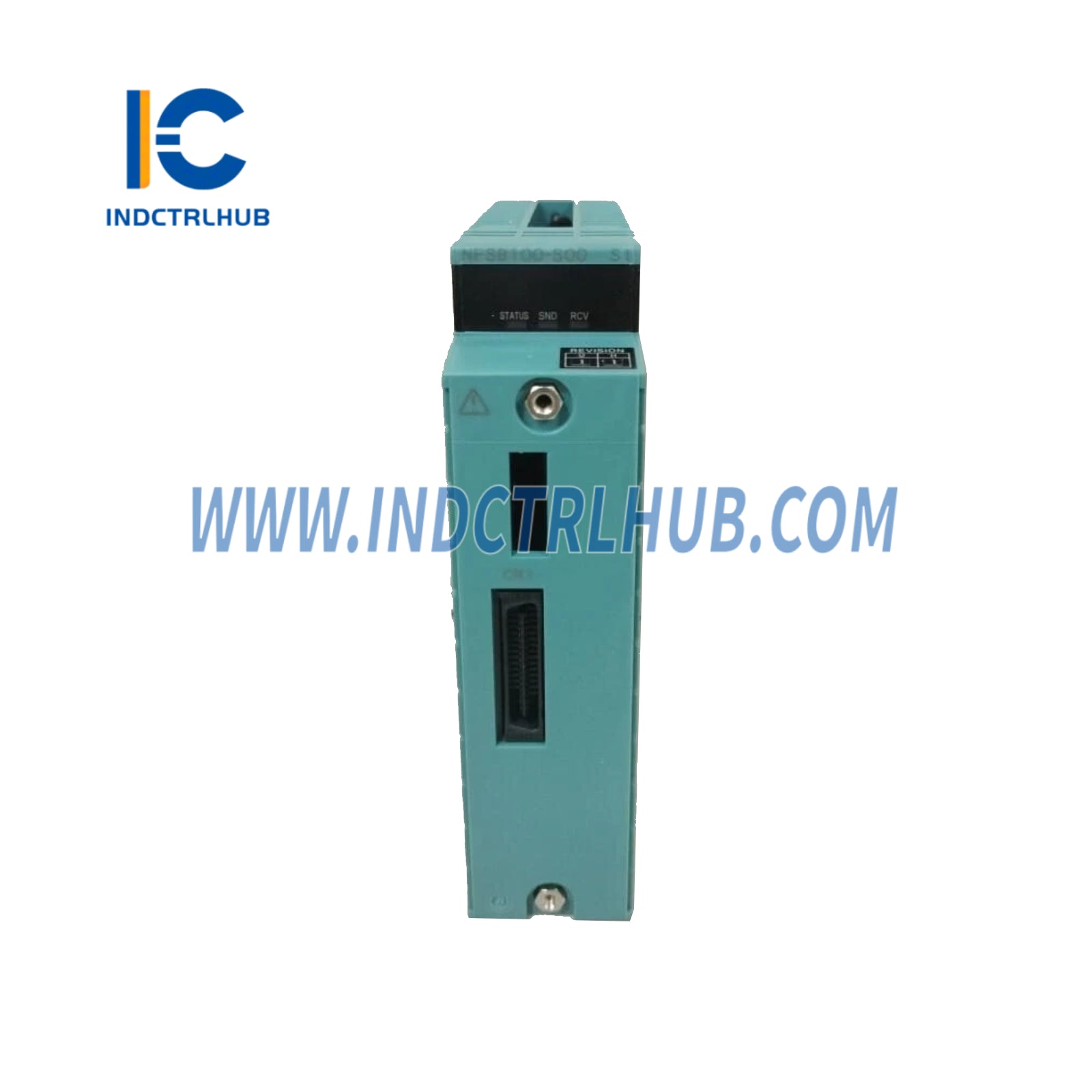

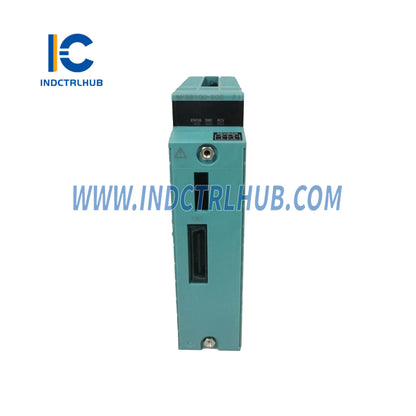

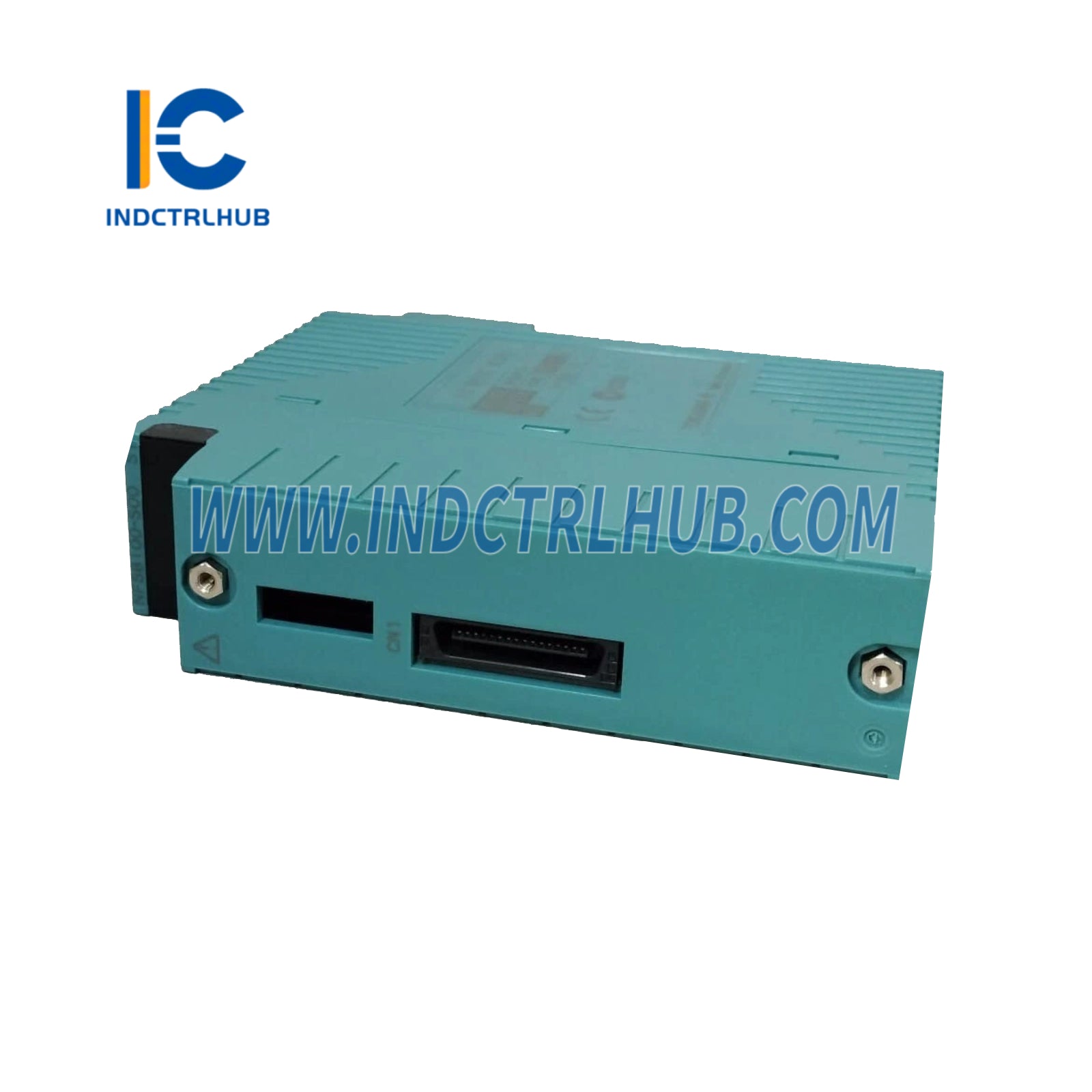

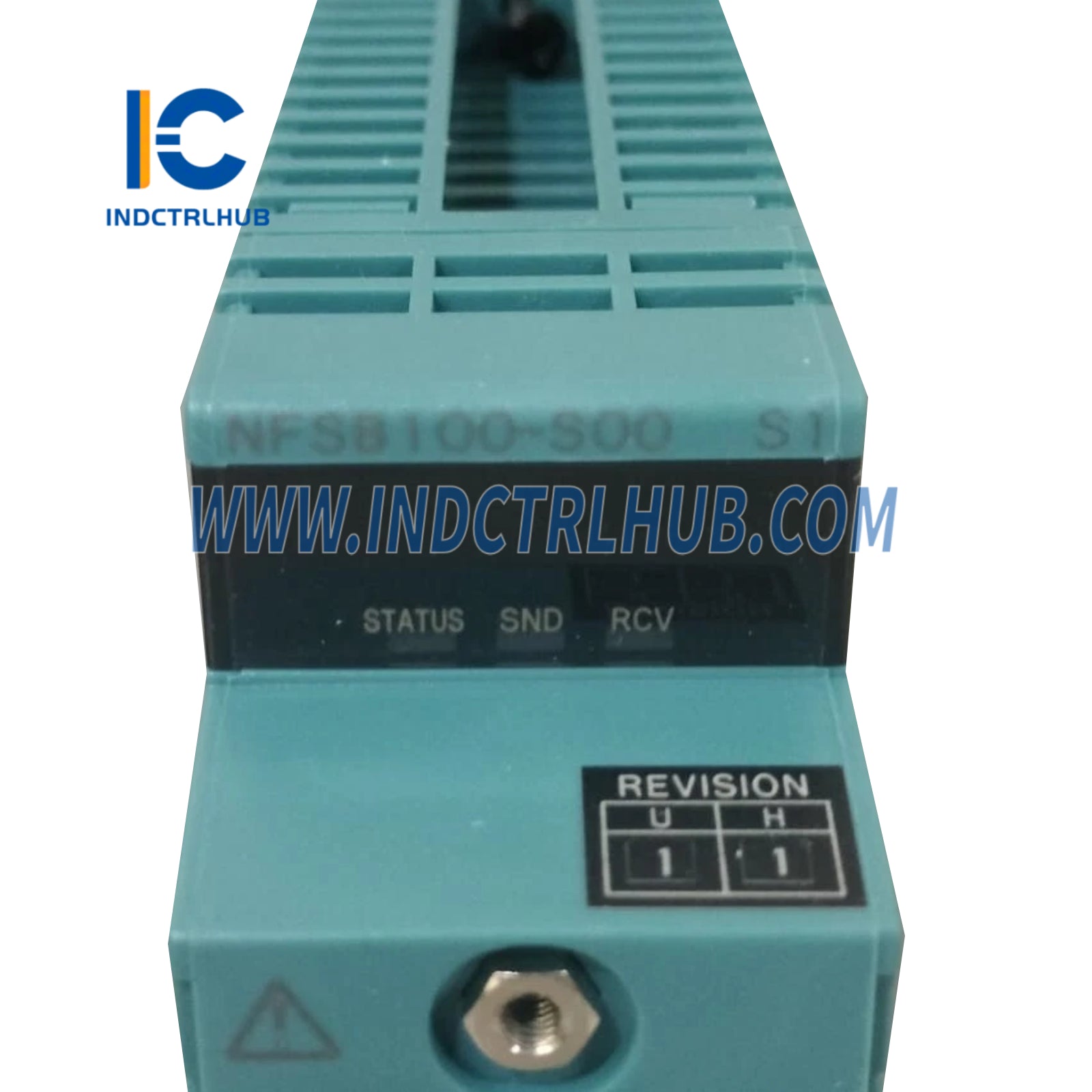

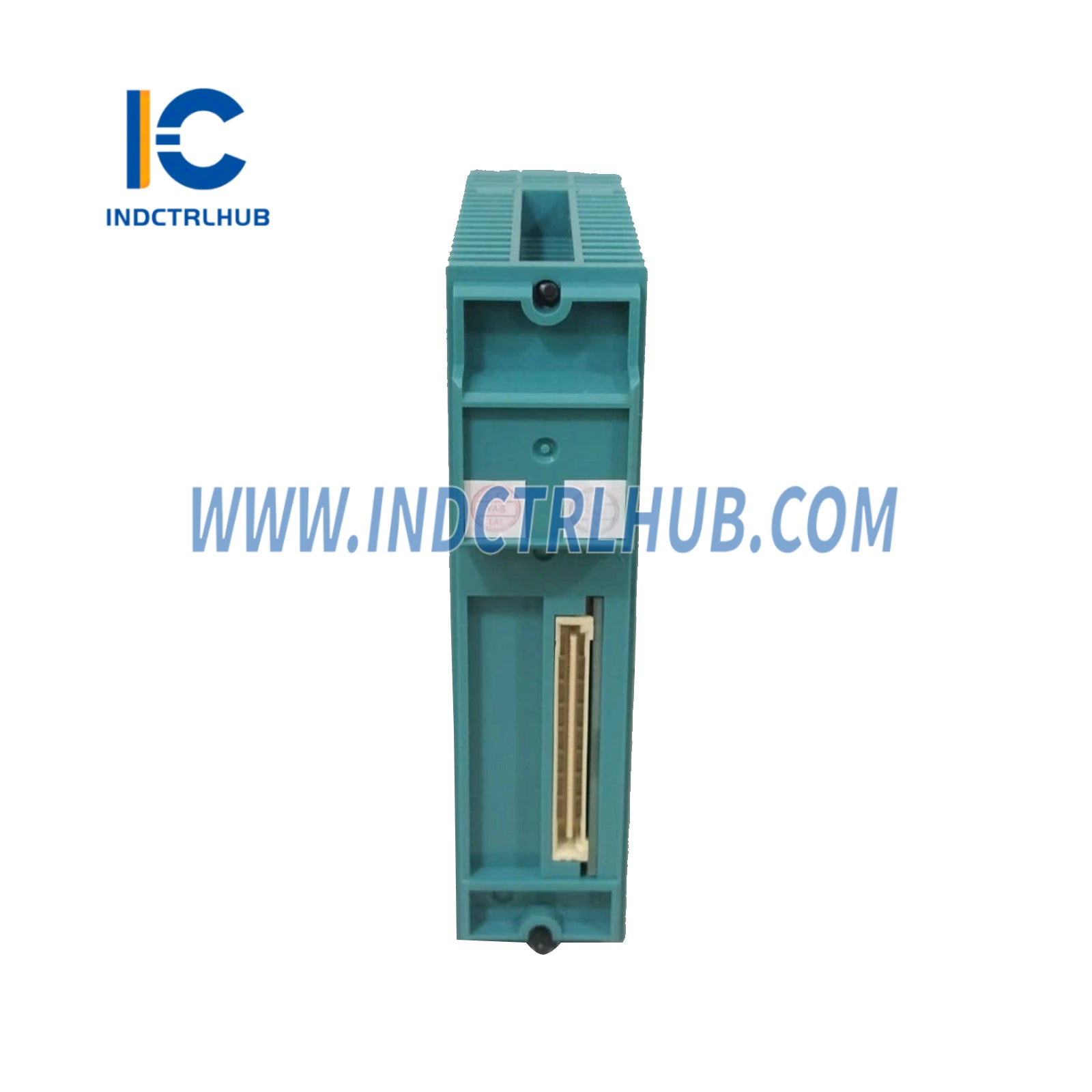

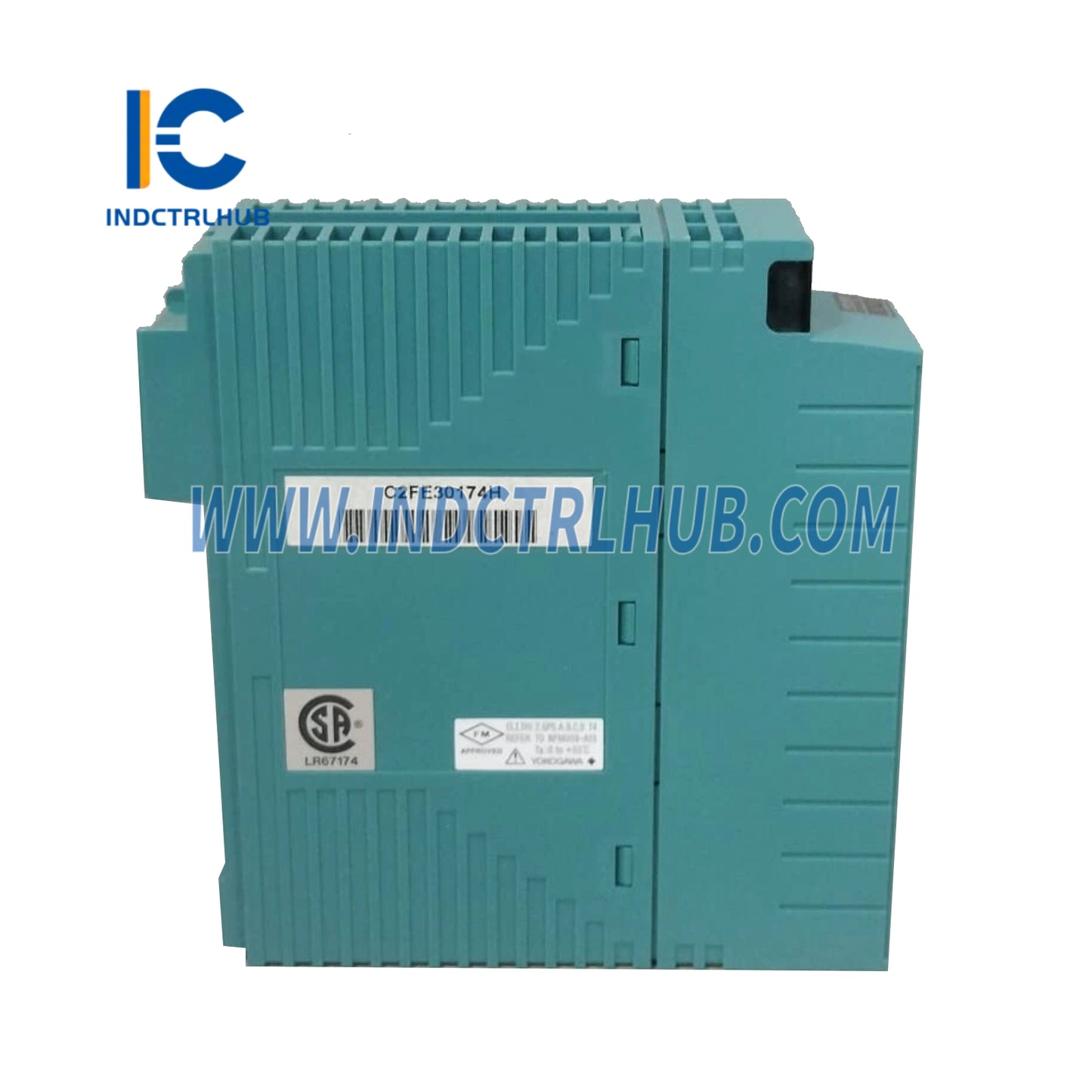

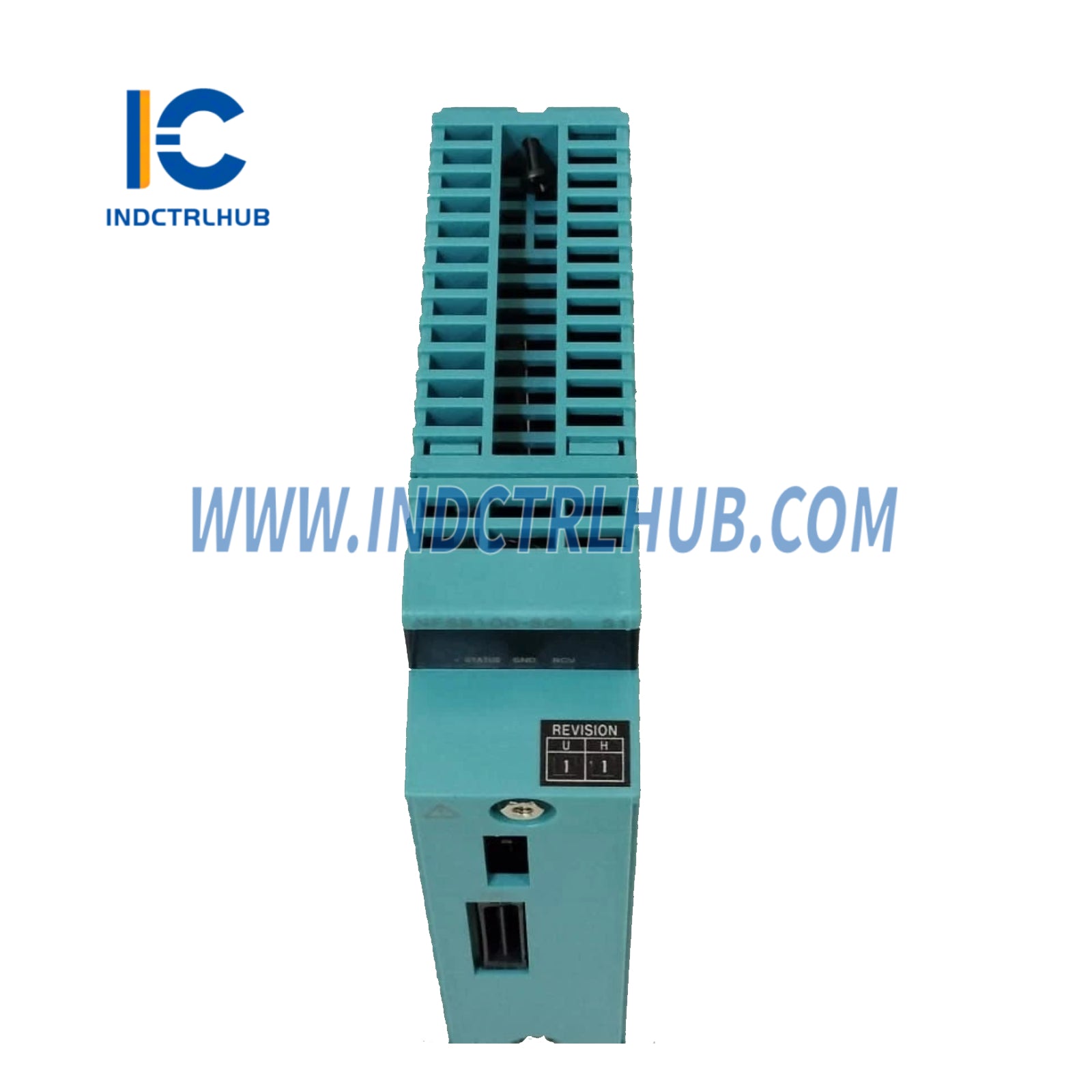

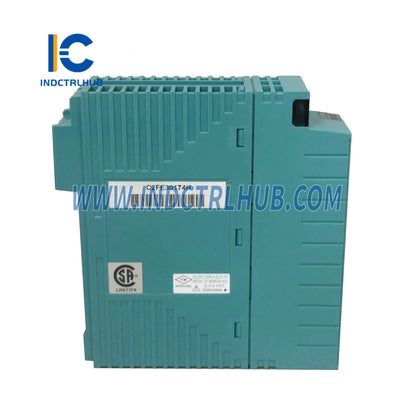

Product Description
🔹 General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
NFSB100-S0/SBT01 |
|
Description |
SB Bus Repeat Module with SB Bus T-joint for FCN |
🔹 Technical Specifications
|
Item |
Specification |
|---|---|
|
Model |
NFSB100 |
|
Transmission Method |
Serial communication |
|
Baud Rate |
128 Mbps |
|
Transmission Distance |
Max. 8 m per line |
|
Max. Extension Units |
2 units (3 units total including control unit) |
|
Duplex Configuration |
Supported |
|
Supply Voltage |
5 V DC ±5% |
|
Current Dissipation |
Max. 500 mA |
|
Weight |
Approx. 0.2 kg |
|
Dimensions (W × H × D) |
32.8 × 130 × 142.5 mm |
|
Slot Occupancy |
1 slot |
|
Installation Slot |
Slot 10 (single SB bus) or Slots 9 & 10 (duplexed SB bus) |
🔹 Model Configuration
|
Model |
Description |
|---|---|
|
NFSB100 |
SB Bus Repeat Module for FCN |
Suffix Code Breakdown (NFSB100-S0)
|
Suffix |
Description |
|---|---|
|
-S |
Standard model |
|
0 |
Basic type (no ISA G3, no explosion protection) |
🔹 Option Codes (Included with This Part)
|
Option Code |
Description |
|---|---|
|
/SBT01 |
With SB bus T-joint |
🔹 Optional Accessories (Not Included by Default)
|
Option Code |
Description |
|---|---|
|
/SBT02 |
With SB bus T-joint and built-in terminator |
