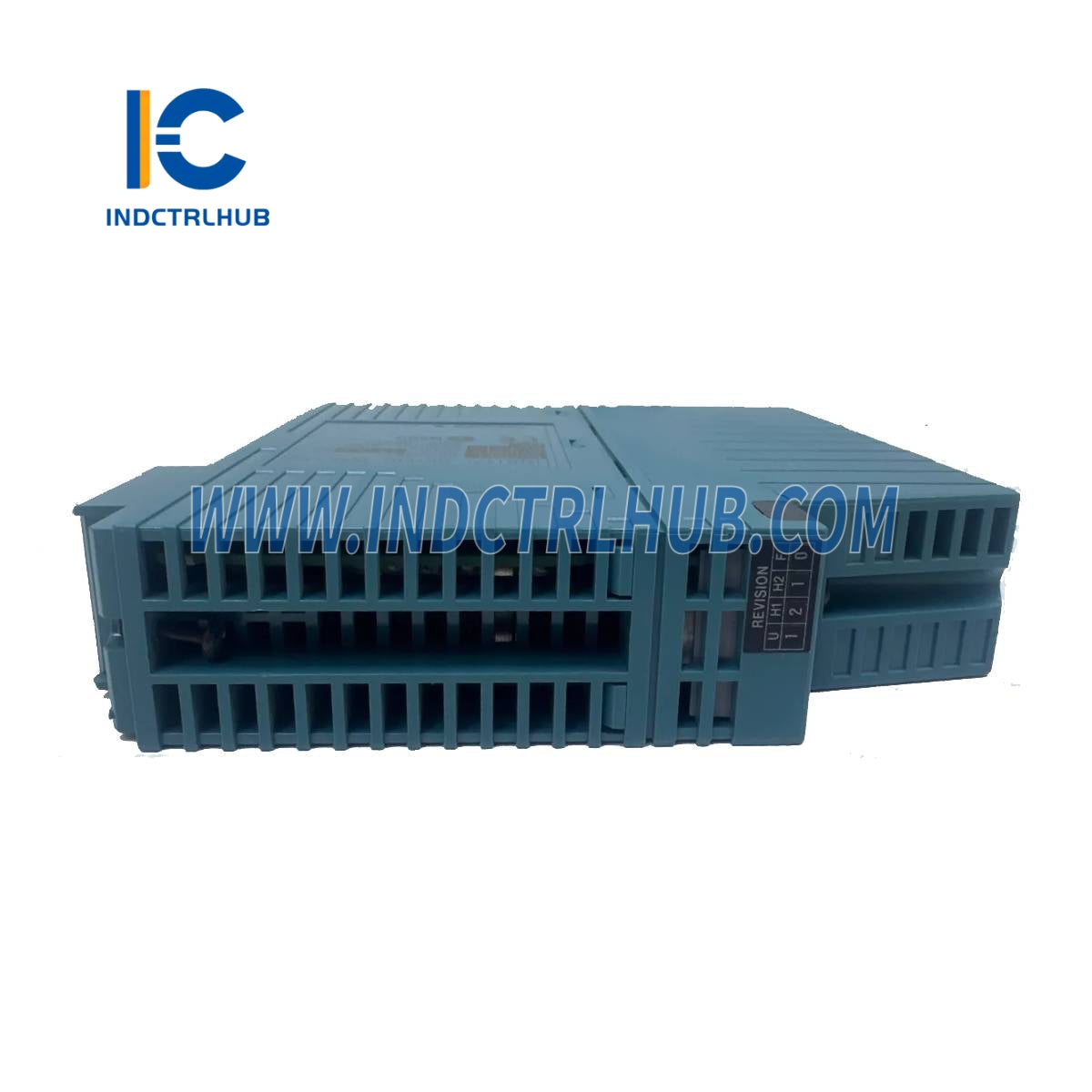

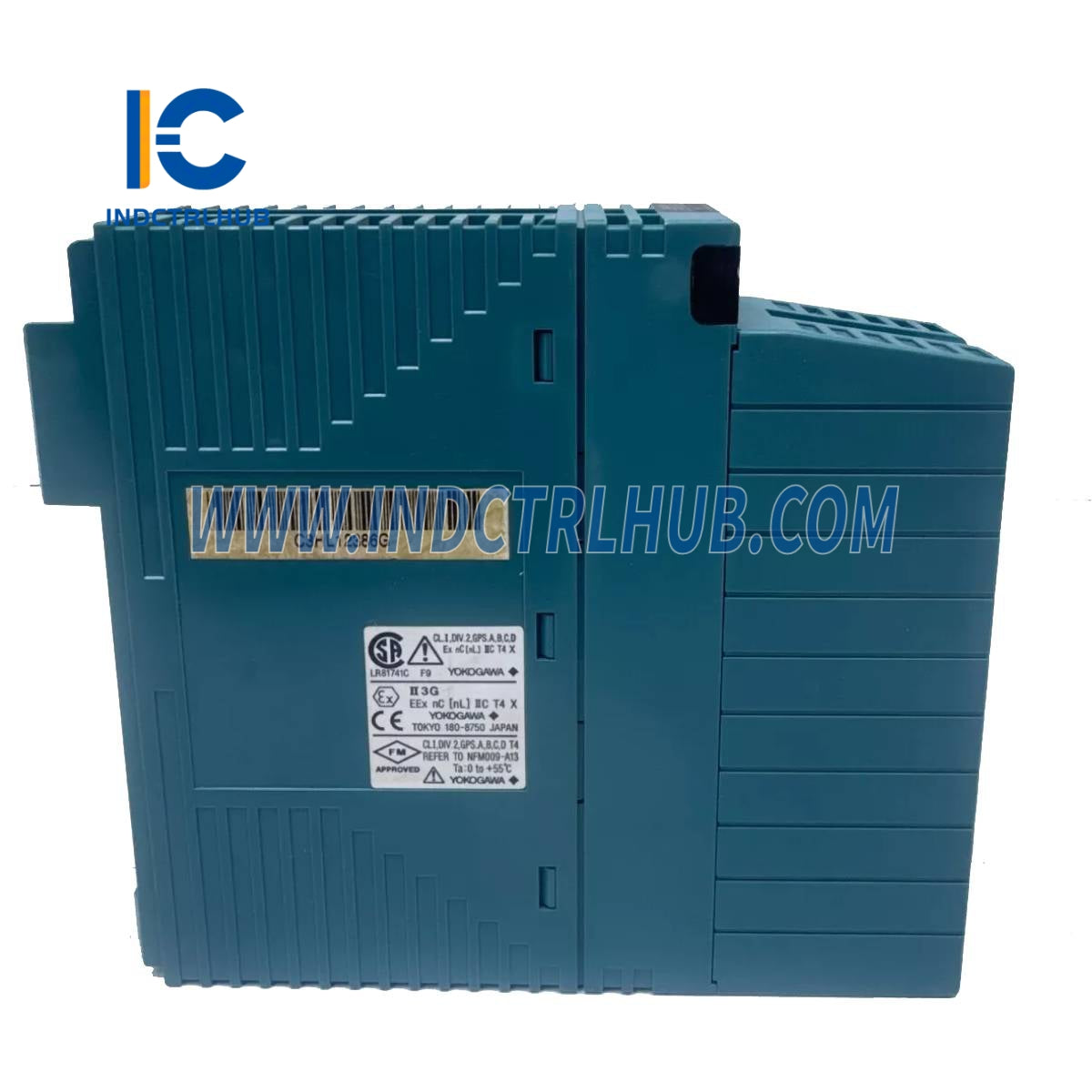

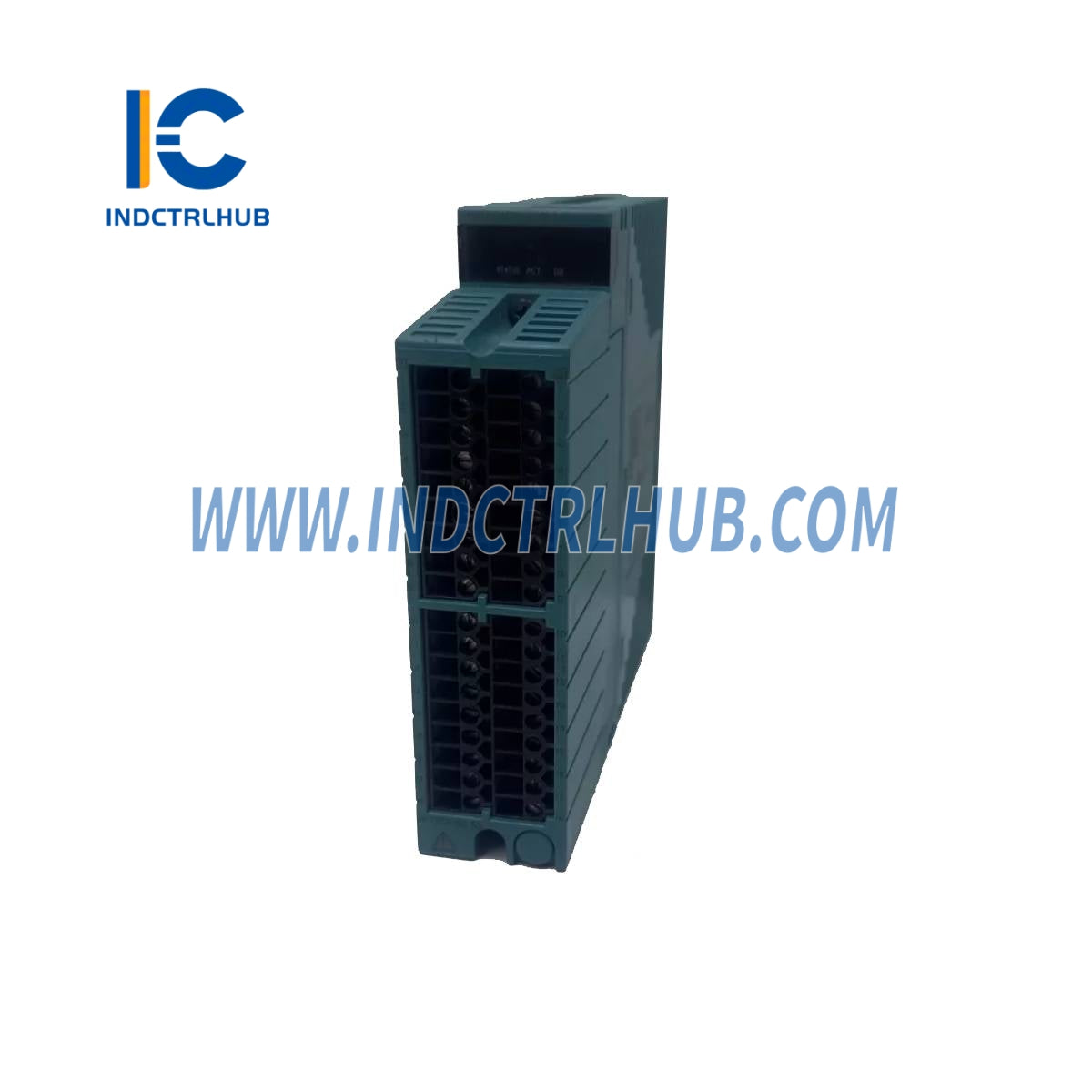

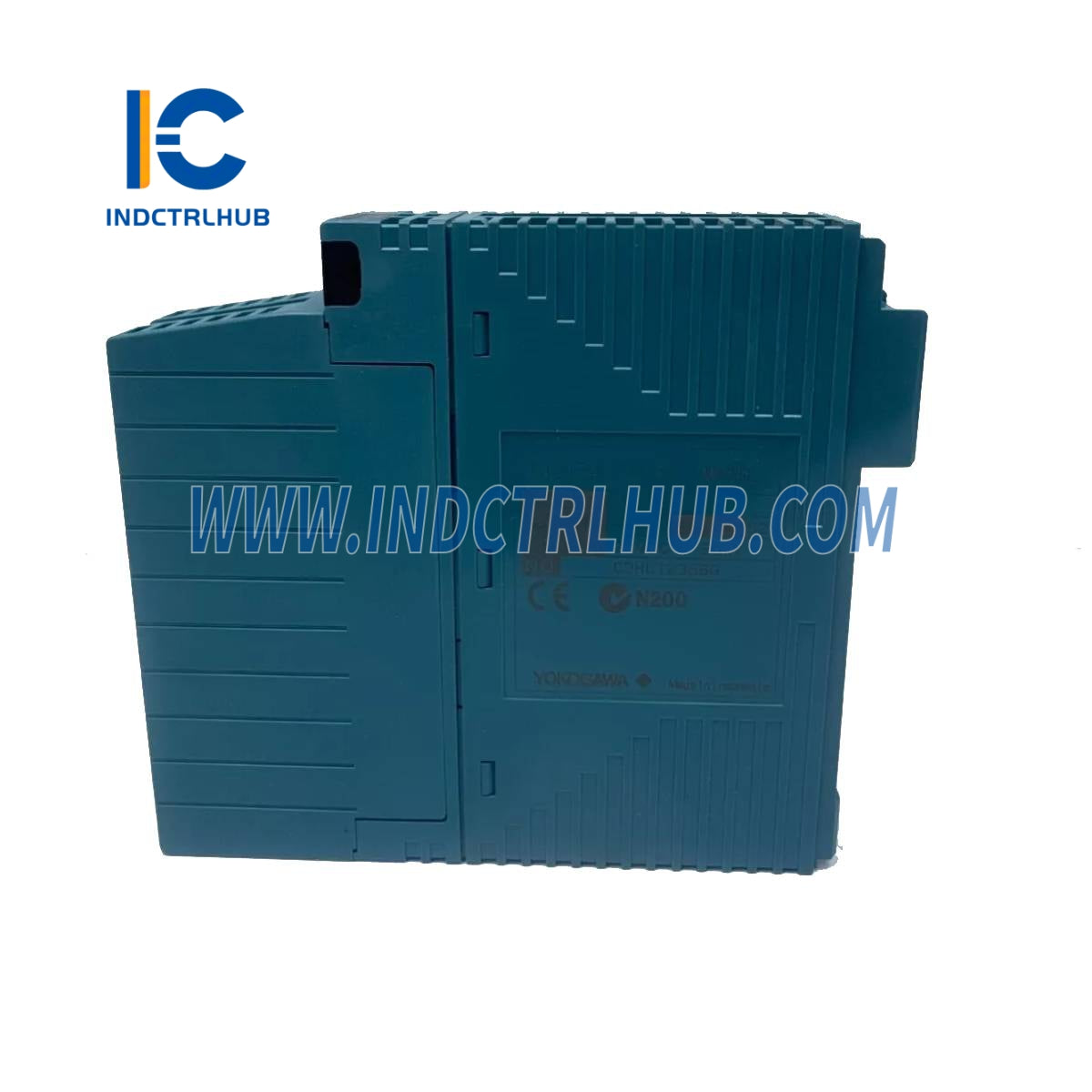

Product Description
🔹 General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
NFDV551 |
|
Description |
32-channel, 24 V DC Digital Output Module (Isolated type) |
🔹 Technical Specifications
|
Item |
Specification |
|---|---|
|
Model |
NFDV551 |
|
Number of Output Channels |
32 |
|
Rated Applied Voltage |
24 V DC |
|
Load Voltage |
24 V DC, 50 mA |
|
Field Power Supply Voltage Range |
20.4 to 26.4 V |
|
Max Output ON Voltage |
2 V DC |
|
Max Leak Current (Output OFF) |
0.1 mA |
|
Output Format |
Current Sink |
|
Max Load Current |
100 mA/channel @ 26.4 V |
|
Withstanding Voltage |
- Output to System: 2000 V AC for 1 minute - Between commons: 500 V AC for 1 minute |
|
Functions |
ON/OFF status output Fallback options: HOLD / OFF / NO |
|
Output Response Time |
≤ 3 ms (for status output) |
|
Max Current Consumption |
700 mA (5 V DC) 60 mA (24 V DC, field power supply) |
|
Weight |
Approx. 0.2 kg |
|
External Connections |
Pressure clamp terminal or MIL connector cable |
🔹 Suffix Code Breakdown
|
Code |
Meaning |
|---|---|
|
-P |
Standard type |
|
6 |
With status display and no explosion protection |
|
F |
With status display and explosion protection |
|
0 |
Basic type |
|
1 |
With ISA Standard G3 option |
|
/D5S00 |
With Pressure Clamp Terminal Block for Digital Output (Model: NFTD5S-00) |
|
/D5S10 |
With Pressure Clamp Terminal Block (with surge absorber) (Model: NFTD5S-10) |
|
/CCC01 |
With Connector Cover for MIL Cable (Model: NFCCC01) |
