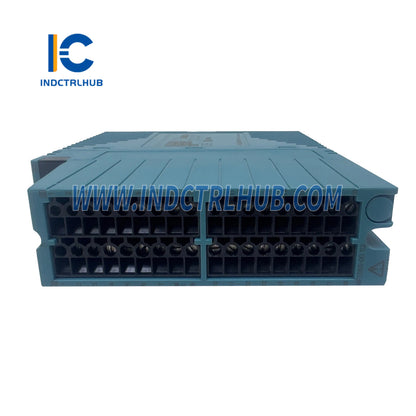

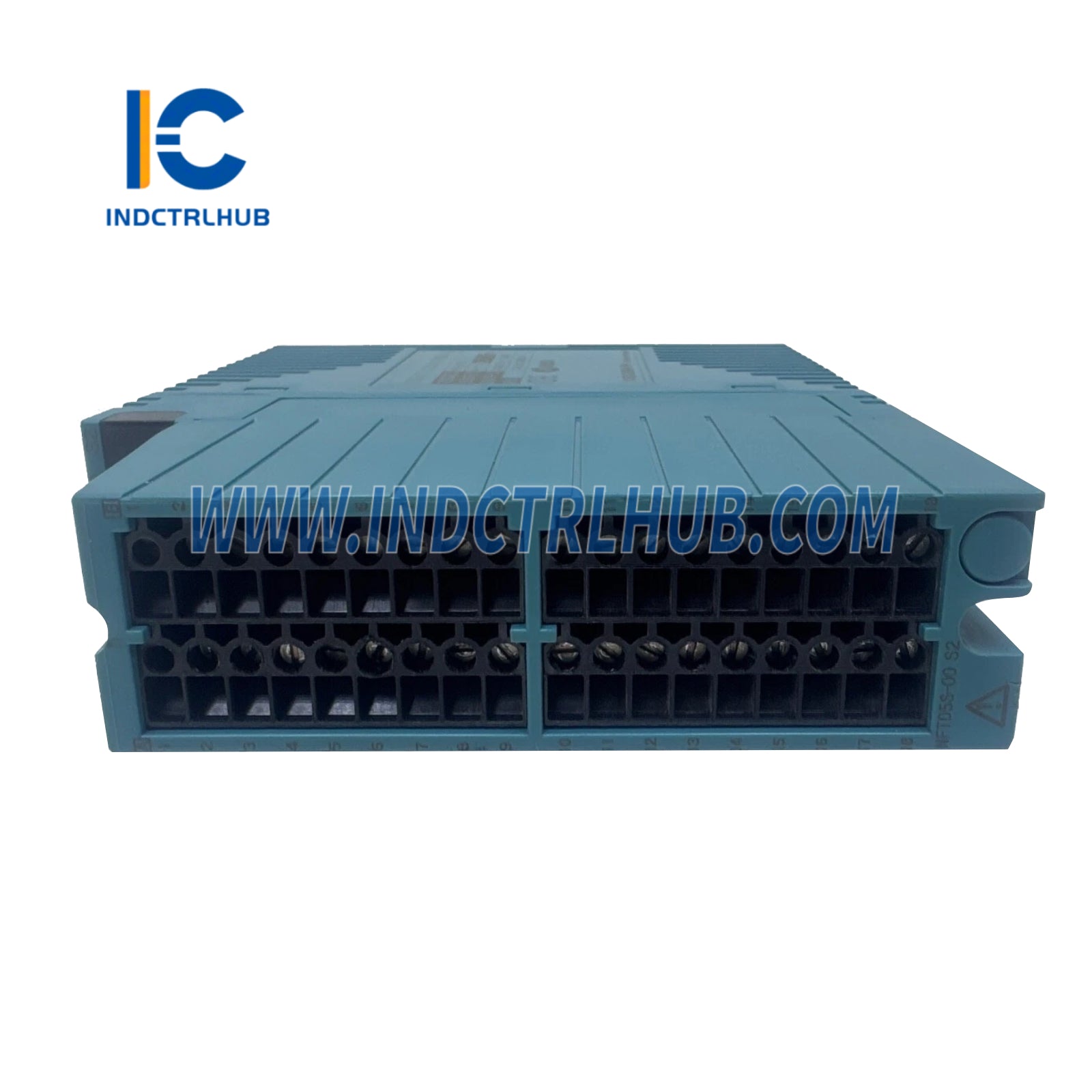

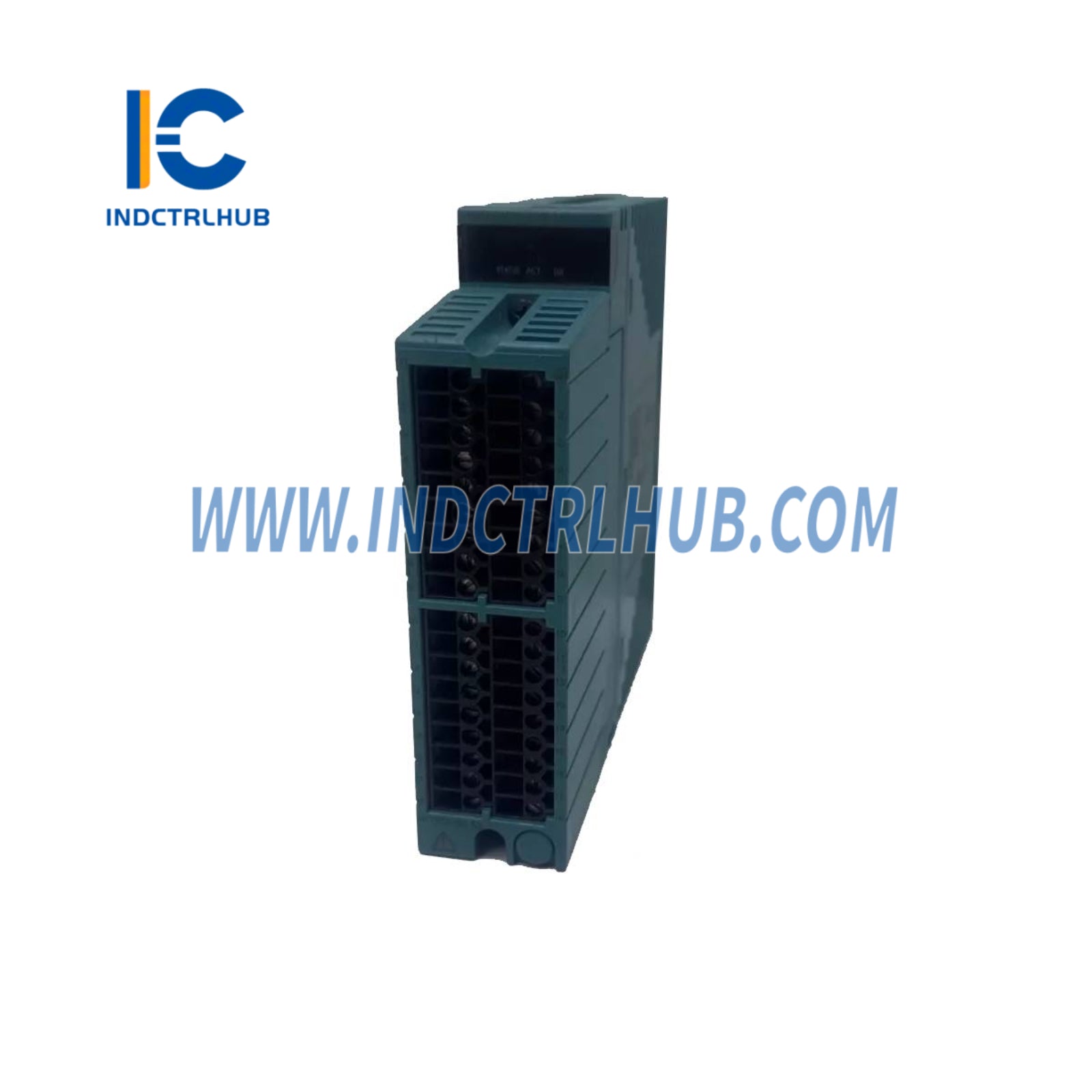

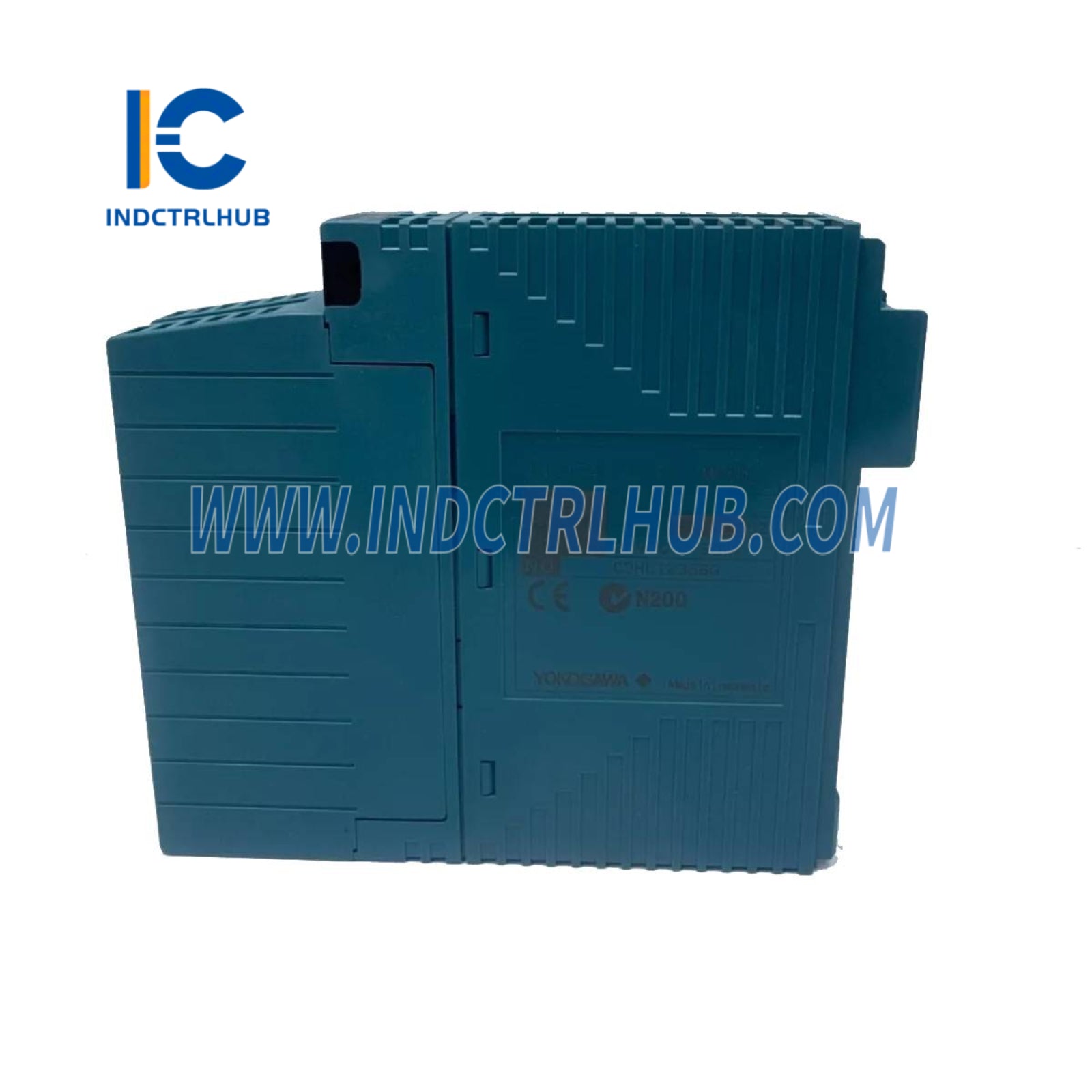

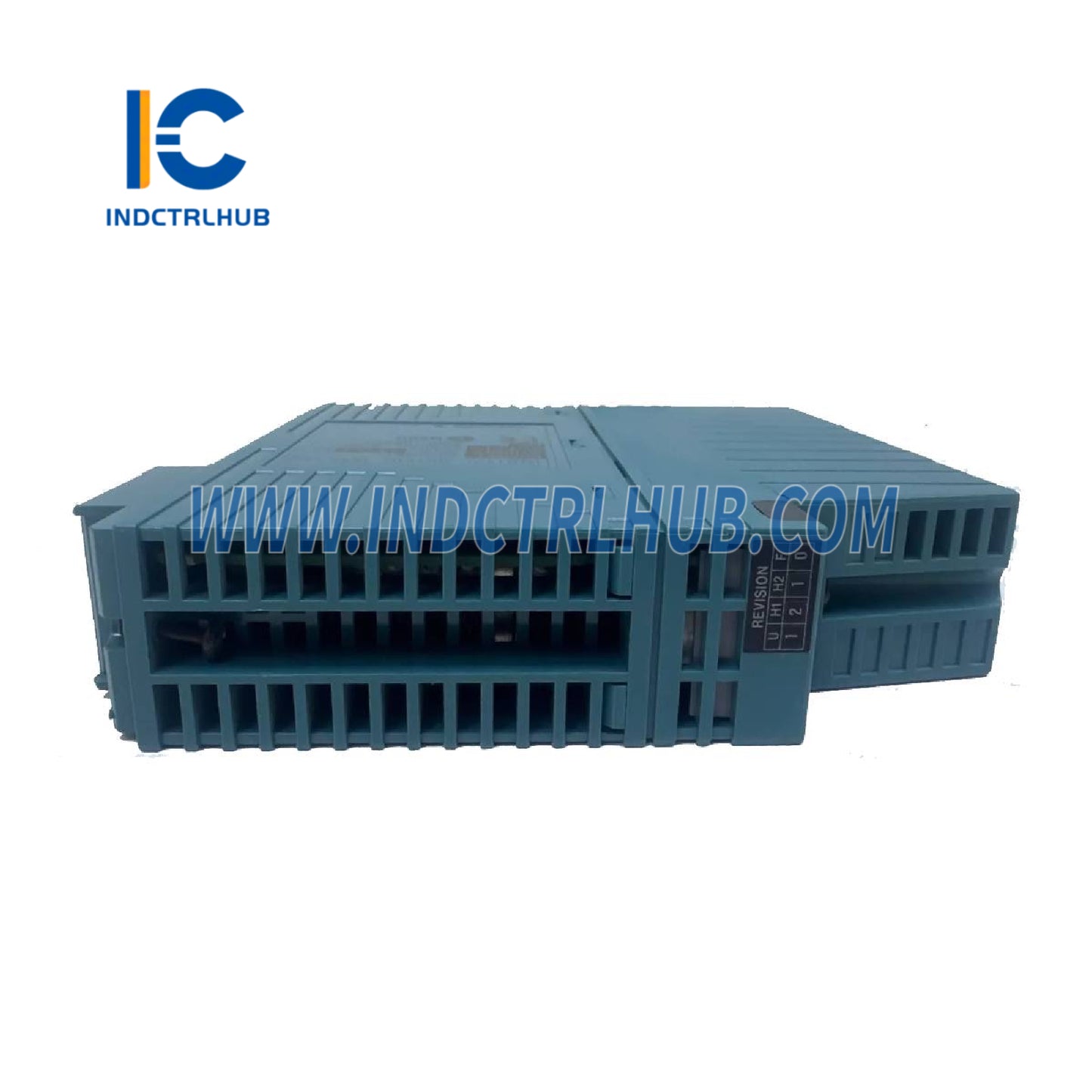

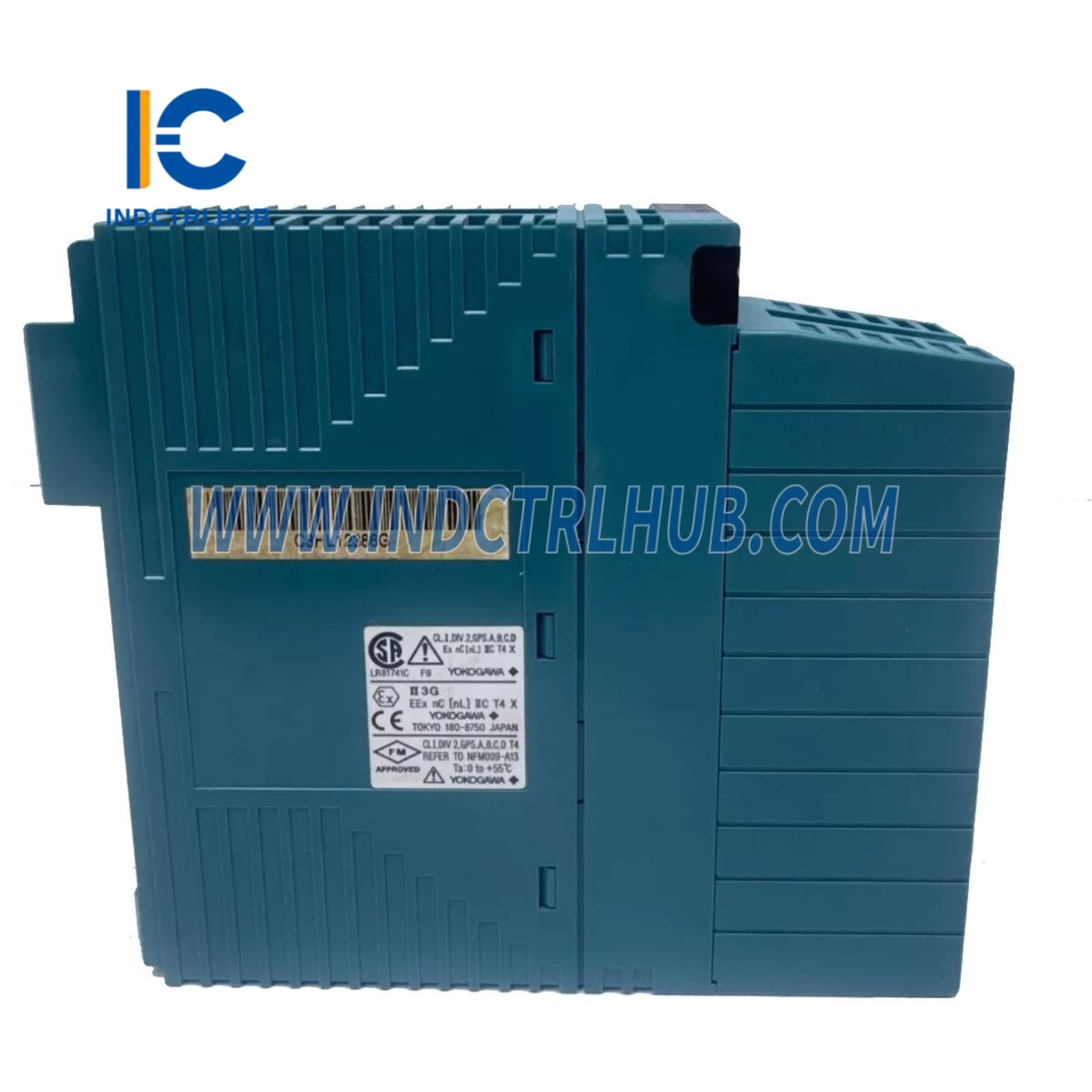

Product Description
🔹 General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
NFDV551-P10/CCC01 |
|
Description |
32-Channel Digital Output Module (24 V DC, Isolated, MIL Connector Cover) |
🔹 Technical Specifications
|
Item |
Specification |
|---|---|
|
Model |
NFDV551 |
|
Number of Output Channels |
32 |
|
Rated Applied Voltage |
24 V DC |
|
Load Voltage |
24 V DC, 50 mA |
|
Field Power Supply Voltage Range |
20.4 to 26.4 V DC |
|
Output ON Voltage (Max.) |
2 V DC |
|
Leak Current (OFF) |
Max. 0.1 mA |
|
Output Format |
Current sink |
|
Maximum Load Current |
100 mA/channel at 26.4 V DC |
|
Withstanding Voltage |
- 2000 V AC between output and system (1 min) - 500 V AC between commons (1 min) |
|
Output Fallback Functions |
HOLD / OFF / NO (user-selectable) |
|
Status Output Function |
Output ON/OFF status function |
|
Output Response Time |
≤ 3 ms |
|
Max Current Consumption |
700 mA (5 V DC), 60 mA (24 V DC field power supply) |
|
Weight |
Approx. 0.2 kg |
|

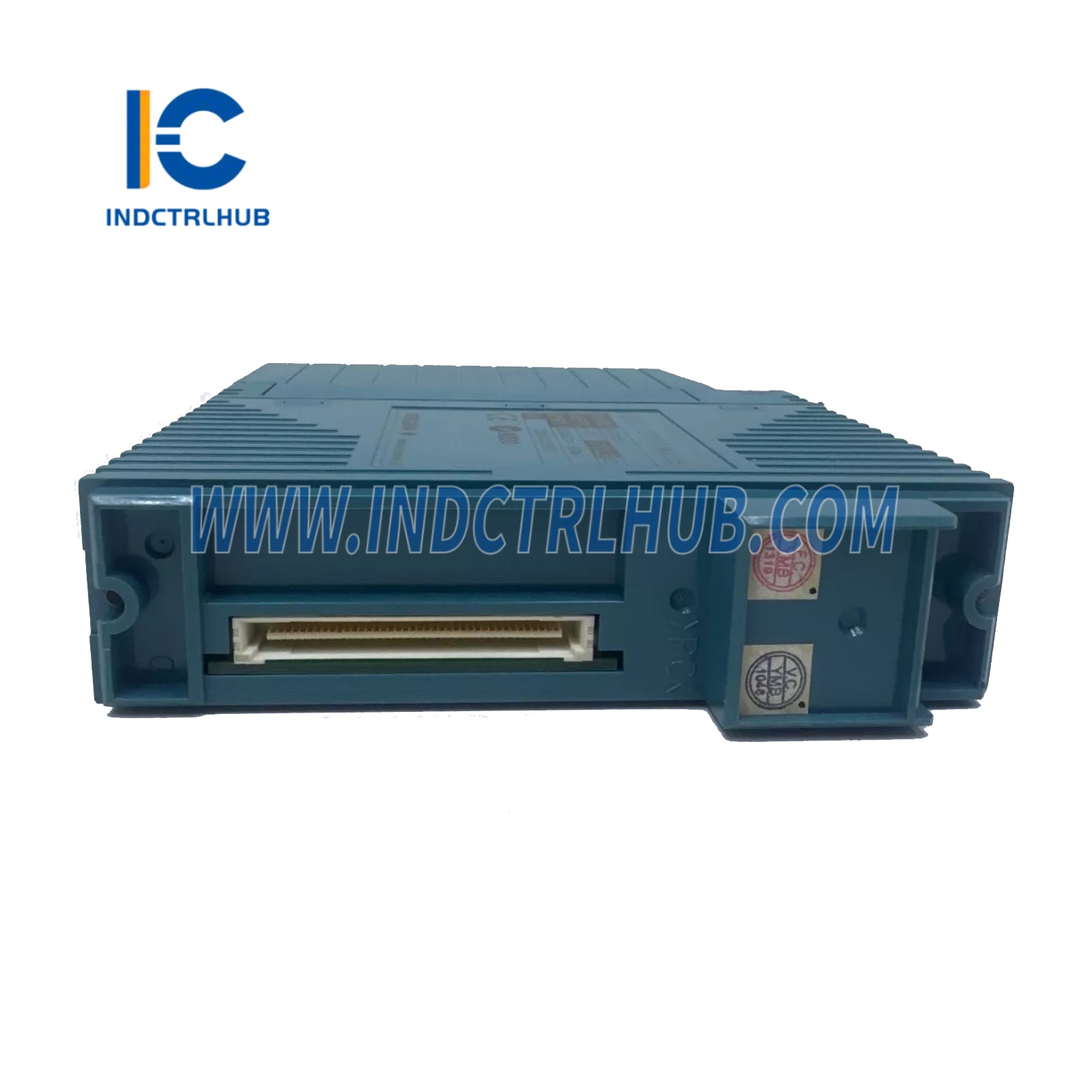

External Connections |
Pressure clamp terminal or MIL connector cable |
🔹 Model Configuration
|
Model |
Description |
|---|---|
|
NFDV551 |
Digital Output Module, 32-channel, 24 V DC, Isolated |

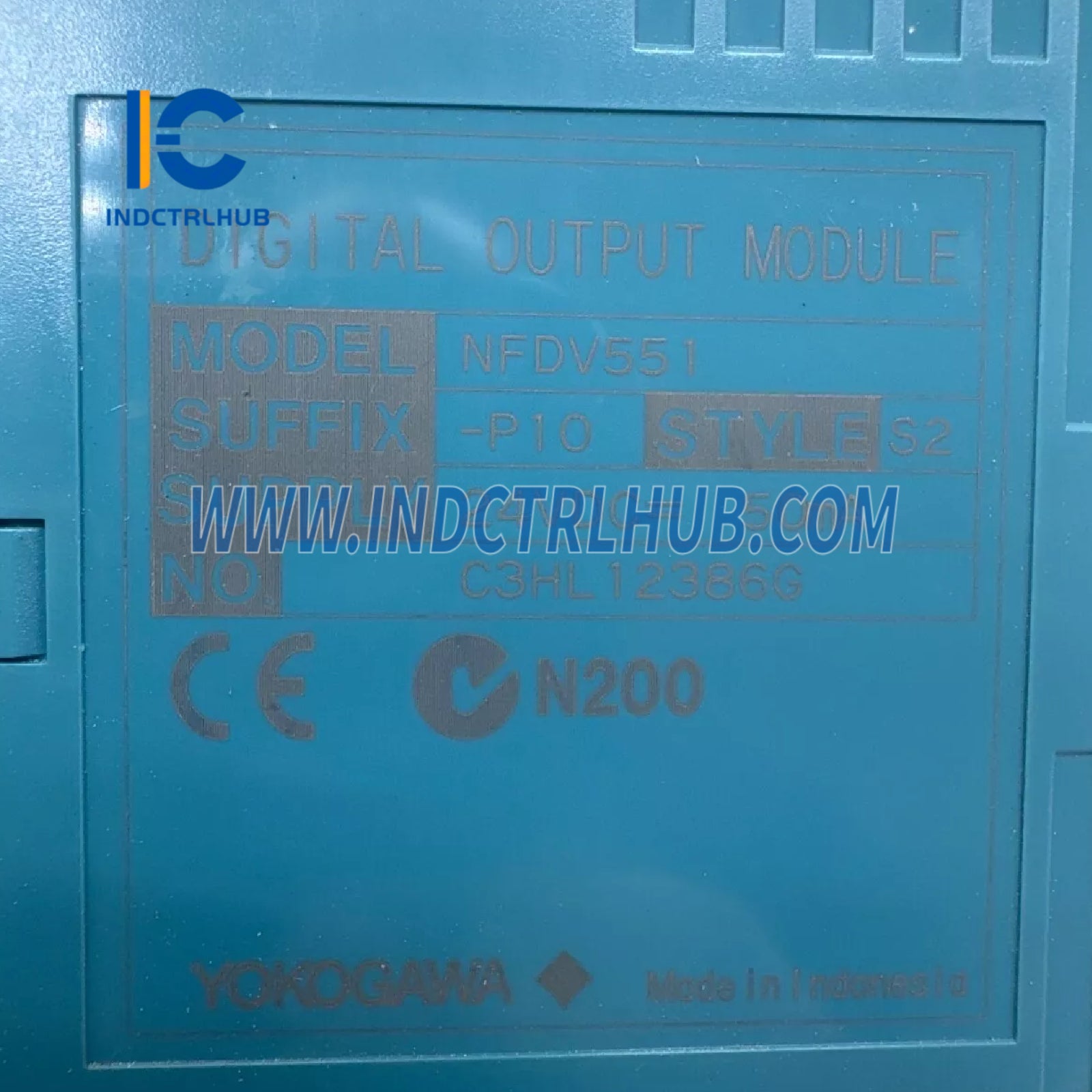

Suffix Code Breakdown (NFDV551-P10)
|
Suffix |
Description |
|---|---|
|
-P |
Standard type |
|
1 |
With ISA Standard G3 compliance |
|
0 |
Basic type (no status display, no explosion protection) |
🔹 Option Codes (Included with This Part)
|
Option Code |
Description |
|---|---|
|
/CCC01 |
With connector cover for MIL cable [Model: NFCCC01] |
🔹 Optional Accessories (Not Included by Default)
|
Option Code |
Description |
|---|---|
|
/D5S00 |
Pressure clamp terminal block for digital output [Model: NFTD5S-00] |
|
/D5S10 |
Pressure clamp terminal block (with surge absorber) [Model: NFTD5S-10] |
