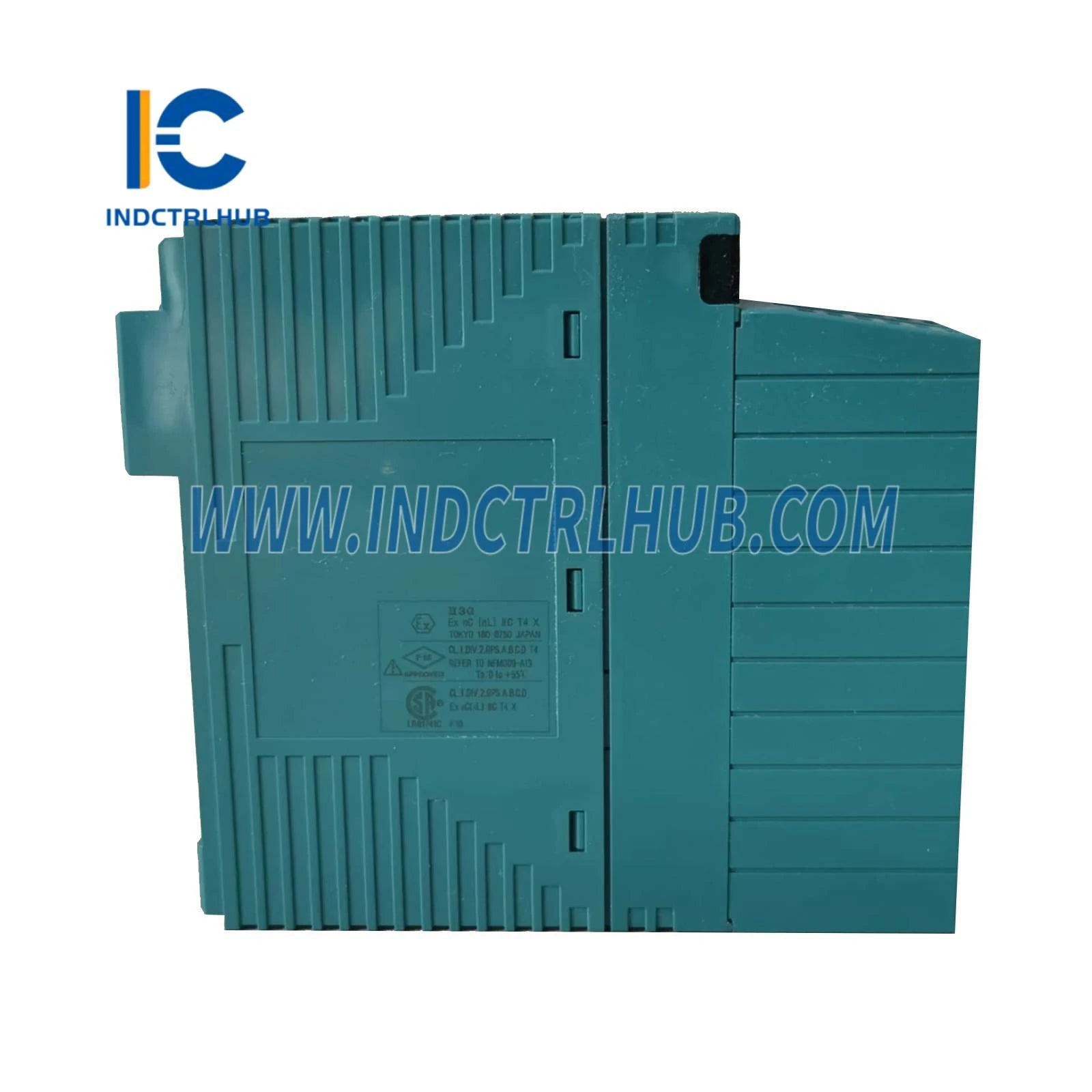

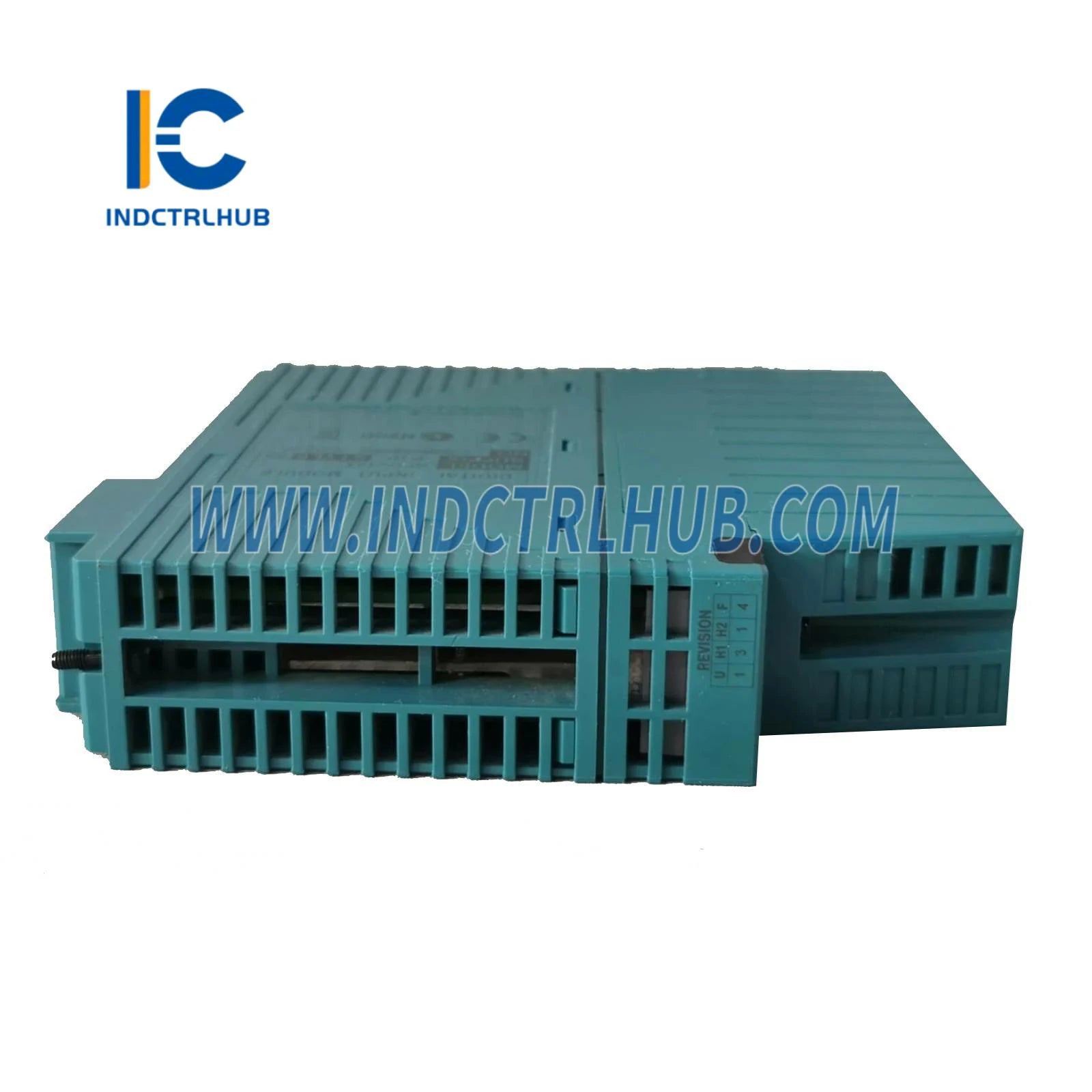

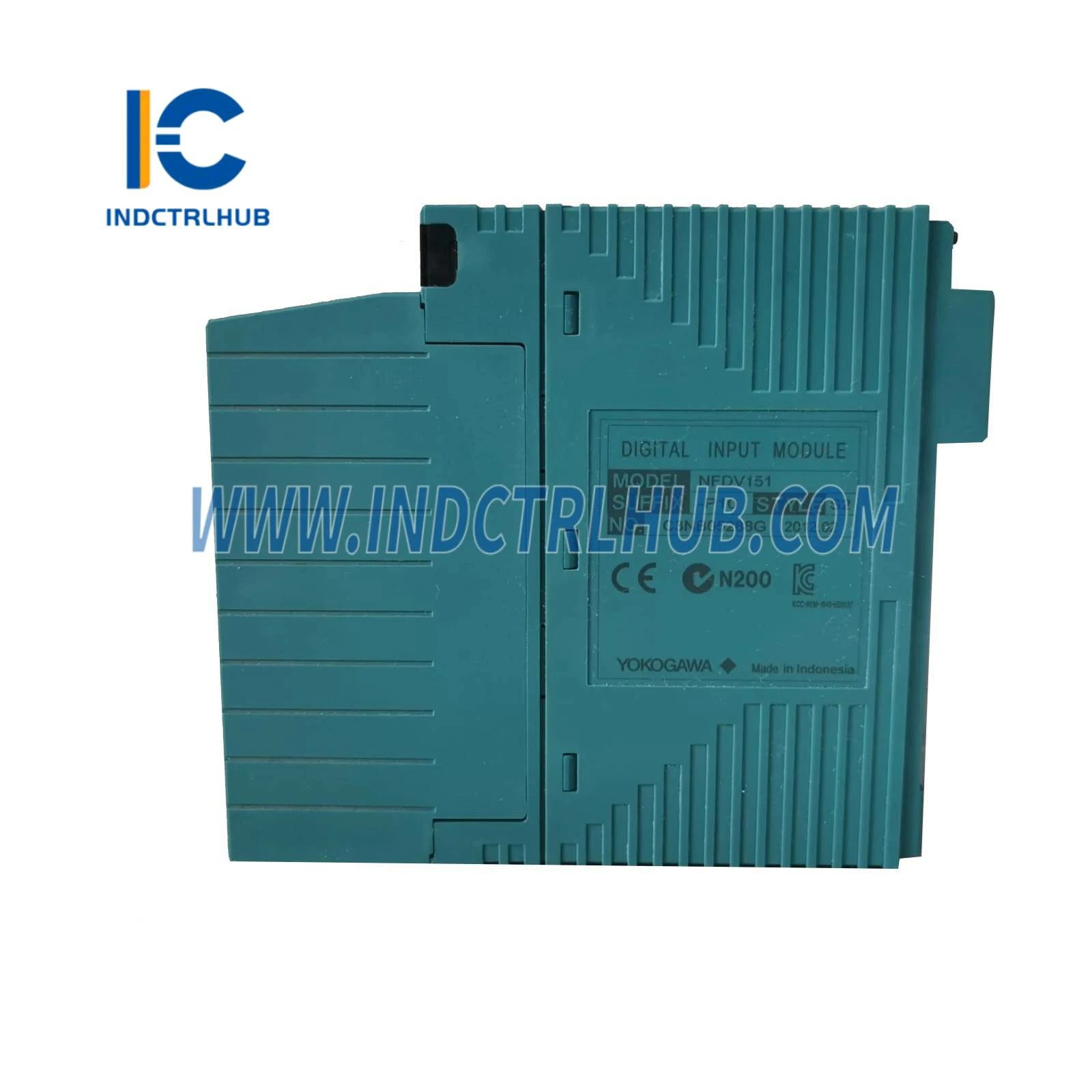

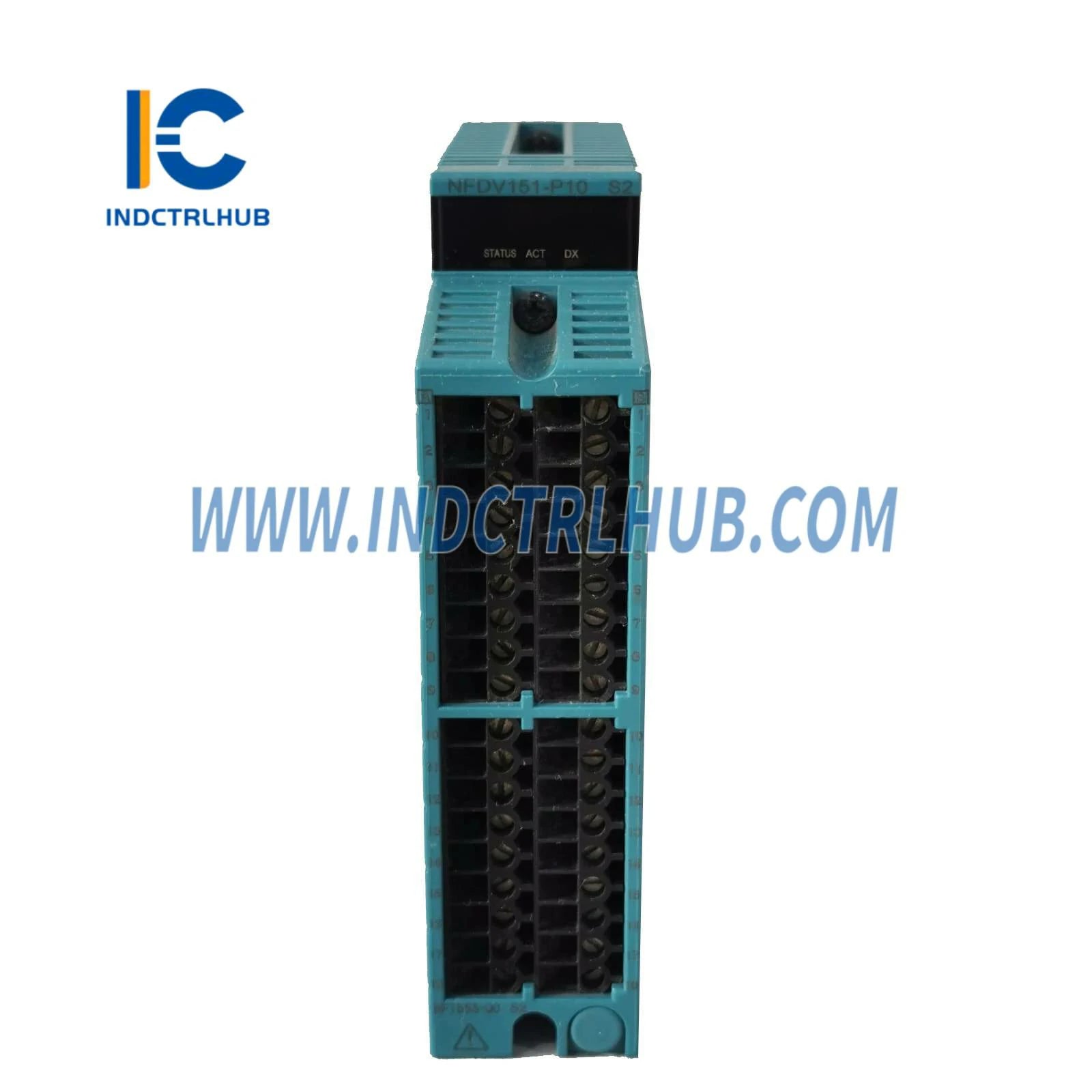

Product Description
🔹 General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
NFDV151-P10/CCC01 |
|
Description |

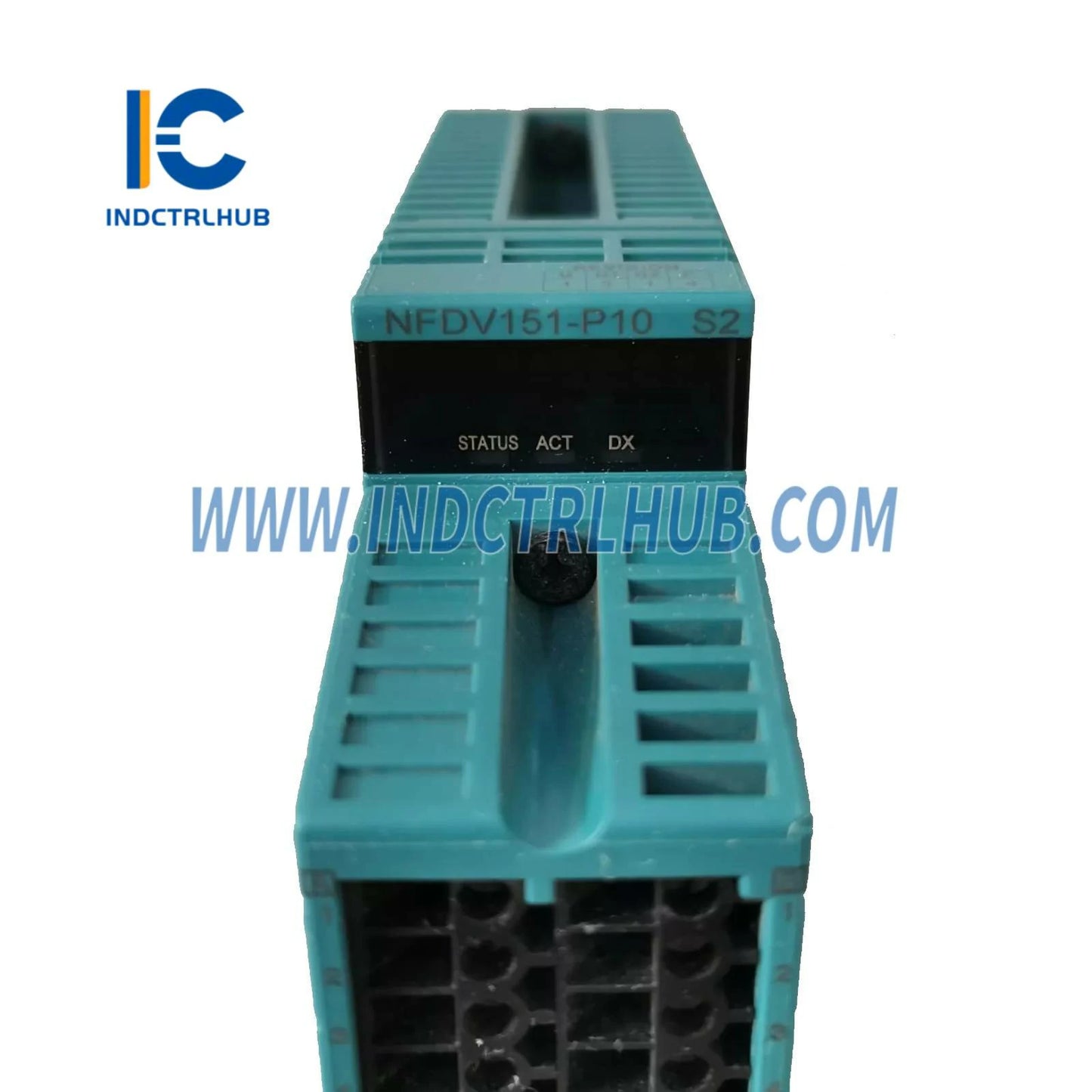

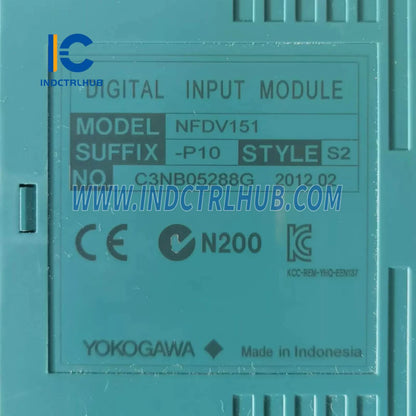

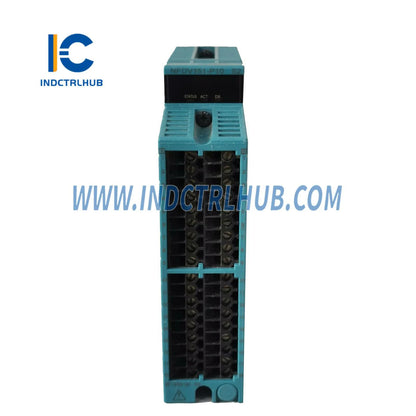

32-channel, 24 V DC Digital Input Module, Isolated type with push button edge counting function |
🔹 Specifications
|
Category |
Details |
|---|---|
|
Model |
NFDV151 |
|
Number of Input Channels |
32 |
|
Rated Input Voltage |
24 V DC |
|
Input ON Voltage Range |
18 to 26.4 V DC |
|
Input OFF Voltage |
≤ 5.0 V DC |
|
Input Current (@ rated voltage) |
4.1 mA ± 20% per channel |
|
Instantaneous Max Input Voltage |
30.0 V DC |
|
Withstanding Voltage |
2000 V AC (Input signal to system, 1 min) 500 V AC (Between commons) |
|
Functions |
ON/OFF status detection Push button edge counting |
|
Input Response Time |
≤ 8 ms (status input) |
|
Minimum ON Detection Time |
20 ms (push button input) |
|
Max ON/OFF Cycle |
25 Hz (push button input) |
|
Max Current Consumption |
500 mA (5 V DC) |
|
Weight |
Approx. 0.3 kg |
|

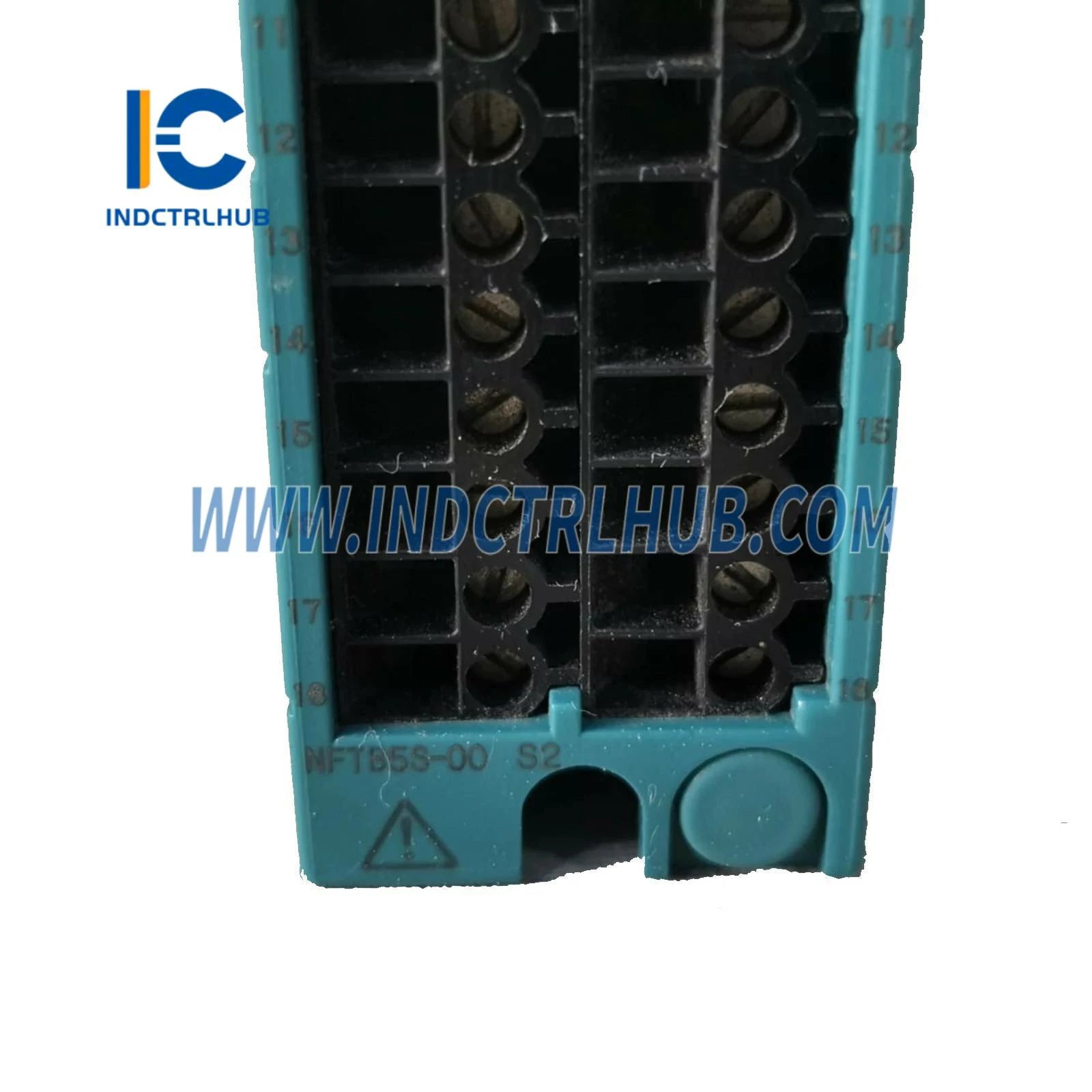

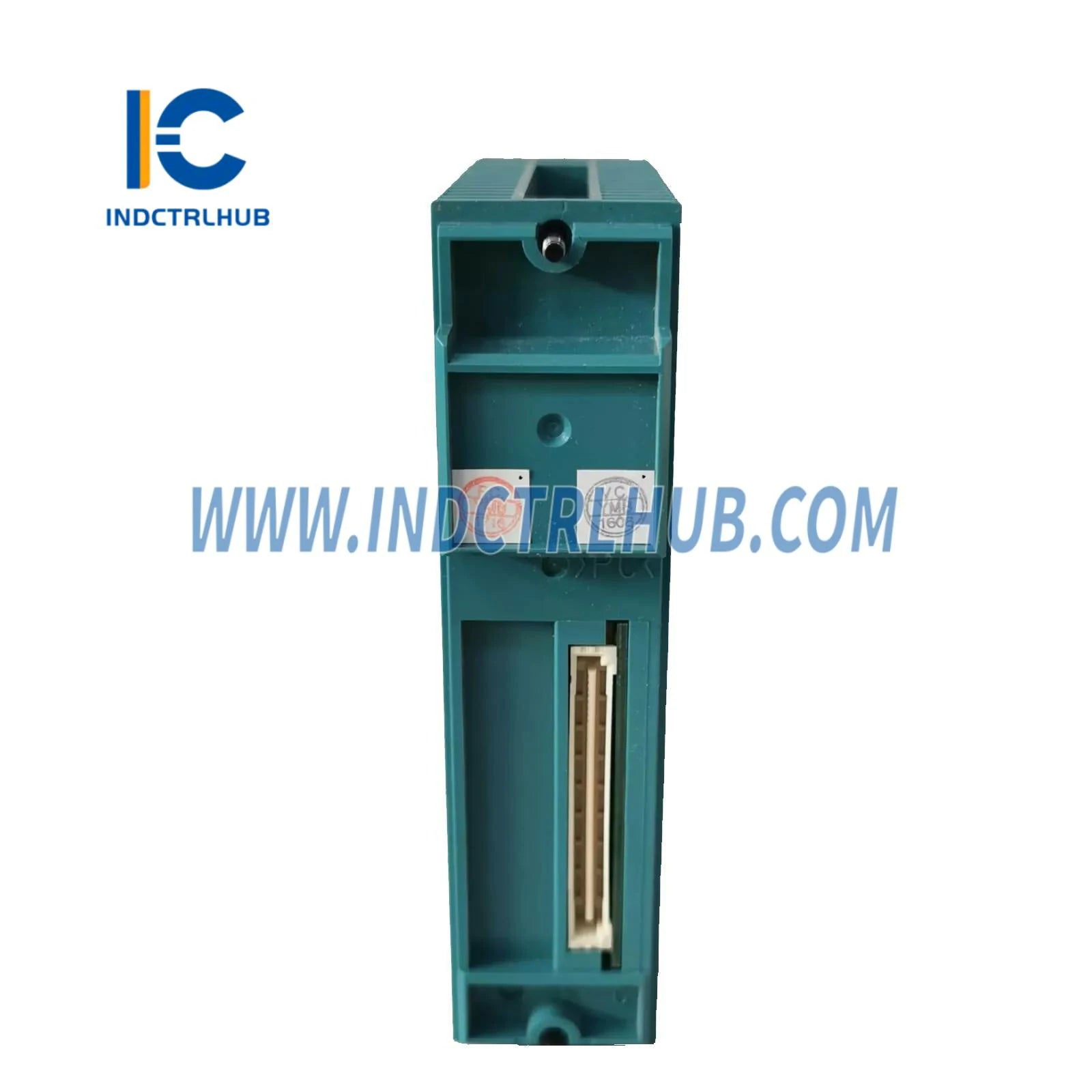

External Connections |
Pressure clamp terminal, MIL connector cable |

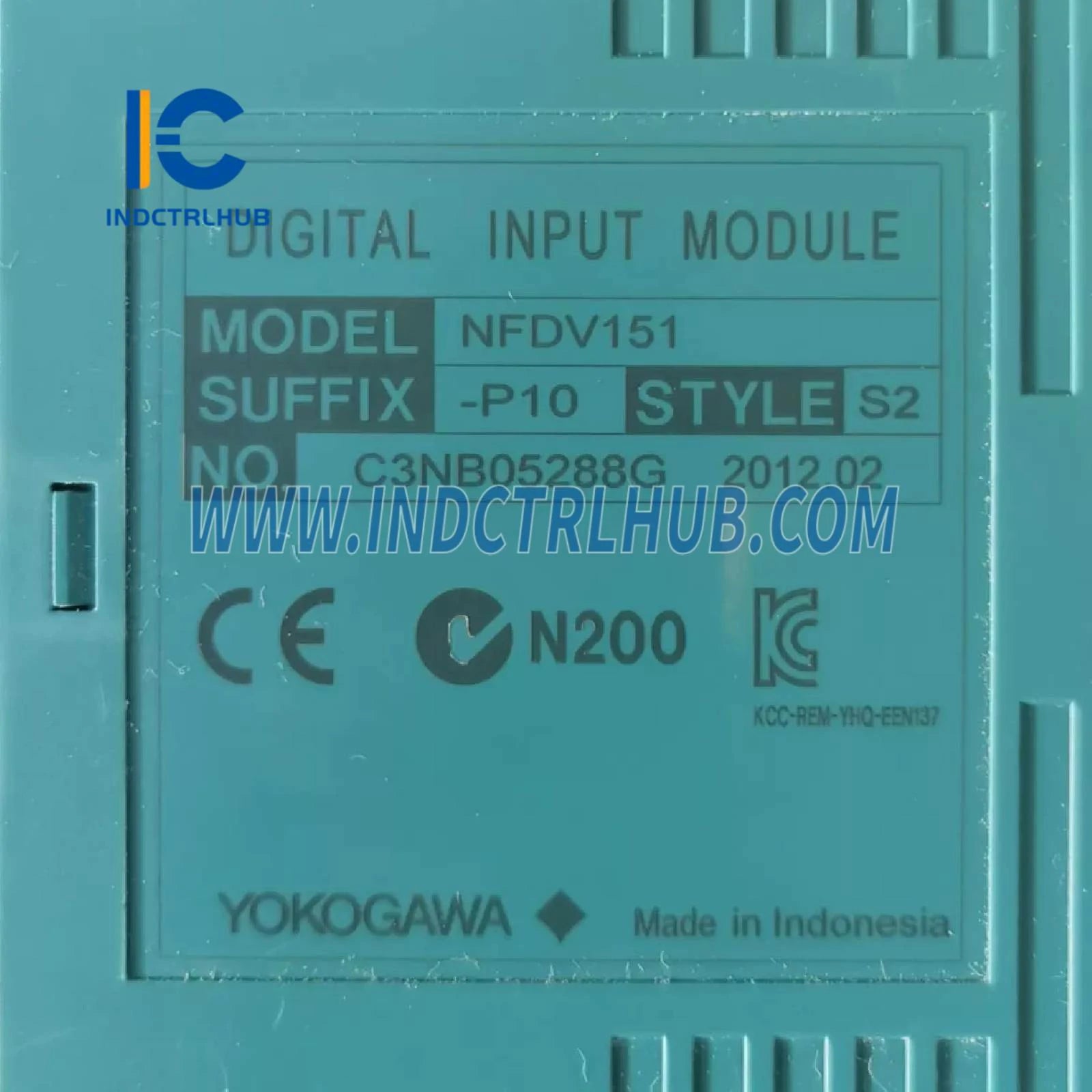

🔹 Suffix Code Breakdown (NFDV151-P10/CCC01)
|
Code |
Description |
|---|---|
|
-P |
Includes push button edge counting function |
|
1 |
With ISA Standard G3 option |
|
0 |
Basic type |
|
/CCC01 |
With Connector Cover for MIL Cable (Model: NFCCC01) |
