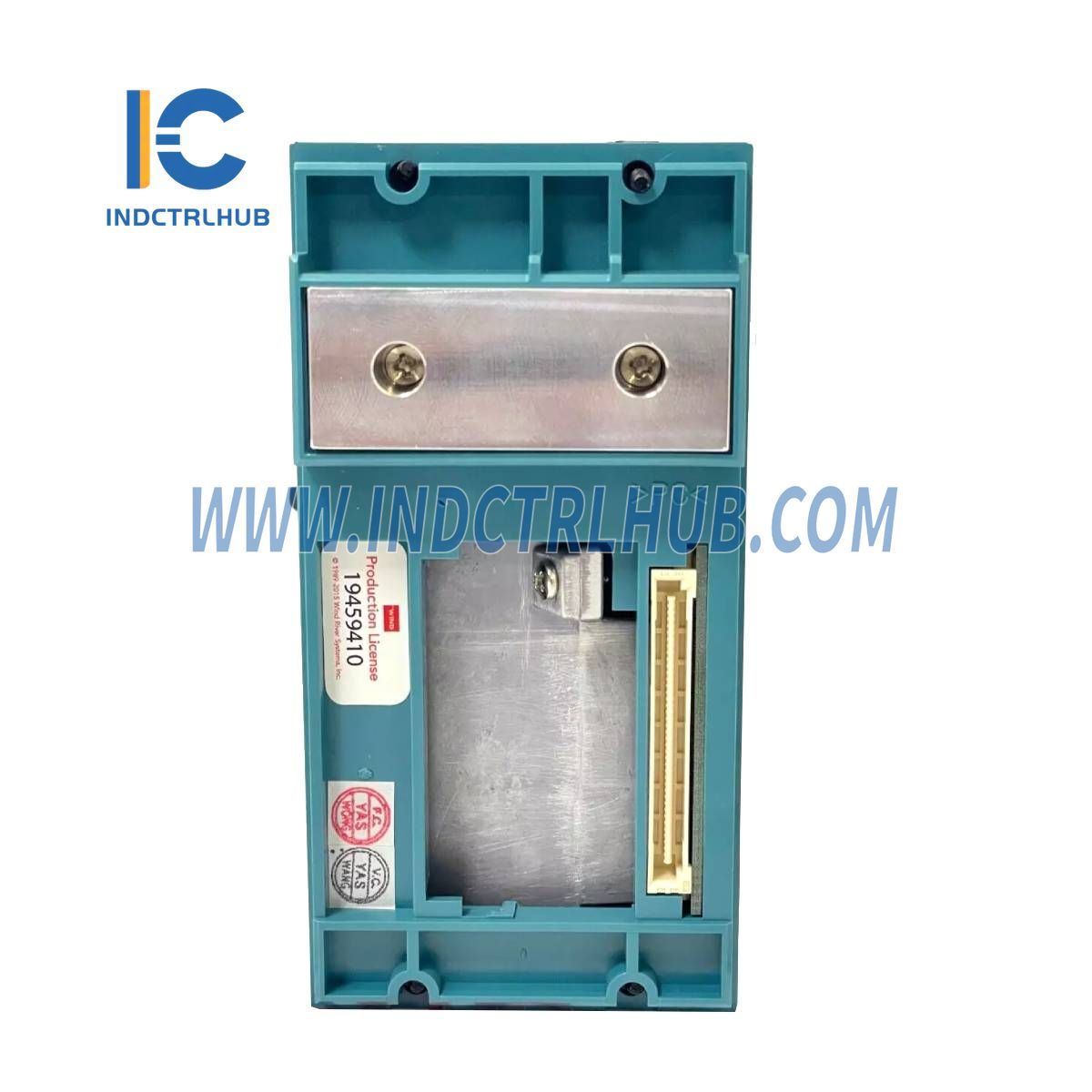

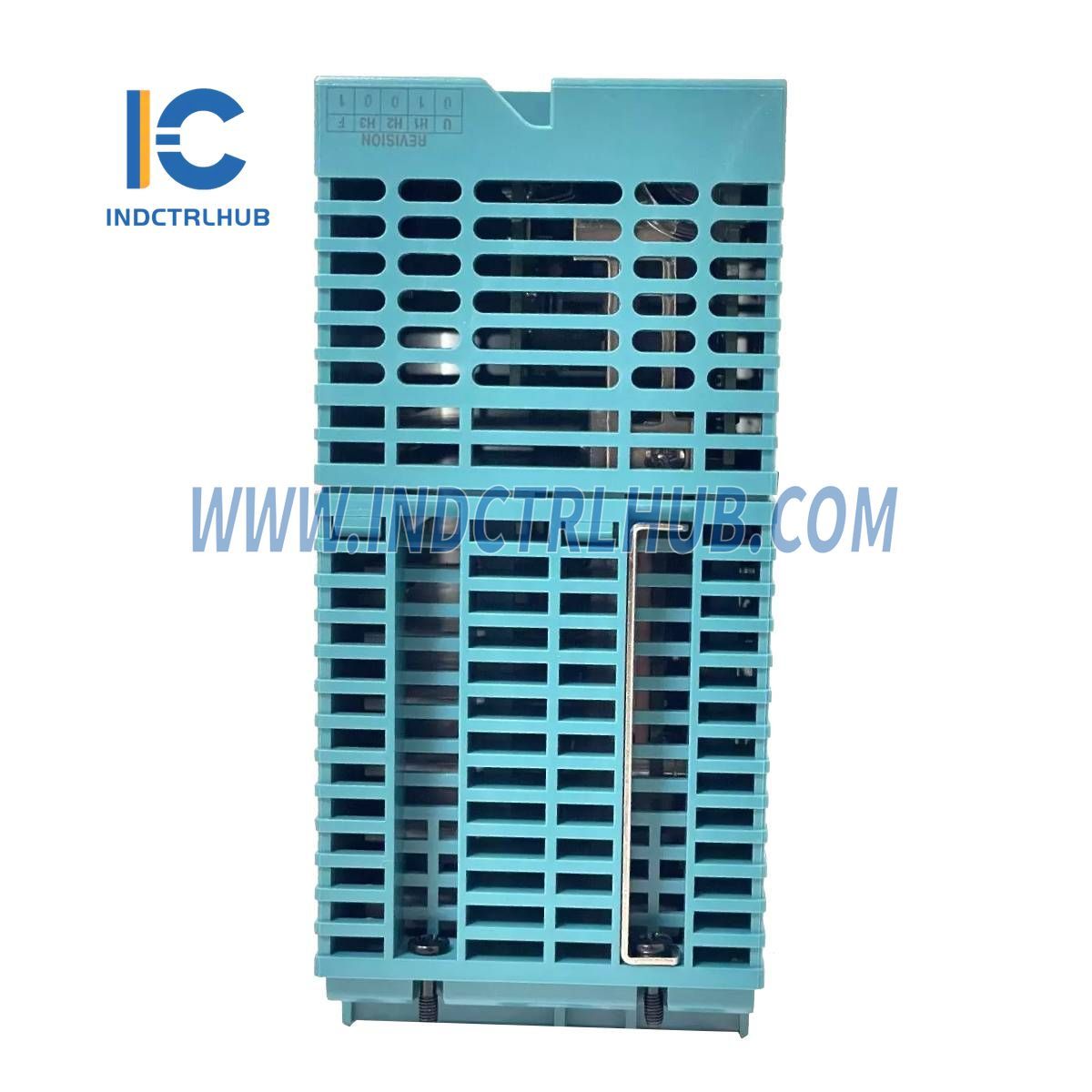

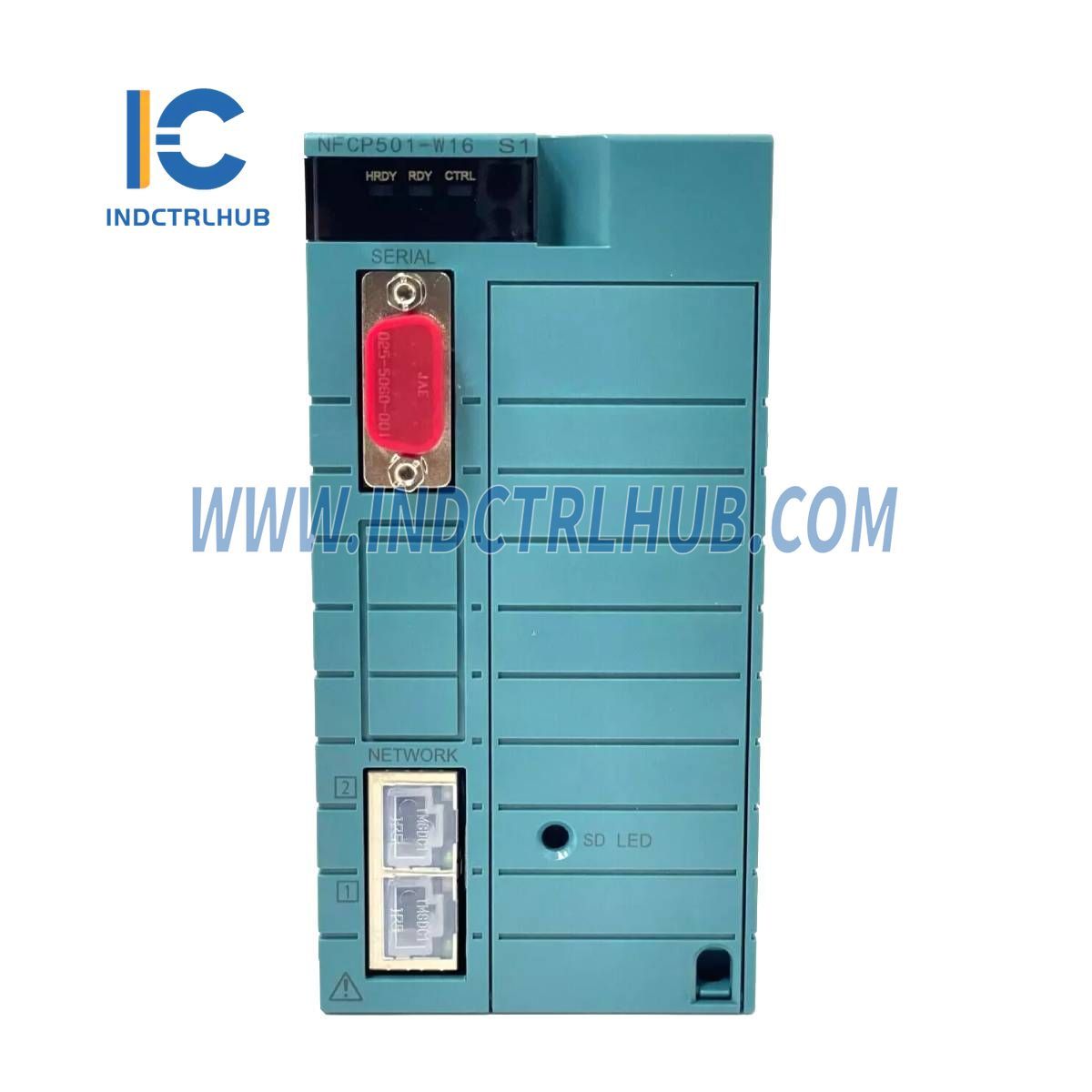

Yokogawa NFCP501-W05/MO1 | CPU Module for FCN-RTU (with 2 Ethernet ports)

Yokogawa NFCP501-W05/MO1 | CPU Module for FCN-RTU (with 2 Ethernet ports)

  • Manufacturer: Yokogawa

  • Product No.: NFCP501-W05/MO1

  • Condition:100 in stock

  • Product Type: CPU Module for FCN-RTU

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 900g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

The Yokogawa NFCP501-W05/MO1 is a CPU module designed for FCN-RTU systems. It supports duplexed CPU configurations, runs a real-time operating system, supports IEC 61131-3 programming languages, and serves as a Duolet virtual machine.

Model Overview

  • Model: NFCP501 – CPU Module for FCN (with 2 Ethernet ports)
  • Suffix Codes:
    • -W: With extended functions
    • 0: Standard type
    • 5: Basic type with no explosion protection

Specifications

Processor & Memory

  • CPU: Intel Atom E3815 (1.46 GHz)
  • Main Memory: 256 MB with ECC
  • Static RAM: 2 MB with ECC (battery-backed)
  • Secondary Storage: 1 GB onboard flash memory
  • External Media: 1 SD card slot (SDHC 4–32 GB, Class 10)

Serial Port

  • 1 RS-232-C Port (D-sub 9-pin, male)
  • Communication Method: Full/Half duplex (software settings)
  • Synchronization: Asynchronous
  • Baud Rates: 0.3 to 115.2 kbps
  • Note: Serial port is unavailable in redundancy mode

Network Interface

  • 2 Ethernet Ports (RJ45)
  • Baud Rate: 1000/100/10 Mbps (1000BASE-T, 100BASE-TX, 10BASE-T)

I/O Interface

  • SB Bus (duplex supported)

RAS Features

  • Watchdog Timer
  • Temperature Monitoring

Battery

  • Type: 1000 mAh graphite fluoride lithium battery
  • Feature: Battery exhaustion detection
  • Exchangeable: Yes (online replacement possible)

Indicators & Controls

  • LED Indicators:
    • 3 for CPU status
    • 2 for Ethernet status
    • 1 for SD card status
    • 1 for EXEC status
  • Switches:
    • RESET
    • SHUTDOWN
    • FUNC
    • EXEC

Power & Physical Specs

  • Supply Voltage: 5 V DC ±5%
  • Current Consumption: Max. 1200 mA
  • Weight: 0.9 kg
  • Dimensions (W × H × D): 65.8 × 130 × 149.3 mm
  • Occupies: 2 slots
  • Protection: CPU cover with wire lock hole

Duplex Configuration

  • Supported (Requires identical CPU modules with same model, suffix codes, and system software version)

Installation Requirements

Environmental Conditions

  • Operating Temperature: 0° to 55°C
  • Storage Temperature: -40° to 85°C
  • Operating Humidity: 5% to 95% RH (non-condensing)
  • Storage Humidity: 5% to 95% RH (non-condensing)
  • Dust Resistance: ≤ 0.3 mg/m³
  • Protection Class: IP20
  • Corrosive Gas Resistance: ANSI/ISA S71.04 Class G2 (Standard), G3 (Optional)
  • Vibration Resistance: 0.15 mm P-P (5–58 Hz), 1 G (58–150 Hz)
  • Shock Resistance: 15 G, 11 ms (XYZ-directions, power-off)
  • Altitude Limit: ≤ 2000 m

Noise Resistance

  • Electric Field: ≤ 3 V/m (26 MHz – 1 GHz)
  • Magnetic Field: ≤ 30 A/m (AC), ≤ 400 A/m (DC)
  • Electrostatic Discharge: ≤ 4 kV (contact), ≤ 8 kV (air discharge)

Cooling & Grounding

  • Cooling Method: Natural air cooling
  • Grounding: Must follow country/regional standards
