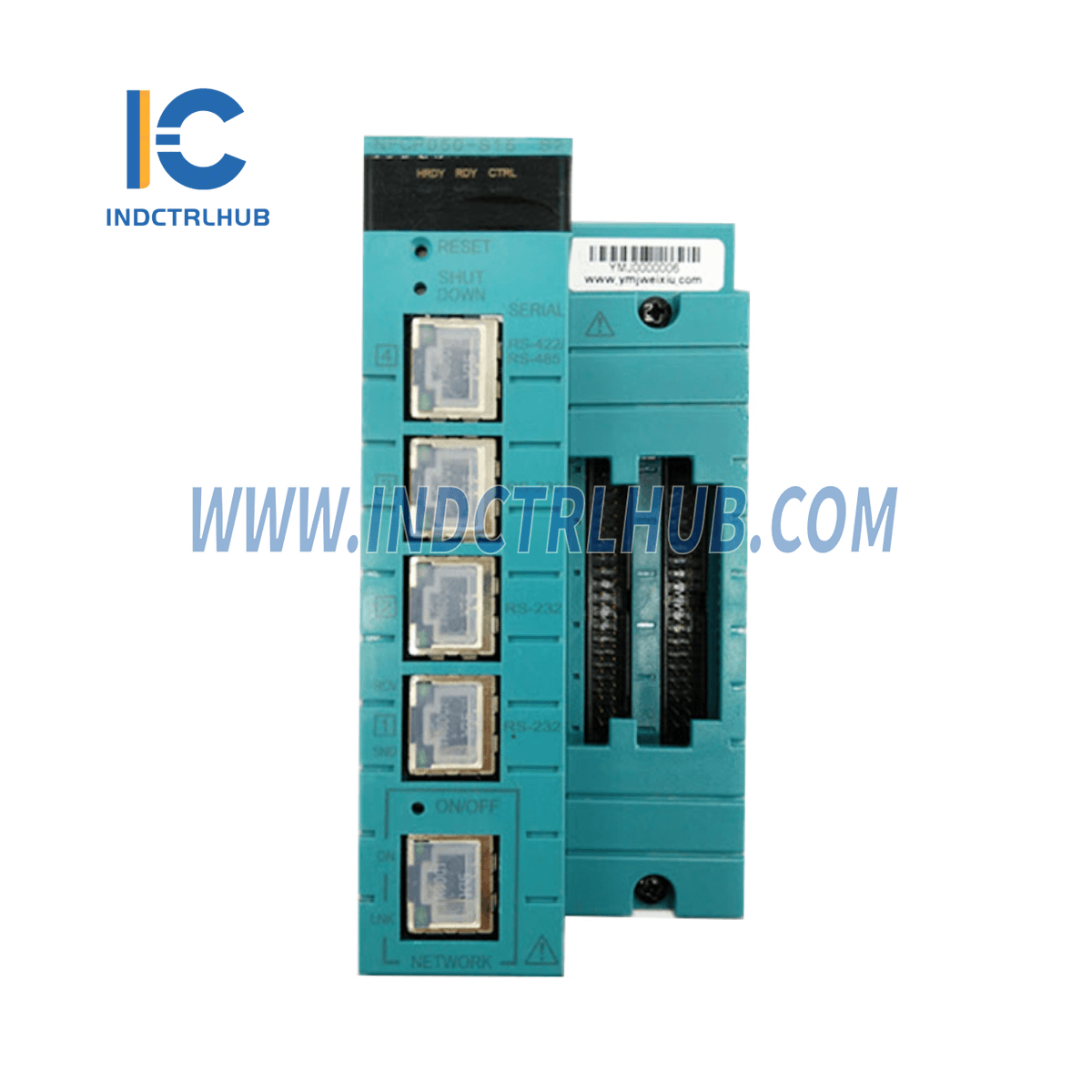

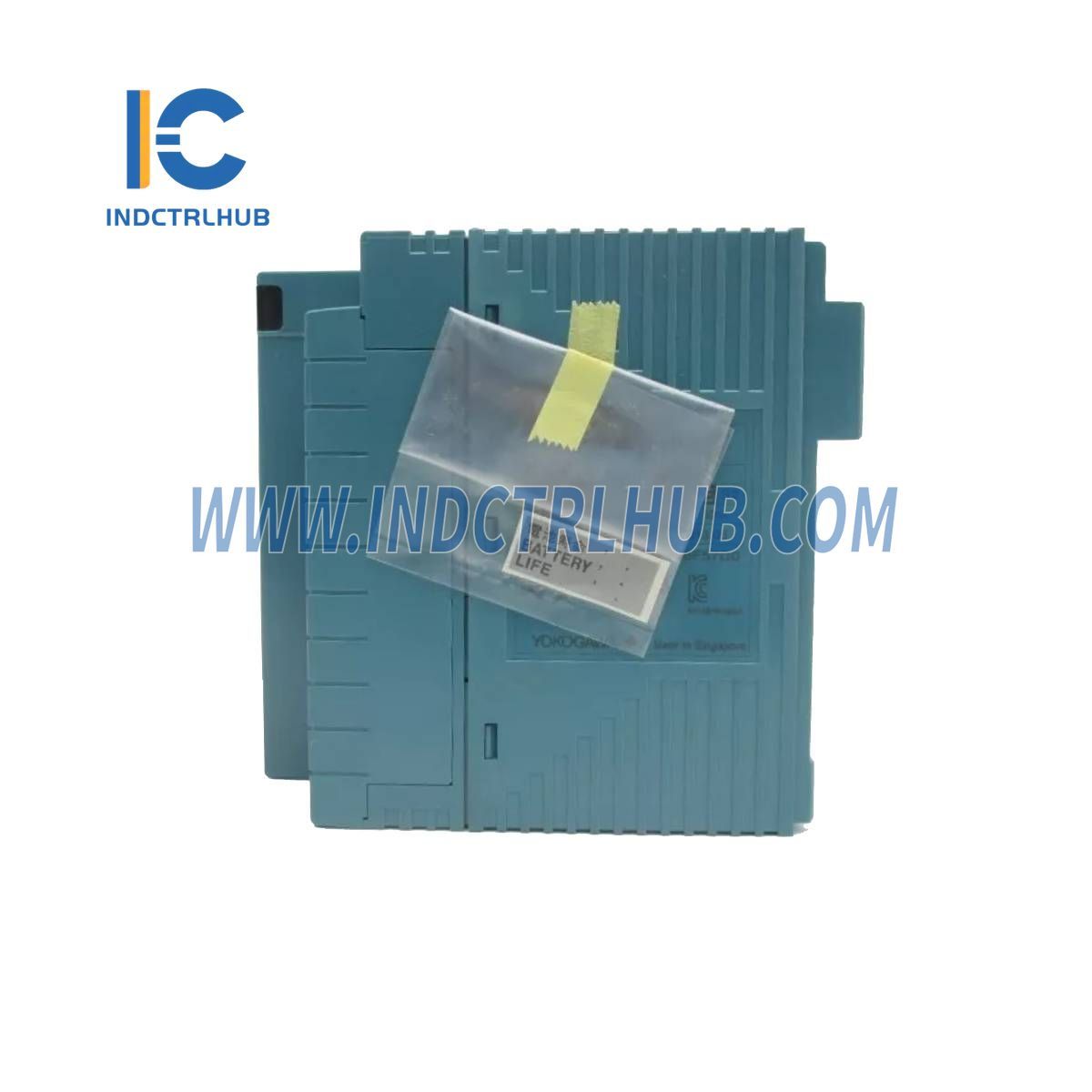

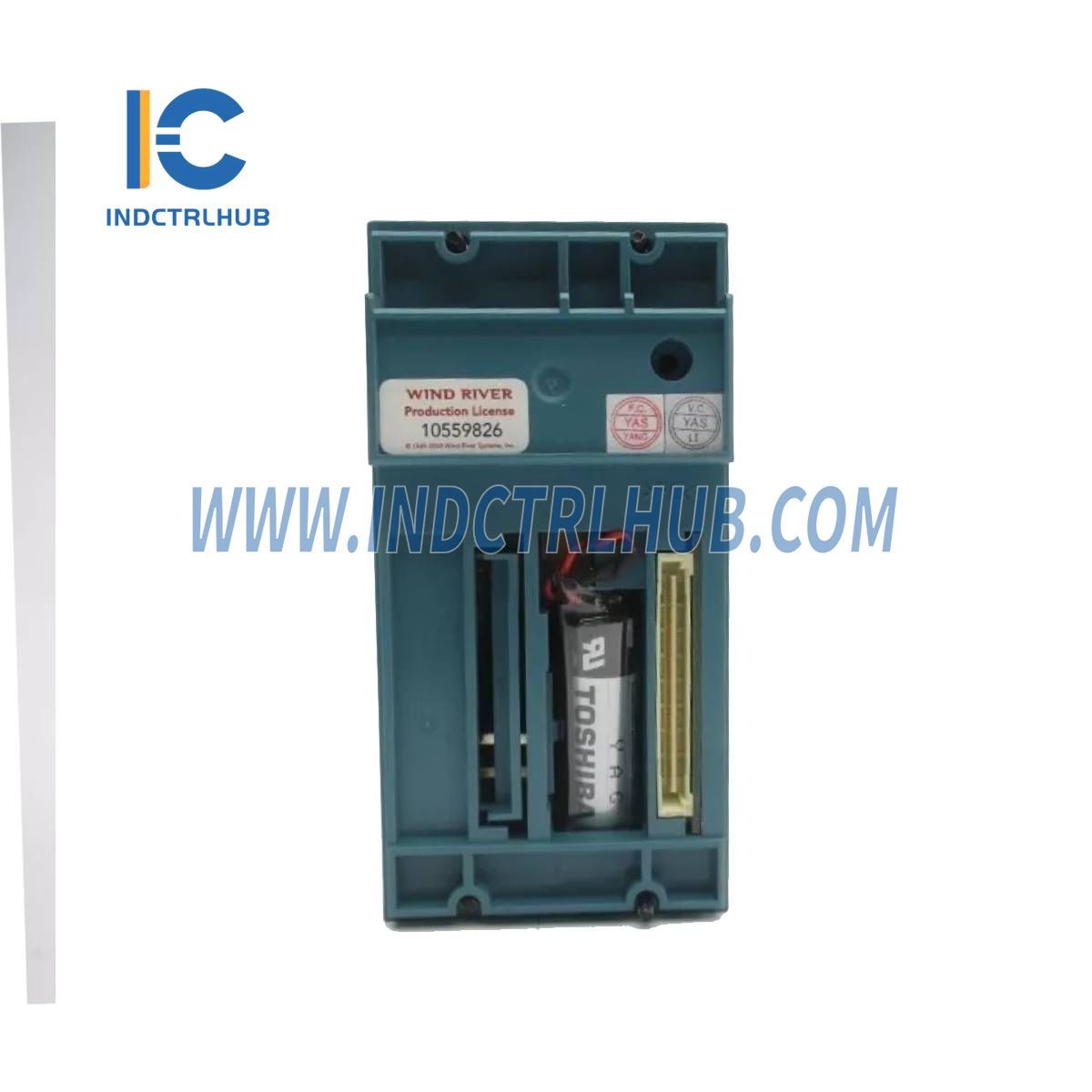

Yokogawa NFCP050-S00 | CPU Module for FCN-RTU

Yokogawa NFCP050-S00 | CPU Module for FCN-RTU

  • Manufacturer: Yokogawa

  • Product No.: NFCP050-S00

  • Condition:100 in stock

  • Product Type: CPU Module for FCN-RTU

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 570g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

he Yokogawa NFCP050-S00 is a CPU module designed for FCN-RTU systems. It runs a real-time operating system, supports IEC 61131-3 programming languages, and serves as a Java virtual machine. This module features built-in I/Os and software licenses, making it a powerful and compact control unit solution.

Model Overview

  • Model: NFCP050 – CPU module for FCN-RTU

Specifications

Processor & Memory

  • CPU: SH-4A (SH7730) 256 MHz
  • Main Memory: 128 MB with ECC
  • Static RAM: 1 MB with ECC (battery-backed)
  • System Storage: 128 MB onboard flash memory

Serial Ports

  • 3 RS-232 Ports (SERIAL: 1, 2, 3), non-isolated, RJ45
  • 1 RS-422/RS-485 Port (SERIAL: 4), non-isolated, RJ45
  • Baud Rates:
    • SERIAL 1, 4: Up to 115.2 kbps
    • SERIAL 2, 3: Up to 38.4 kbps
  • Terminating Resistance: 120 Ω (RS-422/RS-485, DIP switch settings)

Network Interface

  • Ethernet: 1 port, 100/10 Mbps (100BASE-TX or 10BASE-T, RJ45)
  • Network Power Switch: ON/OFF

Built-in I/O

  • 16 DI channels
  • 8 DO channels
  • 12 AI channels (1-5 V)
  • 2 AO channels (4-20 mA, external power required)
  • 2 PI channels
  • 1 AI channel (0-32 V)

RAS Features

  • Watchdog Timer
  • Temperature Monitoring

Battery

  • Type: 2700mAH lithium battery
  • Feature: Battery exhaustion detection

Indicators & Controls

  • LEDs:
    • 3 for CPU status
    • 2 for LAN status
    • 2 for Serial port status
  • Switches:
    • RESET
    • SHUTDOWN
    • ON/OFF (NETWORK)

Power & Physical Specs

  • Supply Voltage: 5 V DC ± 5%
  • Power Consumption: 1.16 to 2.30 W
  • Weight: 0.57 kg
  • Dimensions (W × H × D): 65.8 × 130 × 142.5 mm
  • Occupies: 2 slots

Additional Notes

  • Requires specially made cables for serial port connections.
  • Uses MIL 40-pin × 2 for I/O interface (compatible with KMS40 cable and TAS40 terminal block).
  • No duplex configuration support.

The NFCP050-S00 is a reliable CPU module for FCN-RTU, offering real-time performance, extensive I/O capabilities, and network connectivity. For more details or assistance, please contact Yokogawa.

View full details

Product Description

he Yokogawa NFCP050-S00 is a CPU module designed for FCN-RTU systems. It runs a real-time operating system, supports IEC 61131-3 programming languages, and serves as a Java virtual machine. This module features built-in I/Os and software licenses, making it a powerful and compact control unit solution.

Model Overview

  • Model: NFCP050 – CPU module for FCN-RTU

Specifications

Processor & Memory

  • CPU: SH-4A (SH7730) 256 MHz
  • Main Memory: 128 MB with ECC
  • Static RAM: 1 MB with ECC (battery-backed)
  • System Storage: 128 MB onboard flash memory

Serial Ports

  • 3 RS-232 Ports (SERIAL: 1, 2, 3), non-isolated, RJ45
  • 1 RS-422/RS-485 Port (SERIAL: 4), non-isolated, RJ45
  • Baud Rates:
    • SERIAL 1, 4: Up to 115.2 kbps
    • SERIAL 2, 3: Up to 38.4 kbps
  • Terminating Resistance: 120 Ω (RS-422/RS-485, DIP switch settings)

Network Interface

  • Ethernet: 1 port, 100/10 Mbps (100BASE-TX or 10BASE-T, RJ45)
  • Network Power Switch: ON/OFF

Built-in I/O

  • 16 DI channels
  • 8 DO channels
  • 12 AI channels (1-5 V)
  • 2 AO channels (4-20 mA, external power required)
  • 2 PI channels
  • 1 AI channel (0-32 V)

RAS Features

  • Watchdog Timer
  • Temperature Monitoring

Battery

  • Type: 2700mAH lithium battery
  • Feature: Battery exhaustion detection

Indicators & Controls

  • LEDs:
    • 3 for CPU status
    • 2 for LAN status
    • 2 for Serial port status
  • Switches:
    • RESET
    • SHUTDOWN
    • ON/OFF (NETWORK)

Power & Physical Specs

  • Supply Voltage: 5 V DC ± 5%
  • Power Consumption: 1.16 to 2.30 W
  • Weight: 0.57 kg
  • Dimensions (W × H × D): 65.8 × 130 × 142.5 mm
  • Occupies: 2 slots

Additional Notes

  • Requires specially made cables for serial port connections.
  • Uses MIL 40-pin × 2 for I/O interface (compatible with KMS40 cable and TAS40 terminal block).
  • No duplex configuration support.

The NFCP050-S00 is a reliable CPU module for FCN-RTU, offering real-time performance, extensive I/O capabilities, and network connectivity. For more details or assistance, please contact Yokogawa.
