Product Description
Product Overview

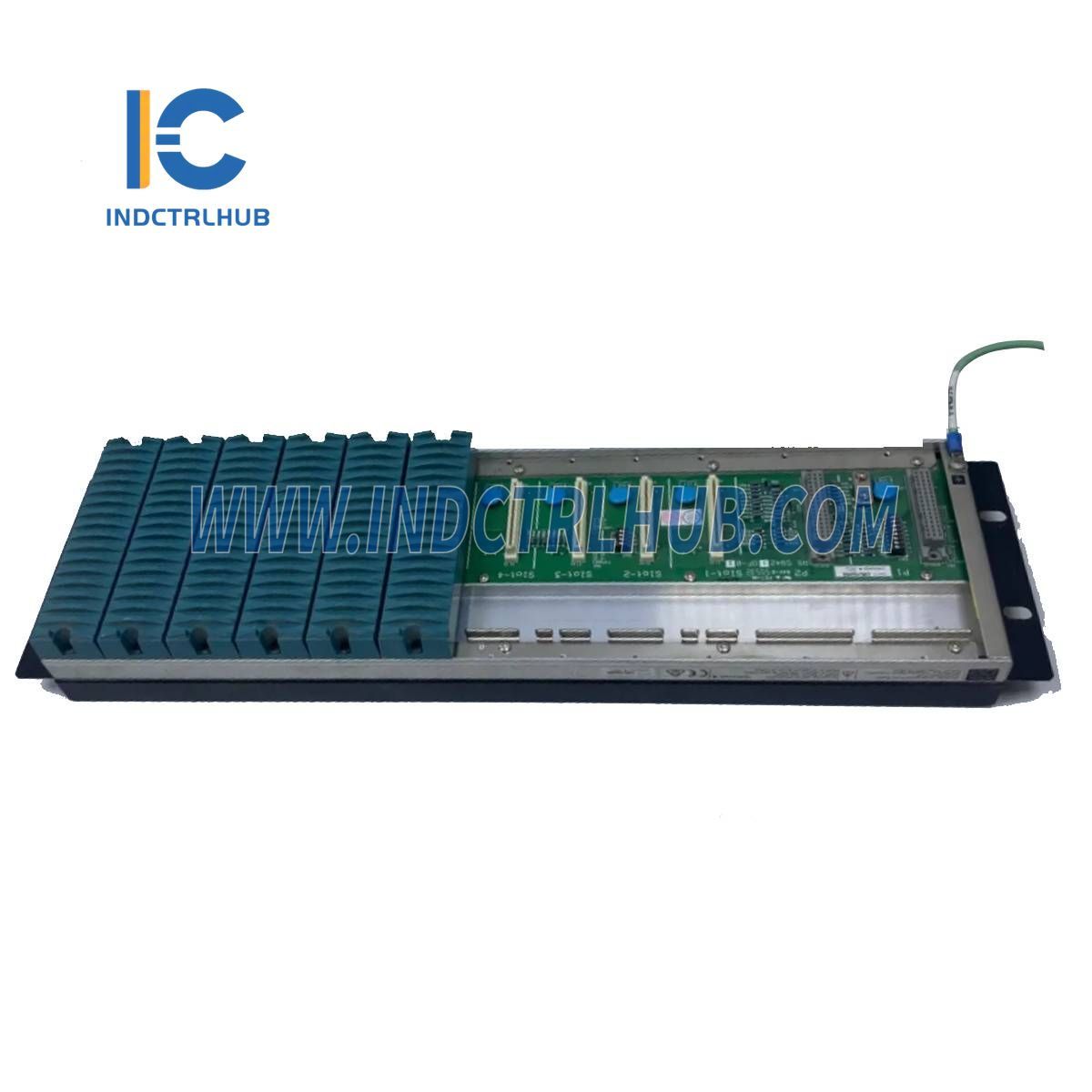

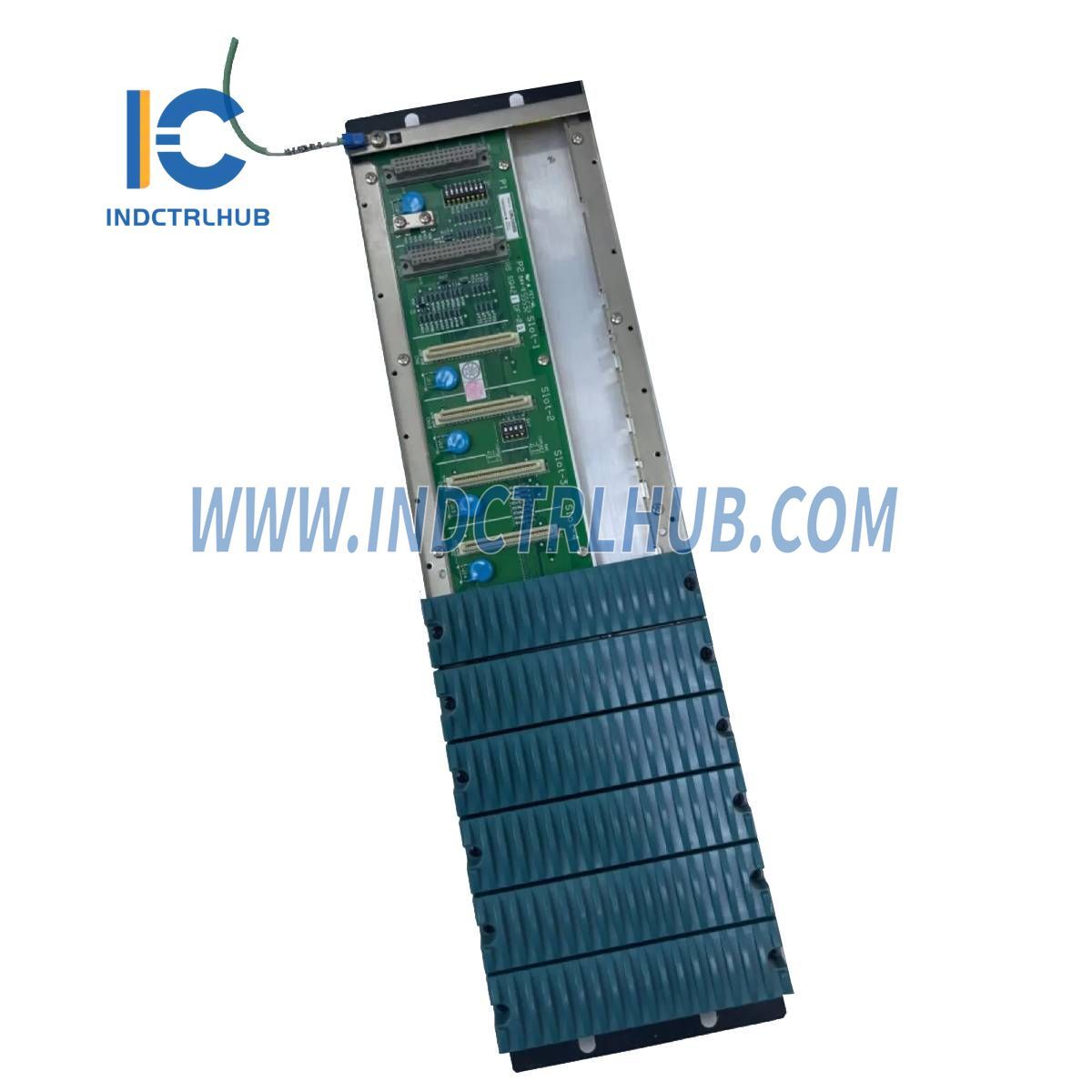

The Yokogawa NFBU200-S05 S1 Base Module (Long) is a foundational component designed for Yokogawa’s industrial control systems, serving as a mounting platform for various I/O modules, such as those in the N-IO/FIO architecture. This standard-type, 19-inch rack-mounted module features a robust design with no explosion protection and basic functionality, weighing 1.9 kg and measuring 482.6 x 132.5 x 40.5 mm. With a maximum power consumption of 0.4 A at 5 V DC and no 24 V DC self-consumption, it provides a reliable base for integrating fieldbus or analog I/O modules in process automation applications.
Technical Information
| Parameter | Specifications |
|---|---|
| Manufacturer | Yokogawa |

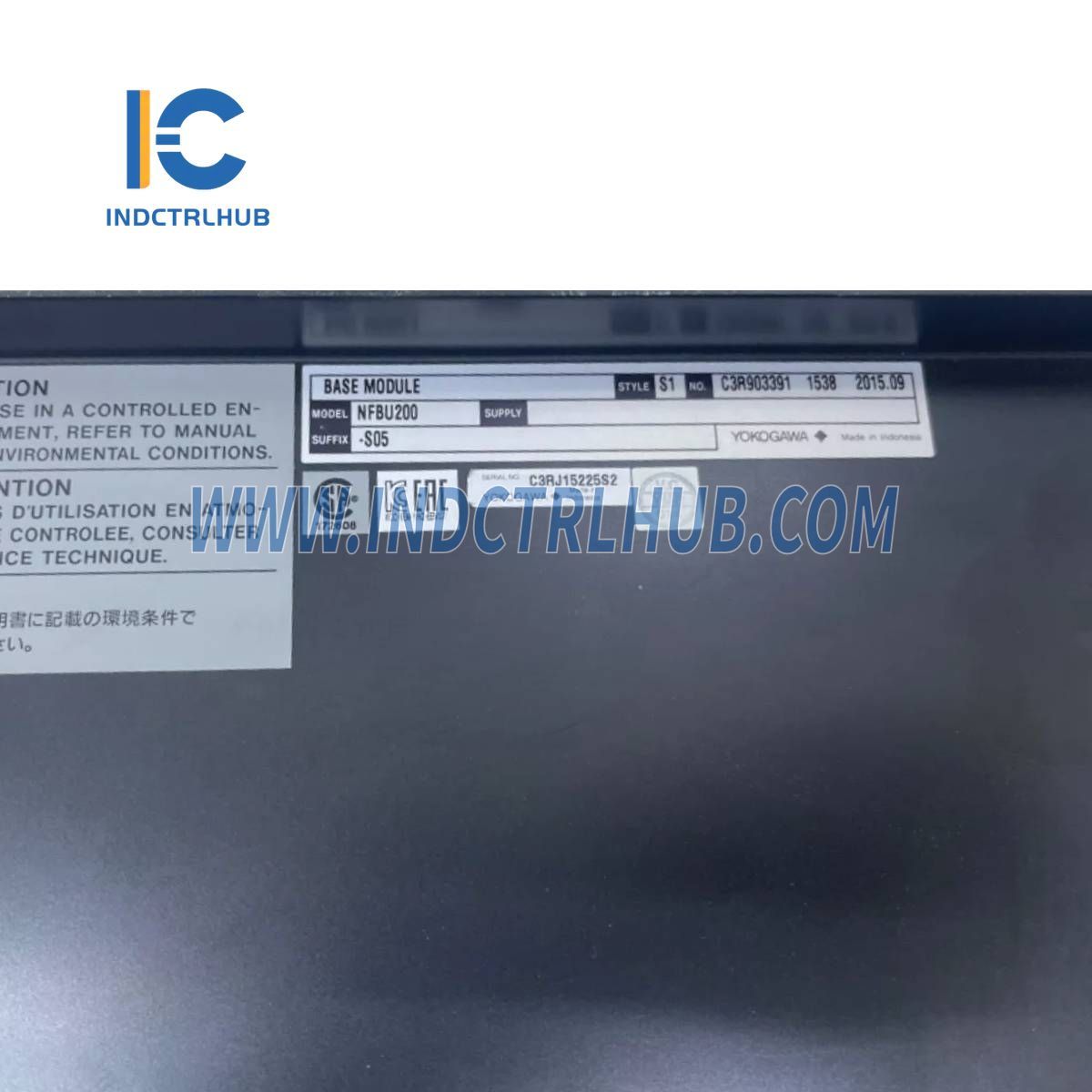

| Model/Part Number | NFBU200-S05 S1 |
| Description | Base Module (Long) |
| Model | NFBU200 |
| Weight | 1.9 kg (4.19 lb) |
| Dimensions (WxHxD) | 482.6 x 132.5 x 40.5 mm (19.00 x 5.22 x 1.59 in) |
| Mounting | 19-inch rack-mounted |
| Maximum Power Consumption | 5 V Self-consumption: 0.4 A (max) 24 V Self-consumption: 0 A |
Specific Configuration
- Model/Part Number: NFBU200-S05 S1
- Configuration Details:
- Suffix Codes: -S (Standard type), 0 (19-inch rack-mounted), 5 (Basic type with no explosion protection)
- "S1" is not explicitly listed in suffix codes but may indicate a minor variant or typo (assumed as part of standard configuration here)
