Product Description
Product Overview

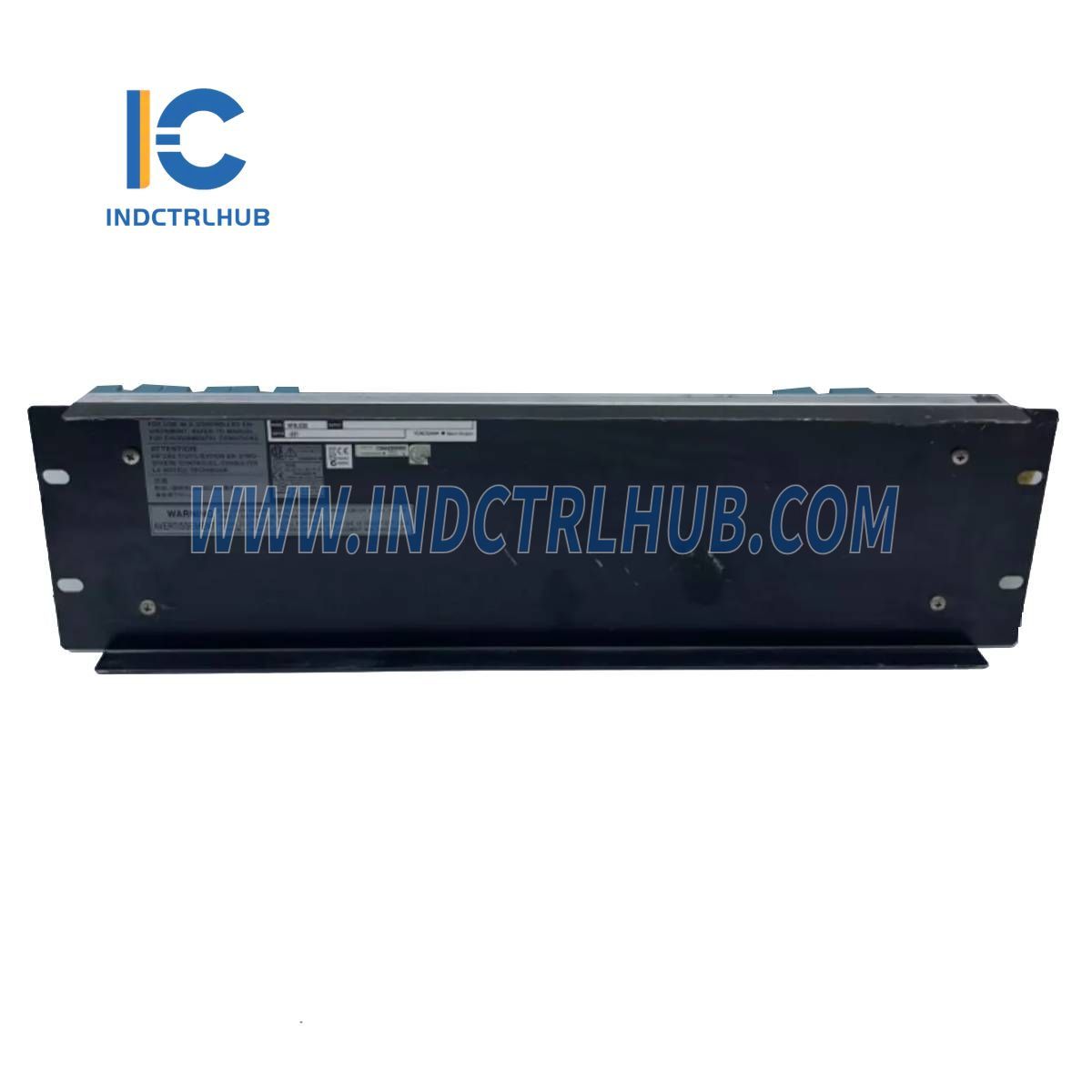

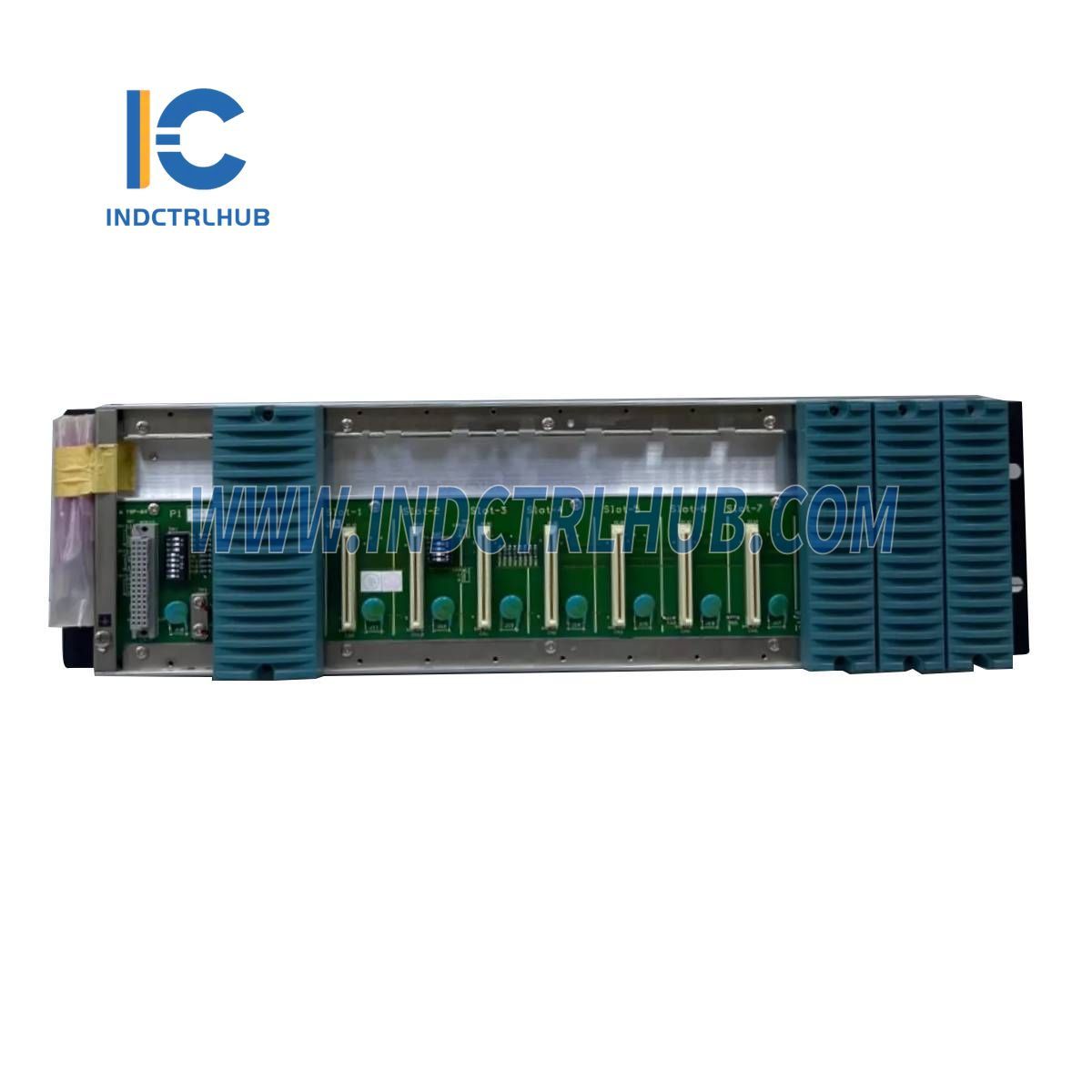

The Yokogawa NFBU200-S01 S1 Base Module is a foundational component designed for Yokogawa’s industrial control systems, serving as a mounting platform for various I/O modules, such as those in the N-IO/FIO architecture. This standard-type, DIN rail-mounted module features a compact design with a weight of 1.0 kg and dimensions of 440 x 131 x 42.3 mm. With a maximum power consumption of 0.025 A at 5 V DC and no 24 V DC self-consumption, it provides a reliable base for integrating fieldbus or analog I/O modules in process automation applications.
Technical Information
| Parameter | Specifications |
|---|---|
| Manufacturer | Yokogawa |

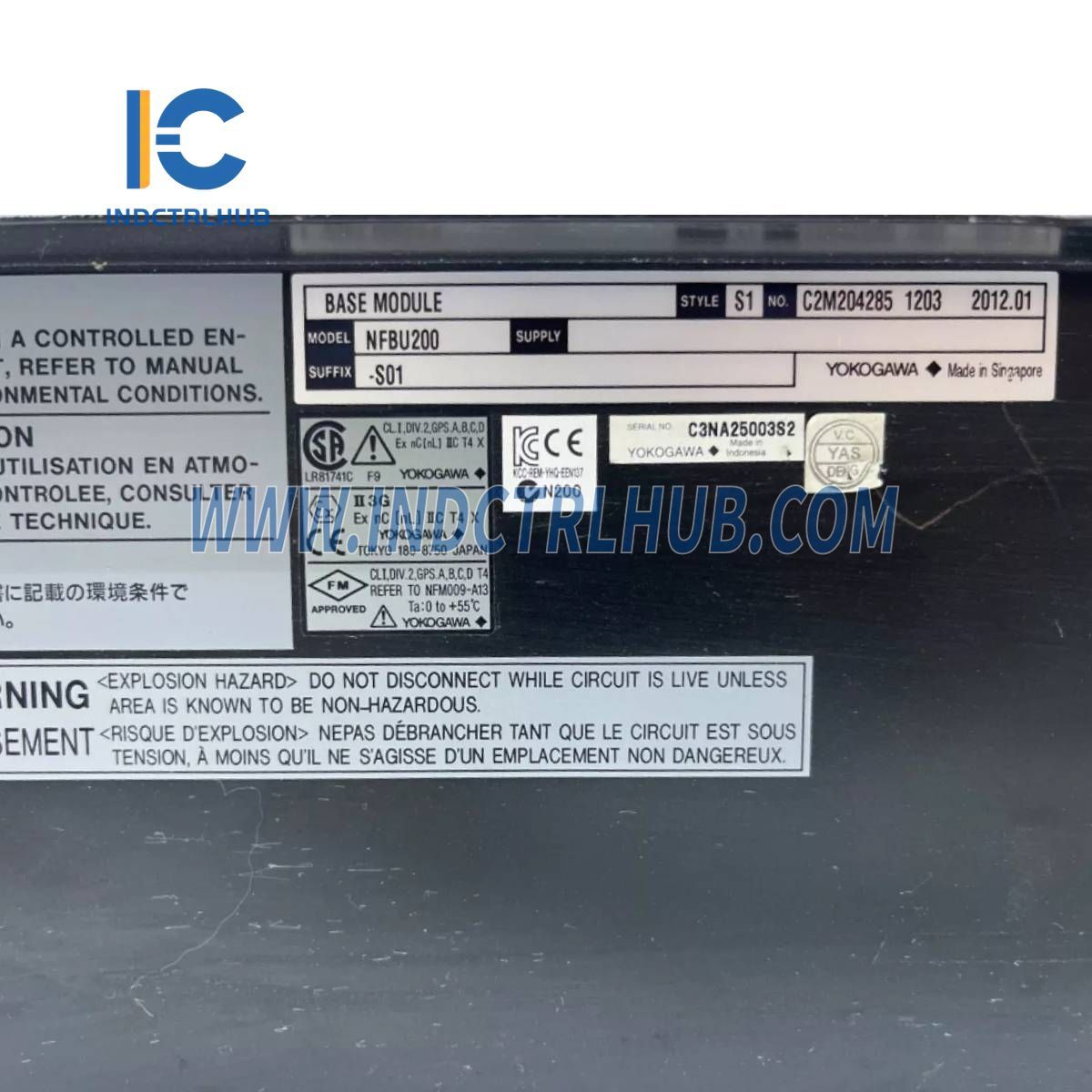

| Model/Part Number | NFBU200-S01 S1 |
| Description | Base Module |
| Model | NFBU200 |
| Weight | 1.0 kg (2.20 lb) |
| Dimensions (WxHxD) | 440 x 131 x 42.3 mm (17.32 x 5.16 x 1.67 in) |
| Mounting | DIN rail-mounted |
| Maximum Power Consumption | 5 V Self-consumption: 0.025 A (max) 24 V Self-consumption: 0 A |
Specific Configuration
- Model/Part Number: NFBU200-S01 S1
- Configuration Details:
- Suffix Codes: -S (Standard type), 0 (19-inch rack-mounted), 1 (DIN rail-mounted)
- "S1" aligns with "-S (Standard type), 1 (DIN rail-mounted)"; additional "S1" may be a typo or variant not fully documented in suffix codes
