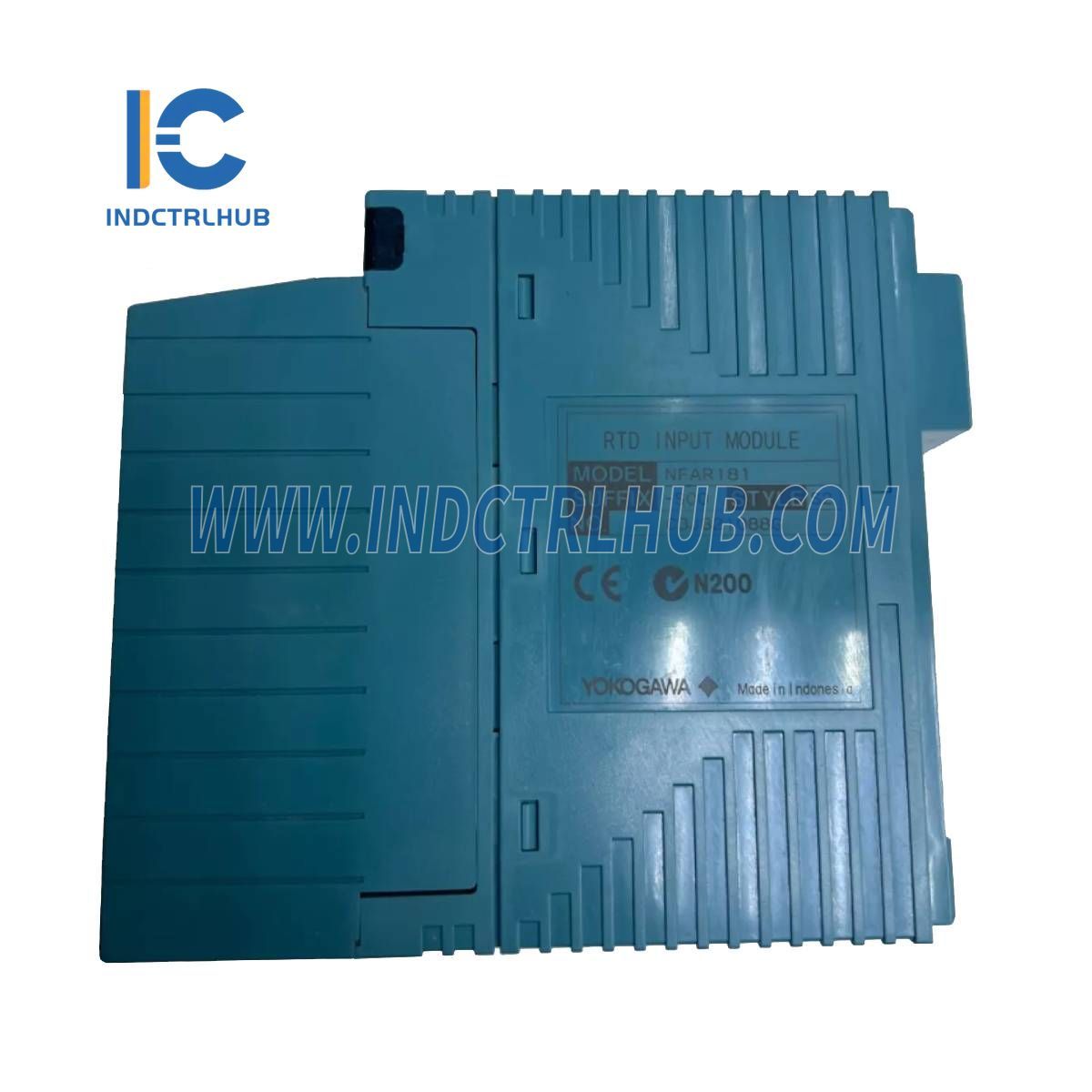

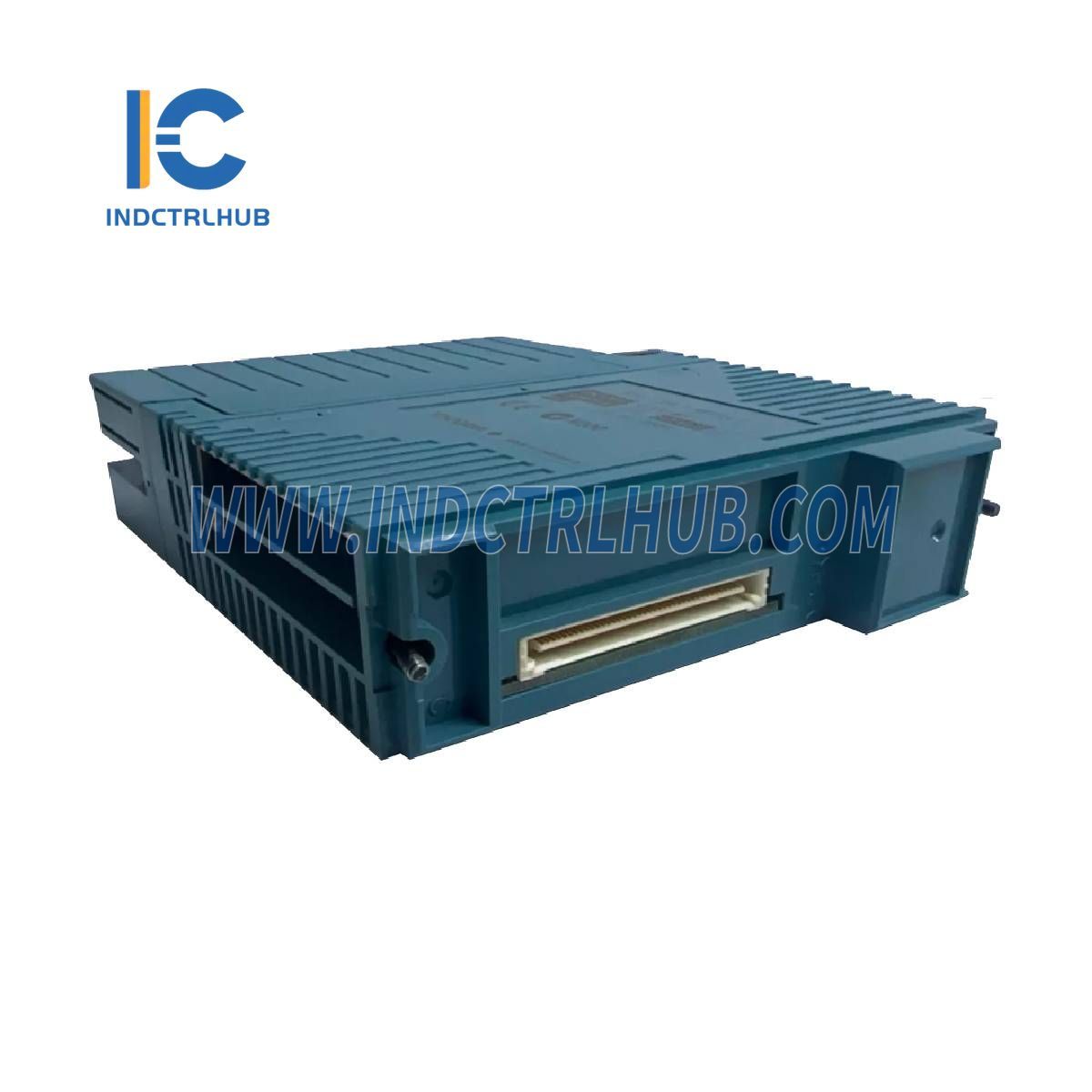

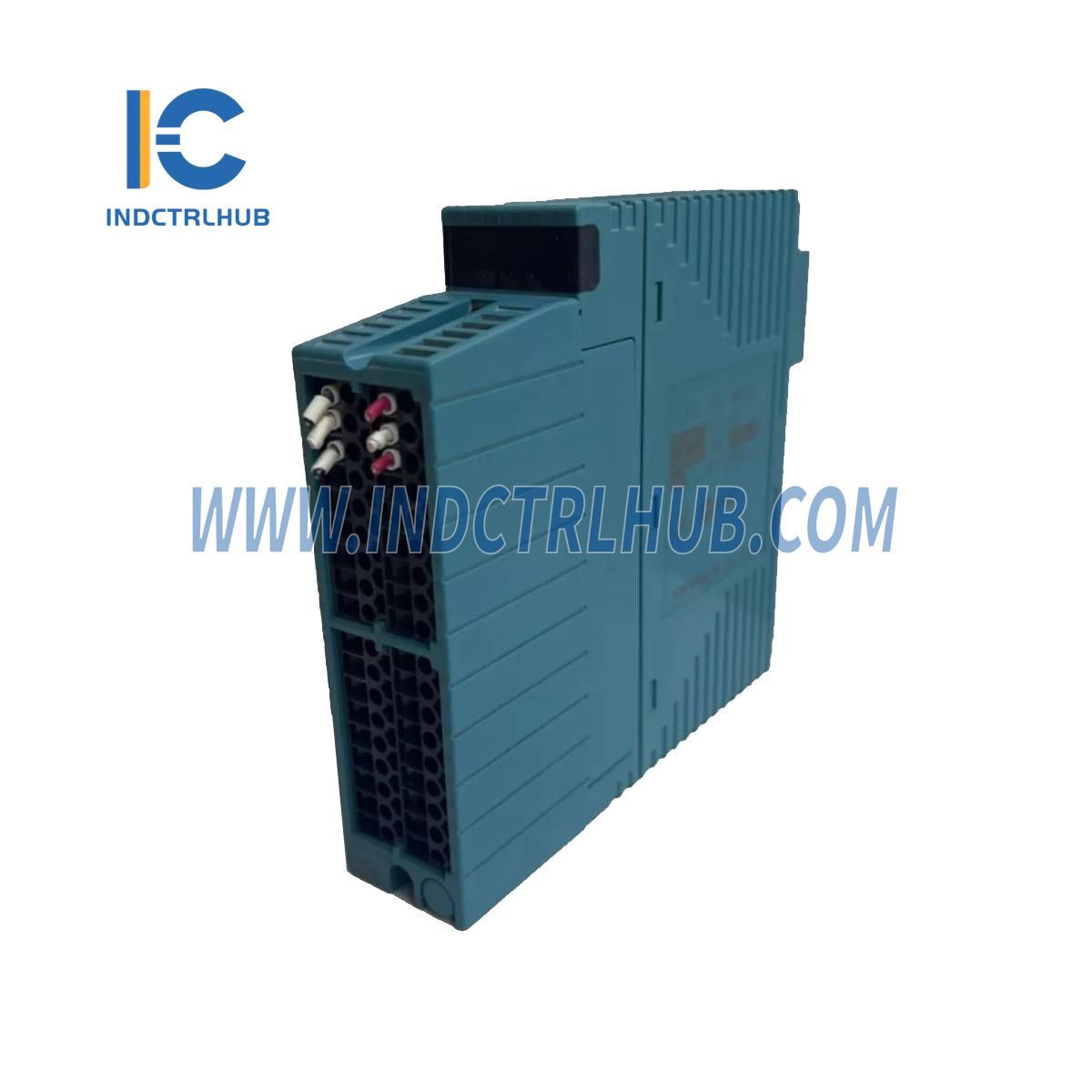

Yokogawa NFAR181-S00/R8S0 RTD Input Module

Yokogawa NFAR181-S00/R8S0 RTD Input Module

  • Manufacturer: Yokogawa

  • Product No.: NFAR181-S00/R8S0

  • Condition:1000 in stock

  • Product Type: RTD Input Module

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Information: Yokogawa RTD Input Module (NFAR181-S00/R8S0)

Manufacturer Yokogawa
Model/Part Number NFAR181-S00/R8S0
Description RTD Input Module (12-channel, Isolated)

Specifications

Specification Details
Model NFAR181
Number of Input Channels 12, Isolated
Input Signal Thermocouple (TC), mV, RTD (Pt100, JPt100)
Types of Thermocouples J, K, E, B, R, S, T, N (IEC 60584, JIS C1602)
RTD Types Pt100 (three-wire), JPt100 (three-wire)
Allowable Input Voltage ±5 V
Withstanding Voltage 1500 V AC (between input and system, for 1 minute)
Input Resistance 2 MΩ or more (Power ON/OFF)
Accuracy (Thermocouple Inputs) ±0.03% of full scale (for -20 to 80 mV)
Accuracy (mV Inputs) ±0.032% of full scale (for -100 to 150 mV)
Accuracy (RTD Inputs) ±0.03% of full scale (for 0 to 400 Ω)
Allowable Signal Source Resistance 1000 Ω or less
Reference Junction Compensation Within ±1°C
Measurement Current 1 mA
Temperature Drift ±30 ppm/°C (Thermocouple), ±32 ppm/°C (mV inputs)
Data Refresh Cycle 1 second
Burn-out Detection Available with 60-second detection time
Maximum Current Consumption 450 mA (5 V DC)
Weight 0.2 kg
External Connection Pressure clamp terminal, MIL connector cable

Model and Suffix Codes

Description Suffix Codes
Model NFAR181 RTD Input Module (12-channel, Isolated)
Suffix Code -S Standard type
Suffix Code -5 No Explosion Protection
Suffix Code -E With Explosion Protection
Suffix Code -0 Basic type
Suffix Code -1 With ISA Standard G3 Option
Suffix Code -4 With Extended Temperature Range (-40 to +70 °C)
Suffix Code -5 With Extended Temperature Range and ISA Standard G3

Option Codes

Option Code Description
/R8S00 Pressure Clamp Terminal Block for RTD (NFTR8S-00)
/R8S10 Pressure Clamp Terminal Block for RTD (surge absorber) (NFTR8S-10)
View full details

Product Description

Product Information: Yokogawa RTD Input Module (NFAR181-S00/R8S0)

Manufacturer Yokogawa
Model/Part Number NFAR181-S00/R8S0
Description RTD Input Module (12-channel, Isolated)

Specifications

Specification Details
Model NFAR181
Number of Input Channels 12, Isolated
Input Signal Thermocouple (TC), mV, RTD (Pt100, JPt100)
Types of Thermocouples J, K, E, B, R, S, T, N (IEC 60584, JIS C1602)
RTD Types Pt100 (three-wire), JPt100 (three-wire)
Allowable Input Voltage ±5 V
Withstanding Voltage 1500 V AC (between input and system, for 1 minute)
Input Resistance 2 MΩ or more (Power ON/OFF)
Accuracy (Thermocouple Inputs) ±0.03% of full scale (for -20 to 80 mV)
Accuracy (mV Inputs) ±0.032% of full scale (for -100 to 150 mV)
Accuracy (RTD Inputs) ±0.03% of full scale (for 0 to 400 Ω)
Allowable Signal Source Resistance 1000 Ω or less
Reference Junction Compensation Within ±1°C
Measurement Current 1 mA
Temperature Drift ±30 ppm/°C (Thermocouple), ±32 ppm/°C (mV inputs)
Data Refresh Cycle 1 second
Burn-out Detection Available with 60-second detection time
Maximum Current Consumption 450 mA (5 V DC)
Weight 0.2 kg
External Connection Pressure clamp terminal, MIL connector cable

Model and Suffix Codes

Description Suffix Codes
Model NFAR181 RTD Input Module (12-channel, Isolated)
Suffix Code -S Standard type
Suffix Code -5 No Explosion Protection
Suffix Code -E With Explosion Protection
Suffix Code -0 Basic type
Suffix Code -1 With ISA Standard G3 Option
Suffix Code -4 With Extended Temperature Range (-40 to +70 °C)
Suffix Code -5 With Extended Temperature Range and ISA Standard G3

Option Codes

Option Code Description
/R8S00 Pressure Clamp Terminal Block for RTD (NFTR8S-00)
/R8S10 Pressure Clamp Terminal Block for RTD (surge absorber) (NFTR8S-10)
