Product Description
Product Overview

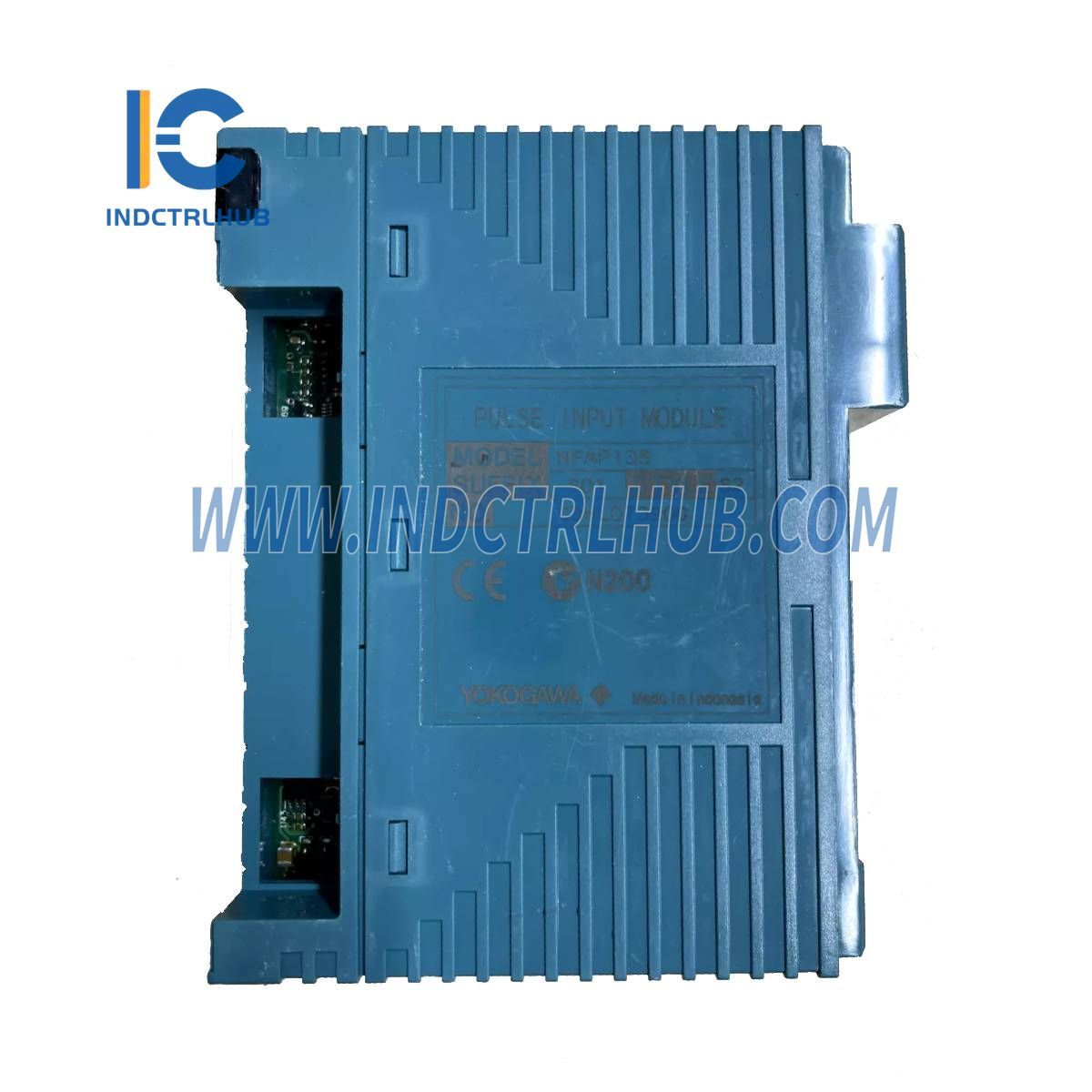

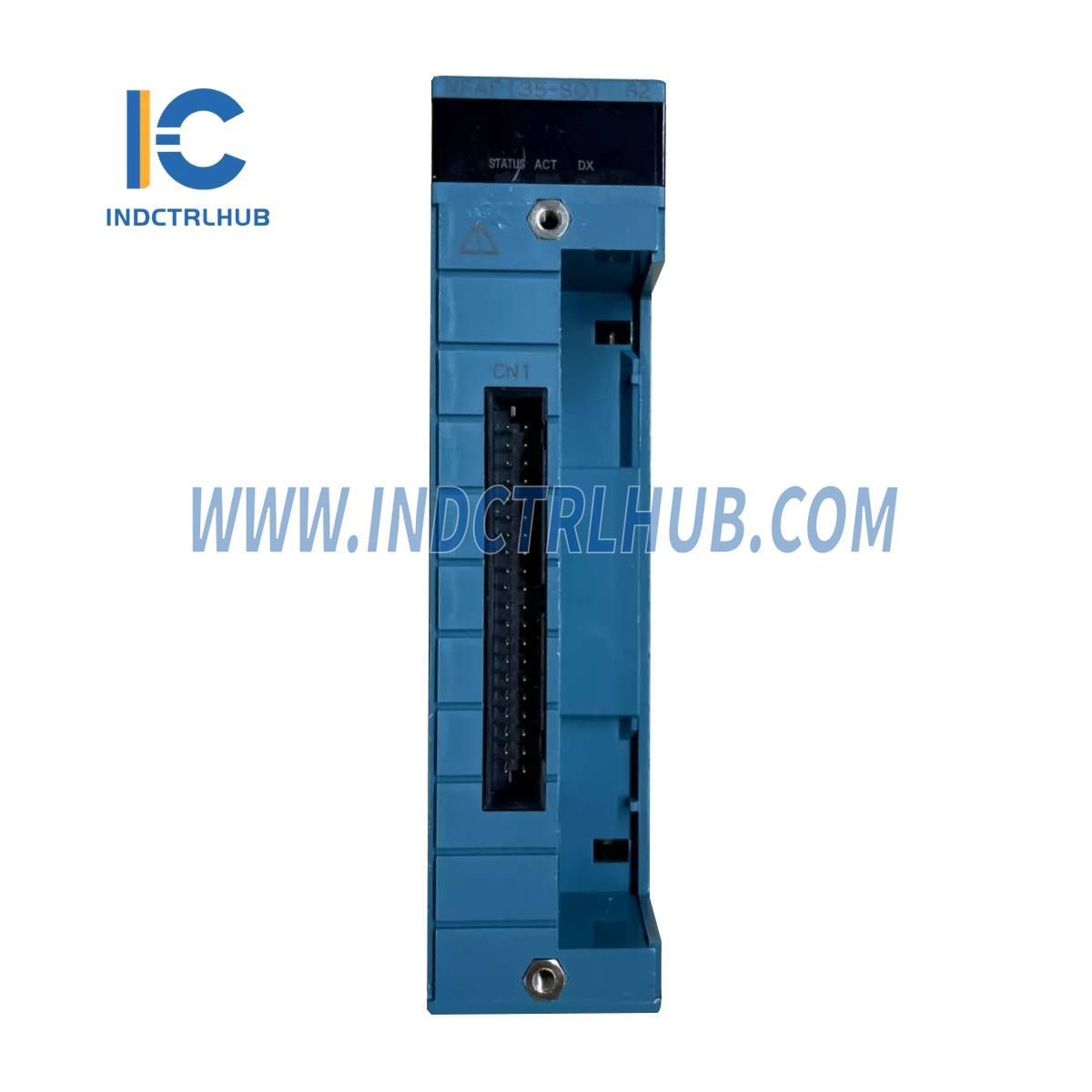

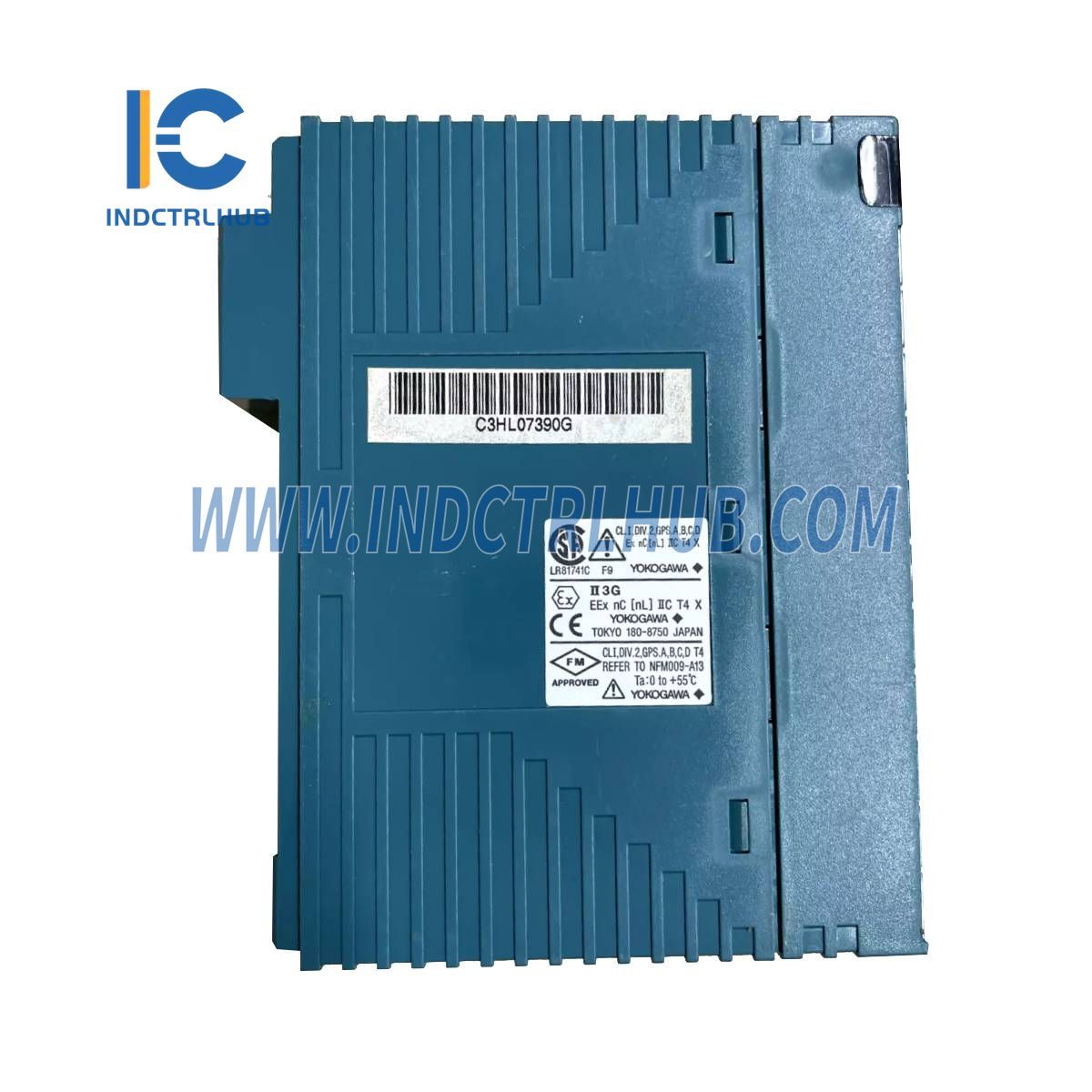

The Yokogawa NFAP135-S01 is a Pulse Input Module designed to receive contact ON/OFF, voltage pulse, and current pulse signals across 8 isolated channels. It is isolated between the input signals and the system, as well as between channels, making it a robust solution for industrial pulse measurement applications.
Technical Specifications
The NFAP135-S01 Pulse Input Module has the following specifications:
| Item | Specification |
|---|---|
| Model | NFAP135 (*5) |
| Number of Input Channels | 8, isolated channels |
| Input Signal (*1) | 2-wire type: Contact ON/OFF, voltage pulse, current pulse (possible to supply transmitter power) 3-wire type: Power-supply-type voltage pulse |
| Input Frequency | 0 to 10 kHz (*2) |
| Withstanding Voltage (*6) | Between input and system: 500 V AC for 1 minute Between channels: 500 V AC for 1 minute |
| Minimum Input Pulse Width | 40 μs (*2) |
| Input Signal Level |
Contact Input: Open/close levels of relay contact and transistor contact Open: 100 kΩ or more, Close: 200 Ω or less Contact Capacity: When supplying 12 V DC: 15 V DC 15 mA or more When supplying 24 V DC: 30 V DC 30 mA or more Voltage/Current Pulse Input: (Current input is converted to voltage) VH-VL (voltage swing): 3 V or greater VH (high level): 3 to 24 V VL (low level): -1 to 8 V Signal source resistance: 1 kΩ or less |
| Shunt Resistance | Select from OFF/200/500/1000 Ω (Open when power is OFF) (*1) |
| Pull-up Resistance | 68 kΩ (12 V DC or 24 V DC) |
| Data Refresh Cycle | 2 ms |
| Filter Function | Can select a filter that eliminates chattering (*3) |
| Transmitter Power Supply | Can select 24 V DC/12 V DC Limiter value: 12 V DC ±10 %: 40 mA, 24 V DC ±10 %: 30 mA (*4) |
| Maximum Current Consumption | 300 mA (5 V DC) 400 mA (24 V DC) |
| Weight | 0.3 kg |
| External Connection | Pressure clamp terminal, MIL connector cable (*6) |
Model and Suffix/Option Codes
The NFAP135-S01 includes the following configuration details:
| Category | Details |
|---|---|
| Model | NFAP135 Pulse Input Module (8-channel, Pulse count, 0 to 10 kHz, Isolated channels) |
| Suffix Codes |
|
