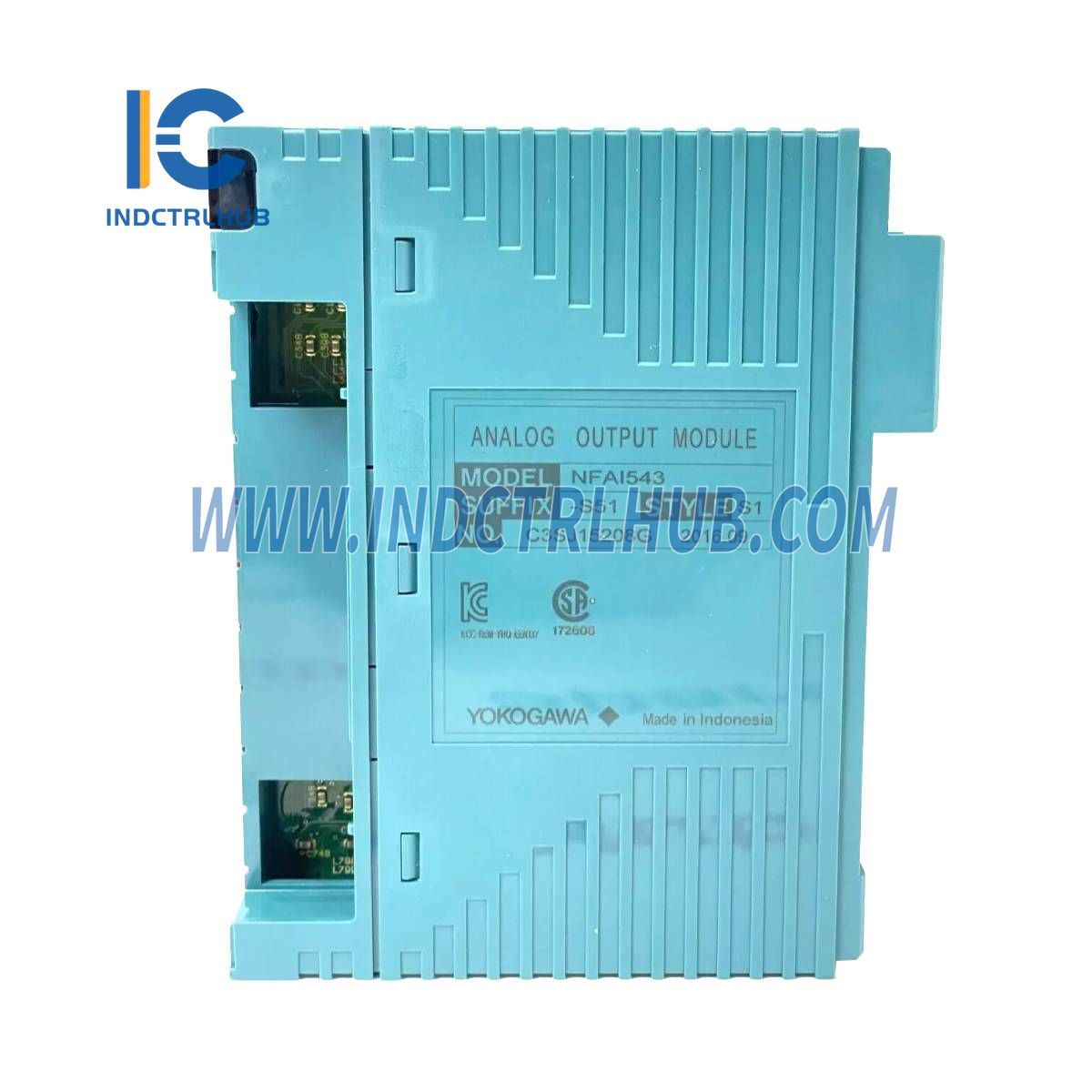

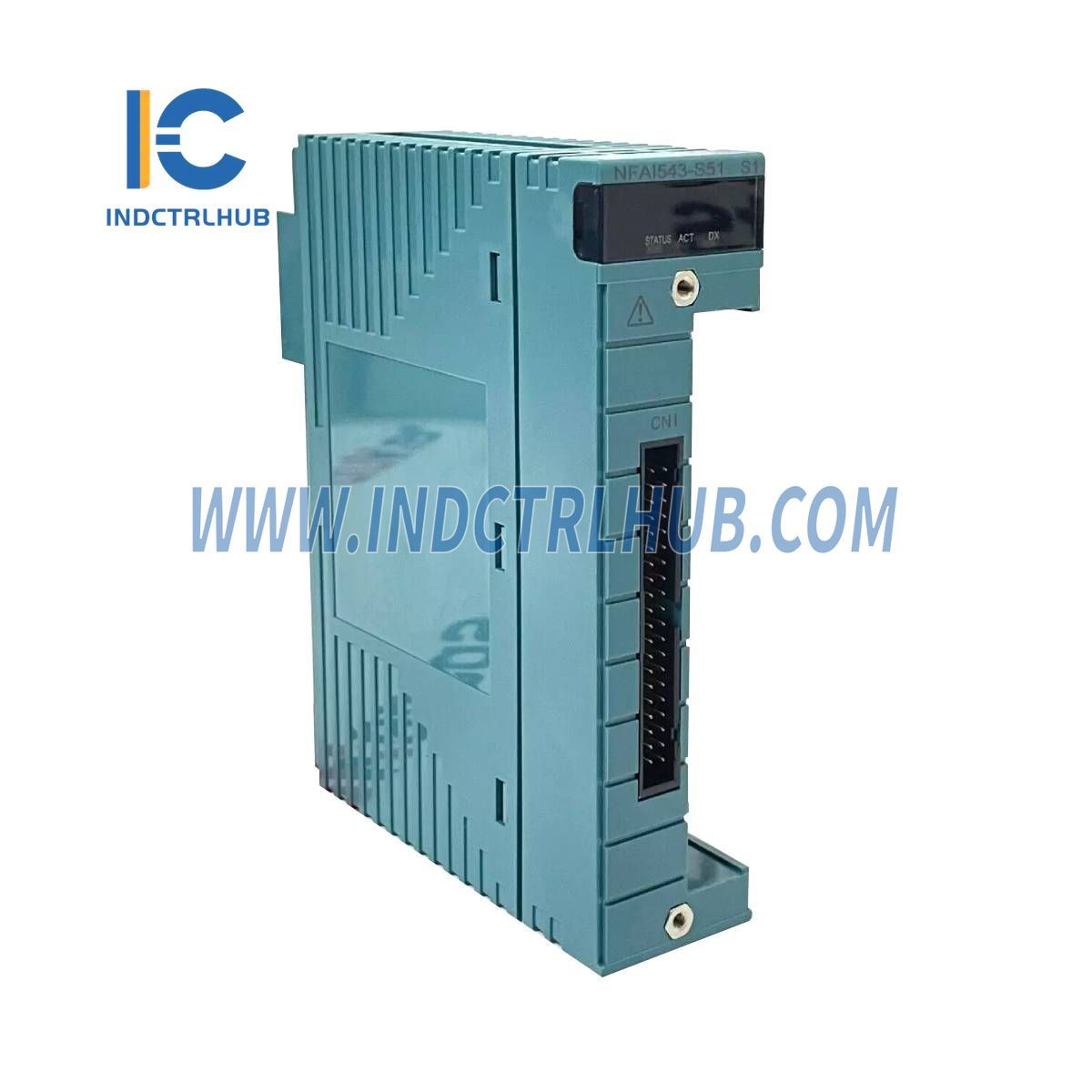

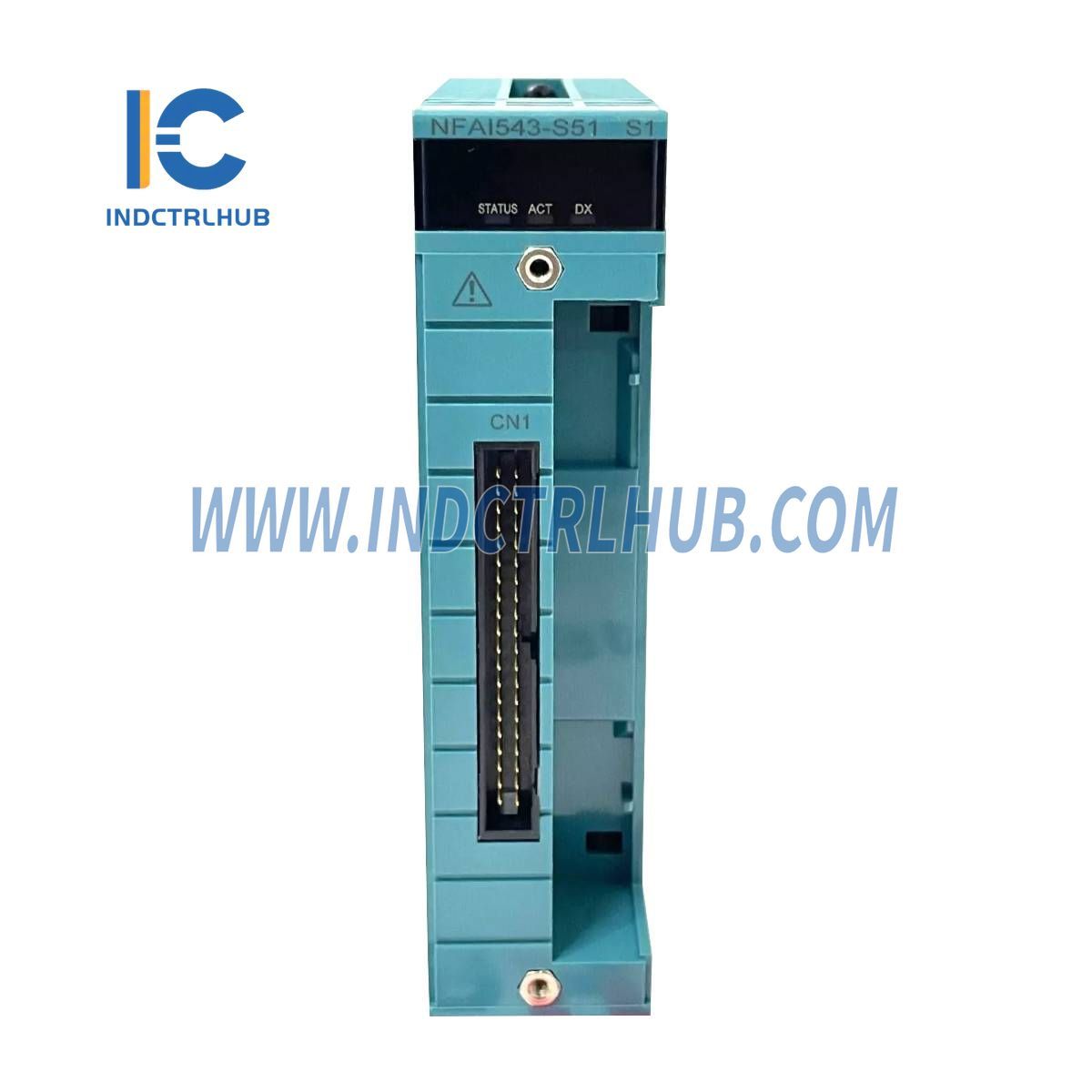

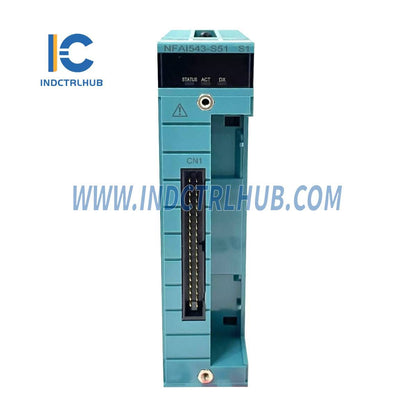

Yokogawa NFAI543 Analog Output Module

Yokogawa NFAI543 Analog Output Module

  • Manufacturer: Yokogawa

  • Product No.: NFAI543

  • Condition:1000 in stock

  • Product Type: Analog Output Module

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 400g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

The Yokogawa NFAI543 is an Analog Output Module designed to provide 16 isolated channels of 4 to 20 mA current outputs. It features robust isolation and supports advanced functionalities like HART communication, making it a versatile component for industrial control systems.

Technical Specifications

The NFAI543 Analog Output Module has the following specifications:

Item Specification
Model NFAI543 (*3)
Number of Output Channels 16-channel output, isolated
Output Signal 4 to 20 mA
Withstanding Voltage Between output and system: 1500 V AC for 1 minute (*5)
Allowable Load Resistance 0 to 750 Ω
Circuit-Open Detection 0.65 mA or less
Accuracy ±0.3% of full scale
Data Refresh Cycle 10 ms
Output Step Response Time 100 ms
Output Fallback (*2) Set for each channel (*1)
Temperature Drift Max. ±0.01%/°C
Maximum Current Consumption 230 mA (5 V DC)
540 mA (24 V DC)
Weight 0.4 kg
External Connection Pressure clamp terminal, MIL connector cable (*5)
HART Communication (*4) Available

Model and Suffix/Option Codes

The NFAI543 includes the following configuration options (no specific suffix or option code is specified in the model number provided):

Category Details
Model NFAI543 Analog Output Module (4 to 20 mA, 16-channel, Isolated)
Suffix Codes (Available Options)
  • -S: Standard Type
  • -H: With HART Communication
  • 5: With no explosion protection
  • E: With explosion protection
  • 0: Basic type
  • 1: With ISA Standard G3 option
Option Codes (Available Options)
  • /A4S00: With Pressure Clamp Terminal Block for Analog [Model: NFTA4S-00]
  • /A4S10: With Pressure Clamp Terminal Block for Analog (surge absorber) [Model: NFTA4S-10]
  • /CCC01: With Connector Cover for MIL Cable [Model: NFCCC01]



View full details

Product Description

Product Overview

The Yokogawa NFAI543 is an Analog Output Module designed to provide 16 isolated channels of 4 to 20 mA current outputs. It features robust isolation and supports advanced functionalities like HART communication, making it a versatile component for industrial control systems.

Technical Specifications

The NFAI543 Analog Output Module has the following specifications:

Item Specification
Model NFAI543 (*3)
Number of Output Channels 16-channel output, isolated
Output Signal 4 to 20 mA
Withstanding Voltage Between output and system: 1500 V AC for 1 minute (*5)
Allowable Load Resistance 0 to 750 Ω
Circuit-Open Detection 0.65 mA or less
Accuracy ±0.3% of full scale
Data Refresh Cycle 10 ms
Output Step Response Time 100 ms
Output Fallback (*2) Set for each channel (*1)
Temperature Drift Max. ±0.01%/°C
Maximum Current Consumption 230 mA (5 V DC)
540 mA (24 V DC)
Weight 0.4 kg
External Connection Pressure clamp terminal, MIL connector cable (*5)
HART Communication (*4) Available

Model and Suffix/Option Codes

The NFAI543 includes the following configuration options (no specific suffix or option code is specified in the model number provided):

Category Details
Model NFAI543 Analog Output Module (4 to 20 mA, 16-channel, Isolated)
Suffix Codes (Available Options)
  • -S: Standard Type
  • -H: With HART Communication
  • 5: With no explosion protection
  • E: With explosion protection
  • 0: Basic type
  • 1: With ISA Standard G3 option
Option Codes (Available Options)
  • /A4S00: With Pressure Clamp Terminal Block for Analog [Model: NFTA4S-00]
  • /A4S10: With Pressure Clamp Terminal Block for Analog (surge absorber) [Model: NFTA4S-10]
  • /CCC01: With Connector Cover for MIL Cable [Model: NFCCC01]



Download PDF file here:

Click to Download PDF
