Product Description
Product Overview

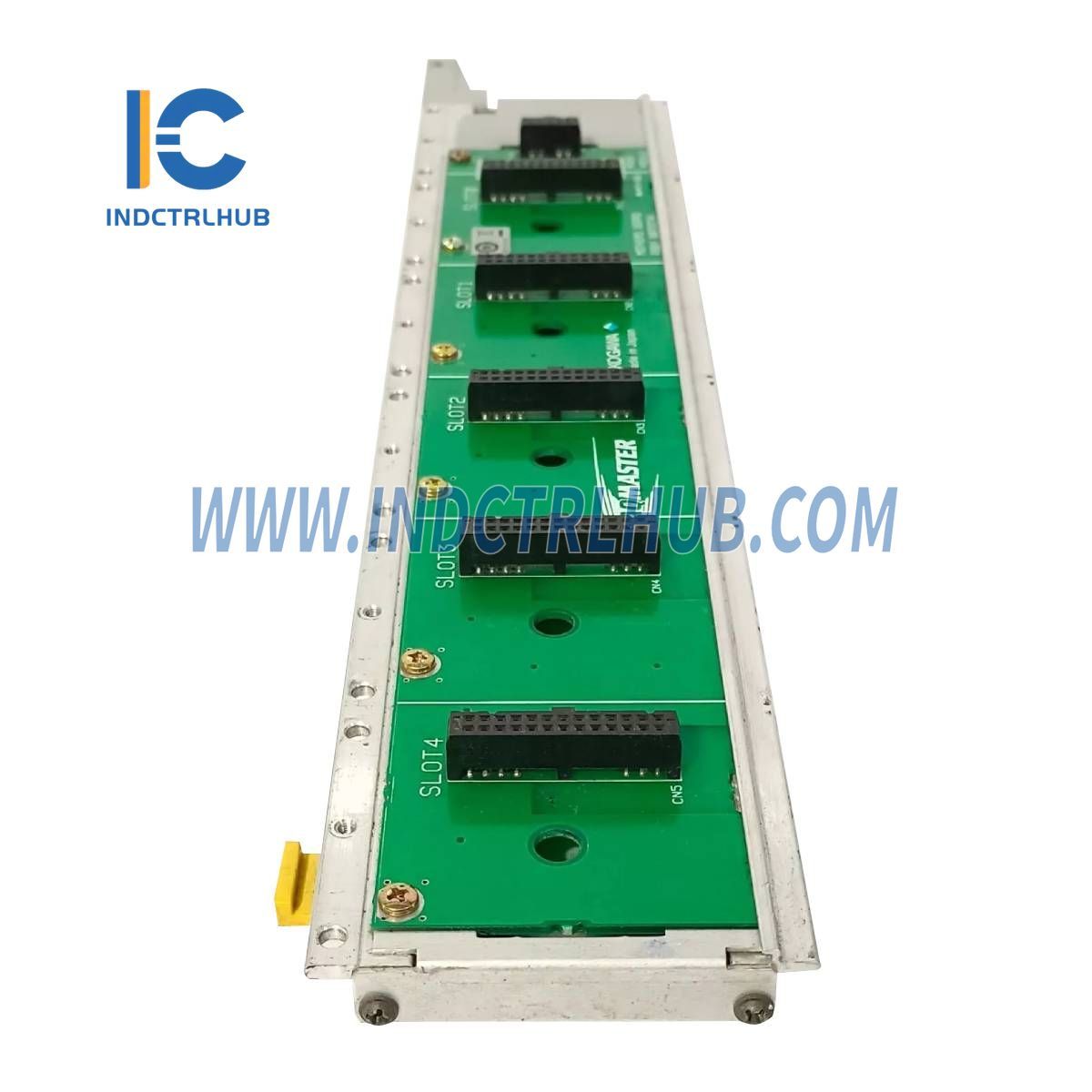

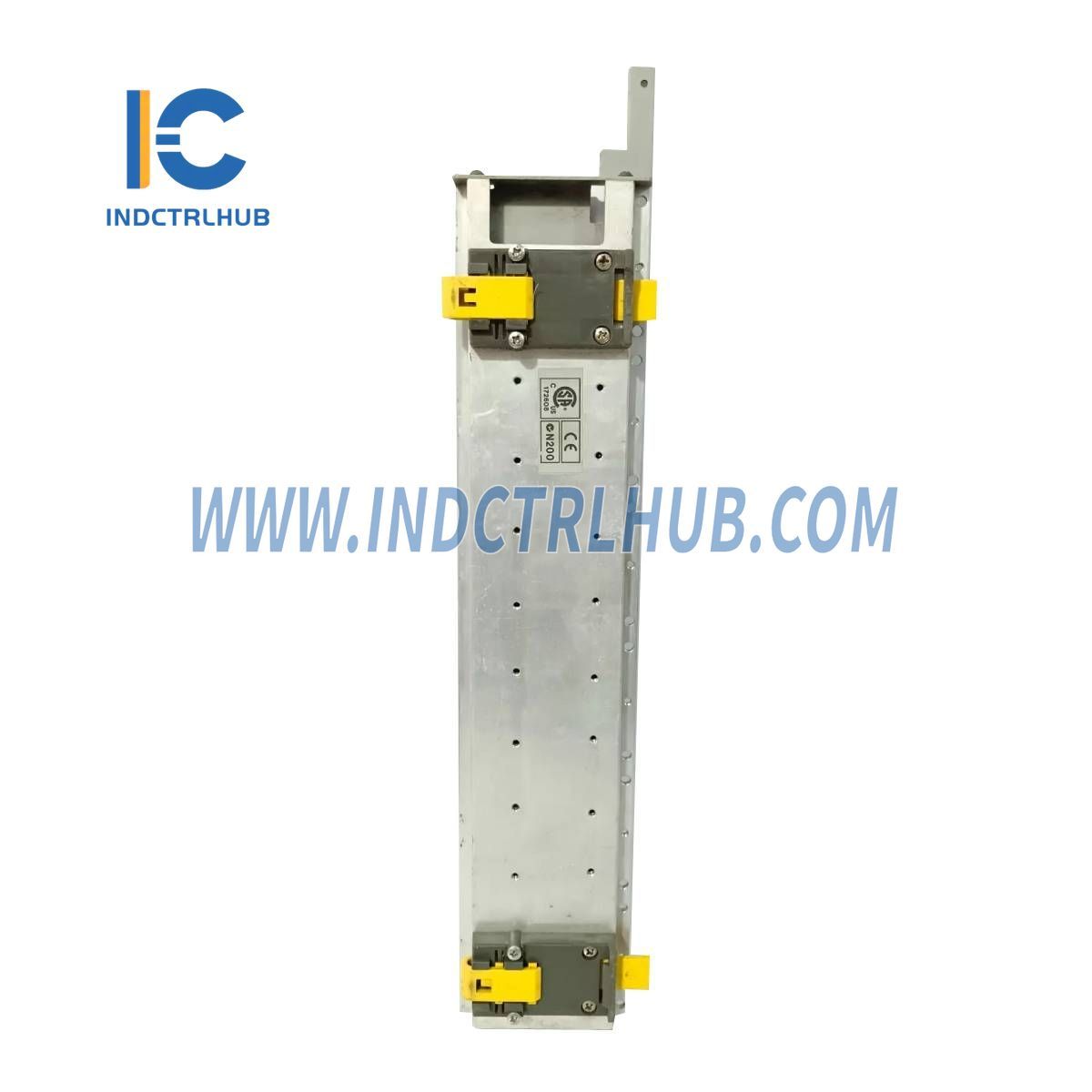

The Yokogawa MX150 is a Base Plate designed for mounting 1 to 6 input/output modules. Available in six configurations, it serves as a foundational component for systems like the MW100, requiring a specific attachment replacement when used with that system.
Technical Specifications
The MX150 Base Plate has the following general specifications:
| Item | Specification |
|---|---|
| Model | MX150 |
| Description | Base plate for mounting 1 to 6 input/output modules |
| Compatibility Note | When used for the MW100, replace the attachment with the one that comes standard with the MW100 |

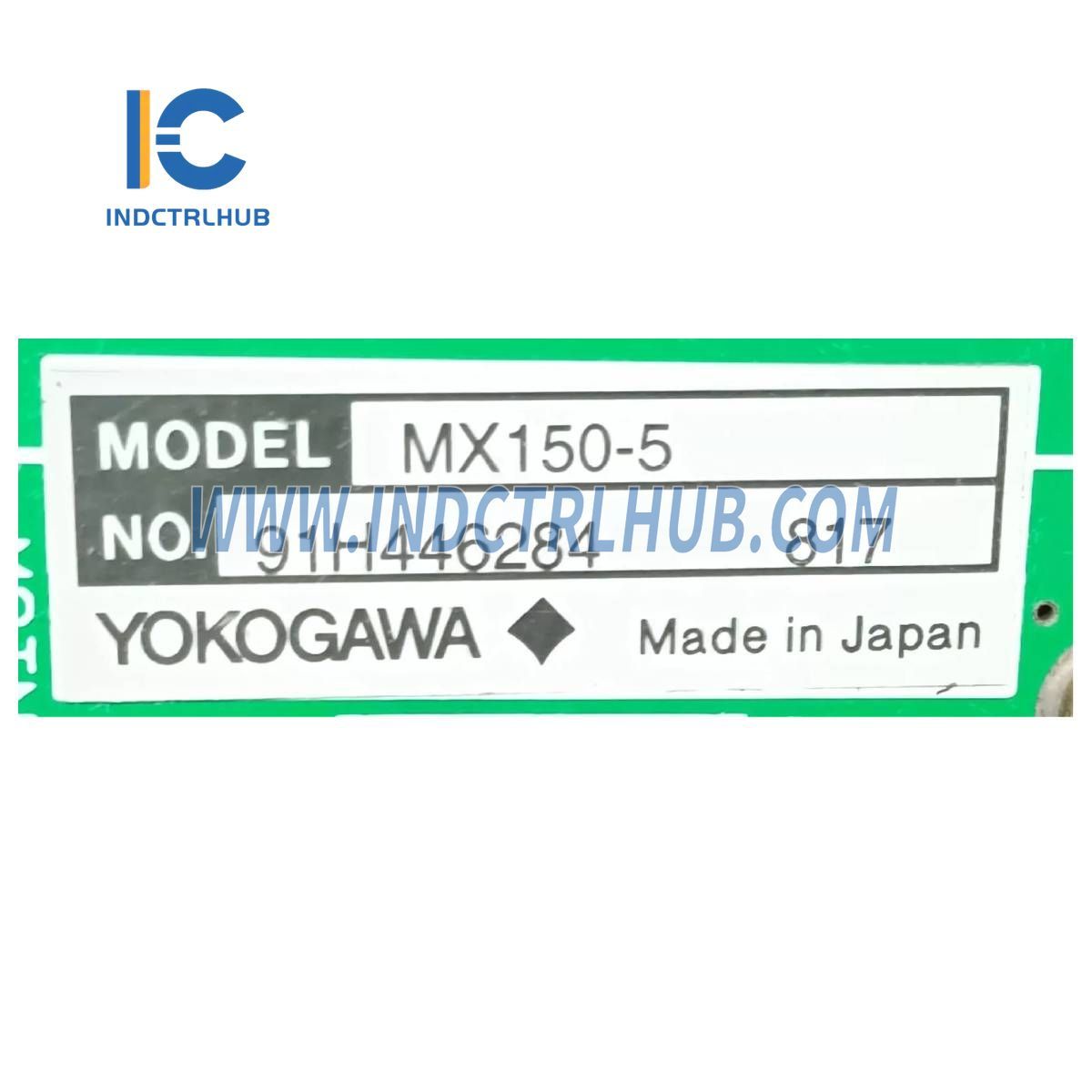

Model and Suffix Codes
The MX150 includes the following configuration options:
| Category | Suffix Code | Description |
|---|---|---|
| Model | MX150 Base Plate | |
| Base Type | -1 | 1 main module, for connecting 1 input/output module |
| -2 | 1 main module, for connecting 2 input/output modules | |
| -3 | 1 main module, for connecting 3 input/output modules | |
| -4 | 1 main module, for connecting 4 input/output modules | |
| -5 | 1 main module, for connecting 5 input/output modules | |
| -6 | 1 main module, for connecting 6 input/output modules | |
