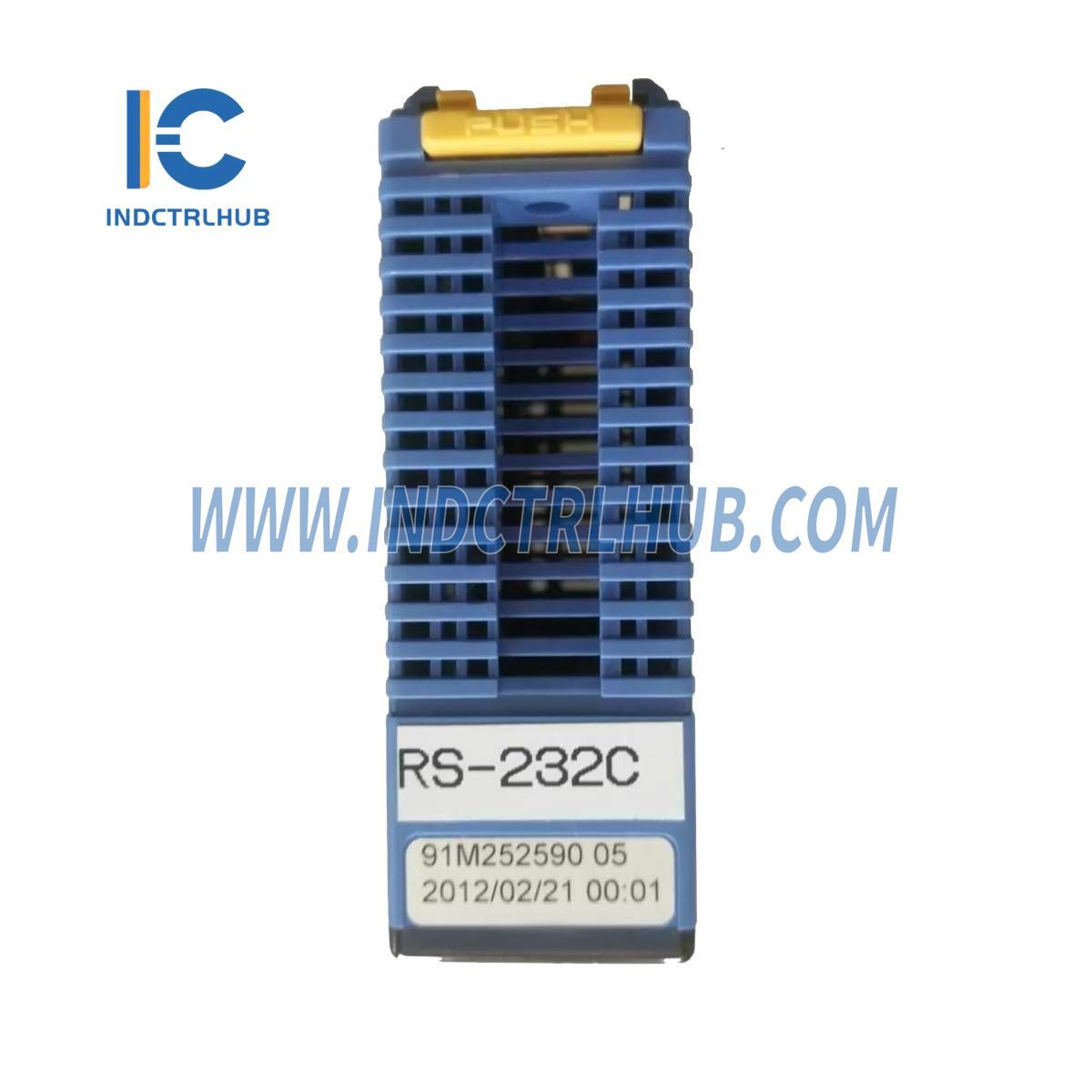

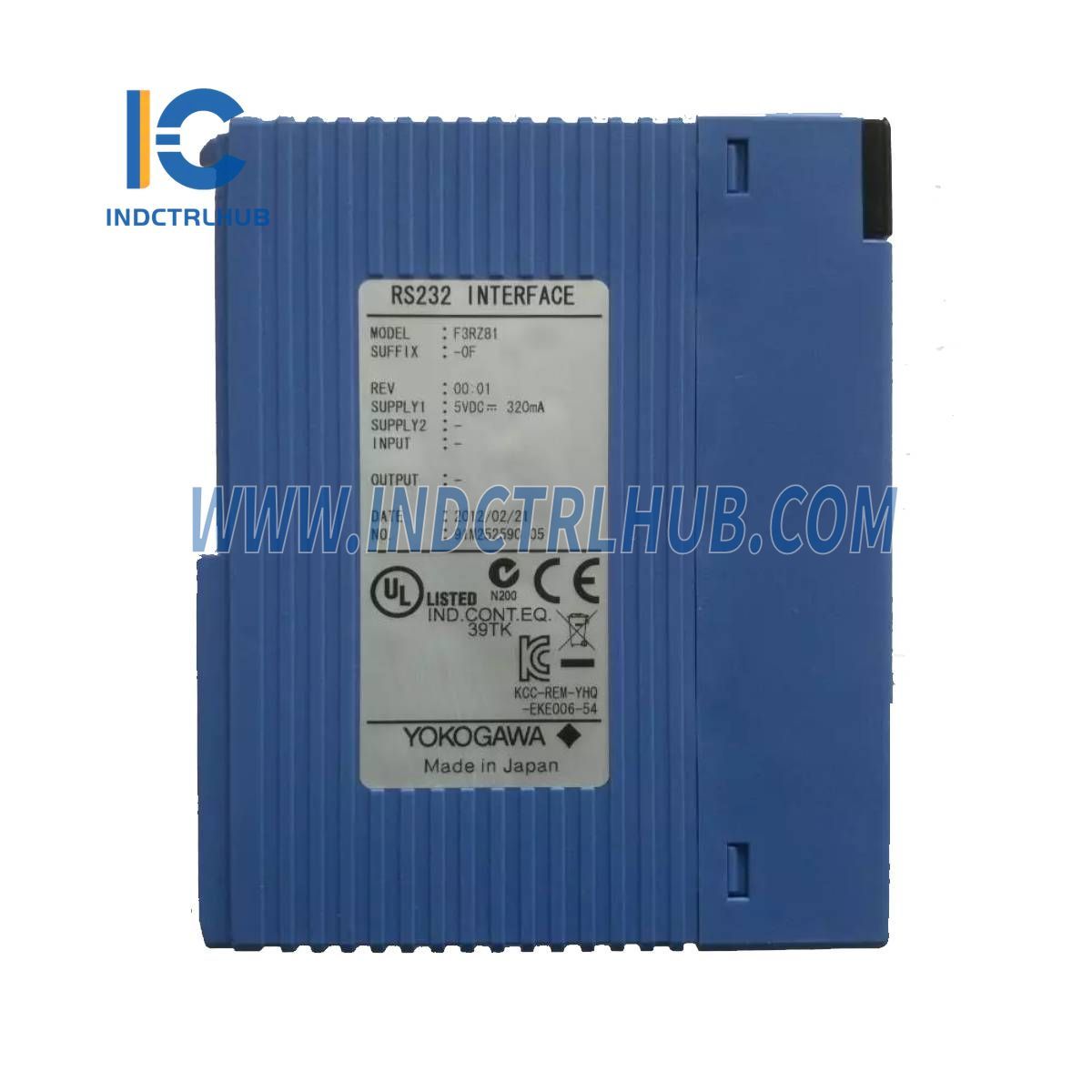

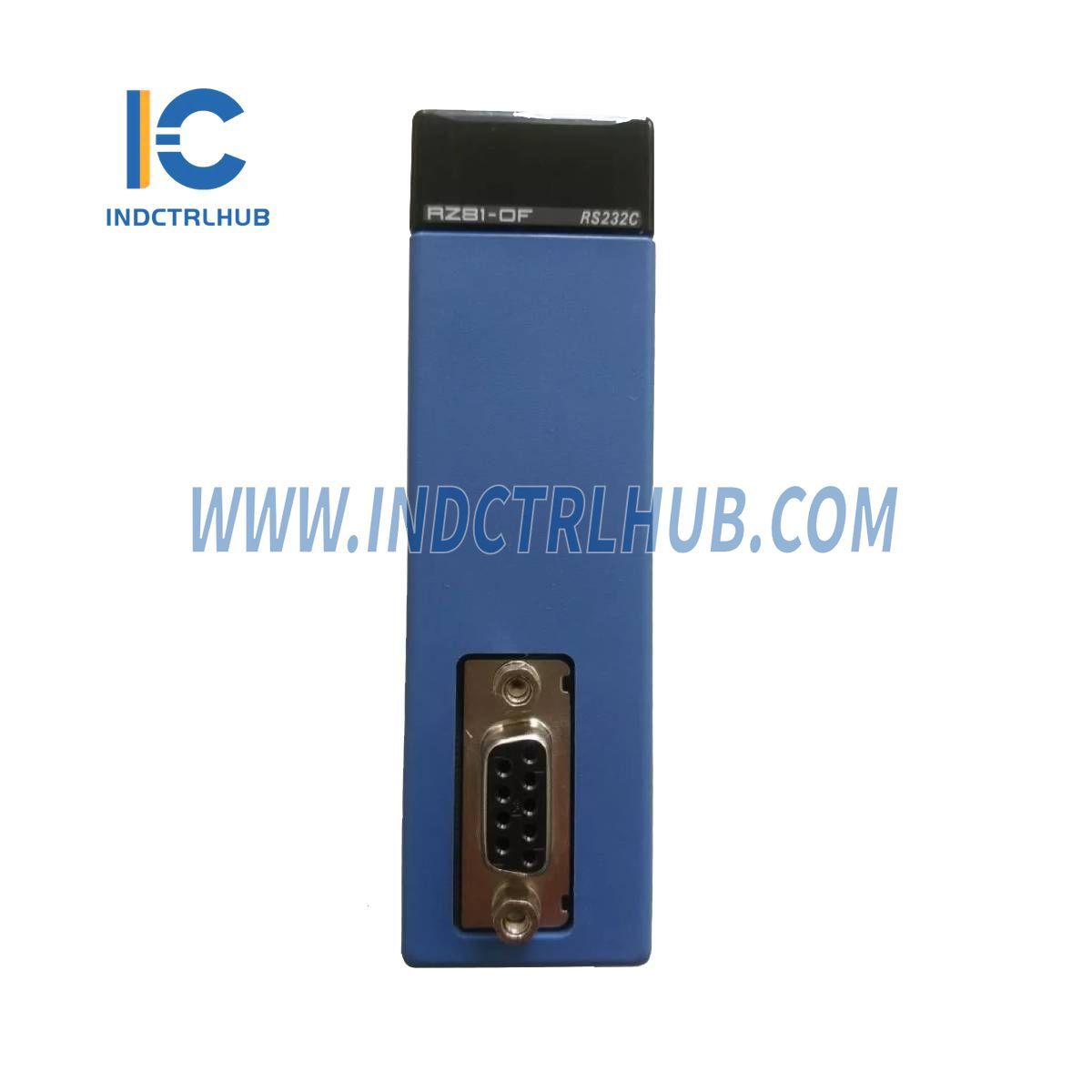

Product Description
Product Details
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
F3RZ81-0F |
|
Description |
Ladder Communication Module (RS-232-C) |
Specifications
|
Item |
F3RZ81-0F |
|---|---|
|
Connection Method |
Point-to-point |
|
Transmission Mode |
Full-duplex / Half-duplex |
|
Synchronization |
Start-stop synchronization |
|
Communication Protocol |
No protocol |
|
Data Format |
|
|
Character Length |
7 or 8 bits |
|
Stop Bit Length |
1 or 2 bits |
|
Parity Bit |
None, Even, or Odd |
|
Transmission Speed (bps) |
300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 76800, 115200 |
|
Control Lines |
|
|
RS Control |
Always on / Turn on before sending |
|
DR Check |
Ignore DR when sending / Send only when DR is on |
|
CD Check |
Ignore CD when sending / Send only when CD is off |
|
ER Control |
On (ready) / Off (not ready) |
|
Communication Buffers |
|
|
Send Buffer |
Text buffer (3584 bytes max.) |
|
Receive Buffer |
8192-byte rotary buffer (FIFO buffer) |
|
Format of Received Text |
|
|
Start Character |
Yes or No / Any single character |
|
End Character (Terminator) |
Yes or No / Up to 2 characters long, any characters |
|
Text Length |
1 to 3584 characters |
|
Character-to-Character Timeout Interval |
0 to 32760 ms (1 ms increments, accurate to 1 ms) |
|
Clear-to-Send Timeout Interval |
0 to 32760 ms (1 ms increments, accurate to 1 ms) |
|
Break Transmission Interval |
1 to 32760 ms (1 ms increments, accurate to 1 ms) |
|
Transmission Distance |
15 m max. |
|
Number of Ports |
1 (not isolated) |
|
Current Consumption |
320 mA |
|
External Dimensions |
28.9 (W) × 100 (H) × 83.2 (D) mm |
|
Weight |
120 g |
