Product Description
Product Details
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |

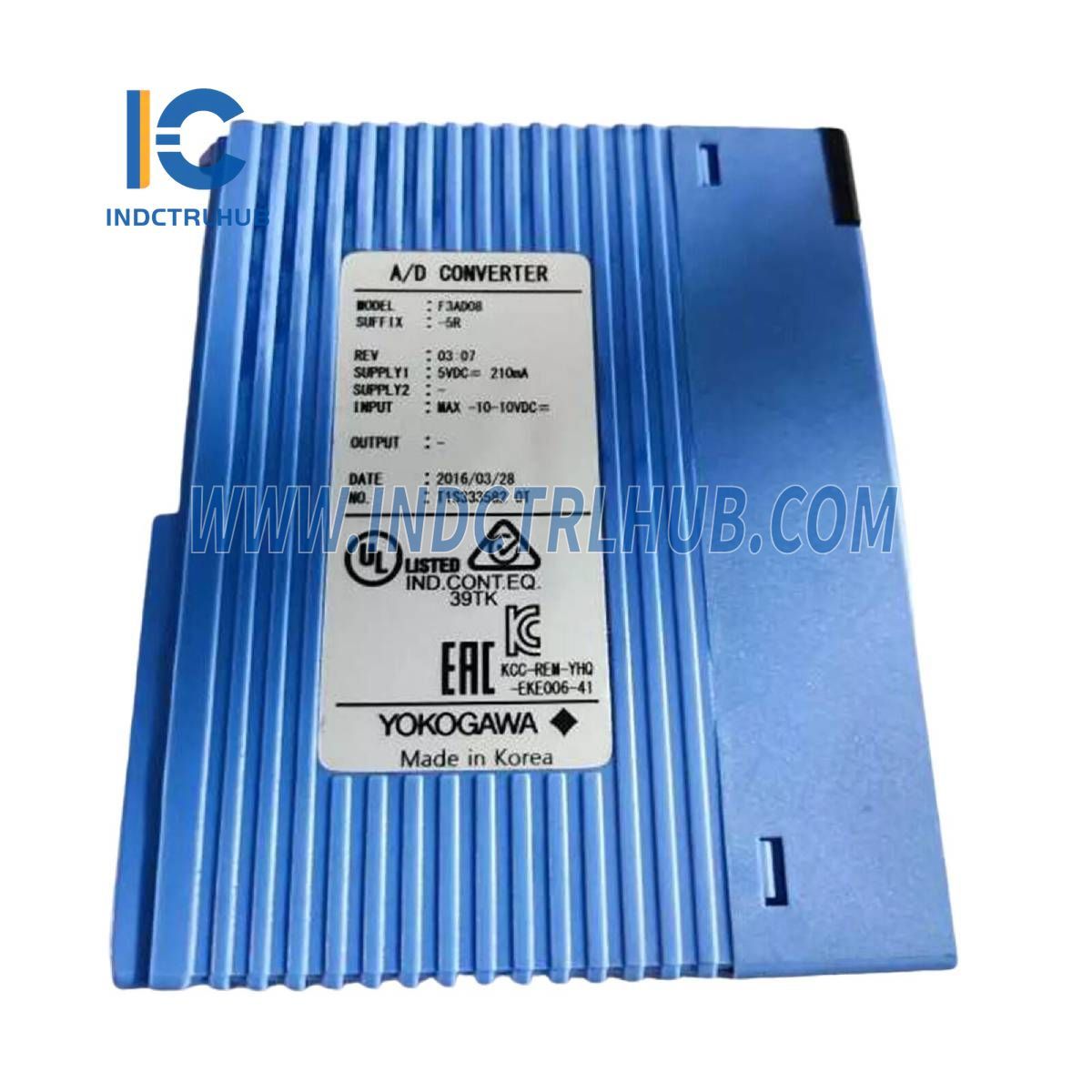

F3AD08-5R |
|
Description |
High-Resolution Analog Input Module |
Specifications
|
Item |
F3AD08-5R |
|---|---|
|
Number of Inputs |
8 differential inputs |
|
Absolute Maximum Rating |
±18 V DC or ±25 mA DC |
|
Input Signal Range |
Voltage: 0 to 5 V DC, 1 to 5 V DC, -10 to 10 V DC, 0 to 10 V DC |
|
Current Signal Range |
0 to 20 mA DC, 4 to 20 mA DC |
|
Conversion Cycle |
50μs / 100μs / 250μs / 500μs / 1ms / 16.6ms / 20ms / 100ms × (number of inputs); selectable on module basis |
|
Allowable Common-Mode Voltage |
±6 V DC (0 to 5 V DC, 1 to 5 V DC, 0 to 20 mA DC, 4 to 20 mA DC) ±1 V DC (-10 to 10 V DC, 0 to 10 V DC) |
|
Isolation Method |
Photocoupler isolation (between input terminals and internal circuit) |
|
Withstanding Voltage |
500 V DC for one minute |
|
Input Resistance |
1MΩ min. (voltage input) / 250Ω (current input) |
|
Maximum Resolution |
- 0.4 mV (Voltage input: 0 to 5 V DC, 1 to 5 V DC, -10 to 10 V DC, 0 to 10 V DC) - 1.6 μA (Current input: 0 to 20 mA DC, 4 to 20 mA DC) |
|
Overall Accuracy |
±0.1% full scale (at 23±2ºC) ±0.2% full scale (at 0 to 55ºC) |
|
Scaling |
Upper and lower limits can be set between -30,000 and 30,000 |
|
Offset |
Can be set between -5,000 and 5,000 |
|
Filter |
First-order lag filter or moving average computation (configurable per channel) |
|
Hold Data |
Supports recording of peak and trough values |
|
Self-Diagnosis |
Hardware self-diagnosis during operation |
|
Over-Range Input Detection |
Yes |
|
Current Consumption |
210 mA (5 V DC) |
|
External Connection |
18-point terminal block, M3.5 screws |
|
External Dimensions |
28.9 (W) × 100 (H) × 106.1 (D) mm |
|
Weight |
200 g |
