Product Description

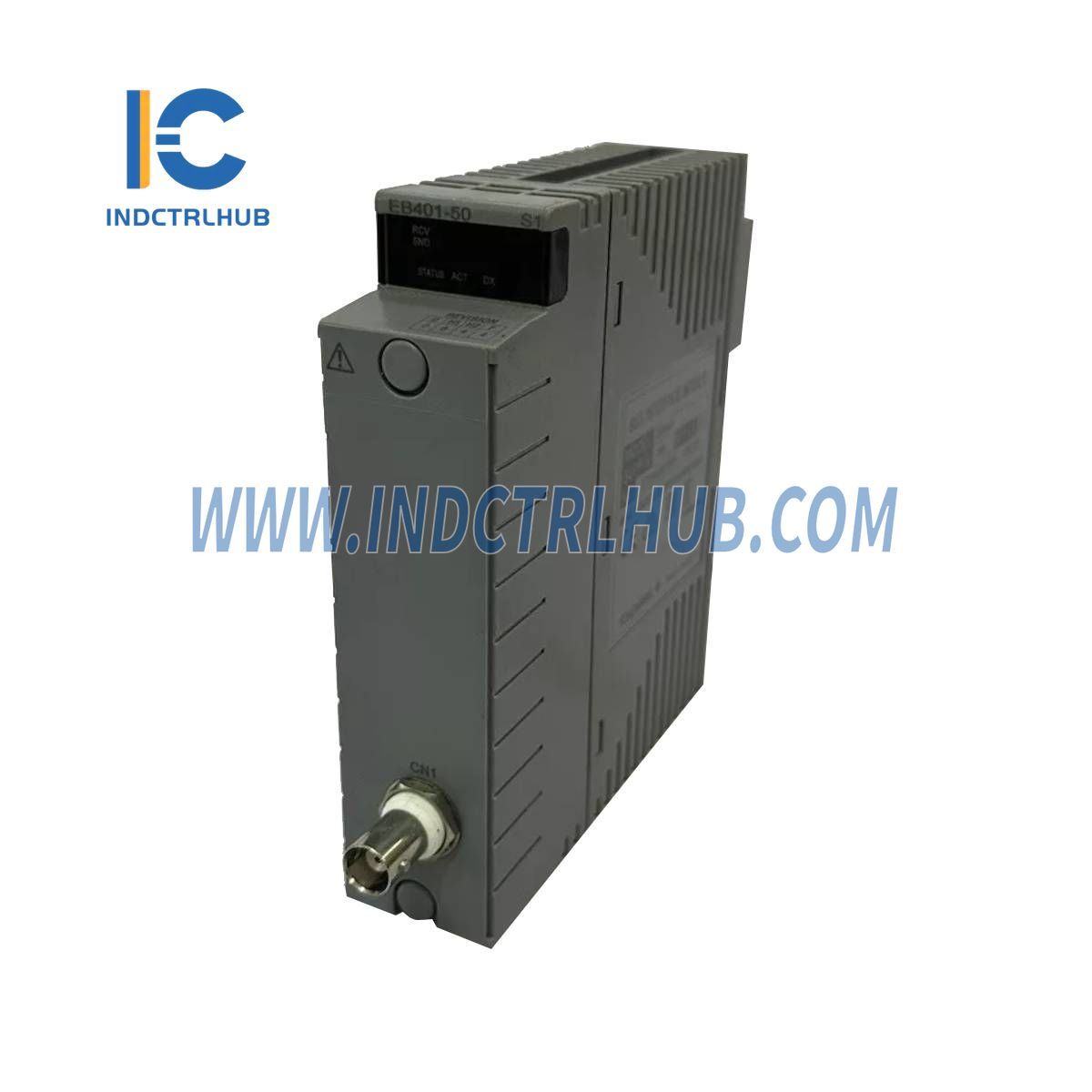

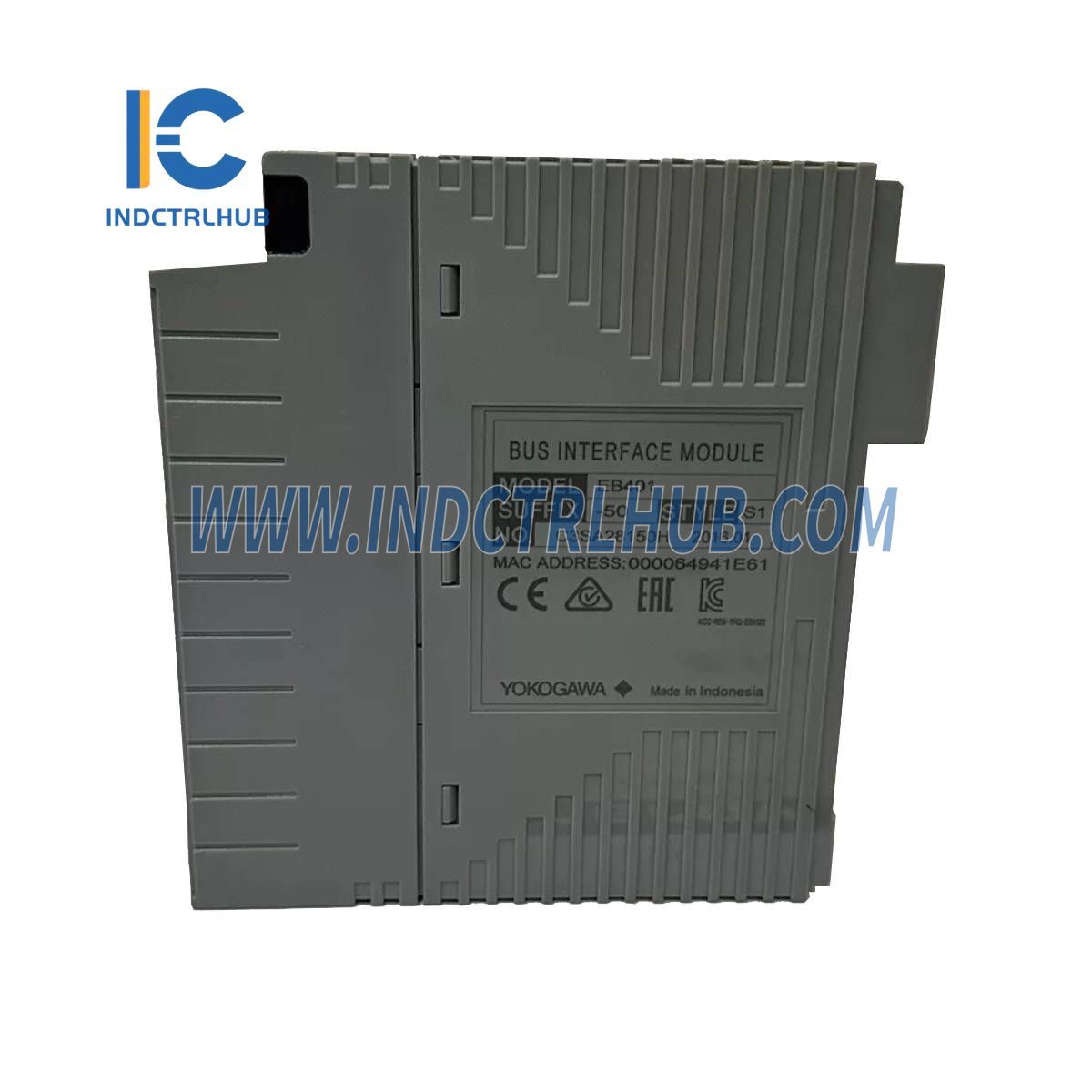

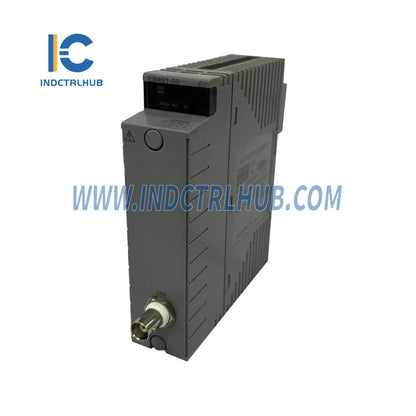

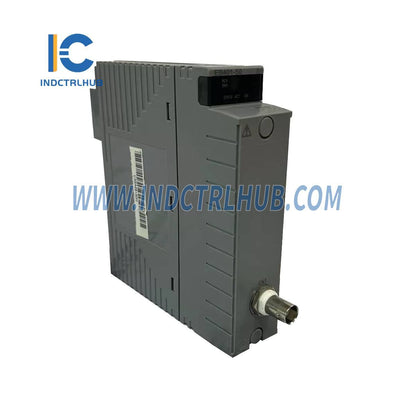

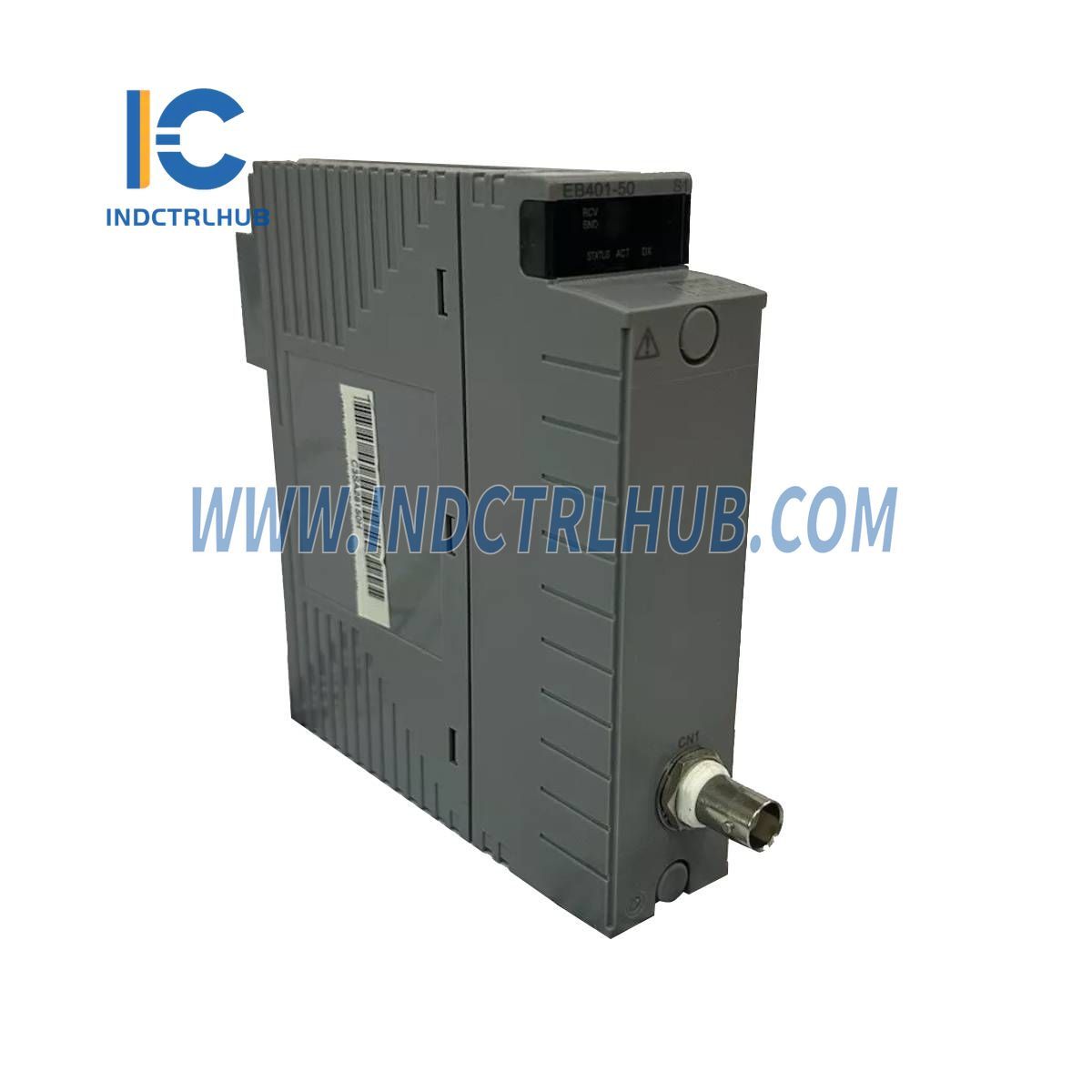

Product Information: Yokogawa EB401-50
| Manufacturer |
Yokogawa |
| Model/Part Number |
EB401-50 |
| Description |
ER Bus Interface Master Module |
General Description
The EB401-50 is the ER Bus Interface Master Module used to establish communication between the ESB Bus Node Unit (local node) or the Compact Field Control Unit (for FIO) and the ER Bus Node Unit (remote nodes). This module facilitates the use of the ER bus for data transfer within Yokogawa's control systems.
Standard Specifications
| Specification |
Details |
| Function |
ER bus interface function |
| Physical Layer Interface |
IEEE802.3 10BASE 2 (1 port) |
| Connector |
BNC |
| Communication Speed |
10 Mbps |
| Transmission Distance |
Max. 185 m (for YCB141) |
| Current Consumption |
0.7 A |
| Weight |
0.3 kg |
Model and Suffix Codes
| Model |
Description |
| EB401 |
ER Bus Interface Master Module |
Suffix Codes
| Code |
Description |
| -5 |
Standard type with no explosion protection |
| -E |
Standard type with explosion protection |
| 0 |
Always 0 |
| 1 |
With ISA Standard G3 option |
