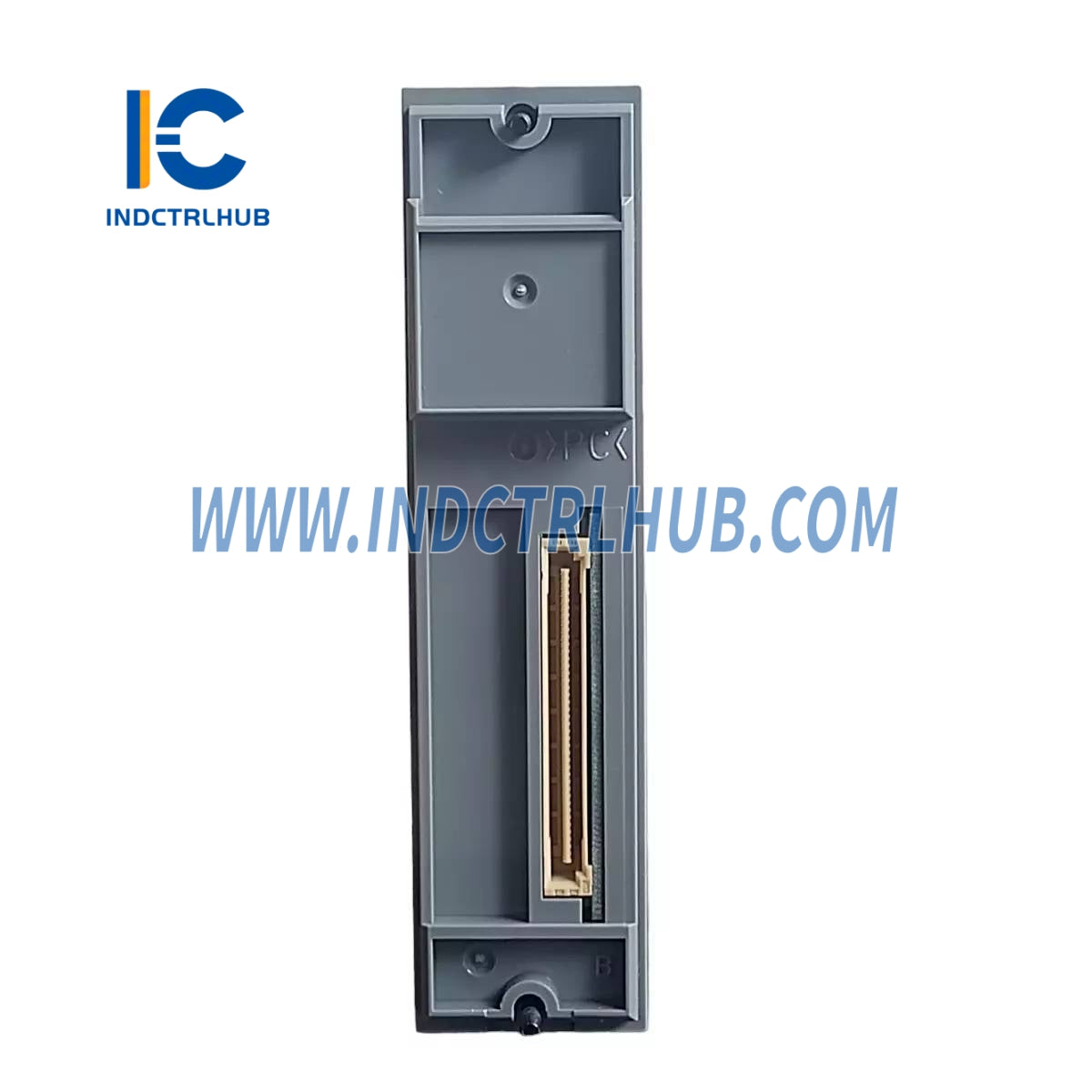

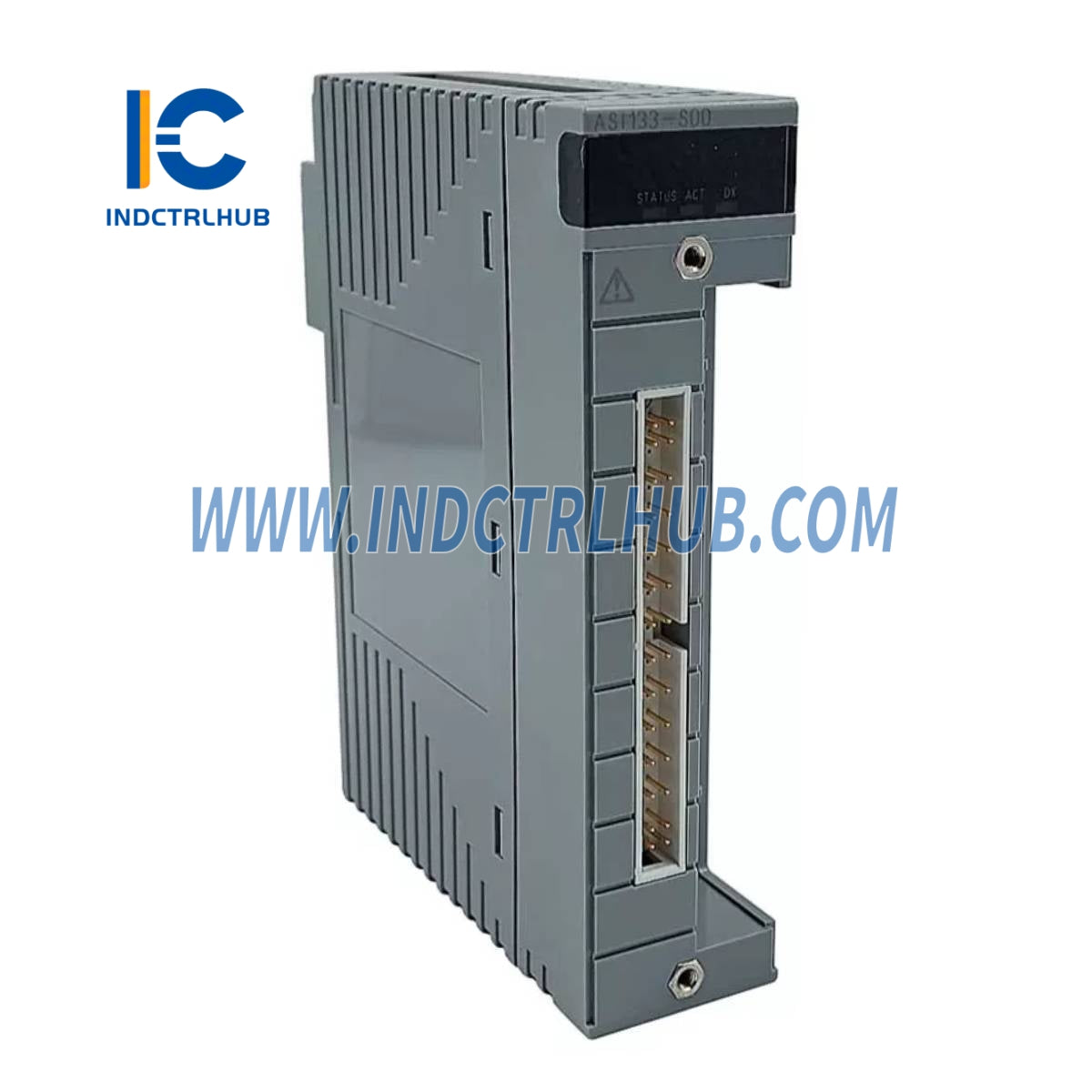

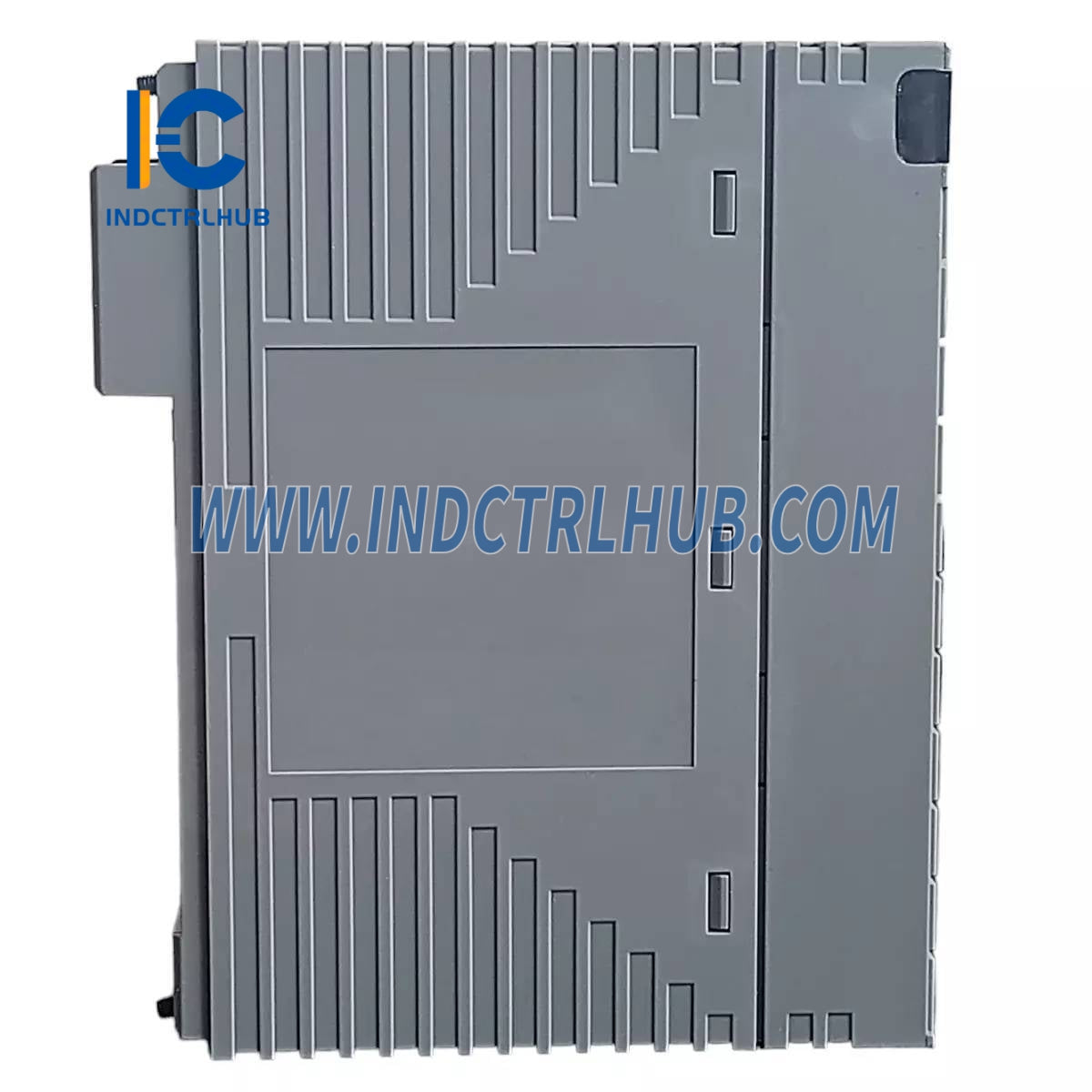

Yokogawa ASR133-S00/SR3S0 8-channel RTD/POT Input Module

Model/Part Number

ASR133-S00/SR3S0

Description

8-channel RTD/POT Input Module with Built-in Barrier, Isolated Channels, Standard Type

Model

ASR133

Input Channels

8 channels (isolated)

Supported Inputs

RTD (2, 3, 4-wire): Pt50, Pt100, Pt200, Pt500, Pt1000 (IEC 60751); Ni100, Ni200 (DIN 43760); Ni120 (Minco)POT (0–10 kΩ, 3-wire)

Allowable Input Voltage

±5 V

Withstanding Voltage

1500 V AC

Input Resistance (Power ON/OFF)

≥ 1 MΩ

Accuracy (at 23 °C)

- Pt50, Pt100, Ni100, Ni200, Ni120: ±150 mΩ- Pt200: ±300 mΩ- Pt500: ±600 mΩ- Pt1000: ±1.2 Ω- POT: ±2 Ω

Allowable Total Signal Resistance

50 Ω per load

Measurement Current

150 µA

Temperature Drift

- Pt50, Pt100, Ni100, Ni200, Ni120: ±325 mΩ/10 °C- Pt200: ±650 mΩ/10 °C- Pt500: ±1.3 Ω/10 °C- Pt1000: ±2.6 Ω/10 °C- POT: ±5.2 Ω/10 °C

Data Update Period

≤ 1 second

Burn-out Detection

Configurable (All channels: Not available / Available - UP/DOWN)

Current Consumption

150 mA (5 V DC), 60 mA (24 V DC)

Weight

0.3 kg

External Connection

Pressure Clamp Terminal [Model: ATSR3S-0]

Barrier Type

Isolated Interface

EMC Conformance

RCM: EN 55011 Class A Group 1

FM Approval

Associated intrinsically safe apparatus for:Class I, II, III Div. 1, Groups A–GClass I, Zone 0, Group IIC

Nonincendive

Class I, Div. 2, Groups A–D

Temperature Code

T4

ASR133-S00

RTD/POT Input Module with Built-in Barrier, 8-channel, Isolated, Standard Type

-S

Standard type

-00

Fixed (Always 0)

/SR3S0

Pressure Clamp Terminal for RTD/POT (Model: ATSR3S-0)

/SR3D0

Dual-Redundant Pressure Clamp Terminal for RTD/POT (Model: ATSR3D-0)
