Product Description

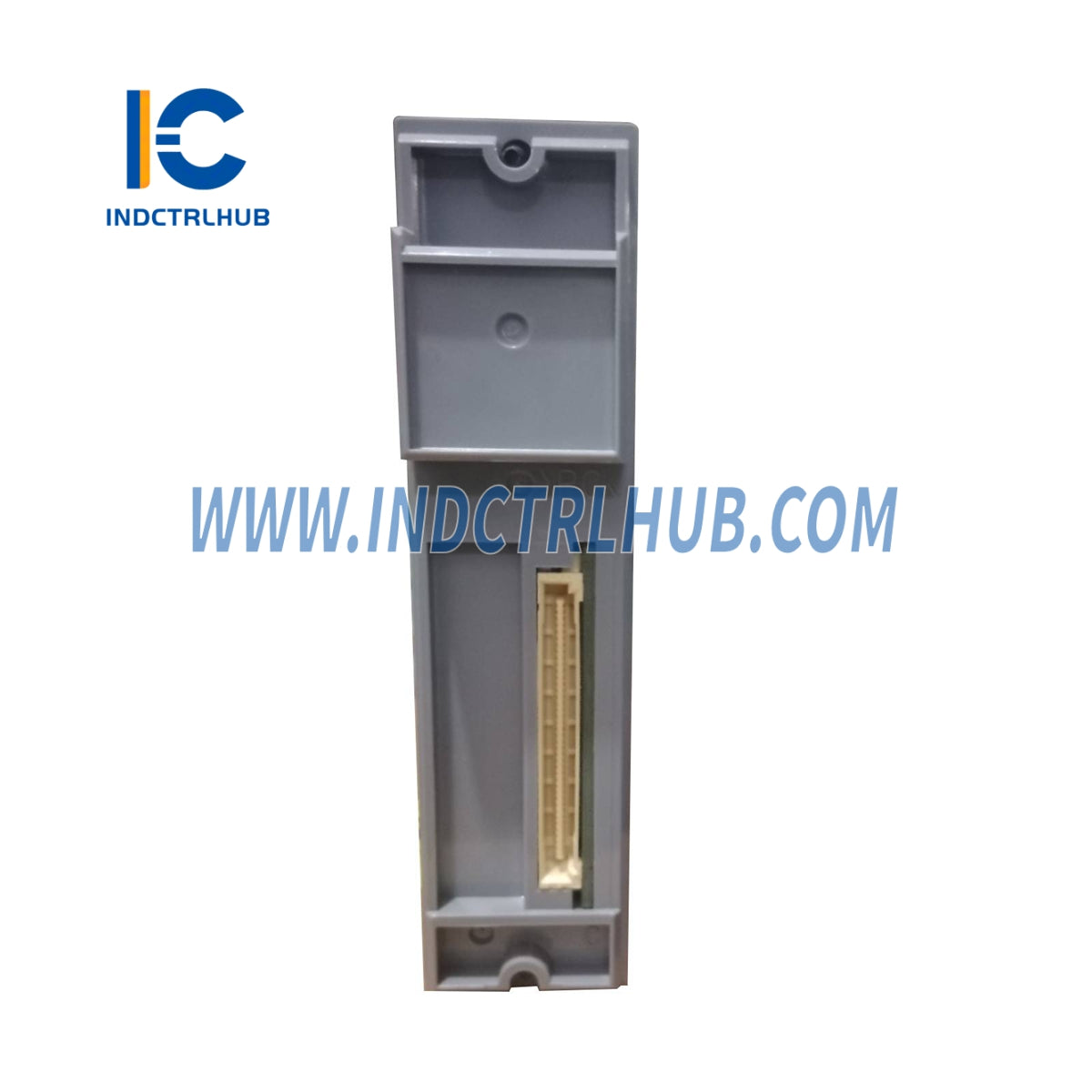

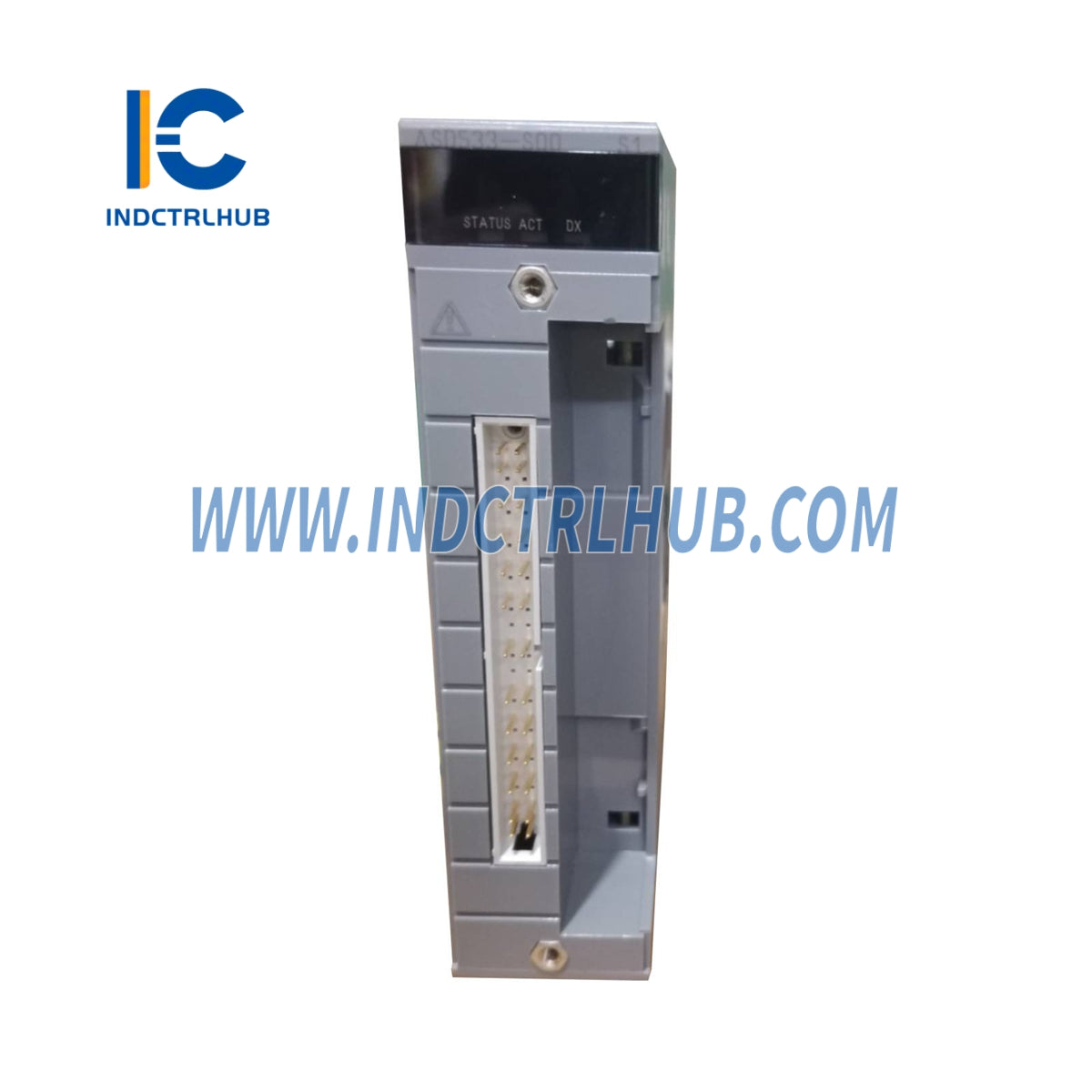

🔹 Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Yokogawa Electric Corporation |
|
Model/Part Number |
ASD533-S00 |
|
Description |
8-channel, isolated Digital Output Module with built-in barrier, suitable for hazardous areas; features ISA Standard G3 and extended temperature support |
🔹 Technical Specifications
|
Item |
Specification |
|---|---|
|
Model |
ASD533 |
|
Number of Output Channels |
8, isolated |
|
Output Signal |
12 V @ 40 mA, 26 V @ 0 mA |
|
Output Response Time |
10 ms |
|
Status Output Function |
Yes |
|
Withstanding Voltage |
1500 V AC (isolation) |
|
Barrier Type |
Isolated interface |
|
Current Consumption |
150 mA (5 V DC), 500 mA (24 V DC) |
|
External Connection |
Pressure clamp terminal (ATSD3 series) |
|
Weight |
Approx. 0.3 kg |

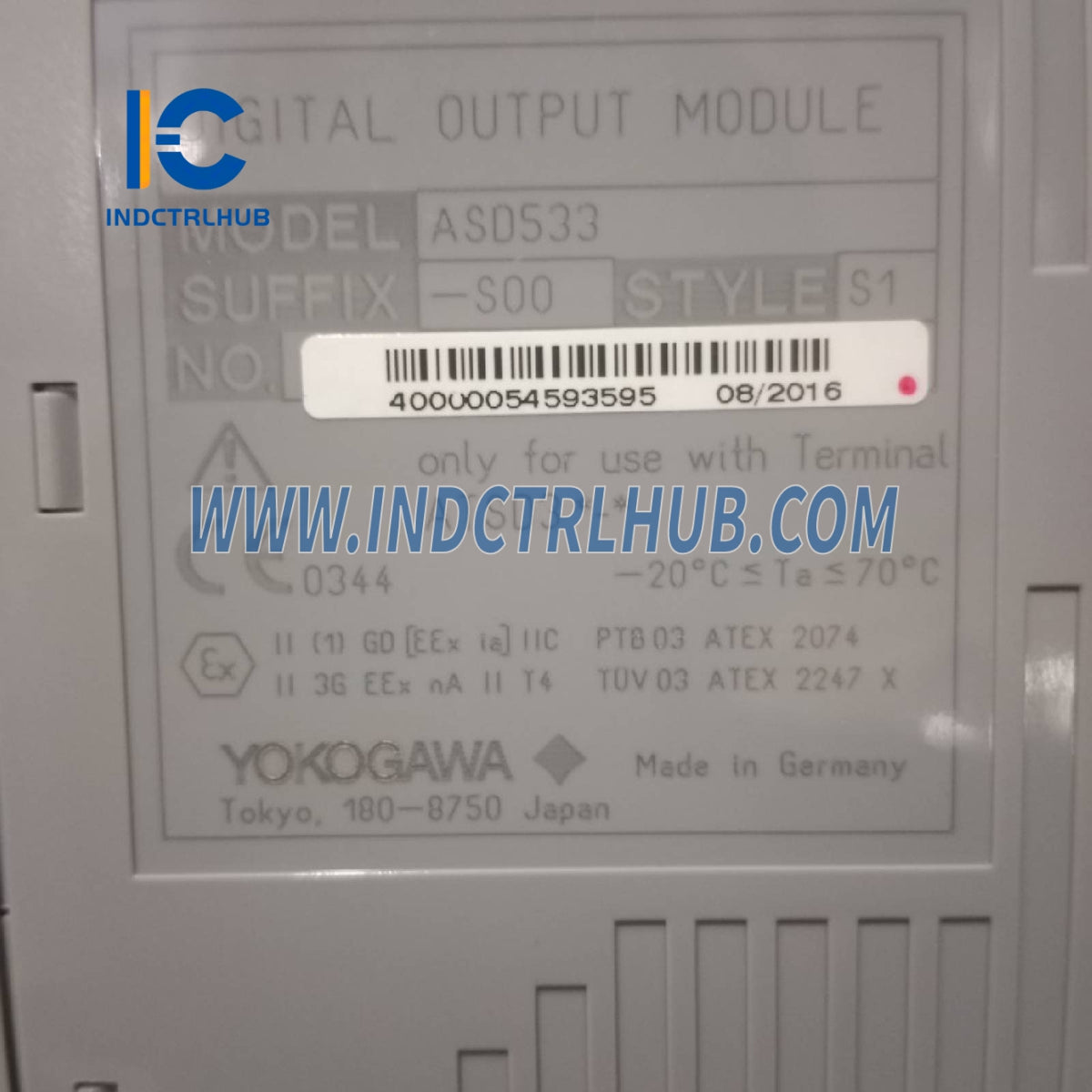

🔹 Hazardous Area Certifications
|
Standard |
Protection Method |
|---|---|
|
CENELEC |
II (1) G D [EEx ia] IIC (PTB 03 ATEX 2074), II 3 G EEx nA II T4 |
|
FM |
Intrinsically safe for Class I, II, III Div. 1 Groups A-G; Nonincendive for Class I Div. 2 Groups A-D |
🔹 Model and Suffix Codes
|
Category |
Details |
|---|---|
|
Base Model |
ASD533 – Digital Output Module (with barrier, 8-channel) |
|
-S |
Standard type |
|
00 |
Fixed values (always 0) |
🔹 Optional Accessories
|
Option Code |
Description |
|---|---|
|
/SD3S0 |
With Pressure Clamp Terminal Block for Digital Output (ATSD3S-0) |
|
/SD3D0 |
With Dual-Redundant Pressure Clamp Terminal Block for Digital Output (ATSD3D-0) |
