Product Description
Product Information
| Manufacturer |
Yokogawa |
| Model/Part Number |
ANT502 |
| Description |

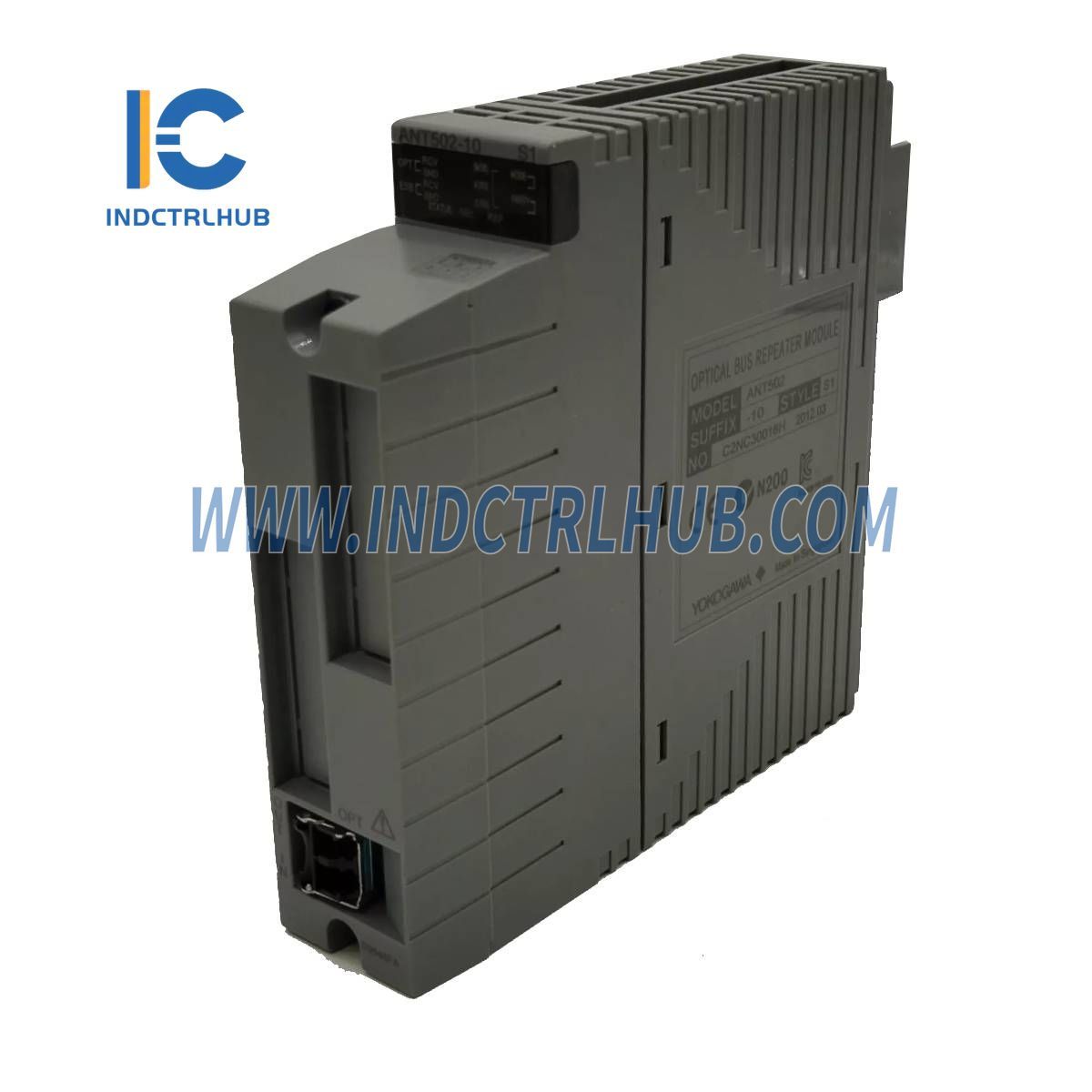

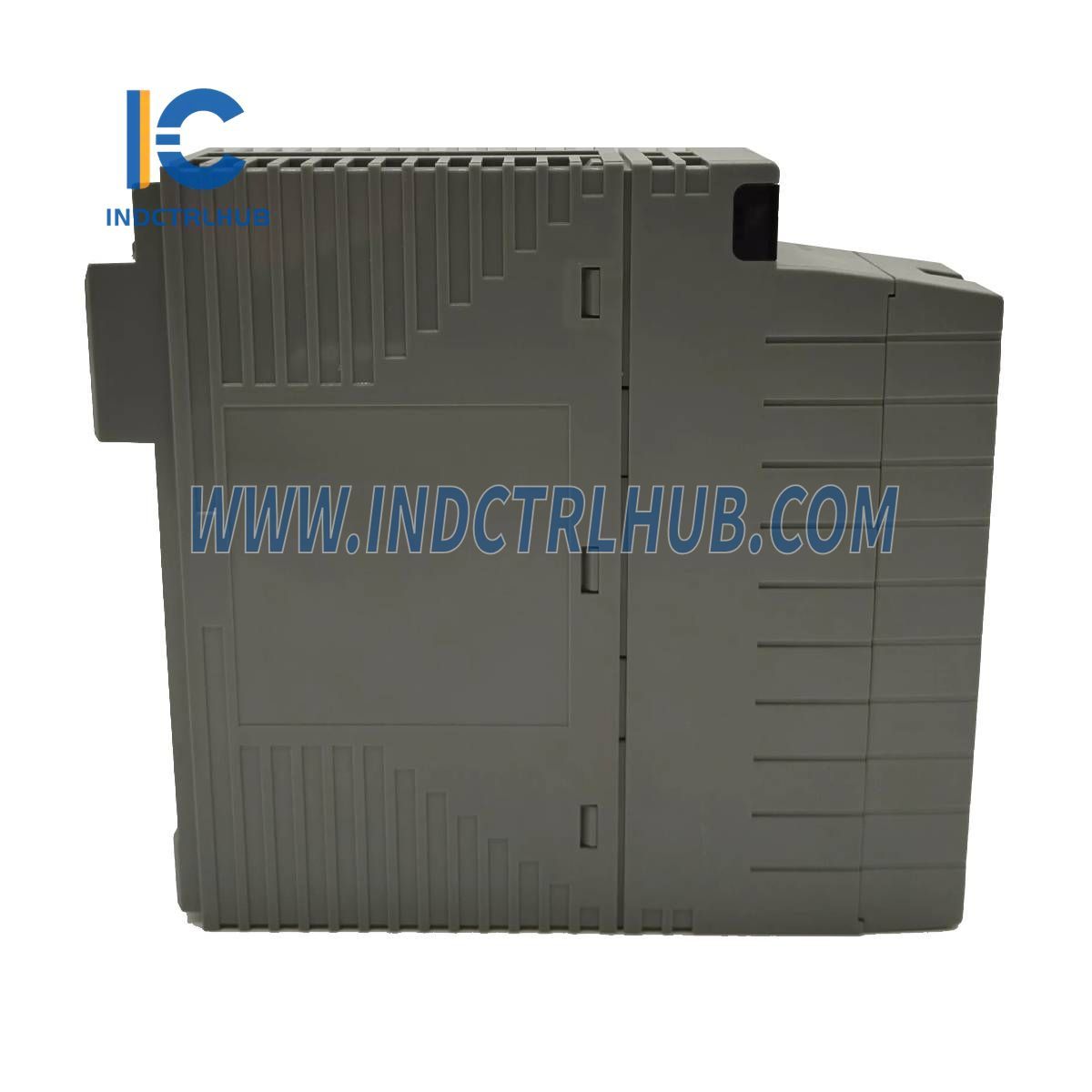

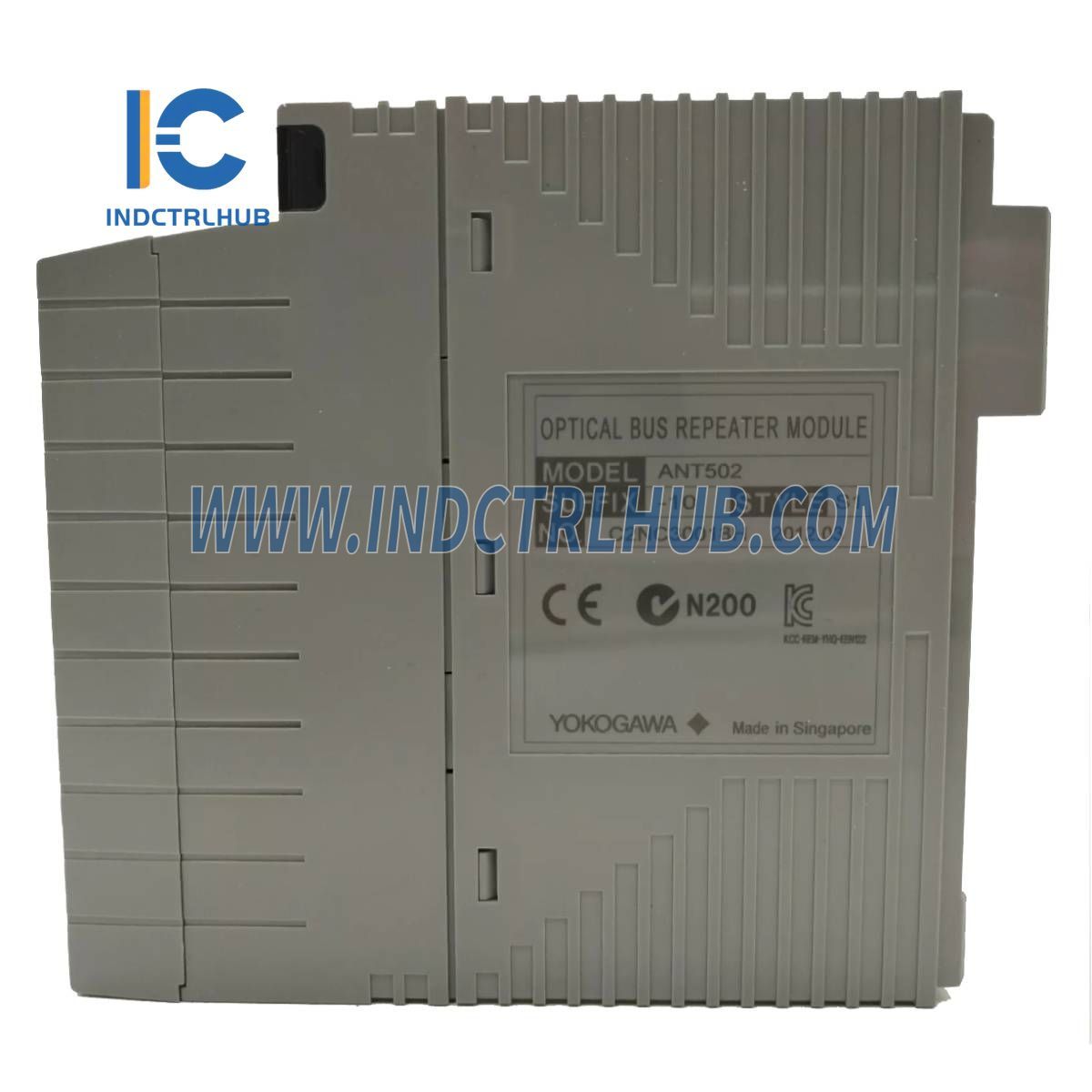

Optical ESB Bus Repeater Module for 5 km |
General Description
The ANT502 is an Optical ESB Bus Repeater Slave Module that facilitates the conversion of the ESB bus into an optical signal. This allows the transmission distance of the ESB bus to be extended up to 5 km when connected with the ANT401 Optical ESB Bus Repeater Master Module. The connection is made via optical fiber cables.
-
ESB Bus Optical Transport: The module can transmit the ESB bus signal over longer distances through optical fiber.
-
Connection Types: Supports both chain and star type connections.
-
Maximum Number of Stages: 2 stages (for chain type connection).
-
Maximum Number of Connections: 8 connections (for chain and star types).
-
Transmission Distance: Up to 5 km when using the ANT401, ANT502, and ANB11.
-
Current Consumption: 0.5 A for both ANT401 and ANT502.
-
Weight: 0.25 kg (main body only).
Model and Suffix Codes
| Description |
Model and Suffix Codes |
| Optical ESB Bus Repeater Slave Module |
ANT502 Optical ESB Bus Repeater Slave Module 5 km |
| Suffix Codes |
-5: Standard type with no explosion protection |
|
-E: Standard type with explosion protection |
|
0: Basic type |
|
3: With ISA Standard G3 option and temperature (-20 °C to 70 °C) option |
| Option Codes |
/BU1A: Connector unit with ESB Bus connector |
|
/BU1B: Connector unit |
|
/HU1A: Connector unit with ESB Bus connector and HKU I/F |
|
/HU1B: Connector unit with HKU I/F |
