Product Description
Product Overview

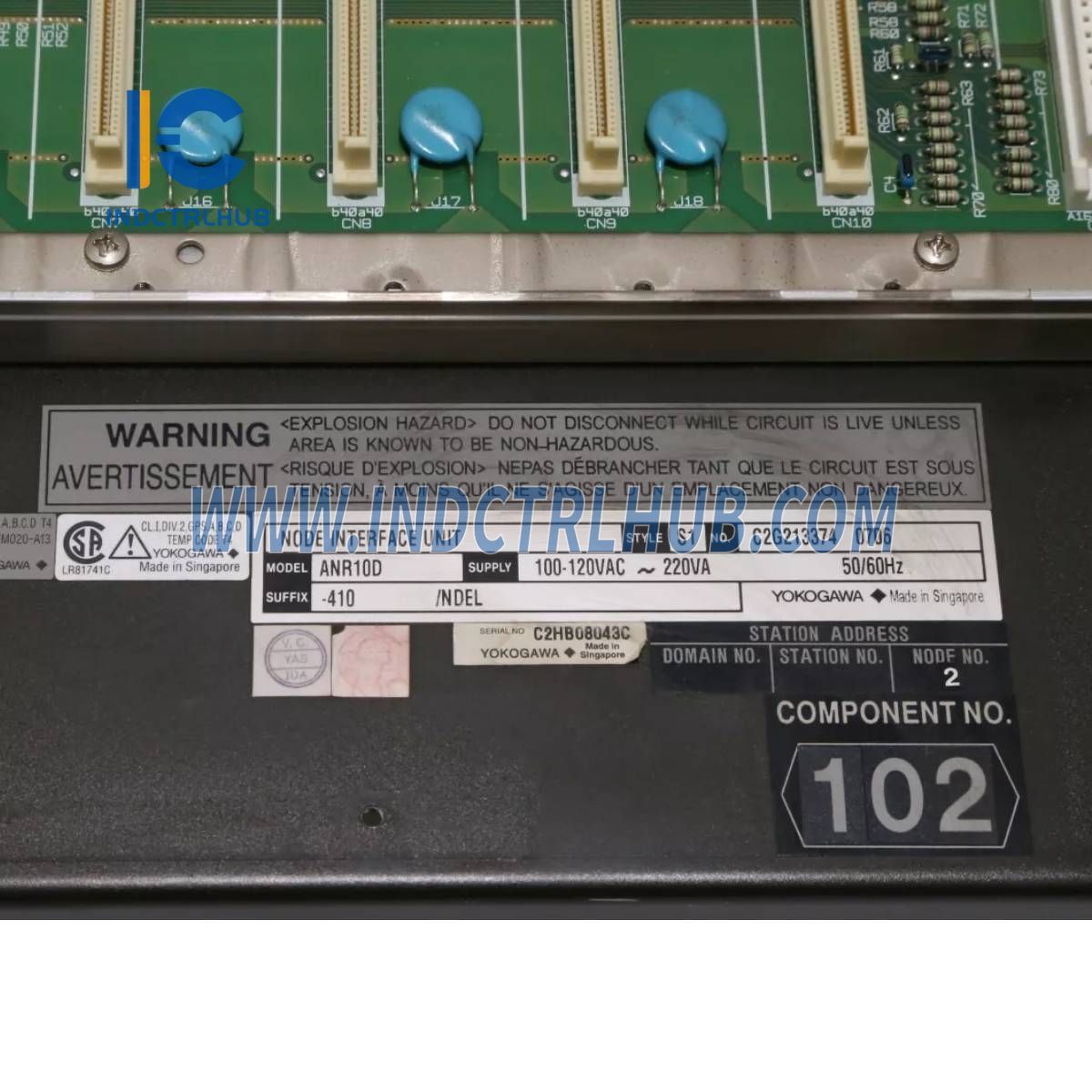

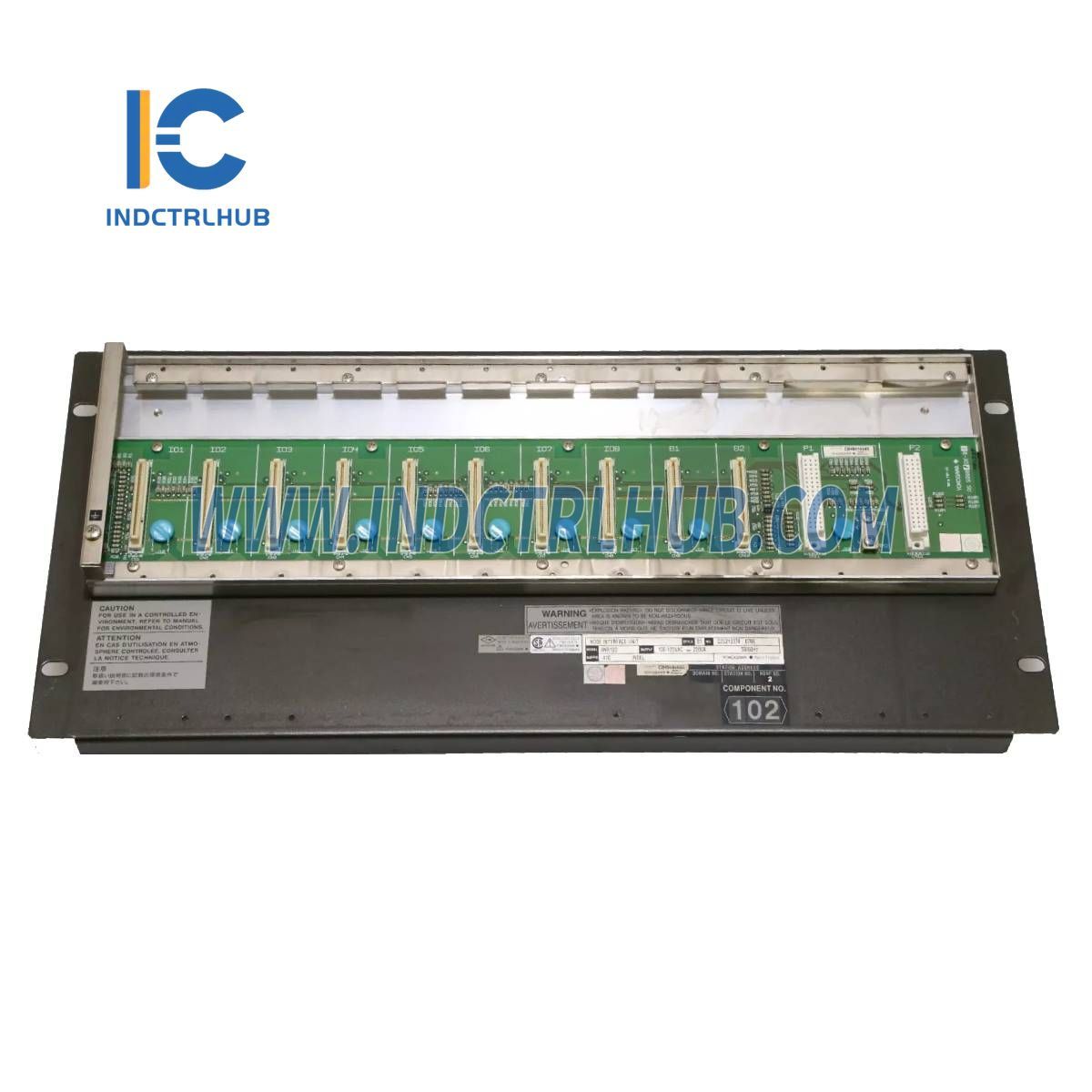

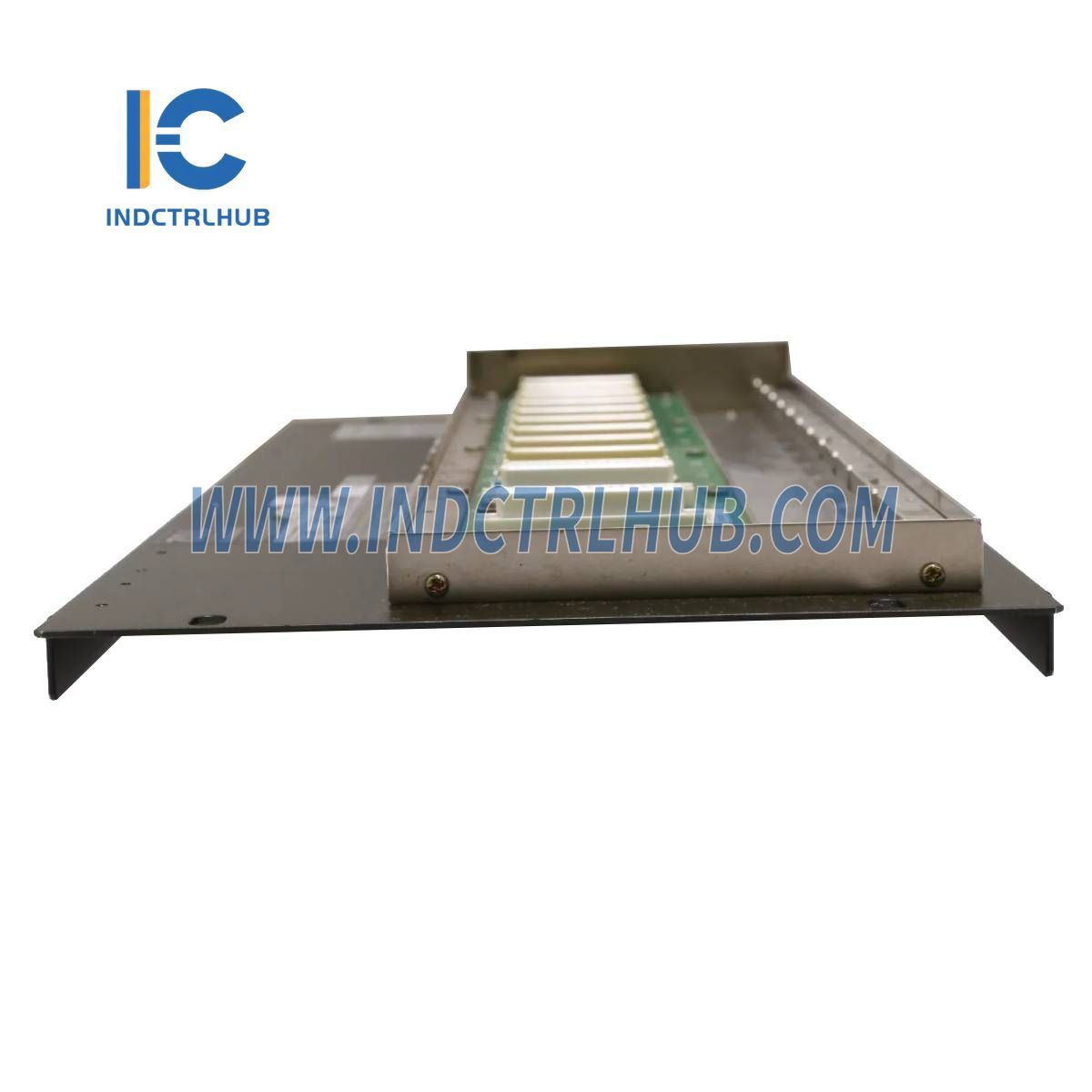

The Yokogawa ANR10D-410 is a Node Unit for Dual-Redundant ER Bus, classified as a "Remote Node" in Yokogawa’s system architecture. Unlike the ANB10S and ANB10D (ESB Bus Node Units or Local Nodes) that connect directly to a Field Control Unit (FCU) via an ESB bus, the ANR10S and ANR10D connect to an EB401 ER Bus Interface Master Module within an ESB Bus Node Unit via an ER bus. This 19” rack-mountable unit is designed for reliable, redundant operation in industrial control environments.
Technical Information
| Item | Specifications |
|---|---|
| Power Supply | Voltage: 100-120 V AC, Frequency: 50/60 Hz Voltage: 220-240 V AC, Frequency: 50/60 Hz Voltage: 24 V DC (Specify with Suffix Codes) |
| Electric Power Consumption | 100-120 V AC: 200 VA, 120 W 220-240 V AC: 230 VA, 120 W 24 V DC: 5.5 A |
| Weight | 10 kg (including 8 IOMs) |
Model and Suffix Codes
- Model: ANR10D Node Unit for Dual-Redundant ER Bus (19” Rack Mountable)
- Suffix Codes:
- -4: Dual-redundant power supply
- 1: 100-120 V AC power supply
- 2: 220-240 V AC power supply
- 4: 24 V DC power supply
- 5: Basic type with no explosion protection
- 6: With ISA G3 option, temperature (-20 ˚C to 70 ˚C) option, and no explosion protection
- E: Basic type with explosion protection
- F: With ISA G3 option, temperature (-20 ˚C to 70 ˚C) option, and explosion protection
- Option Codes:
- /ATDOC: Explosion Protection Manual
- /NDEL: Software License for Node Expansion (Mandatory for connection with AFF50 or AFV10)
