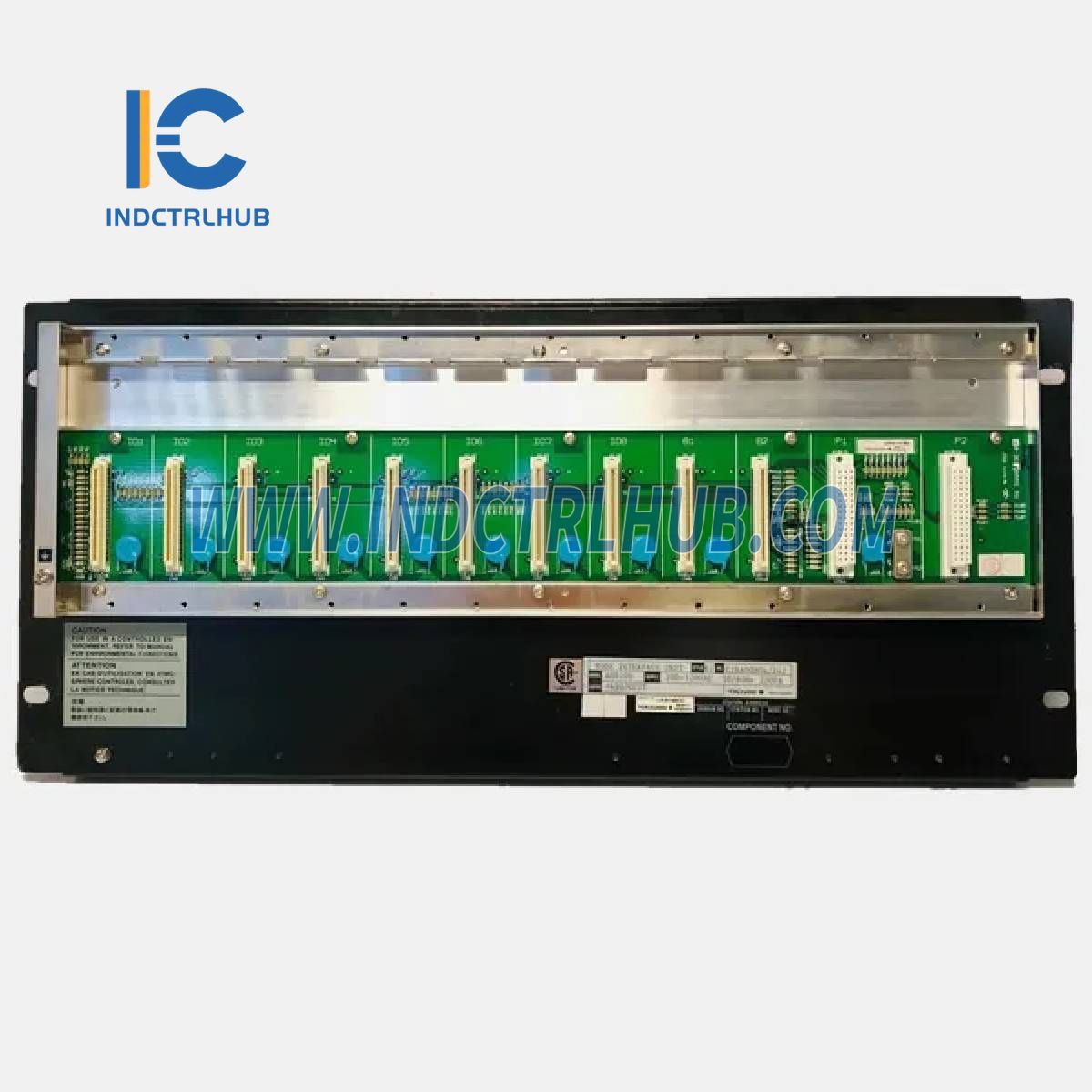

Product Description

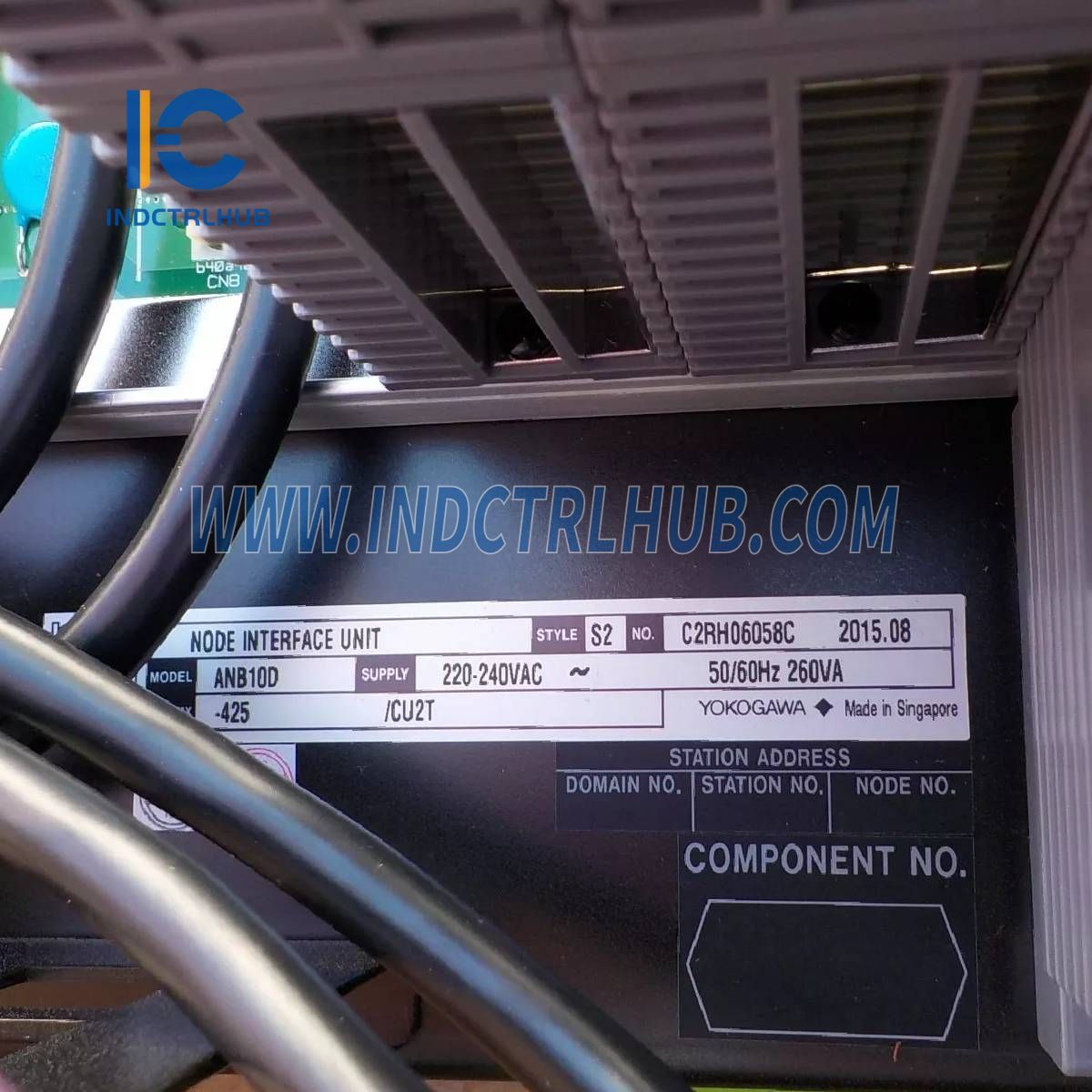

Product Details
| Manufacturer | Yokogawa |
|---|---|
| Model/Part Number | ANB10D-425 |
| Description | Node Unit for Dual-Redundant ESB Bus |
Power Supply and Consumption
| Power Supply Options | Details |
|---|---|
| Voltage | - 100-120 V AC, Frequency: 50/60 Hz - 220-240 V AC, Frequency: 50/60 Hz - 24 V DC |
| Electric Power Consumption | - 100-120 V AC: 200 VA, 120 W - 220-240 V AC: 230 VA, 120 W - 24 V DC: 5.5 A |
Weight and Mounting
| Weight | Approx. 10 kg (including 8 I/O Modules) |
|---|---|
| Mounting | 19-inch Rack Mounting (M5 x 4 screws) |
Model Description
-
Model: ANB10D Node Unit for Dual-Redundant ESB Bus
-
Suffix Codes:
- -4 Dual-redundant power supply
- 1 100 - 120 V AC power supply
- 2 220 - 240 V AC power supply
- 4 24 V DC power supply
- 5 Basic type with no explosion protection
- 6 With ISA Standard G3 option, temperature (-20 ºC to 70 ºC) option, and no explosion protection
- 7 With ISA Standard G3 option and no explosion protection
- E Basic type with explosion protection
- F With ISA Standard G3 option, temperature (-20 ºC to 70 ºC) option, and explosion protection
- G With ISA Standard G3 option and explosion protection
-
Option Codes:
- /CU2N Connector Unit for ESB Bus (2 pieces) [Part No.: S9562FA]
- /CU2T Connector Unit with Terminator for ESB Bus (2 pieces) [Part No.: S9564FA]
- /ATDOC Explosion Protection Manual
Notes:
- The ANB10D-425 unit is suitable for both standard and hazardous environments when explosion protection is required (option E, F, or G).
- The ISA Standard G3 and temperature (-20 to 70 ºC) options are available with specific configurations.
- This model is compatible with the CENTUM VP R6.01 or later systems.
