Product Description
Product Details
| Manufacturer | Yokogawa |
|---|---|
| Model/Part Number | ANB10D-425/CU2N |

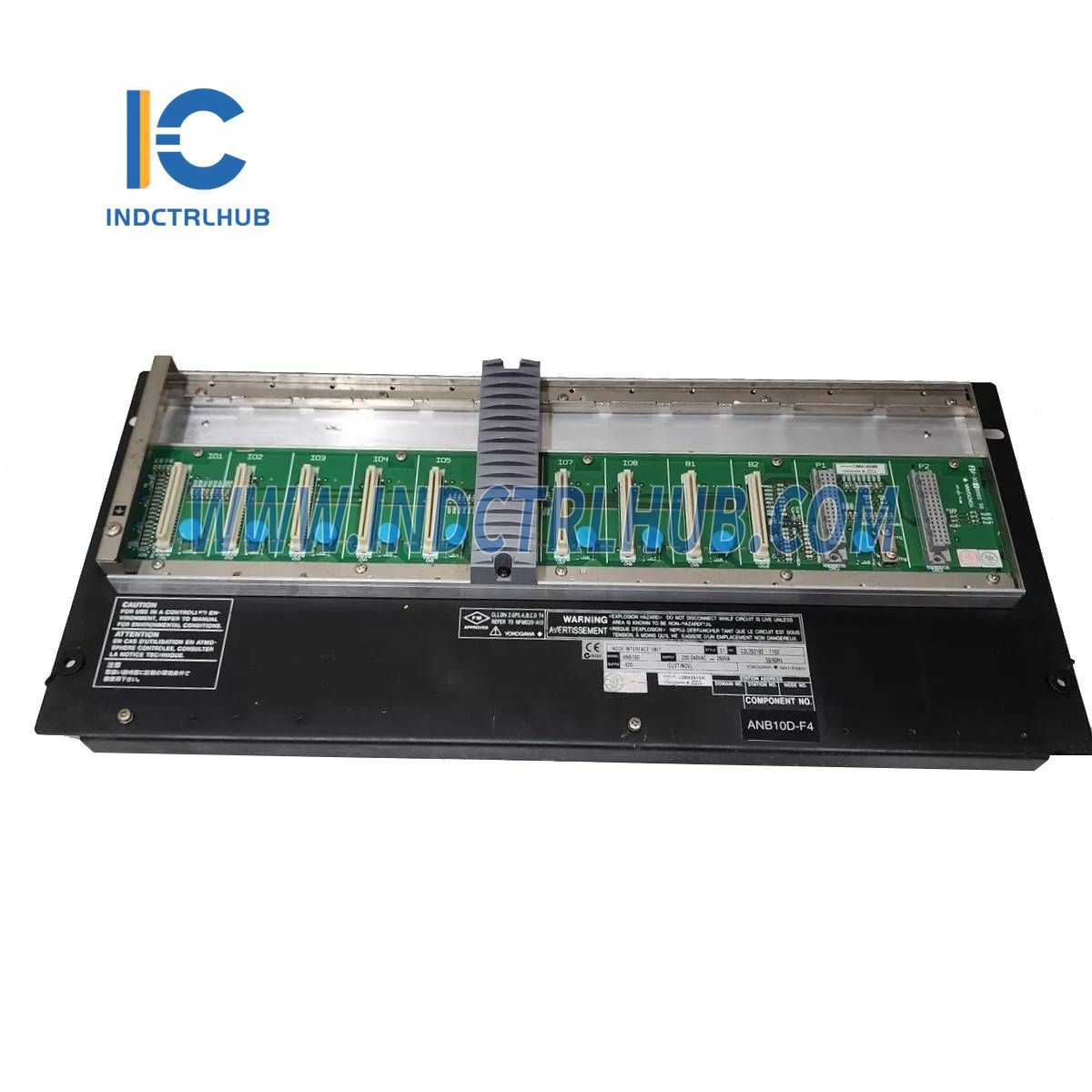

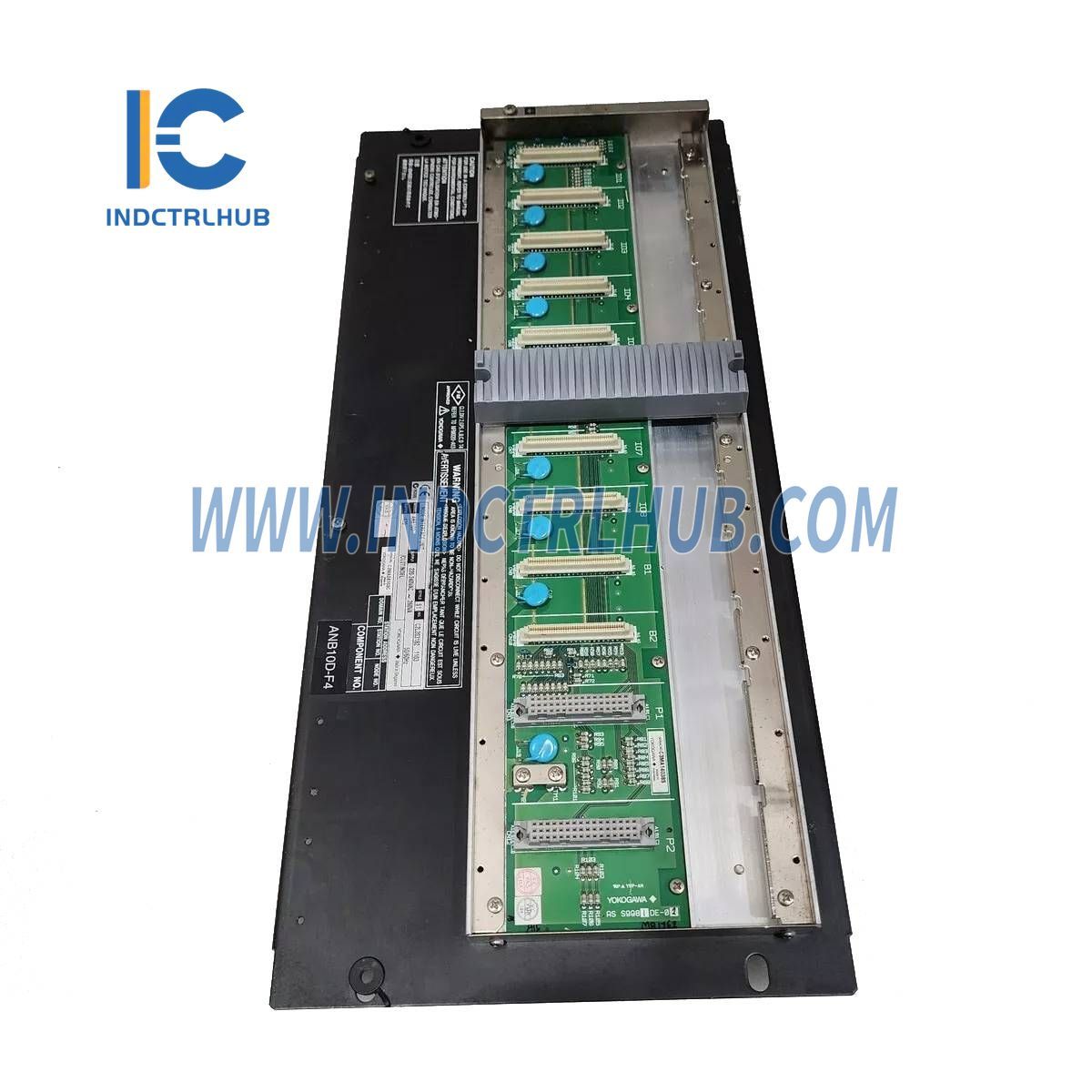

| Description | Node Unit for Dual-Redundant ESB Bus |
General Description
- The ESB Bus Node Unit is designed to interface and communicate analog I/O signals and contact I/O signals of a field with a Field Control Unit (FCU) via an ESB bus.
- It also provides power to the connected I/O Modules for operation.
Power Supply and Consumption
| Power Supply Options | Details |
|---|---|
| Voltage | - 220-240 V AC, Frequency: 50/60 Hz - 24 V DC |
| Electric Power Consumption | - 220-240 V AC: 230 VA, 120 W - 24 V DC: 5.5 A |
Weight and Mounting
| Weight | Approx. 10 kg (including 8 I/O Modules) |
|---|---|

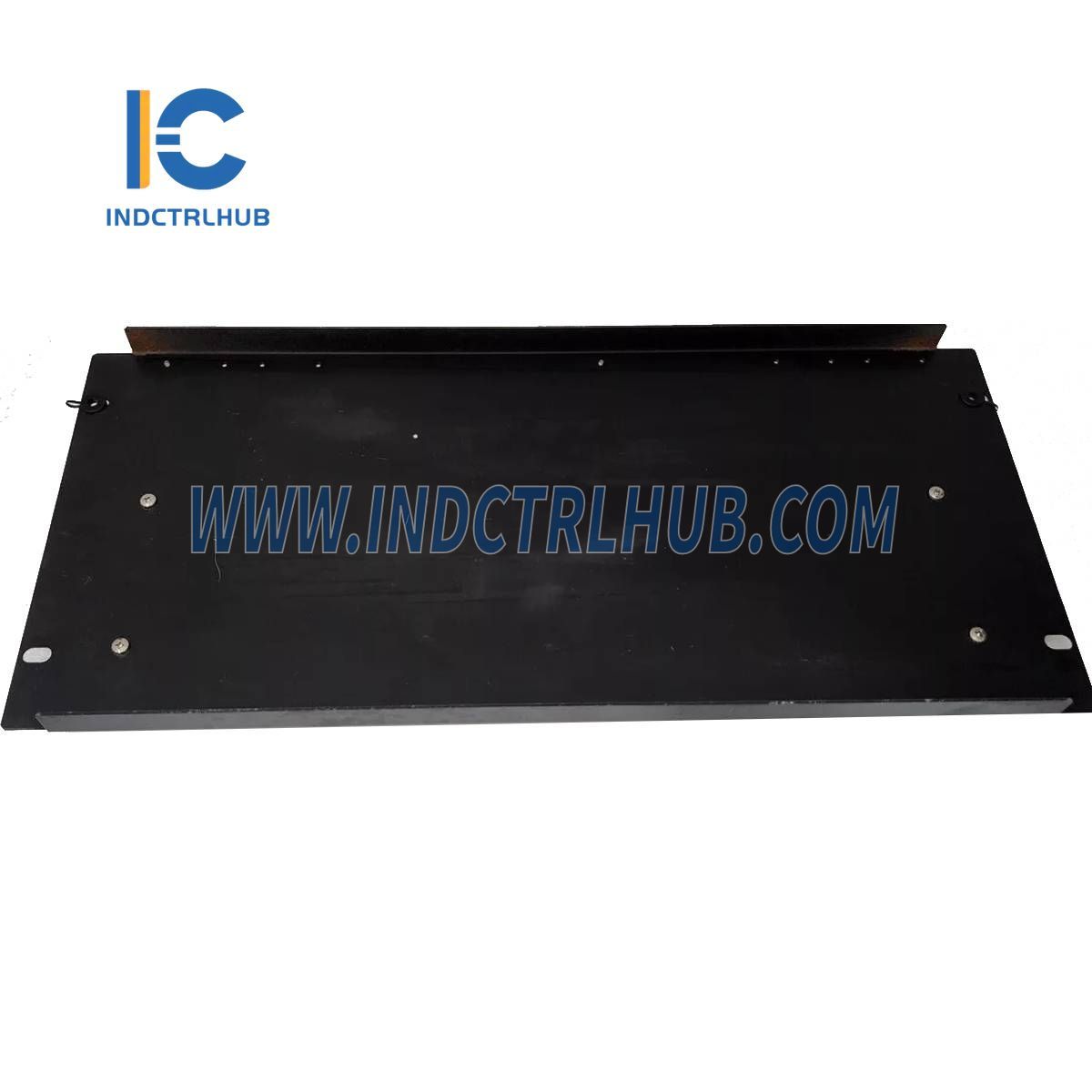

| Mounting | 19-inch Rack Mounting (M5 x 4 screws) |
Model and Suffix Codes
-
Model: ANB10D Node Unit for Dual-Redundant ESB Bus
-
Suffix Codes:
- -4 Dual-redundant power supply
- 1 100 - 120 V AC power supply
- 2 220 - 240 V AC power supply
- 4 24 V DC power supply
- 5 Basic type with no explosion protection
- 6 With ISA Standard G3 option, temperature (-20 ºC to 70 ºC) option, and no explosion protection
- 7 With ISA Standard G3 option and no explosion protection
- E Basic type with explosion protection
- F With ISA Standard G3 option, temperature (-20 ºC to 70 ºC) option, and explosion protection
- G With ISA Standard G3 option and explosion protection
-
Option Codes:
- /CU2N Connector Unit for ESB Bus (2 pieces) [Part No.: S9562FA]
- /CU2T Connector Unit with Terminator for ESB Bus (2 pieces) [Part No.: S9564FA]
- /ATDOC Explosion Protection Manual
