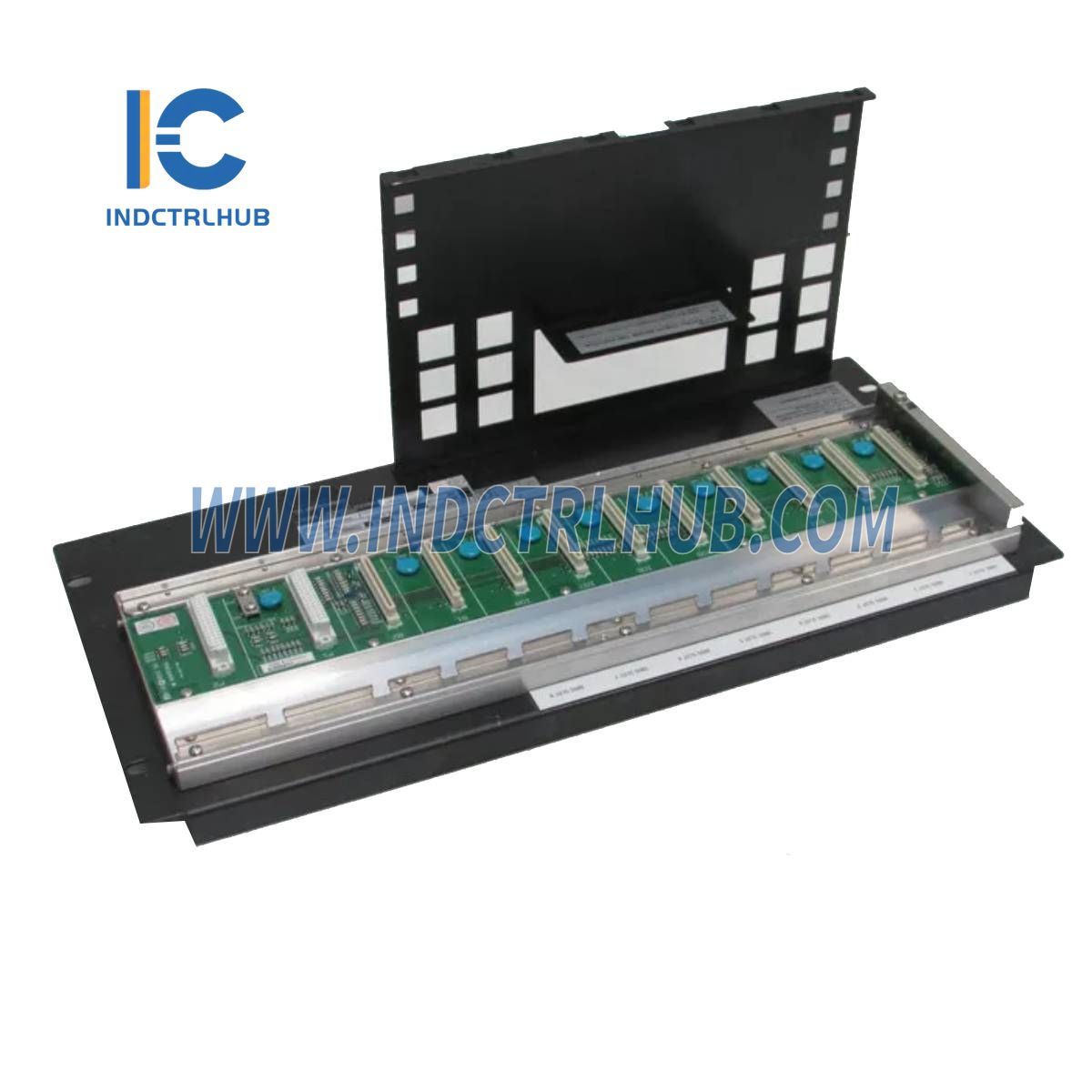

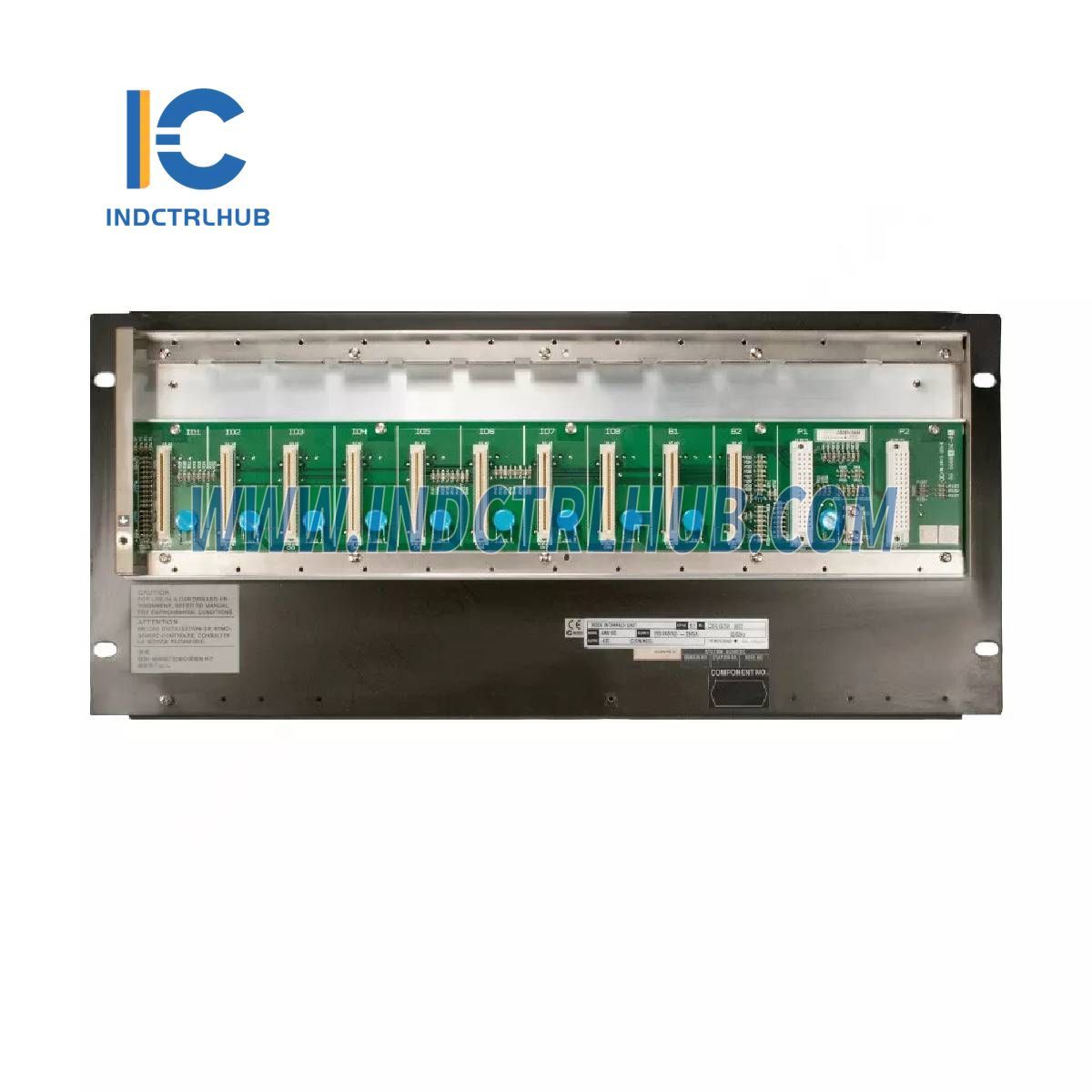

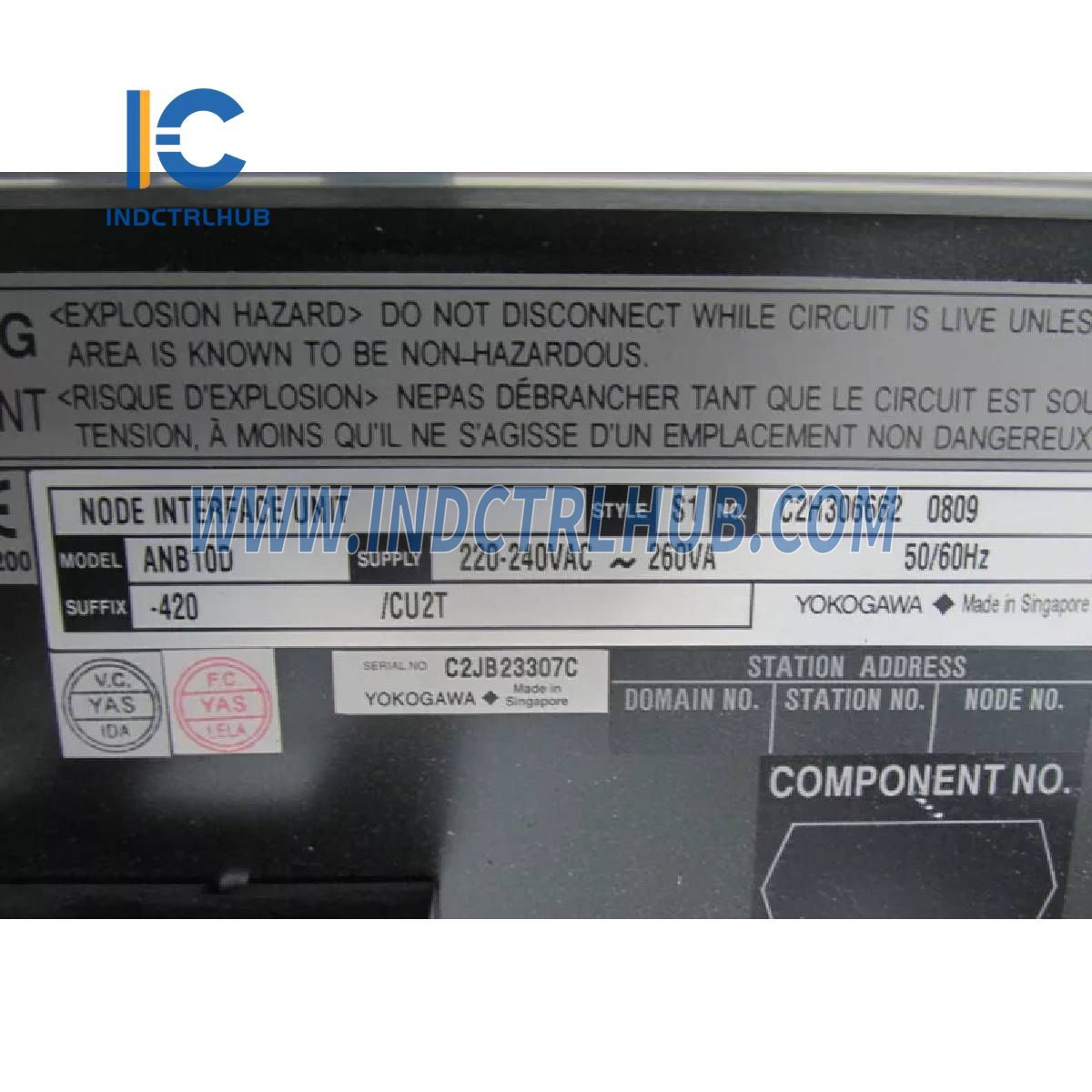

Yokogawa ANB10D-420 Node Unit for Dual-Redundant ESB Bus

Yokogawa ANB10D-420 Node Unit for Dual-Redundant ESB Bus

  • Manufacturer: Yokogawa

  • Product No.: ANB10D-420

  • Condition:1000 in stock

  • Product Type: Node Unit for Dual-Redundant ESB Bus

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 10000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

Manufacturer Yokogawa
Model/Part Number ANB10D-420
Description Node Unit for Dual-Redundant ESB Bus

General Overview

The ANB10D-420 is a Node Unit for the Dual-Redundant ESB (Ethernet Serial Bus), designed to facilitate communication of analog I/O signals and contact I/O signals from the field to the Field Control Unit (FCU). It also provides power to the connected I/O modules. The ESB Bus Node Unit serves as a key element for connecting field devices with the control system, ensuring reliable data transfer and I/O module power management.


Standard Specifications

Specification Details
Number of Node Units Connectable - Max. 8 units for A2FV50, A2FV70, AFV30, AFV40 control stations (depending on the model).
ESB Bus Node Connection ESB Bus Coupler Modules EC401 or EC402 must be installed in the FCU to connect the node unit.
Power Supply (Specify with Suffix Codes) - 100-120 V AC, Frequency: 50/60 Hz
- 220-240 V AC, Frequency: 50/60 Hz
- 24 V DC
Electric Power Consumption - 100-120 V AC: 200 VA, 120 W
- 220-240 V AC: 230 VA, 120 W
- 24 V DC: 5.5 A
Weight Approx. 10 kg (including 8 I/O modules)
Mounting 19-inch Rack Mounting (M5 x 4 screws)
Insulation Bash Included (accessory)

Model Description

  • Model: ANB10D Node Unit for Dual-Redundant ESB Bus

  • Suffix Codes:

    • -4 Dual-redundant power supply
    • 1 100 - 120 V AC power supply
    • 2 220 - 240 V AC power supply
    • 4 24 V DC power supply
    • 5 Basic type with no explosion protection
    • 6 With ISA Standard G3 option, temperature (-20 ºC to 70 ºC) option, and no explosion protection
    • 7 With ISA Standard G3 option and no explosion protection
    • E Basic type with explosion protection
    • F With ISA Standard G3 option, temperature (-20 ºC to 70 ºC) option, and explosion protection
    • G With ISA Standard G3 option and explosion protection
  • Option Codes:

    • /CU2N Connector Unit for ESB Bus (2 pieces) [Part No.: S9562FA]
    • /CU2T Connector Unit with Terminator for ESB Bus (2 pieces) [Part No.: S9564FA]
    • /ATDOC Explosion Protection Manual
View full details

Product Description

Product Details

Manufacturer Yokogawa
Model/Part Number ANB10D-420
Description Node Unit for Dual-Redundant ESB Bus

General Overview

The ANB10D-420 is a Node Unit for the Dual-Redundant ESB (Ethernet Serial Bus), designed to facilitate communication of analog I/O signals and contact I/O signals from the field to the Field Control Unit (FCU). It also provides power to the connected I/O modules. The ESB Bus Node Unit serves as a key element for connecting field devices with the control system, ensuring reliable data transfer and I/O module power management.


Standard Specifications

Specification Details
Number of Node Units Connectable - Max. 8 units for A2FV50, A2FV70, AFV30, AFV40 control stations (depending on the model).
ESB Bus Node Connection ESB Bus Coupler Modules EC401 or EC402 must be installed in the FCU to connect the node unit.
Power Supply (Specify with Suffix Codes) - 100-120 V AC, Frequency: 50/60 Hz
- 220-240 V AC, Frequency: 50/60 Hz
- 24 V DC
Electric Power Consumption - 100-120 V AC: 200 VA, 120 W
- 220-240 V AC: 230 VA, 120 W
- 24 V DC: 5.5 A
Weight Approx. 10 kg (including 8 I/O modules)
Mounting 19-inch Rack Mounting (M5 x 4 screws)
Insulation Bash Included (accessory)

Model Description

  • Model: ANB10D Node Unit for Dual-Redundant ESB Bus

  • Suffix Codes:

    • -4 Dual-redundant power supply
    • 1 100 - 120 V AC power supply
    • 2 220 - 240 V AC power supply
    • 4 24 V DC power supply
    • 5 Basic type with no explosion protection
    • 6 With ISA Standard G3 option, temperature (-20 ºC to 70 ºC) option, and no explosion protection
    • 7 With ISA Standard G3 option and no explosion protection
    • E Basic type with explosion protection
    • F With ISA Standard G3 option, temperature (-20 ºC to 70 ºC) option, and explosion protection
    • G With ISA Standard G3 option and explosion protection
  • Option Codes:

    • /CU2N Connector Unit for ESB Bus (2 pieces) [Part No.: S9562FA]
    • /CU2T Connector Unit with Terminator for ESB Bus (2 pieces) [Part No.: S9564FA]
    • /ATDOC Explosion Protection Manual

Download PDF file here:

Click to Download PDF
