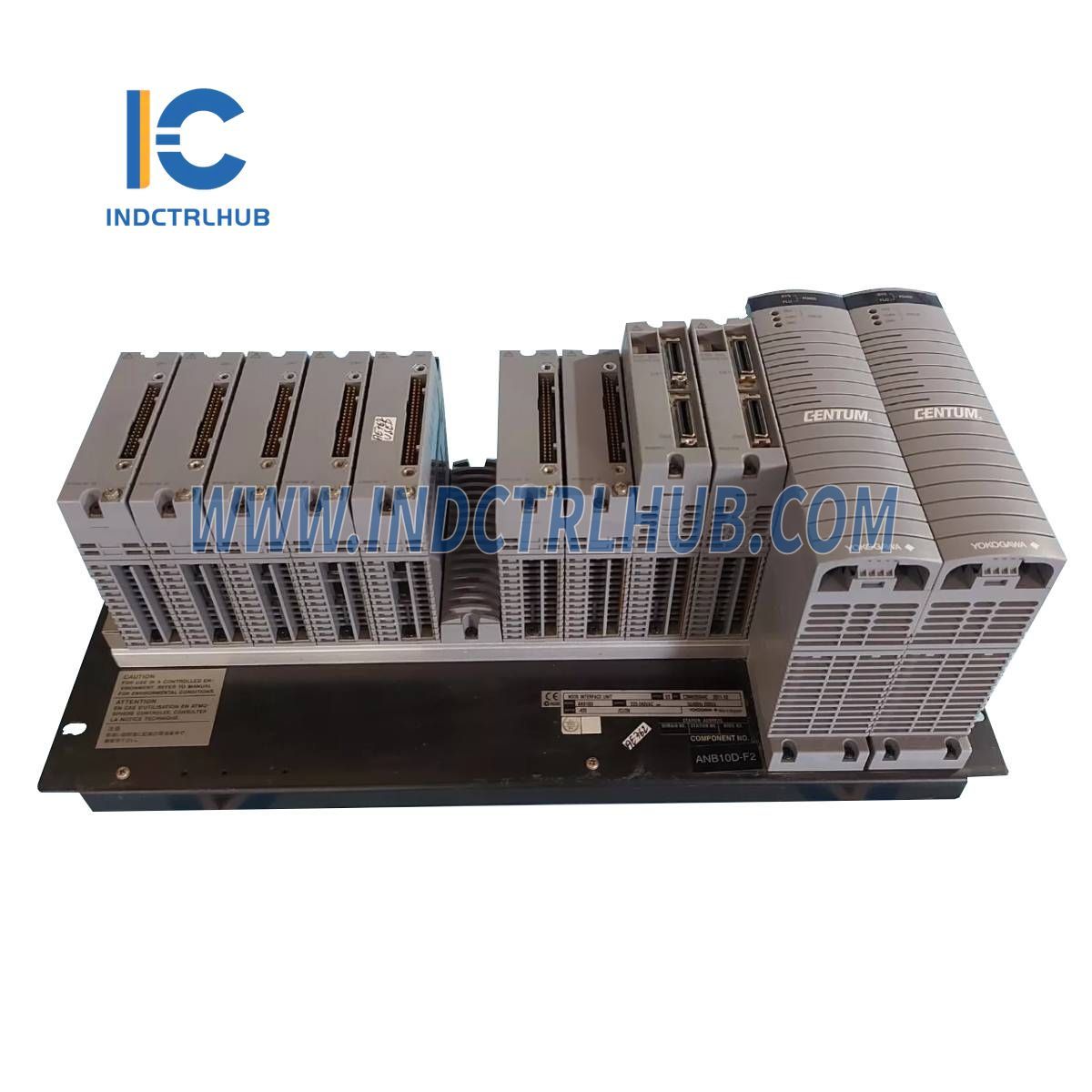

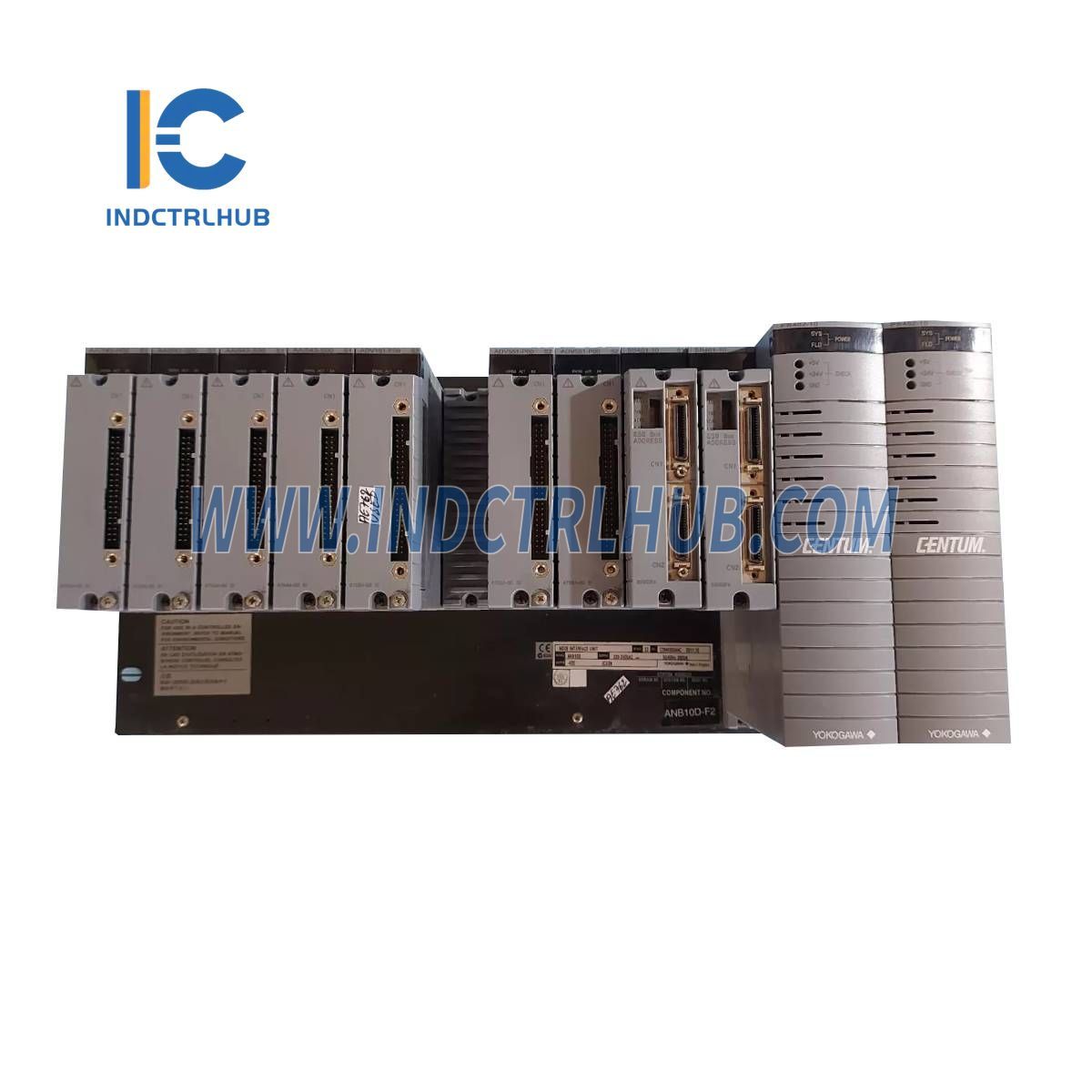

Yokogawa ANB10D-420/CU2N Node Unit for Dual-Redundant ESB Bus

Yokogawa ANB10D-420/CU2N Node Unit for Dual-Redundant ESB Bus

  • Manufacturer: Yokogawa

  • Product No.: ANB10D-420/CU2N

  • Condition:1000 in stock

  • Product Type: Node Unit for Dual-Redundant ESB Bus

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 10000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

Manufacturer Yokogawa
Model/Part Number ANB10D-420/CU2N
Description Node Unit for Dual-Redundant ESB Bus

General Overview

The ANB10D-420/CU2N is a Node Unit designed for dual-redundant ESB Bus applications. This unit facilitates the communication of analog I/O signals and contact I/O signals between the field and a Field Control Unit (FCU) via the ESB bus. Additionally, it provides power to connected I/O modules to ensure smooth operations of the control system.


Standard Specifications

Specification Details
Number of Node Units Connectable Max. 8 units for A2FV50, A2FV70, AFV30, AFV40 control stations (depending on the model).
ESB Bus Node Connection Requires EC401 or EC402 ESB Bus Coupler Modules for connection to the FCU.
Power Supply (Specify with Suffix Codes) - 100-120 V AC, Frequency: 50/60 Hz
- 220-240 V AC, Frequency: 50/60 Hz
- 24 V DC
Electric Power Consumption - 100-120 V AC: 200 VA, 120 W
- 220-240 V AC: 230 VA, 120 W
- 24 V DC: 5.5 A
Weight Approx. 10 kg (including 8 I/O modules)
Mounting 19-inch Rack Mounting (M5 x 4 screws)
Insulation Bash Included (accessory)

Model Description

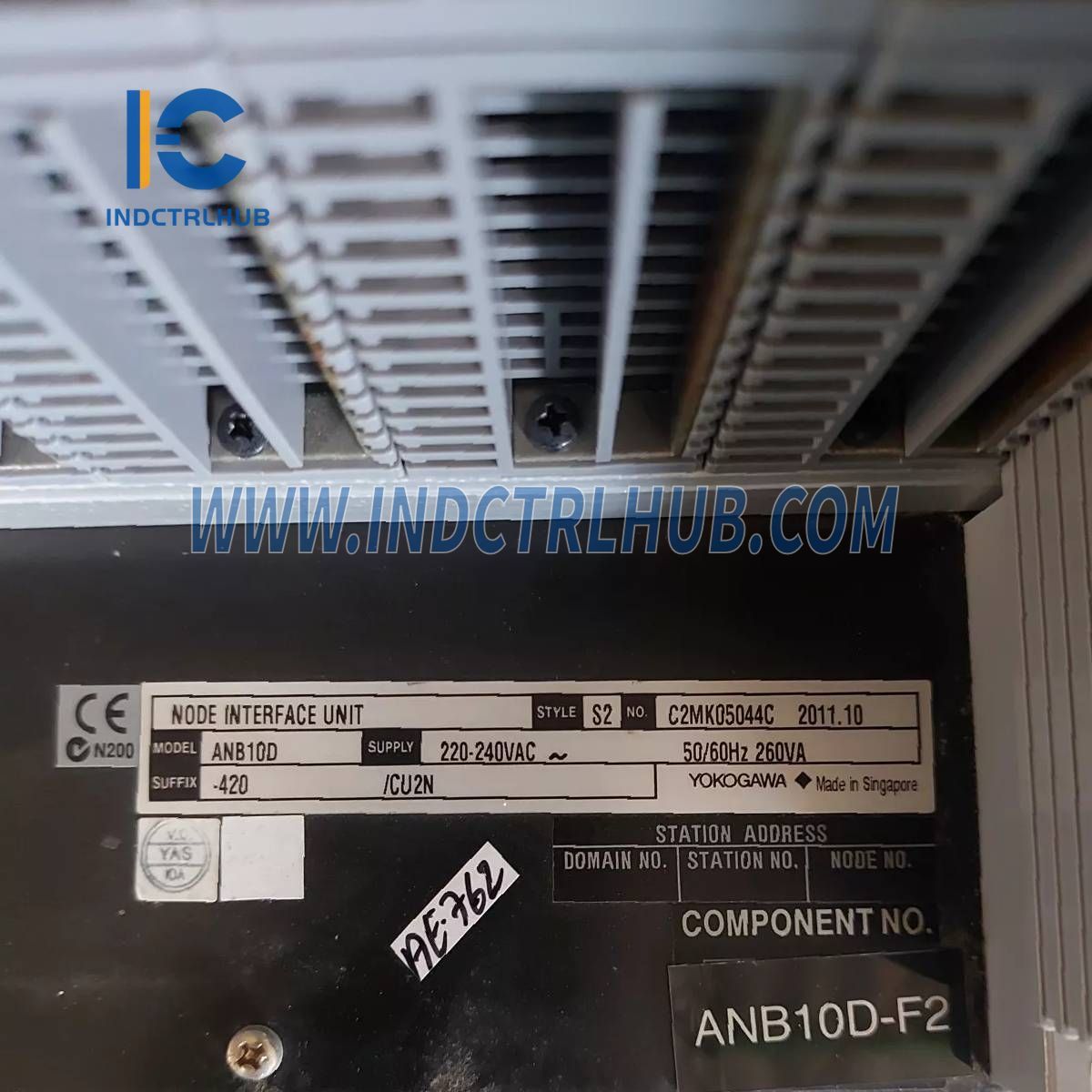

  • Model: ANB10D Node Unit for Dual-Redundant ESB Bus

  • Suffix Codes:

    • -4 Dual-redundant power supply
    • 1 100 - 120 V AC power supply
    • 2 220 - 240 V AC power supply
    • 4 24 V DC power supply
    • 5 Basic type with no explosion protection
    • 6 With ISA Standard G3 option, temperature (-20 ºC to 70 ºC) option, and no explosion protection
    • 7 With ISA Standard G3 option and no explosion protection
    • E Basic type with explosion protection
    • F With ISA Standard G3 option, temperature (-20 ºC to 70 ºC) option, and explosion protection
    • G With ISA Standard G3 option and explosion protection
  • Option Codes:

    • /CU2N Connector Unit for ESB Bus (2 pieces) [Part No.: S9562FA]
    • /CU2T Connector Unit with Terminator for ESB Bus (2 pieces) [Part No.: S9564FA]
    • /ATDOC Explosion Protection Manual
    • /NDEL Compatible with CENTUM VP R6.01 or later

Notes:

  • The ANB10D-420/CU2N unit is compatible with CENTUM VP R5 or earlier versions and is supported with CENTUM VP R6.01 or later.
  • The /ATDOC option ensures compliance with ATEX/IECEx directives for use in explosive atmospheres.
  • The ISA Standard G3 and temperature options are available when the unit is connected to an Optical ESB Bus Node Unit (ANB11).
View full details

Product Description

Product Details

Manufacturer Yokogawa
Model/Part Number ANB10D-420/CU2N
Description Node Unit for Dual-Redundant ESB Bus

General Overview

The ANB10D-420/CU2N is a Node Unit designed for dual-redundant ESB Bus applications. This unit facilitates the communication of analog I/O signals and contact I/O signals between the field and a Field Control Unit (FCU) via the ESB bus. Additionally, it provides power to connected I/O modules to ensure smooth operations of the control system.


Standard Specifications

Specification Details
Number of Node Units Connectable Max. 8 units for A2FV50, A2FV70, AFV30, AFV40 control stations (depending on the model).
ESB Bus Node Connection Requires EC401 or EC402 ESB Bus Coupler Modules for connection to the FCU.
Power Supply (Specify with Suffix Codes) - 100-120 V AC, Frequency: 50/60 Hz
- 220-240 V AC, Frequency: 50/60 Hz
- 24 V DC
Electric Power Consumption - 100-120 V AC: 200 VA, 120 W
- 220-240 V AC: 230 VA, 120 W
- 24 V DC: 5.5 A
Weight Approx. 10 kg (including 8 I/O modules)
Mounting 19-inch Rack Mounting (M5 x 4 screws)
Insulation Bash Included (accessory)

Model Description

  • Model: ANB10D Node Unit for Dual-Redundant ESB Bus

  • Suffix Codes:

    • -4 Dual-redundant power supply
    • 1 100 - 120 V AC power supply
    • 2 220 - 240 V AC power supply
    • 4 24 V DC power supply
    • 5 Basic type with no explosion protection
    • 6 With ISA Standard G3 option, temperature (-20 ºC to 70 ºC) option, and no explosion protection
    • 7 With ISA Standard G3 option and no explosion protection
    • E Basic type with explosion protection
    • F With ISA Standard G3 option, temperature (-20 ºC to 70 ºC) option, and explosion protection
    • G With ISA Standard G3 option and explosion protection
  • Option Codes:

    • /CU2N Connector Unit for ESB Bus (2 pieces) [Part No.: S9562FA]
    • /CU2T Connector Unit with Terminator for ESB Bus (2 pieces) [Part No.: S9564FA]
    • /ATDOC Explosion Protection Manual
    • /NDEL Compatible with CENTUM VP R6.01 or later

Notes:

  • The ANB10D-420/CU2N unit is compatible with CENTUM VP R5 or earlier versions and is supported with CENTUM VP R6.01 or later.
  • The /ATDOC option ensures compliance with ATEX/IECEx directives for use in explosive atmospheres.
  • The ISA Standard G3 and temperature options are available when the unit is connected to an Optical ESB Bus Node Unit (ANB11).
