Product Description
Product Details
| Manufacturer | Yokogawa |
|---|---|
| Model/Part Number | ANB10D-410 |
| Description | Node Unit for Dual-Redundant ESB Bus |

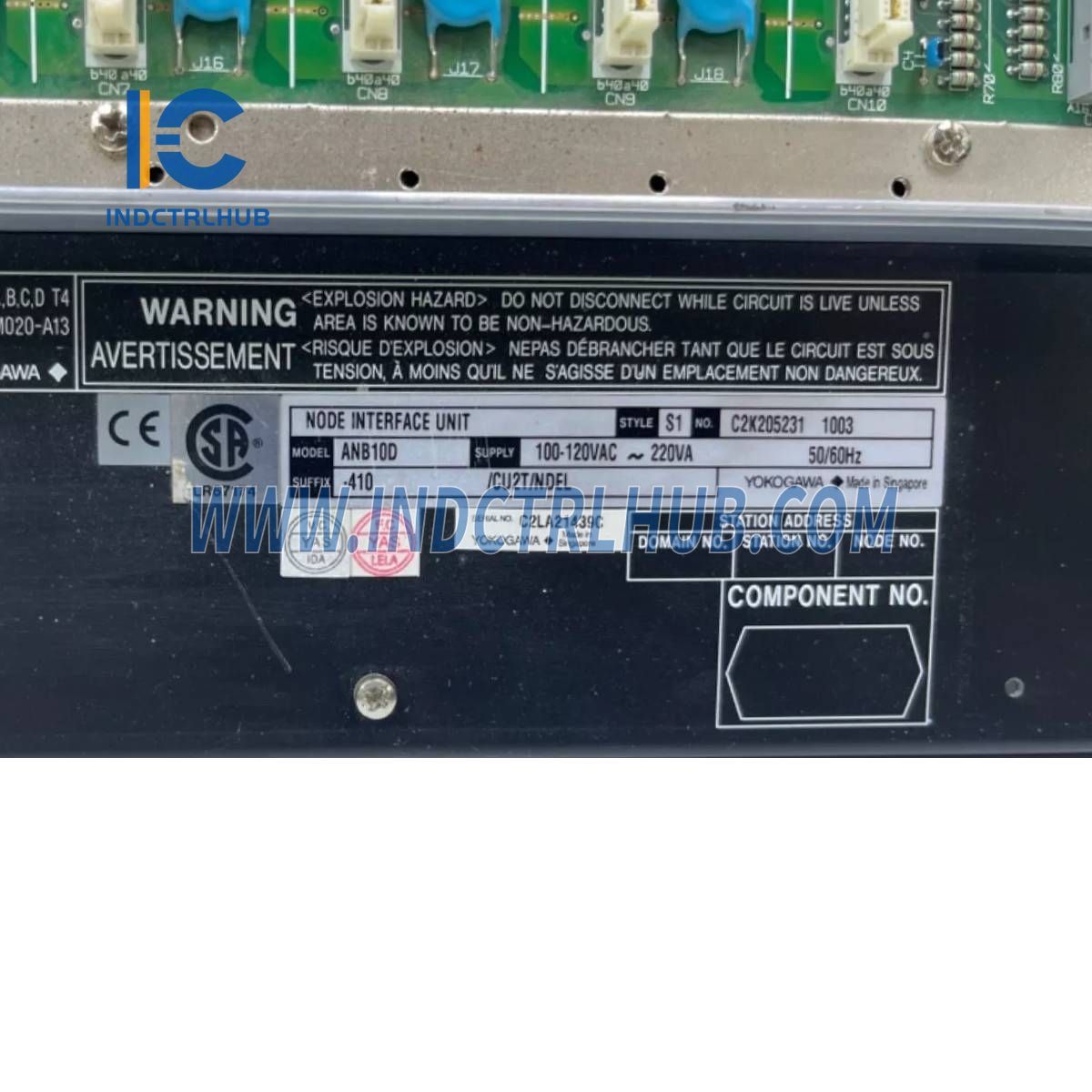

General Description

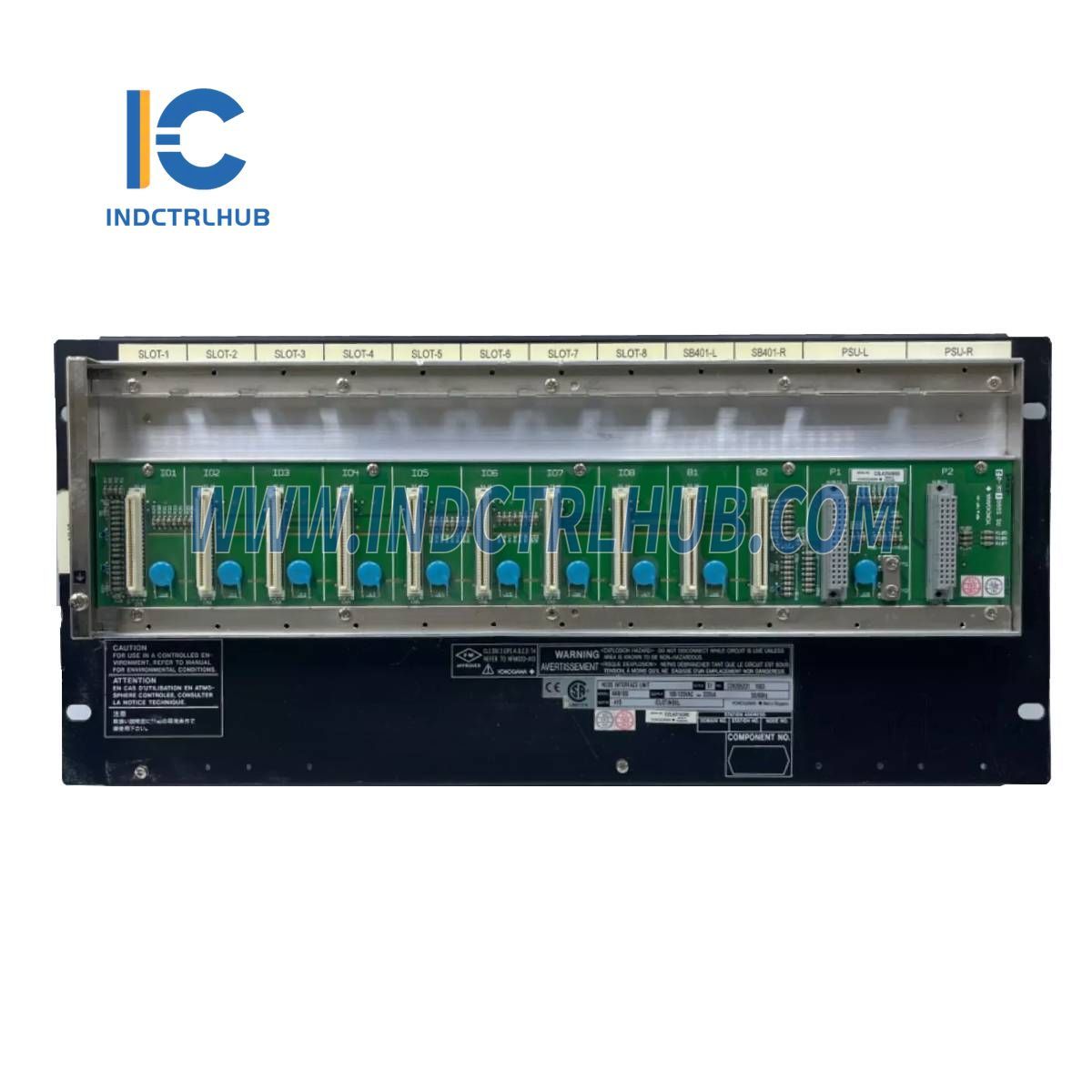

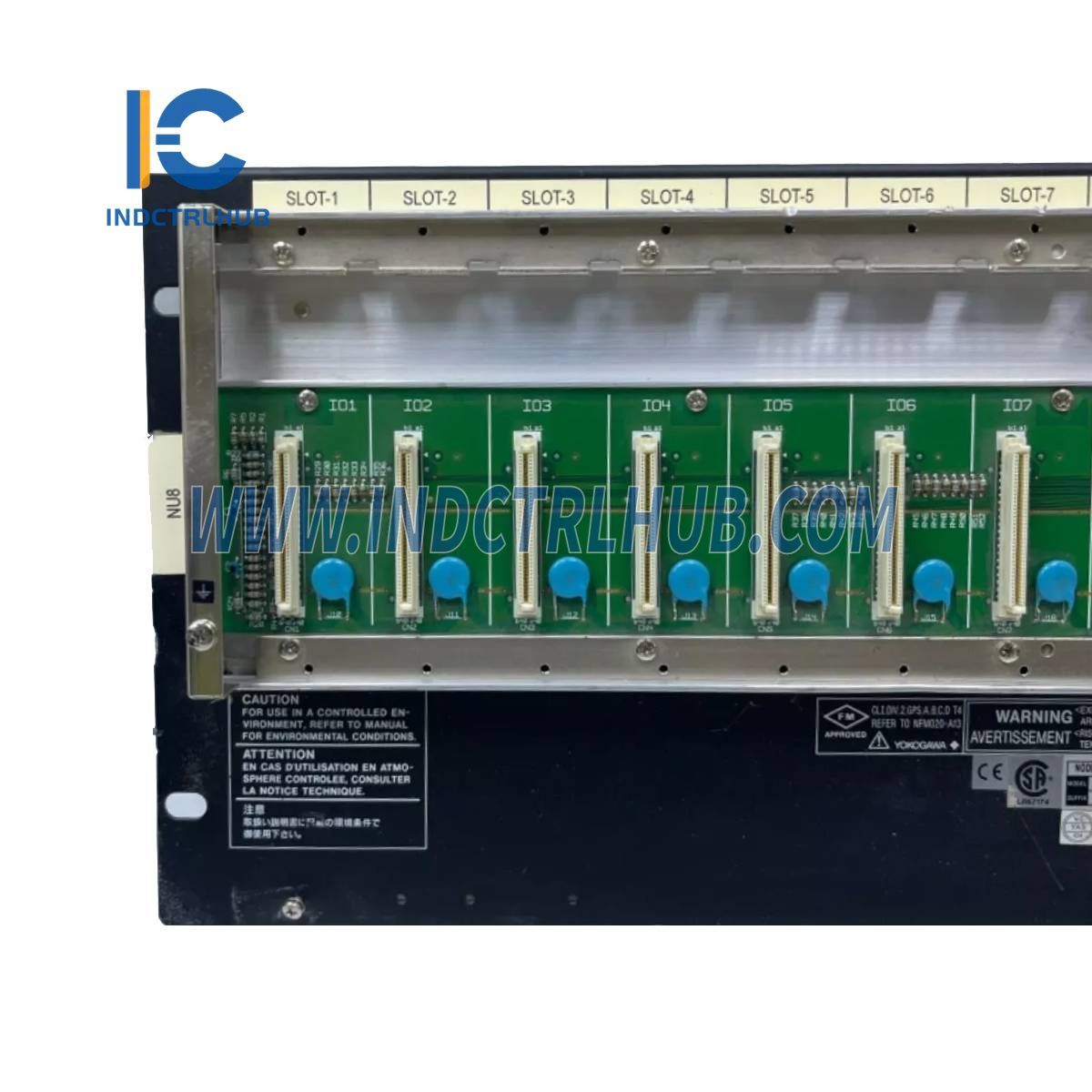

The ANB10D-410 is a Node Unit designed to interface with Field Control Units (FCU) via an ESB (Enhanced Serial Bus). It facilitates communication between the field and FCU, handling analog I/O and contact I/O signals. Additionally, it supplies power to connected I/O modules. The unit is equipped for dual-redundant power supply, ensuring uninterrupted operation for critical control systems.
Power Supply Options
Specify power supply type using the following suffix codes:
-
Voltage Options:
- 100-120 V AC, 50/60 Hz
- 24 V DC
Power Consumption
- 100-120 V AC: 200 VA, 120 W
- 24 V DC: 5.5 A
Weight
- Approx. 10 kg (including 8 I/O modules)
Model Suffix Codes
- -4: Dual-redundant power supply
-
Power Supply:
- 1: 100-120 V AC power supply
- 2: 220-240 V AC power supply
- 4: 24 V DC power supply
-
Explosion Protection:
- 5: Basic type with no explosion protection
- 6: With ISA Standard G3 option, temperature (-20°C to 70°C), and no explosion protection (*1)
- 7: With ISA Standard G3 option and no explosion protection
- E: Basic type with explosion protection
- F: With ISA Standard G3 option, temperature (-20°C to 70°C), and explosion protection (*1)
- G: With ISA Standard G3 option and explosion protection
Option Codes
- /CU2N: Connector Unit for ESB Bus (Part No.: S9562FA, 2 pieces)
- /CU2T: Connector Unit with Terminator for ESB Bus (Part No.: S9564FA, 2 pieces)
- /ATDOC: Explosion Protection Manual (*2)
