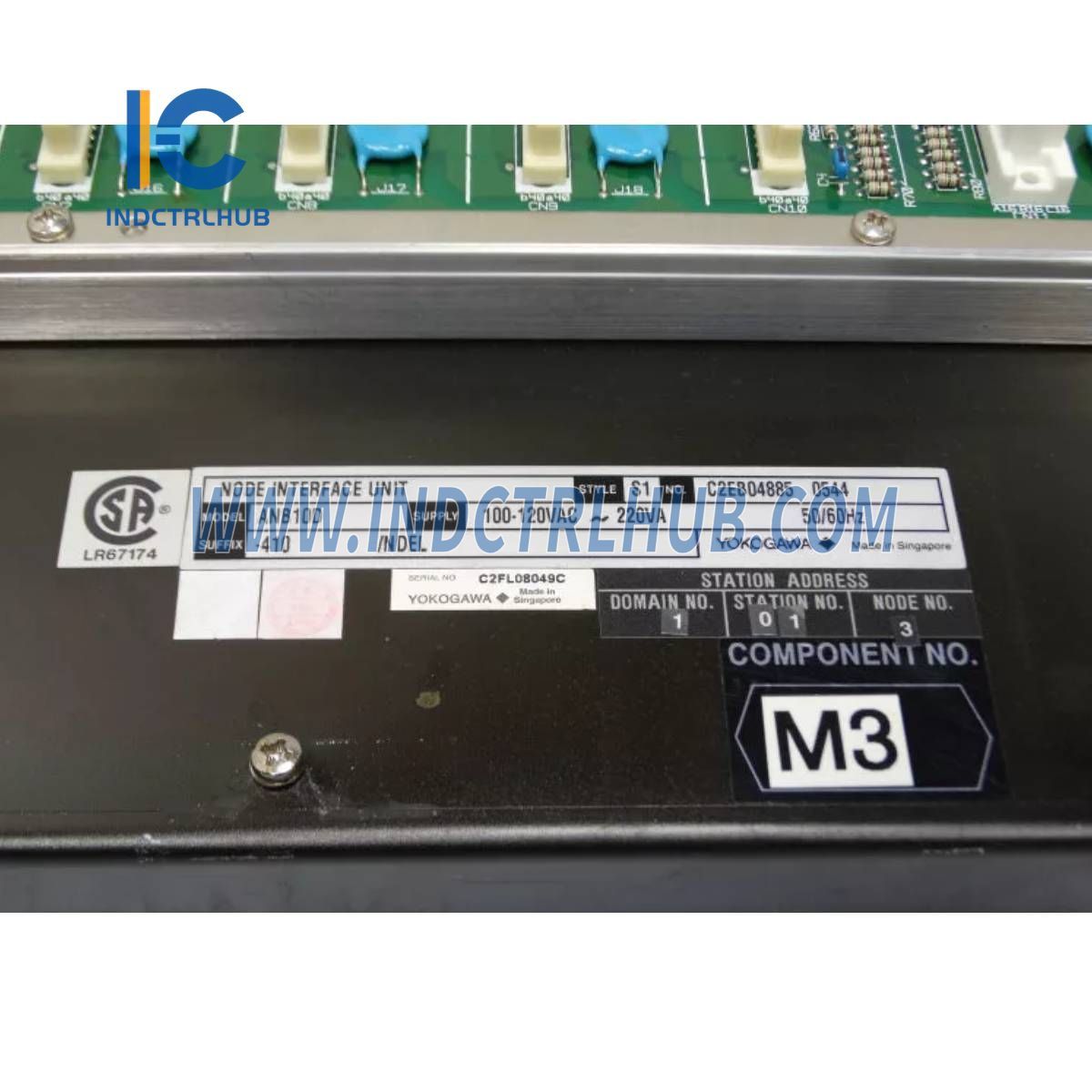

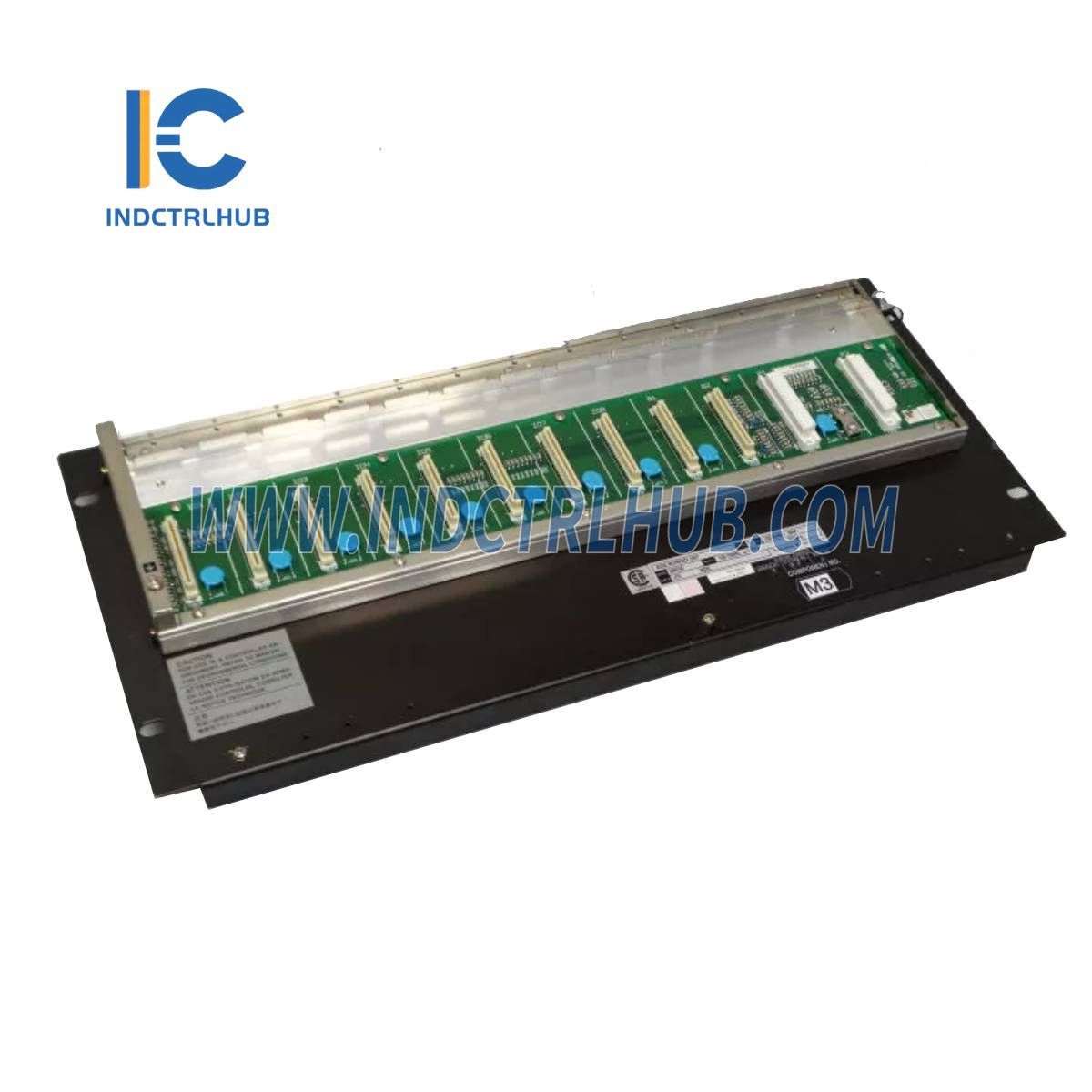

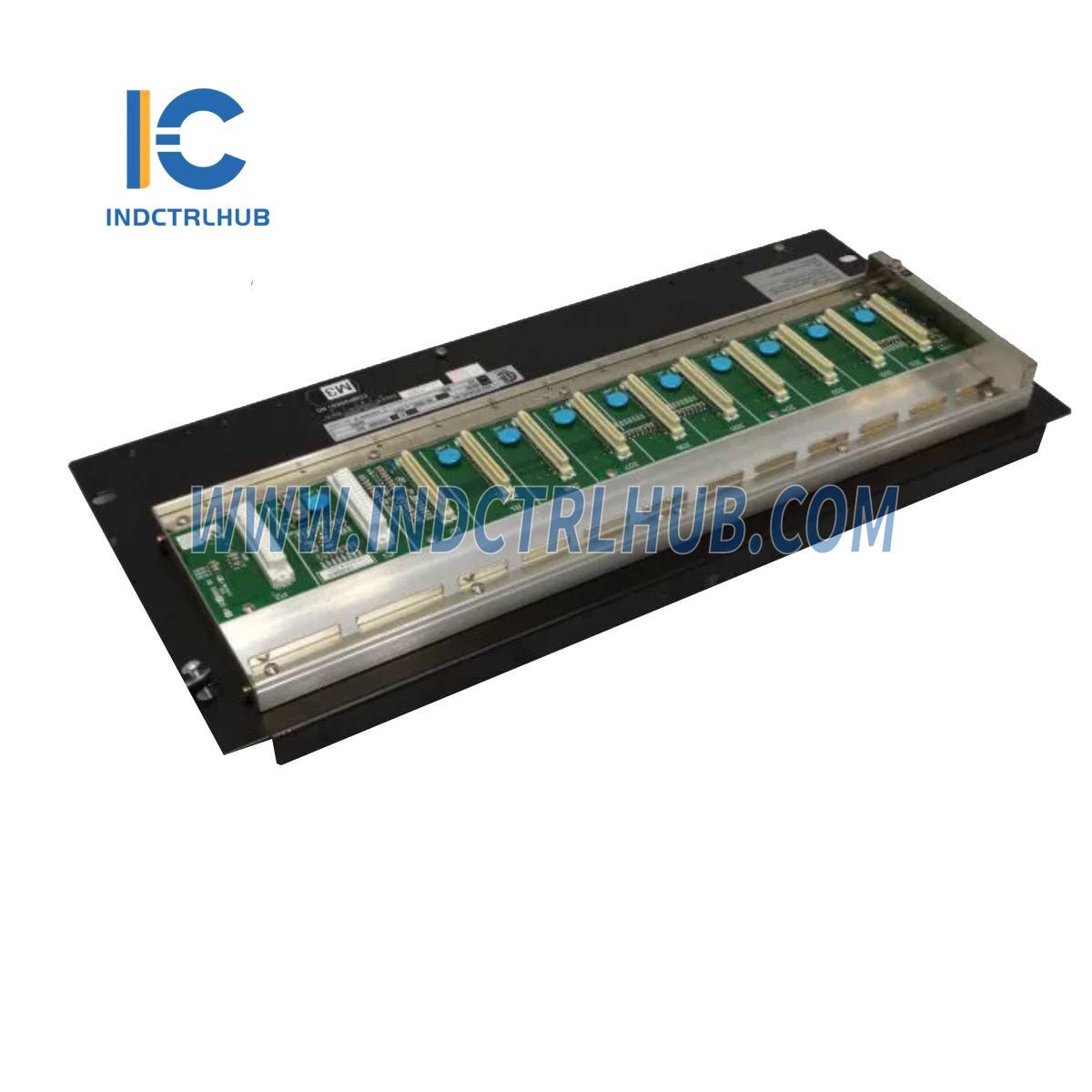

Yokogawa ANB10D-410/NDEL Node Unit for Dual-Redundant ESB Bus

Yokogawa ANB10D-410/NDEL Node Unit for Dual-Redundant ESB Bus

  • Manufacturer: Yokogawa

  • Product No.: ANB10D-410/NDEL

  • Condition:1000 in stock

  • Product Type: Node Unit for Dual-Redundant ESB Bus

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 10000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

Manufacturer Yokogawa
Model/Part Number ANB10D-410NDEL
Description Node Unit for Dual-Redundant ESB Bus

Power Supply Options

Specify power supply type using the following suffix codes:

  • Voltage Options:
    • 100-120 V AC, Frequency: 50/60 Hz
    • 220-240 V AC, Frequency: 50/60 Hz
    • 24 V DC

Power Consumption

  • 100-120 V AC: 200 VA, 120 W
  • 220-240 V AC: 230 VA, 120 W
  • 24 V DC: 5.5 A

Weight

  • Approx. 10 kg (including 8 I/O Modules)

Model Suffix Codes

  • -4: Dual-redundant power supply
  • Power Supply:
    • 1: 100-120 V AC power supply
    • 2: 220-240 V AC power supply
    • 4: 24 V DC power supply
  • Explosion Protection:
    • 5: Basic type with no explosion protection
    • 6: With ISA Standard G3 option, temperature (-20°C to 70°C), and no explosion protection
    • 7: With ISA Standard G3 option and no explosion protection
    • E: Basic type with explosion protection
    • F: With ISA Standard G3 option, temperature (-20°C to 70°C), and explosion protection
    • G: With ISA Standard G3 option and explosion protection

Option Codes

  • /CU2N: Connector Unit for ESB Bus (Part No.: S9562FA, 2 pieces)
  • /CU2T: Connector Unit with Terminator for ESB Bus (Part No.: S9564FA, 2 pieces)
  • /ATDOC: Explosion Protection Manual (for ATEX/IECEx Directive compliance)
View full details

Product Description

Product Details

Manufacturer Yokogawa
Model/Part Number ANB10D-410NDEL
Description Node Unit for Dual-Redundant ESB Bus

Power Supply Options

Specify power supply type using the following suffix codes:

  • Voltage Options:
    • 100-120 V AC, Frequency: 50/60 Hz
    • 220-240 V AC, Frequency: 50/60 Hz
    • 24 V DC

Power Consumption

  • 100-120 V AC: 200 VA, 120 W
  • 220-240 V AC: 230 VA, 120 W
  • 24 V DC: 5.5 A

Weight

  • Approx. 10 kg (including 8 I/O Modules)

Model Suffix Codes

  • -4: Dual-redundant power supply
  • Power Supply:
    • 1: 100-120 V AC power supply
    • 2: 220-240 V AC power supply
    • 4: 24 V DC power supply
  • Explosion Protection:
    • 5: Basic type with no explosion protection
    • 6: With ISA Standard G3 option, temperature (-20°C to 70°C), and no explosion protection
    • 7: With ISA Standard G3 option and no explosion protection
    • E: Basic type with explosion protection
    • F: With ISA Standard G3 option, temperature (-20°C to 70°C), and explosion protection
    • G: With ISA Standard G3 option and explosion protection

Option Codes

  • /CU2N: Connector Unit for ESB Bus (Part No.: S9562FA, 2 pieces)
  • /CU2T: Connector Unit with Terminator for ESB Bus (Part No.: S9564FA, 2 pieces)
  • /ATDOC: Explosion Protection Manual (for ATEX/IECEx Directive compliance)
