Product Description
Product Details
| Manufacturer | Yokogawa |
|---|---|
| Model/Part Number | ANB10D-410/CU2N |
| Description | Connector Unit for ESB Bus |
General Description

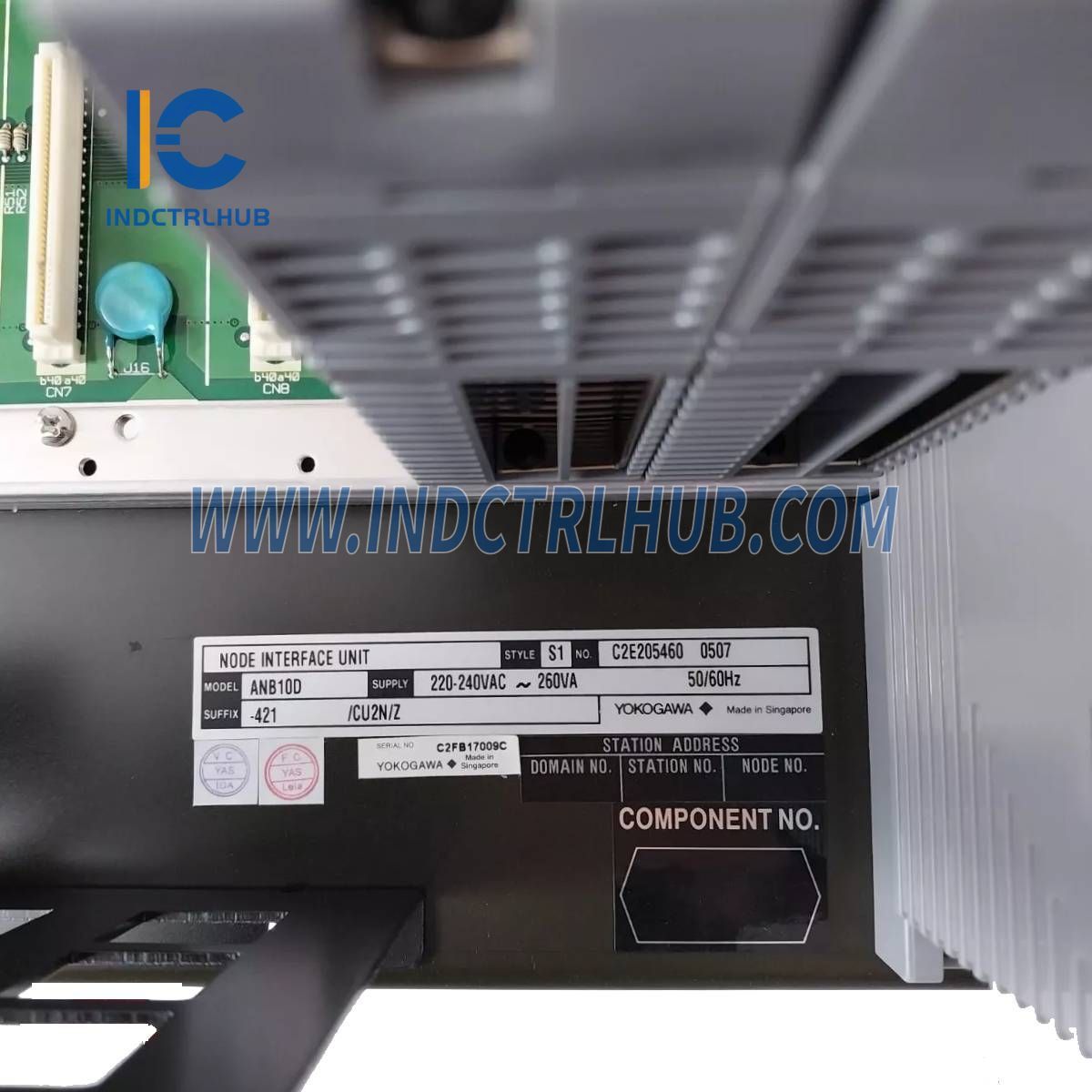

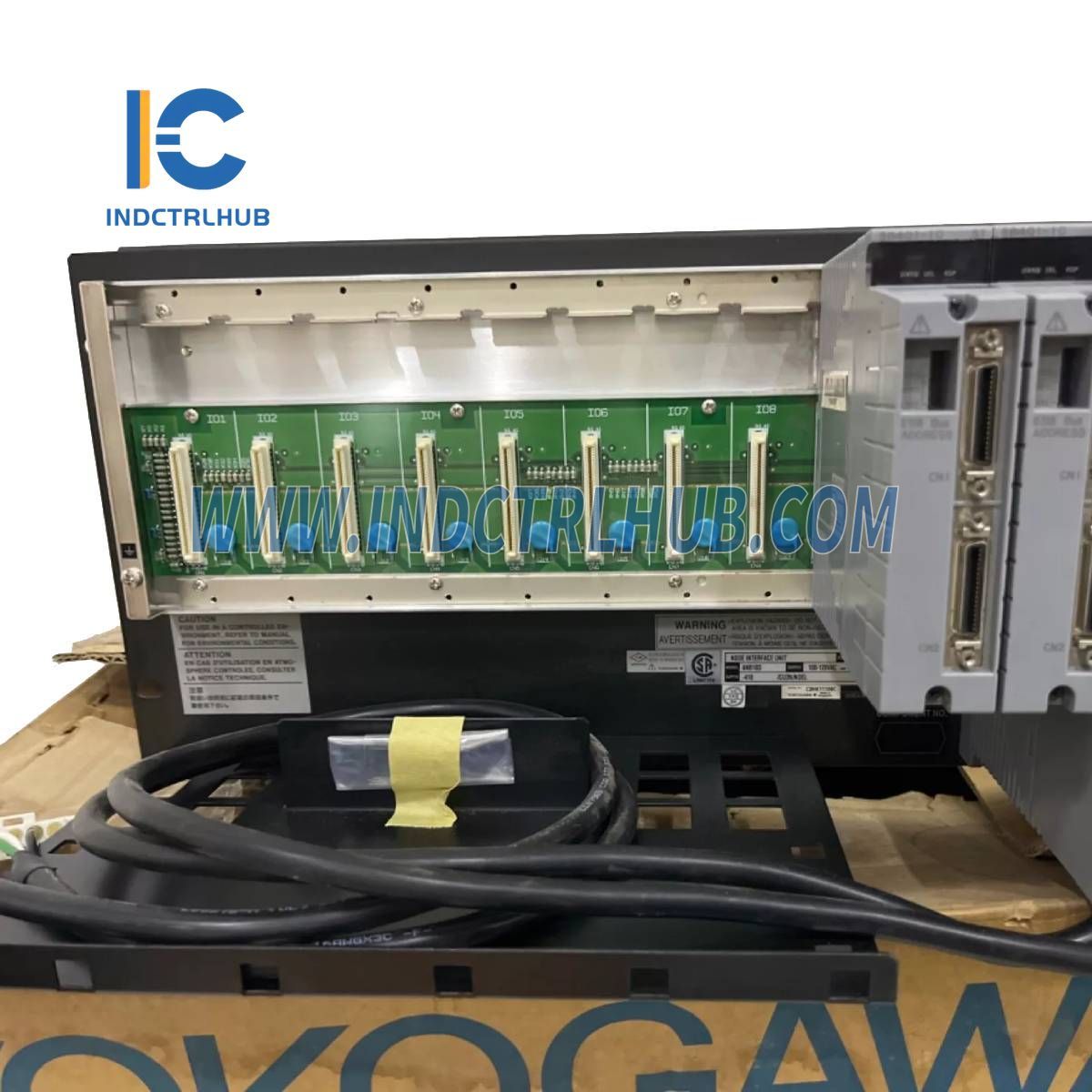

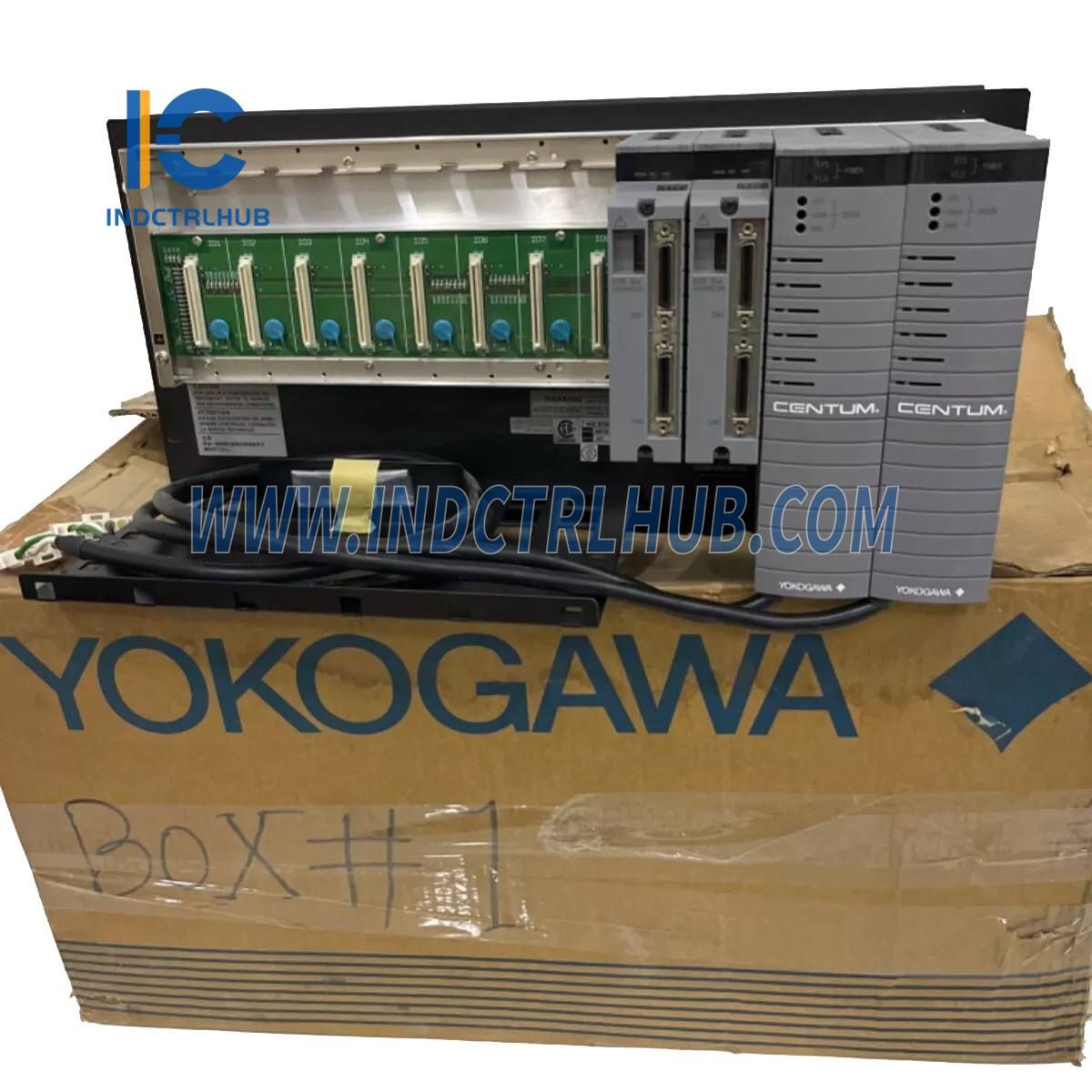

The ANB10D-410/CU2N is a Connector Unit designed for the ESB Bus. It facilitates communication between field equipment and the Field Control Unit (FCU) via an ESB bus. It also provides the necessary power to I/O modules in a distributed control system, specifically in high-reliability, redundant system configurations.
Power Supply Options
Specify power supply type using the following suffix codes:
-
Voltage Options:
- 100-120 V AC, 50/60 Hz
- 24 V DC
Power Consumption
- 100-120 V AC: 200 VA, 120 W
- 24 V DC: 5.5 A
Weight
- Approx. 10 kg (including 8 I/O modules)
Model Suffix Codes
- -4: Dual-redundant power supply
-
Power Supply:
- 1: 100-120 V AC power supply
- 2: 220-240 V AC power supply
- 4: 24 V DC power supply
-
Explosion Protection:
- 5: Basic type with no explosion protection
- 6: With ISA Standard G3 option, temperature (-20°C to 70°C), and no explosion protection (*1)
- 7: With ISA Standard G3 option and no explosion protection
- E: Basic type with explosion protection
- F: With ISA Standard G3 option, temperature (-20°C to 70°C), and explosion protection (*1)
- G: With ISA Standard G3 option and explosion protection
Option Codes
- /CU2N: Connector Unit for ESB Bus (Part No.: S9562FA, 2 pieces)
- /CU2T: Connector Unit with Terminator for ESB Bus (Part No.: S9564FA, 2 pieces)
- /ATDOC: Explosion Protection Manual (*2)
