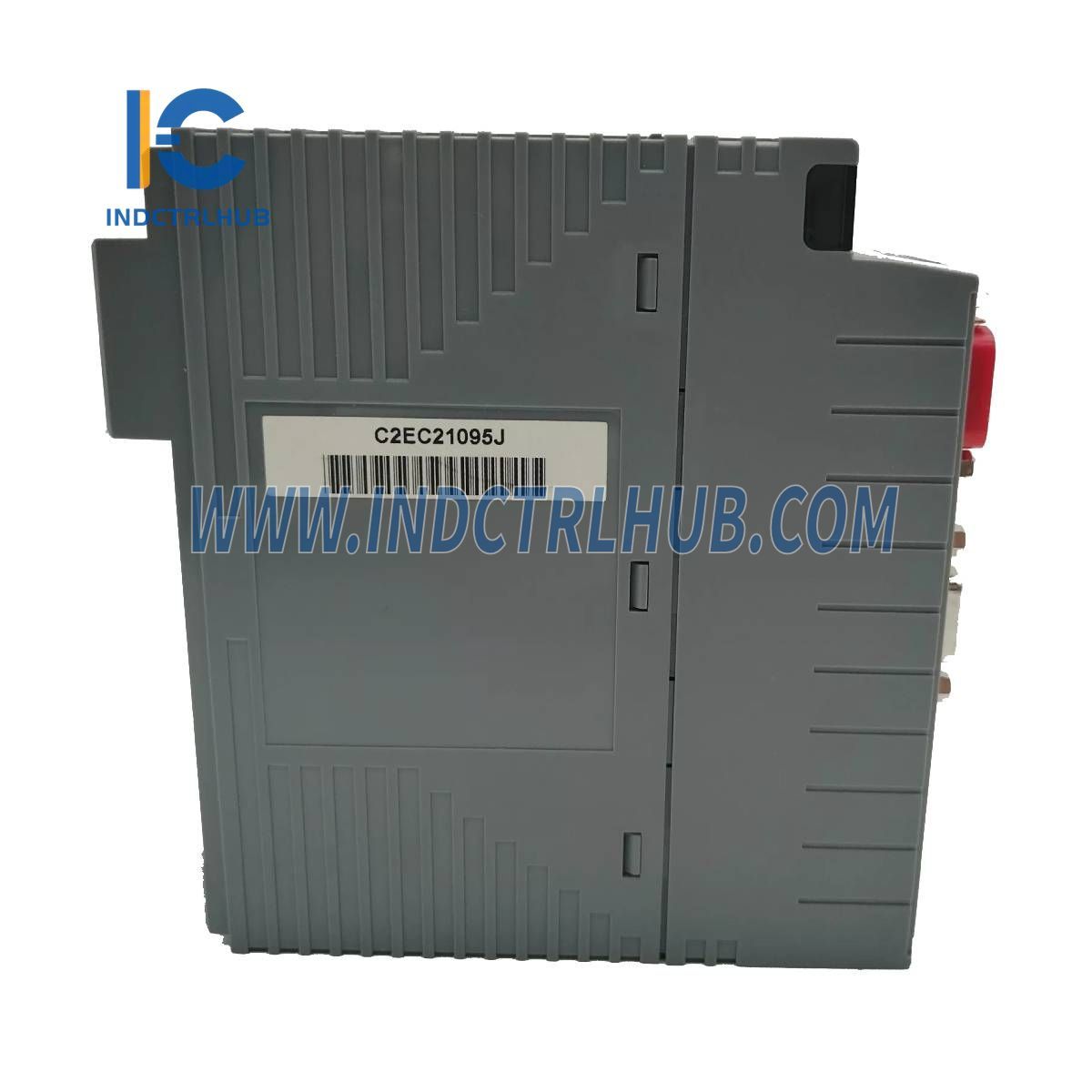

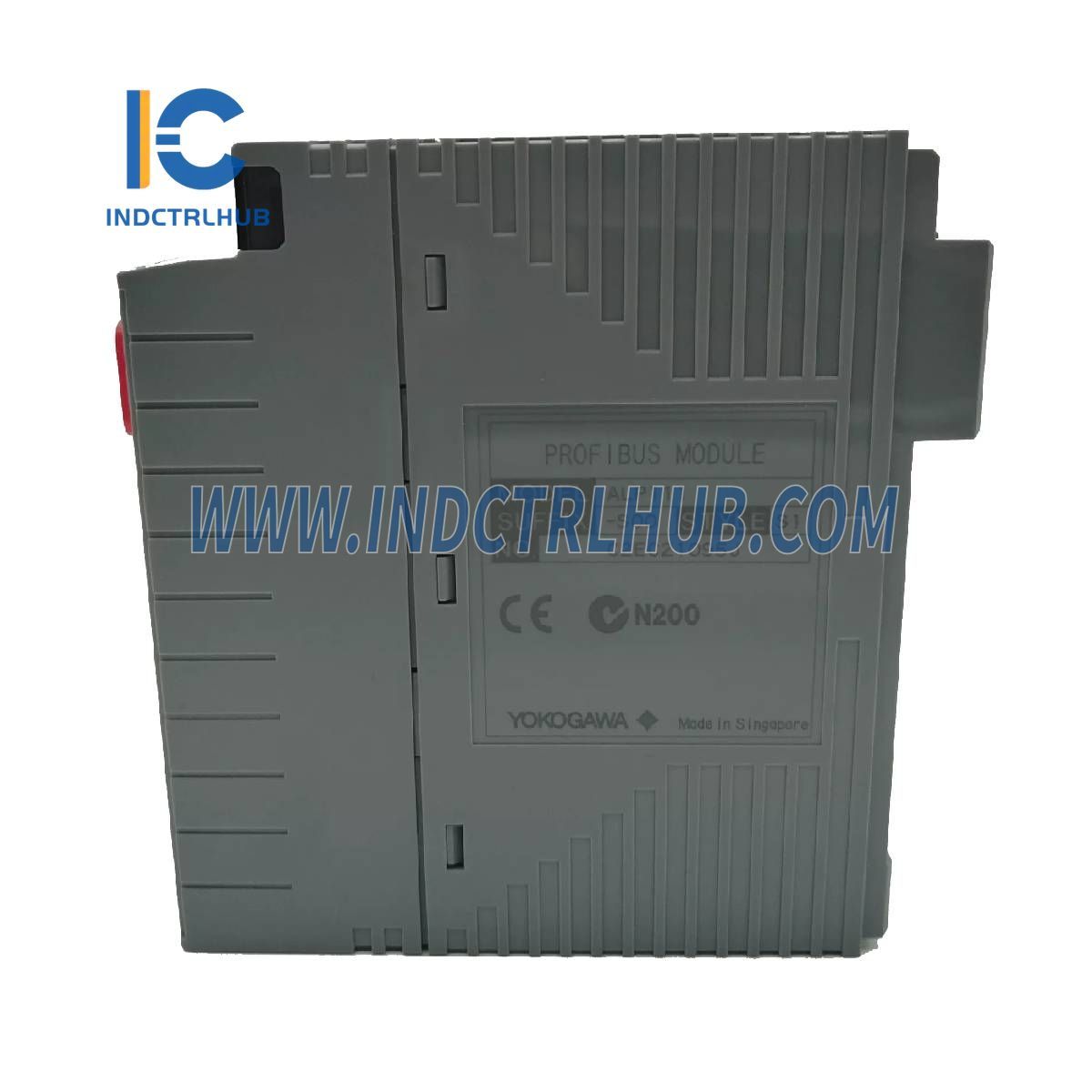

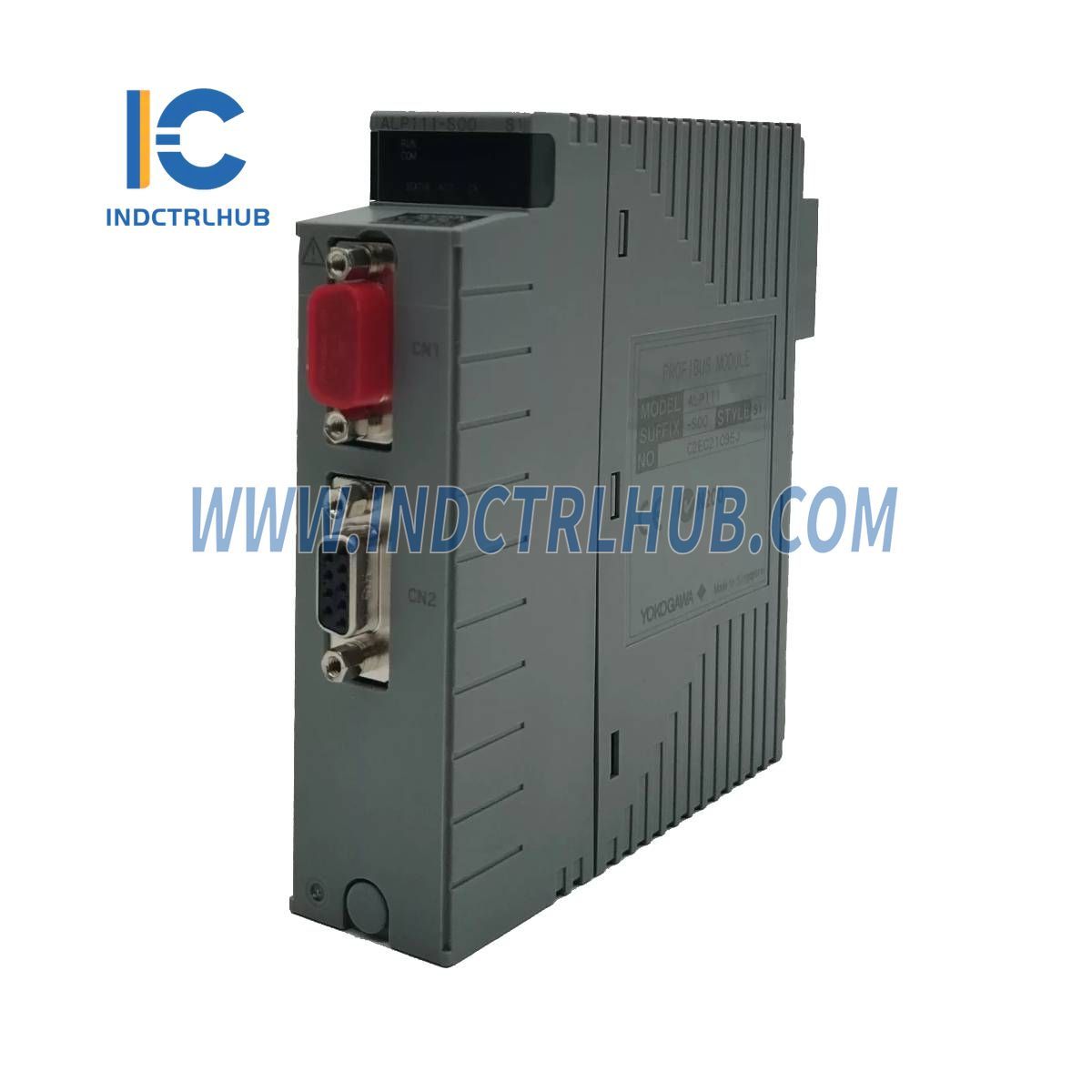

Yokogawa ALP111-S00 S1 PROFIBUS-DP Communication Module

Yokogawa ALP111-S00 S1 PROFIBUS-DP Communication Module

  • Manufacturer: Yokogawa

  • Product No.: ALP111-S00 S1

  • Condition:1000 in stock

  • Product Type: PROFIBUS-DP Communication Module

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

The Yokogawa ALP111-S00 S1 PROFIBUS-DP Communication Module is a specialized interface designed for Yokogawa’s industrial control systems, such as the CENTUM VP or STARDOM platforms, to enable communication with PROFIBUS-DP field devices. Featuring a single isolated communication port compliant with EIA-RS-485, this module supports transmission speeds from 9600 bps to 12 Mbps over a shielded route, with a maximum distance of 1.2 km per segment at the lowest speed. Equipped with a D-sub 9-pin female connector for communication and a male D-sub 9-pin maintenance port (RS-232C), it weighs 0.3 kg and consumes up to 0.7 A, making it a compact and efficient solution for integrating PROFIBUS-DP networks into automation setups.

Technical Information

Parameter Specifications
Manufacturer Yokogawa
Model/Part Number ALP111-S00 S1
Description PROFIBUS-DP Communication Module
Model ALP111
Interface PROFIBUS-DP
Connection Method EIA-RS-485-compliant
Signal Isolation Isolated
Transmission Speed 9600 bps to 12 Mbps
Transmission Route Shielded
Maximum Transmission Distance 1.2 km per segment (at 9600 bps)
No. of Communication Ports One port
Communication Port D-sub 9-pin (female)
Maintenance Port D-sub 9-pin (male), Interface: RS-232C
Maximum Current Consumption 0.7 A
Weight 0.3 kg (0.66 lb)

Specific Configuration

  • Model/Part Number: ALP111-S00 S1
  • Configuration Details:
    • Suffix Codes: -S (Standard type), 0 (Always 0), 0 (Basic type)
    • "S1" is not explicitly listed in suffix codes; assumed as a style variant (e.g., S1 vs. S2) or typo, interpreted here as part of standard configuration
View full details

Product Description

Product Overview

The Yokogawa ALP111-S00 S1 PROFIBUS-DP Communication Module is a specialized interface designed for Yokogawa’s industrial control systems, such as the CENTUM VP or STARDOM platforms, to enable communication with PROFIBUS-DP field devices. Featuring a single isolated communication port compliant with EIA-RS-485, this module supports transmission speeds from 9600 bps to 12 Mbps over a shielded route, with a maximum distance of 1.2 km per segment at the lowest speed. Equipped with a D-sub 9-pin female connector for communication and a male D-sub 9-pin maintenance port (RS-232C), it weighs 0.3 kg and consumes up to 0.7 A, making it a compact and efficient solution for integrating PROFIBUS-DP networks into automation setups.

Technical Information

Parameter Specifications
Manufacturer Yokogawa
Model/Part Number ALP111-S00 S1
Description PROFIBUS-DP Communication Module
Model ALP111
Interface PROFIBUS-DP
Connection Method EIA-RS-485-compliant
Signal Isolation Isolated
Transmission Speed 9600 bps to 12 Mbps
Transmission Route Shielded
Maximum Transmission Distance 1.2 km per segment (at 9600 bps)
No. of Communication Ports One port
Communication Port D-sub 9-pin (female)
Maintenance Port D-sub 9-pin (male), Interface: RS-232C
Maximum Current Consumption 0.7 A
Weight 0.3 kg (0.66 lb)

Specific Configuration

  • Model/Part Number: ALP111-S00 S1
  • Configuration Details:
    • Suffix Codes: -S (Standard type), 0 (Always 0), 0 (Basic type)
    • "S1" is not explicitly listed in suffix codes; assumed as a style variant (e.g., S1 vs. S2) or typo, interpreted here as part of standard configuration
