Product Description
Product Details
| Manufacturer |
Yokogawa |
| Model/Part Number |
AIP830-111/EIM |
| Description |

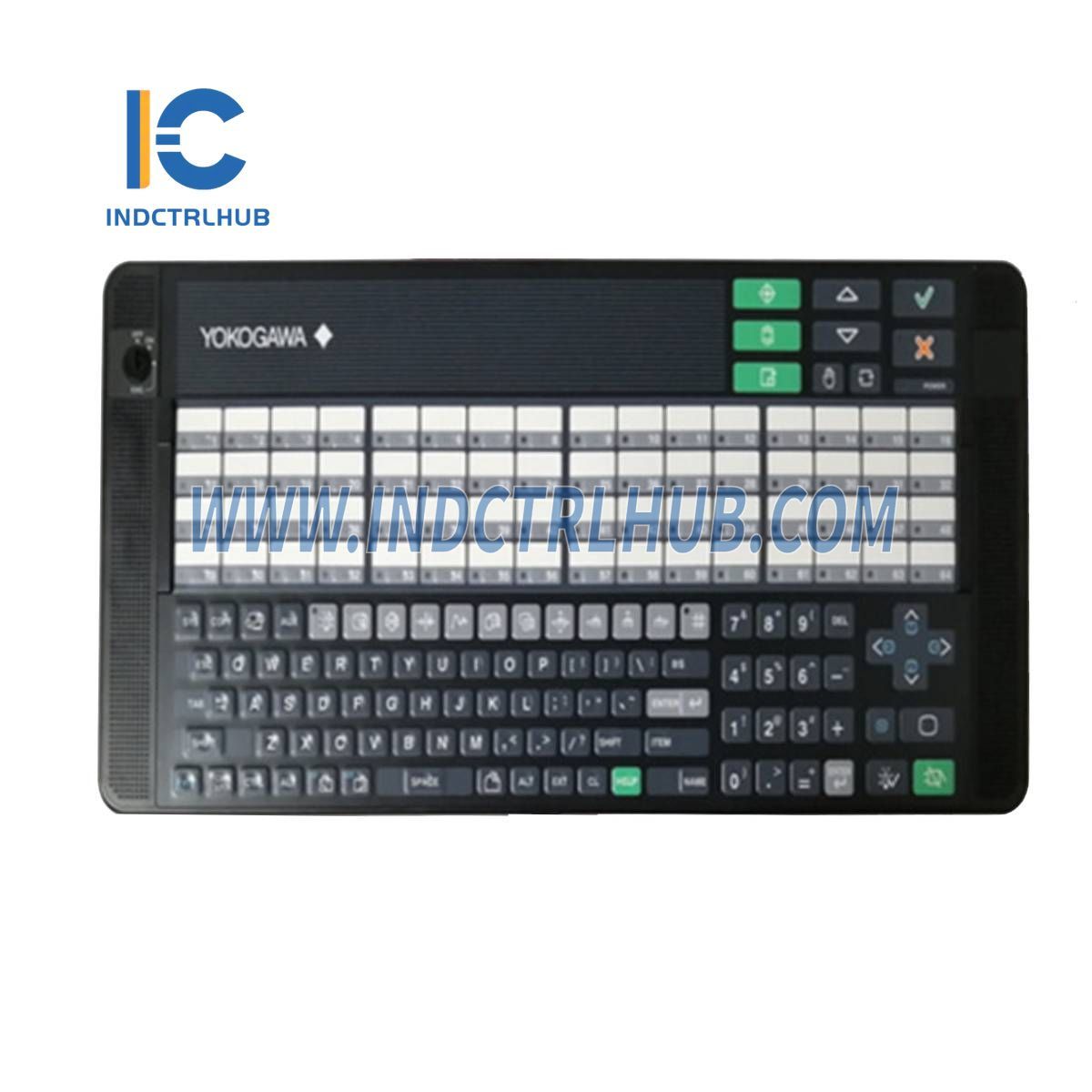

Operation Keyboard for Single-loop Operation |
General Overview
The AIP830 Operation Keyboard is designed for Single-loop Operation in conjunction with a Desktop Type HIS (Human Interface Station). It features an independent USB speaker that adds a sound function to the standard buzzer alarm. The keyboard provides essential control functions and is tailored for environments where single-loop operation is needed. Each AIP830 keyboard can be used with one Desktop Type HIS.
Key Specifications
| Specification |
Details |
| Type |
Flat keyboard (USB speaker sound function) |
| PC Interface |
USB A type x 2 |
| Interface Standards |
USB 2.0 (Full-speed, Bus-powered) |
|
USB 1.1 (Full-speed, Bus-powered) (for sound function) |
| Input Voltage |
5 V ± 5 % (Supplied from USB Port of PC) |
| Maximum Consumption Current |
1 A |
| Weight |
Approx. 2.0 kg (without VESA bracket) |
|
Approx. 2.5 kg (with VESA bracket) |
| Chassis Color |
Black (Equivalent to Munsell No. N1.5) |
| Installation Category |
IEC 61010-1 Class I (not directly connected to main power) |
| Operating Environment |
- Ambient Temperature: 5 to 40 °C (for normal operation) |
|
- Ambient Humidity: 20 to 80 %RH (Non-condensing) |
|
- Storage/Transport Temperature: -20 to 60 °C |
Model and Suffix Codes
| Description |
Model AIP830 Operation Keyboard |
| Suffix Codes |
|
| -0 |
Without Mode selection switch |
| -1 |
With Mode selection switch |
| 0 |
Operation confirmation key Type A |
| 1 |
Operation confirmation key Type B |
| Option Codes |
|
| /VESA |
With VESA Bracket |
| /EIM |
With English Instruction Manual |
| /JIM |
With Japanese Instruction Manual |
