Product Description
Product Overview

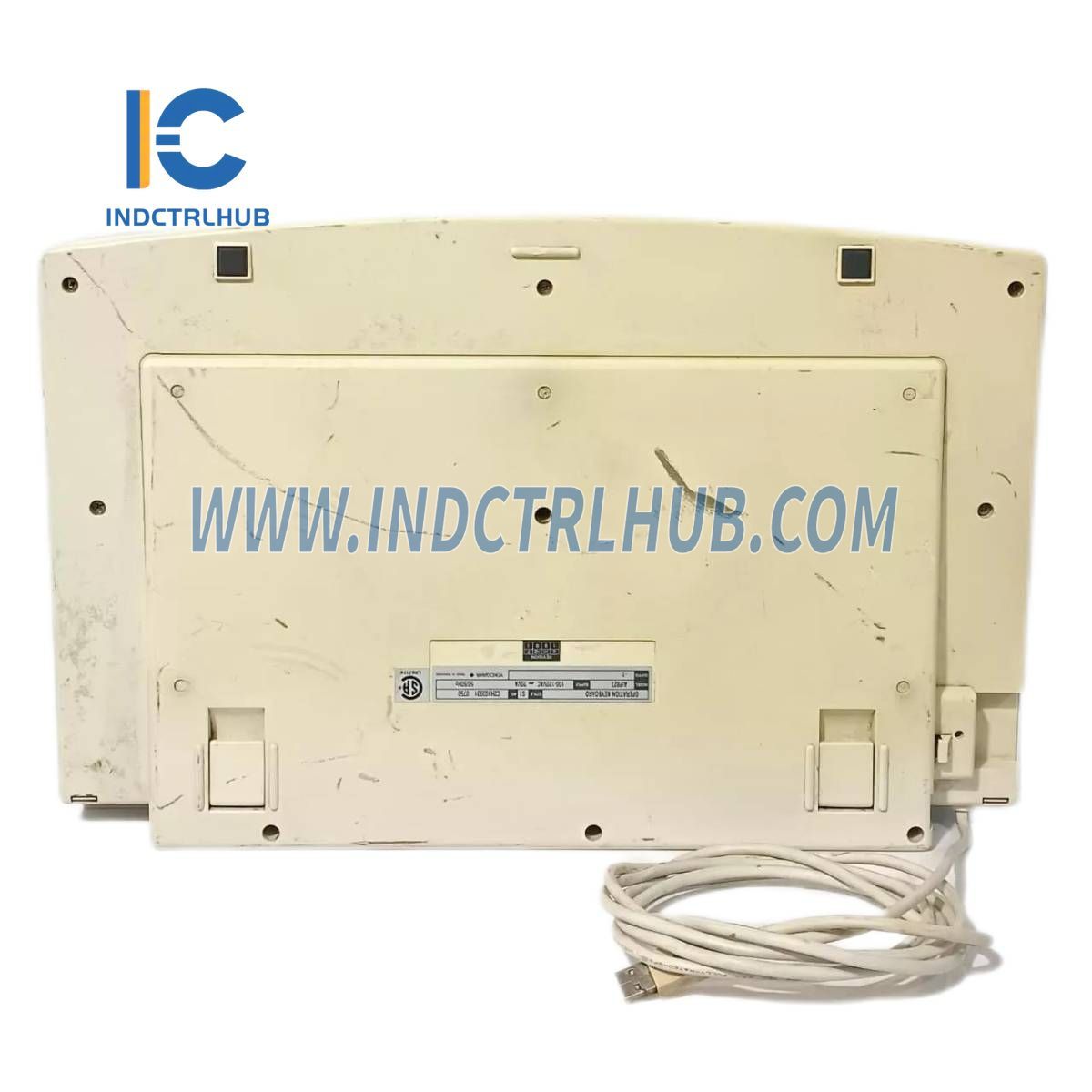

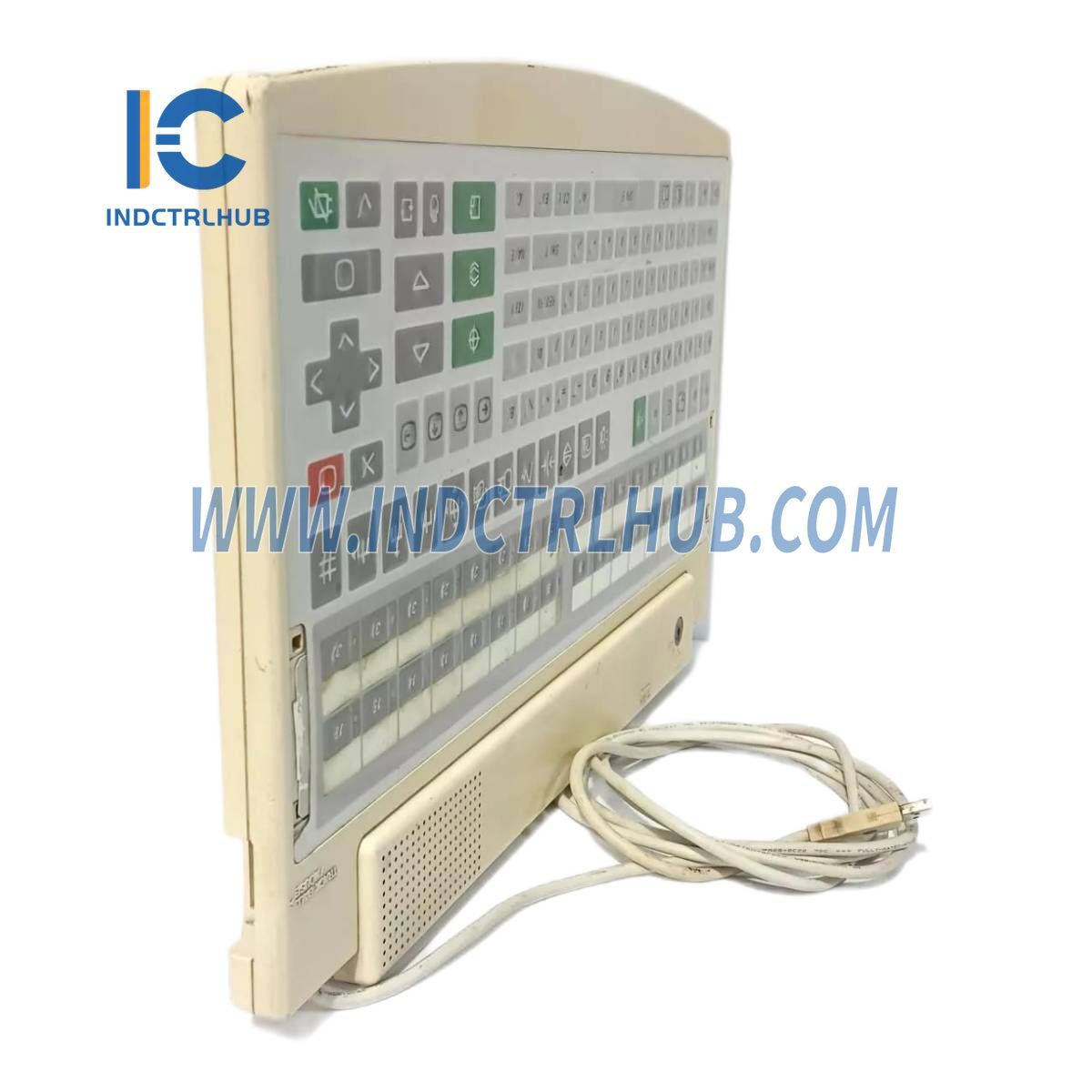

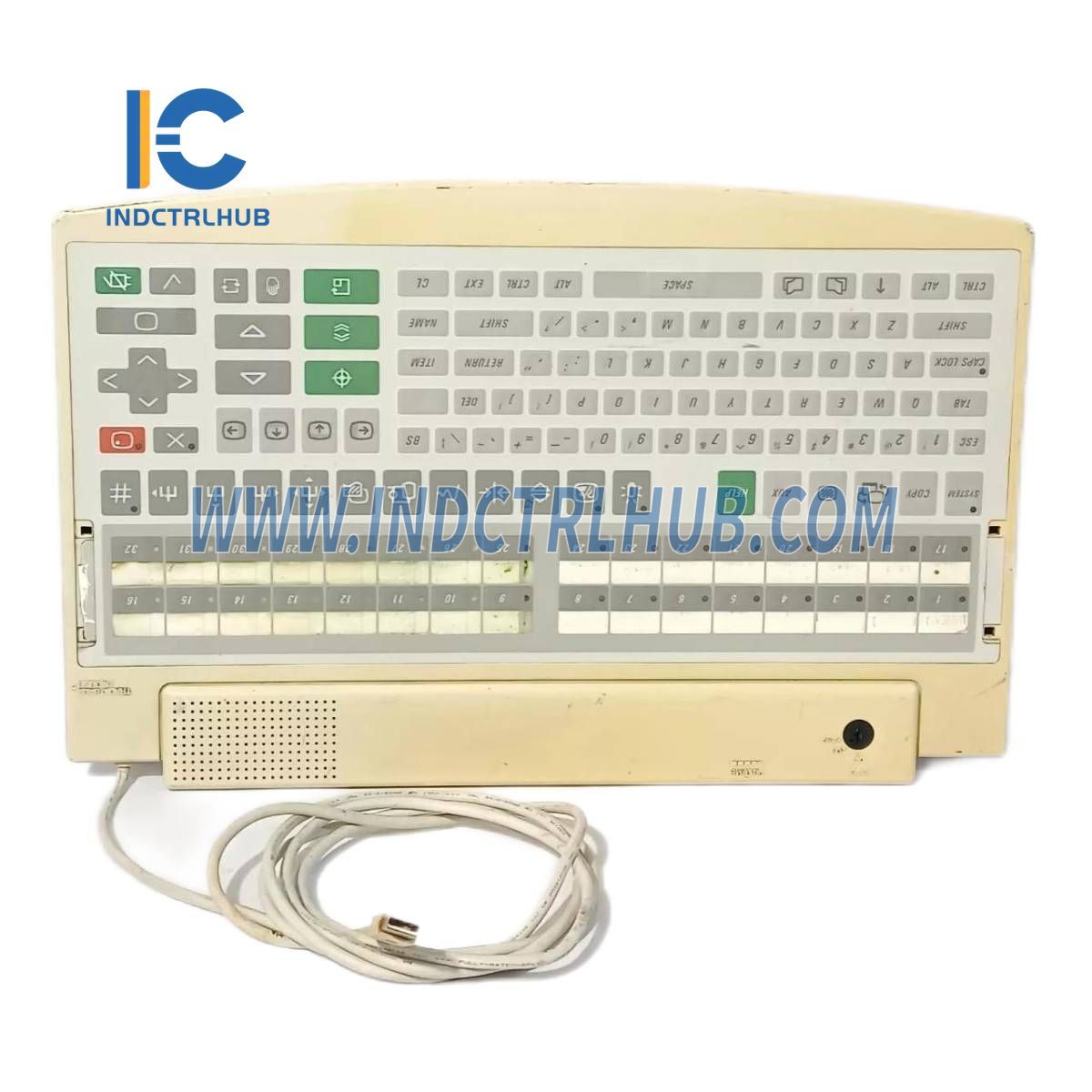

The Yokogawa AIP827-2 is a USB Operation Keyboard designed for use with a Human Interface Station (HIS). This dust- and drip-proof flat keyboard, identified by its model/part number, connects via a USB port and is engineered for reliable operation in industrial environments. Available with options for 100-120 V AC or 220-240 V AC power supply, it meets various safety and electromagnetic compatibility (EMC) standards, making it a versatile component for Yokogawa’s control systems.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Yokogawa |
| Model/Part Number | AIP827-2 |
| Description | USB Operation Keyboard |
| Type | Dust- and drip-proof flat keyboard |
| Cable Connection | USB port |
| Interface Connector | USB A type |
| External Dimensions (WxDxH) | 440 mm x 284 mm x 52 mm (73 mm including height of feet) |
| Power Supply | 100-120 V AC, 50/60 Hz 220-240 V AC, 50/60 Hz |
| Power Consumption | 100-120 V AC: 20 VA 220-240 V AC: 20 VA |
| Weight | 2.5 kg (Keyboard and AC Adaptor) |
| Paint Color | Frosty White (Munsell No. 2.5Y8.4/1.2) |
| Temperature | Operating: 5 to 40 °C Storage: -20 to 60 °C |
| Humidity (Non-condensing) | 20 to 80 %RH |
Regulatory Compliance
- Safety Standards:
- CSA (for 100-120 V AC power supply, conforms to CSA C22.2 No.1010.1)
- CE Mark (for 220-240 V AC power supply)
- EMC Conformity Standards:
- CE Mark (for 220-240 V AC power supply)
- C-Tick Mark (for 220-240 V AC power supply)
Model and Suffix Codes
- Model: AIP827 USB Operation Keyboard for Human Interface Station (HIS)
- Suffix Codes:
- -1: 100-120 V AC supply (Conforms to Safety Standard CSA C22.2 No.1010.1)
- -2: 220-240 V AC supply (With CE Mark and C-Tick Mark)
Specific Configuration
- Model/Part Number: AIP827-2
- Configuration Details:
- -2: 220-240 V AC supply (With CE Mark and C-Tick Mark)
