Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
Yokogawa |
|
Model/Part Number |
AFV30D-S41152 |
|
Product Description |

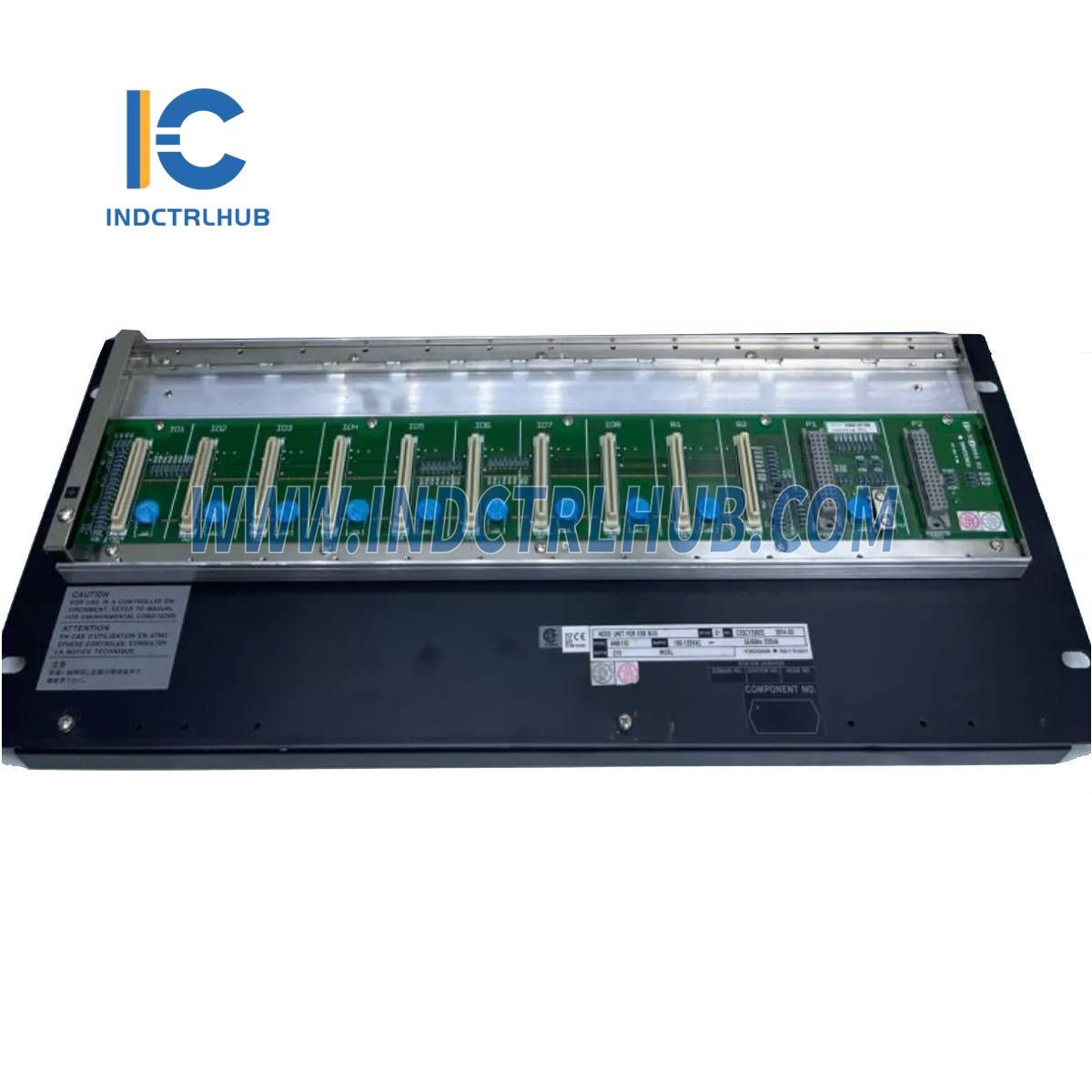

Duplexed Field Control Unit (for Vnet/IP and FIO, 19-inch Rack Mountable) |
Standard Specifications
Memory Protection During Power Failure
|
Parameter |
Specification |
|---|---|
|
Battery Backup for Main Memory |
Max. 72 hours |
|
Battery Recharge Time |
Min. 48 hours |
READY Contact Output
|
Parameter |
Specification |
|---|---|
|
Terminals |
2 terminals (NC, C) |
|
Contact Points |
Open during FCU failure |
|
Contact Rating |
30 V DC, max. 0.3 A |
|
Note |
When option code /HKU is specified, FCU fault contact is output from the House Keeping Unit (HKU). |
Communication Interface
|
Parameter |
Specification |
|---|---|
|
Vnet/IP Interface |
Dual-redundant |
|
Reference |
See “Integrated Production Control System CENTUM VP System Overview” (GS 33J01A10-01EN) |
Power Supply
|
Voltage |
Frequency |
|---|---|
|
100-120 V AC |
50/60 Hz |
|
220-240 V AC |
50/60 Hz |
|
24 V DC |
— |
Physical Specifications
|
Parameter |
Specification |
|---|---|
|
Weight |
Approx. 8.0 kg |
Model Variations & Options
Model Variations (Suffix Codes)
|
Suffix Code |
Description |
|---|---|
|
-A |
Standard type (for CP471) |
|
-S |
Standard type (for CP461) |
|
4 |
Dual-redundant Vnet/IP, dual-redundant power supply |
|
1 |
Always 1 |
|
1 |
100 - 120 V AC power supply |
|
2 |
220 - 240 V AC power supply |
|
4 |
24 V DC power supply |
|
0 |
Basic type |
|
1 |
With ISA Standard G3 option |
|
5 |
Basic type with no explosion protection |
|
6 |
With ISA Standard G3 option and no explosion protection |
|
E |
Basic type with explosion protection |
|
F |
With ISA Standard G3 option and explosion protection |
|
1 |
LFS1700 Control function for field control station (for AFV30/AFV40, Vnet/IP and FIO) |
|
2 |
Always 2 (R6.01 or later) |
Optional Features
|
Option Code |
Description |
|---|---|
|
/HKU |
With HKU interface |
|
/ATDOC |
Explosion Protection Manual |
|
/MRN |
With Marine Standards |
