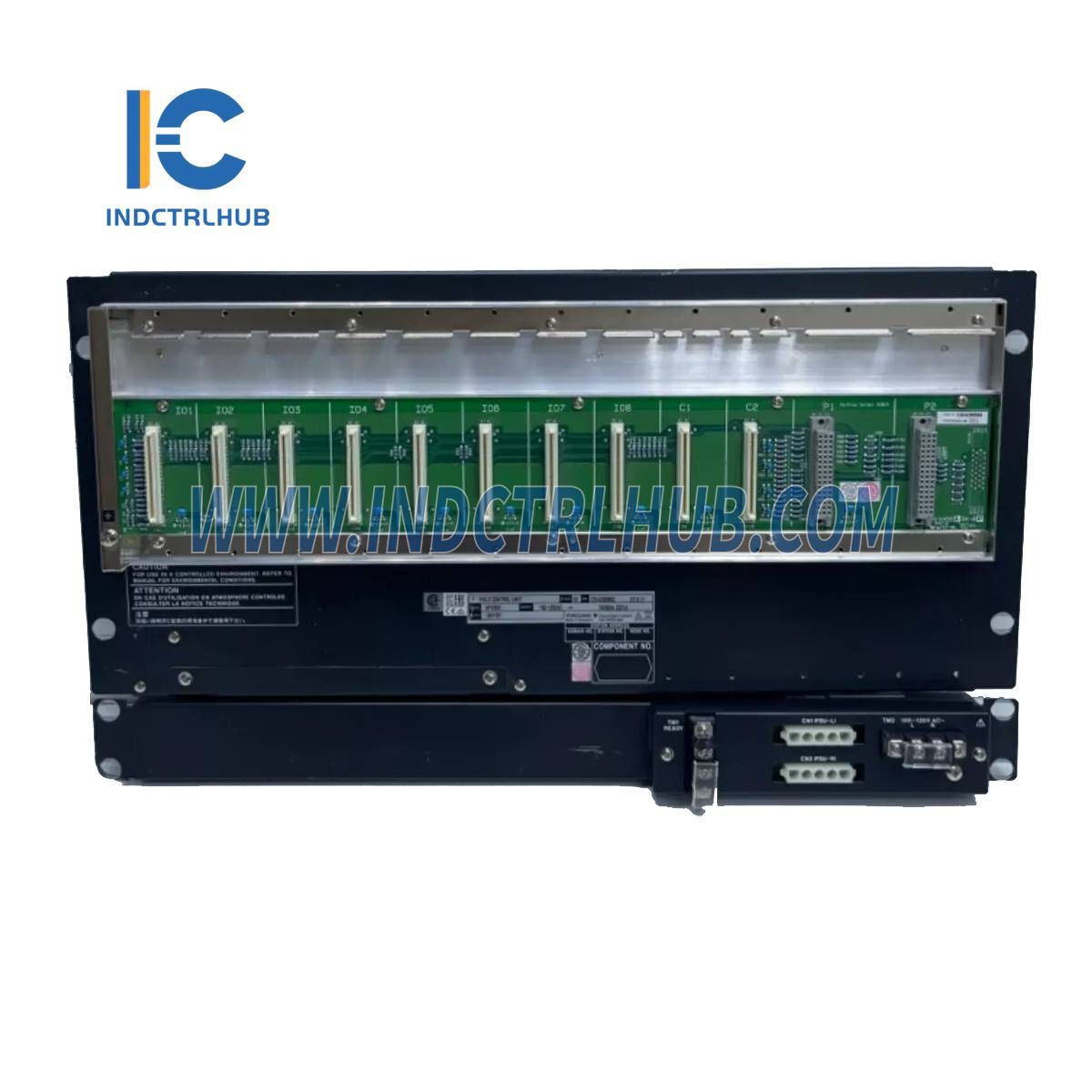

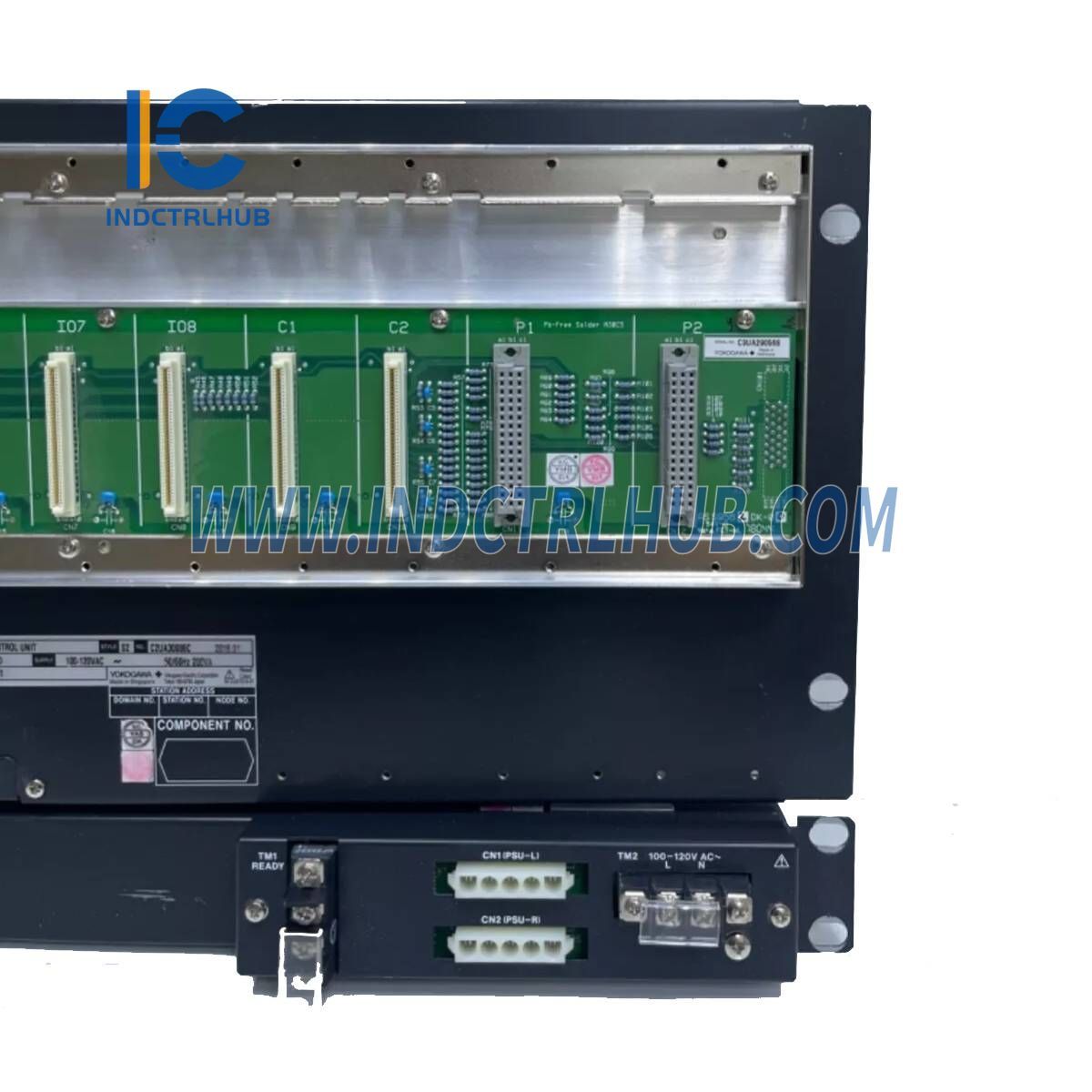

YOKOGAWA AFV30D-A41152 Duplexed Field Control Unit

YOKOGAWA AFV30D-A41152 Duplexed Field Control Unit

  • Manufacturer: YOKOGAWA

  • Product No.: AFV30D-A41152

  • Condition:1000 in stock

  • Product Type: Duplexed Field Control Unit

  • Product Origin: JAPAN

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Overview

The YOKOGAWA AFV30D-A41152 is a duplexed field control unit (FCU) designed for use with Vnet/IP and FIO systems. It ensures high reliability and fault tolerance in industrial process control applications, supporting dual-redundant configurations for both power and communication.

Key Features

  • Dual-redundant processor and power supply
  • Memory backup up to 72 hours (battery-powered)
  • Dual-redundant Vnet/IP communication
  • Supports up to 13 node units (ANB10/ANB11)
  • 19-inch rack-mountable
  • Ready contact output for fault detection
  • ATEX Directive compliance option for hazardous environments

Technical Specifications

Memory & Backup

  • Battery Backup: Up to 72 hours
  • Battery Recharge Time: Minimum 48 hours

Communication Interfaces

  • Vnet/IP Interface: Dual-redundant
    • High-speed networking for CENTUM VP system
    • UTP cable (CAT5e or better) to Layer 2 switch
  • HKU Interface (Optional, /HKU)
    • Monitors environmental conditions of the cabinet
    • Displays system alarms and operating status

Node & Module Configuration

  • Max. Node Units: Up to 13 per FCU
  • Power Supply Modules:
    • PW481, PW482, or PW484
    • Supports dual-redundant power
  • Processor Modules:
    • CP471 (standard, R6.01 or later)
    • CP461 (discontinued, upgradeable to CP471)
    • Dual-redundant setup required
  • I/O Modules: Up to 8

Power Requirements

  • Voltage Options:
    • 100–120V AC, 50/60 Hz (200 VA)
    • 220–240V AC, 50/60 Hz (230 VA)
    • 24V DC (5.5 A)

Environmental & Safety Compliance

  • ATEX Directive Compliance (optional, /ATDOC)
  • Marine standard compliance (optional, /MRN)
  • Keyed metallic cabinet installation required for EMC and safety compliance

Physical & Mounting

  • Weight: Approx. 8.0 kg
  • Mounting: 19-inch rack mountable (M5 screws & insulation bush included)

Connections

  • Power Supply: M4 screw terminal
  • Grounding: M4 screw terminal
  • Network: UTP cable (CAT5e or better) to Layer 2 switch

Model & Suffix Codes

Model Description
AFV30D Duplexed Field Control Unit (Vnet/IP & FIO, 19-inch Rack Mountable)
Suffix Code Option
-A Standard type (for CP471)
4 Dual-redundant Vnet/IP, dual-redundant power supply
1 Always 1
1 100 - 120 V AC power supply
5 Basic type, no explosion protection
2 Always 2 (R6.01 or later)

Applications

  • Industrial Process Automation (Oil & Gas, Chemical, Power Plants)
  • Mission-Critical Process Control Systems
  • CENTUM VP Distributed Control System (DCS)
