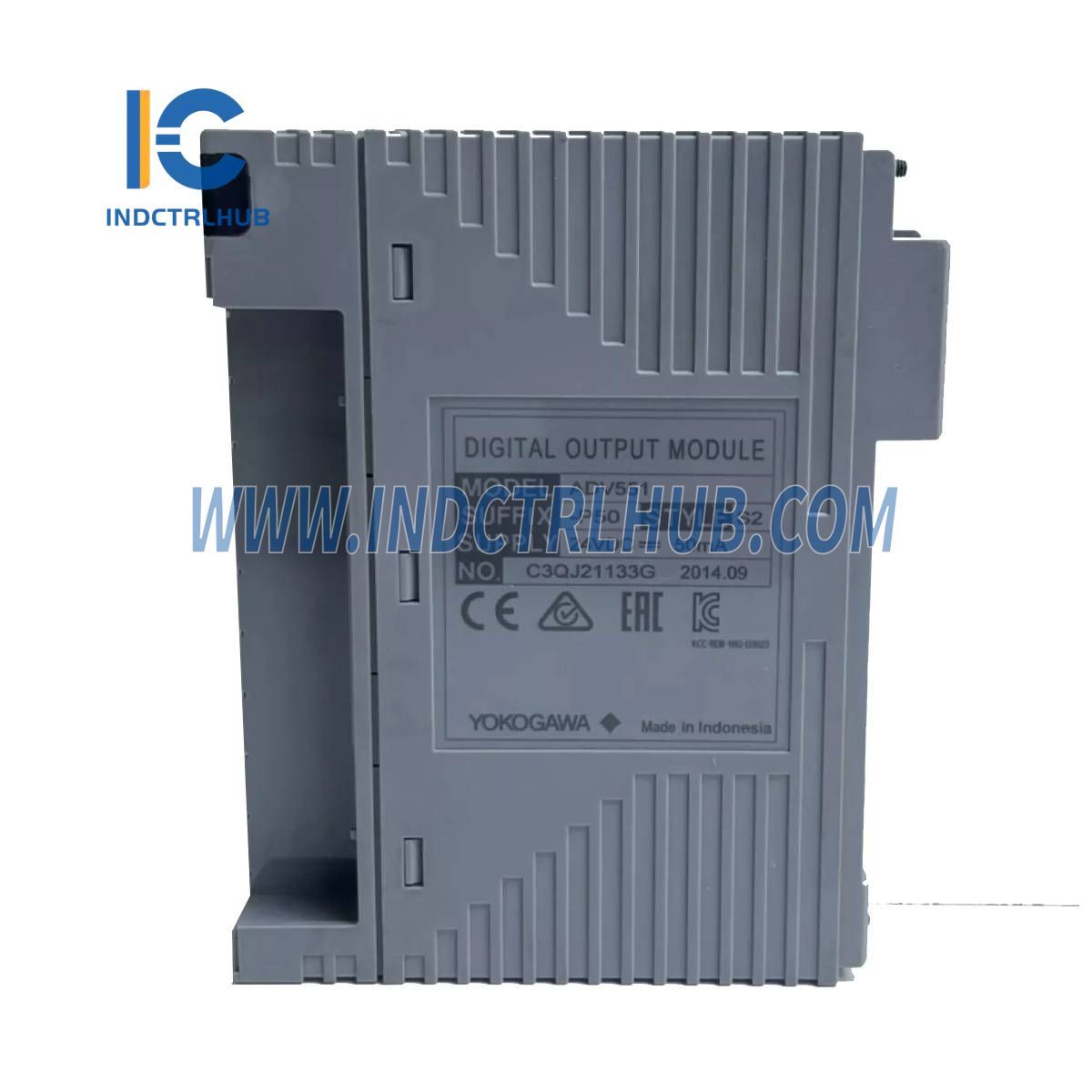

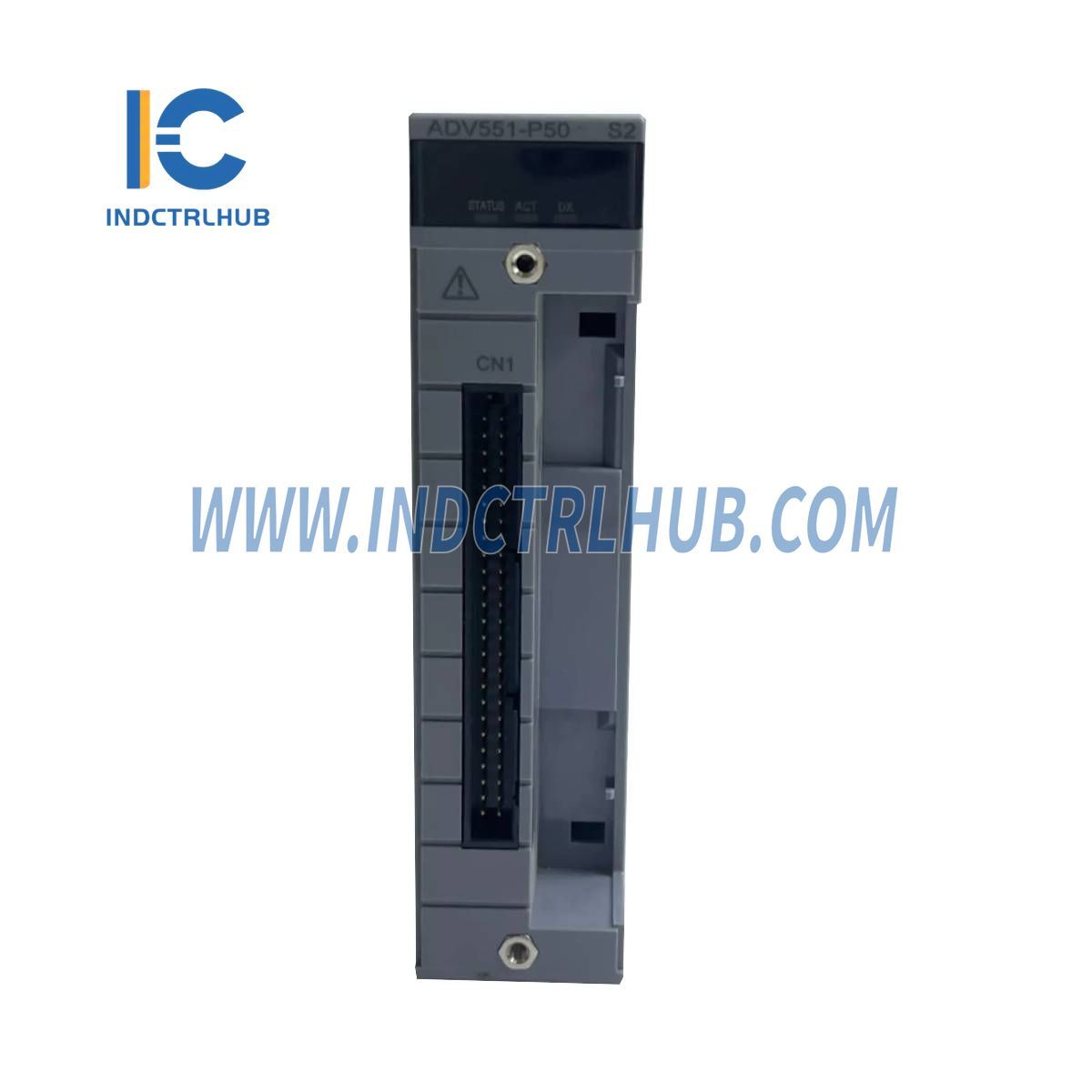

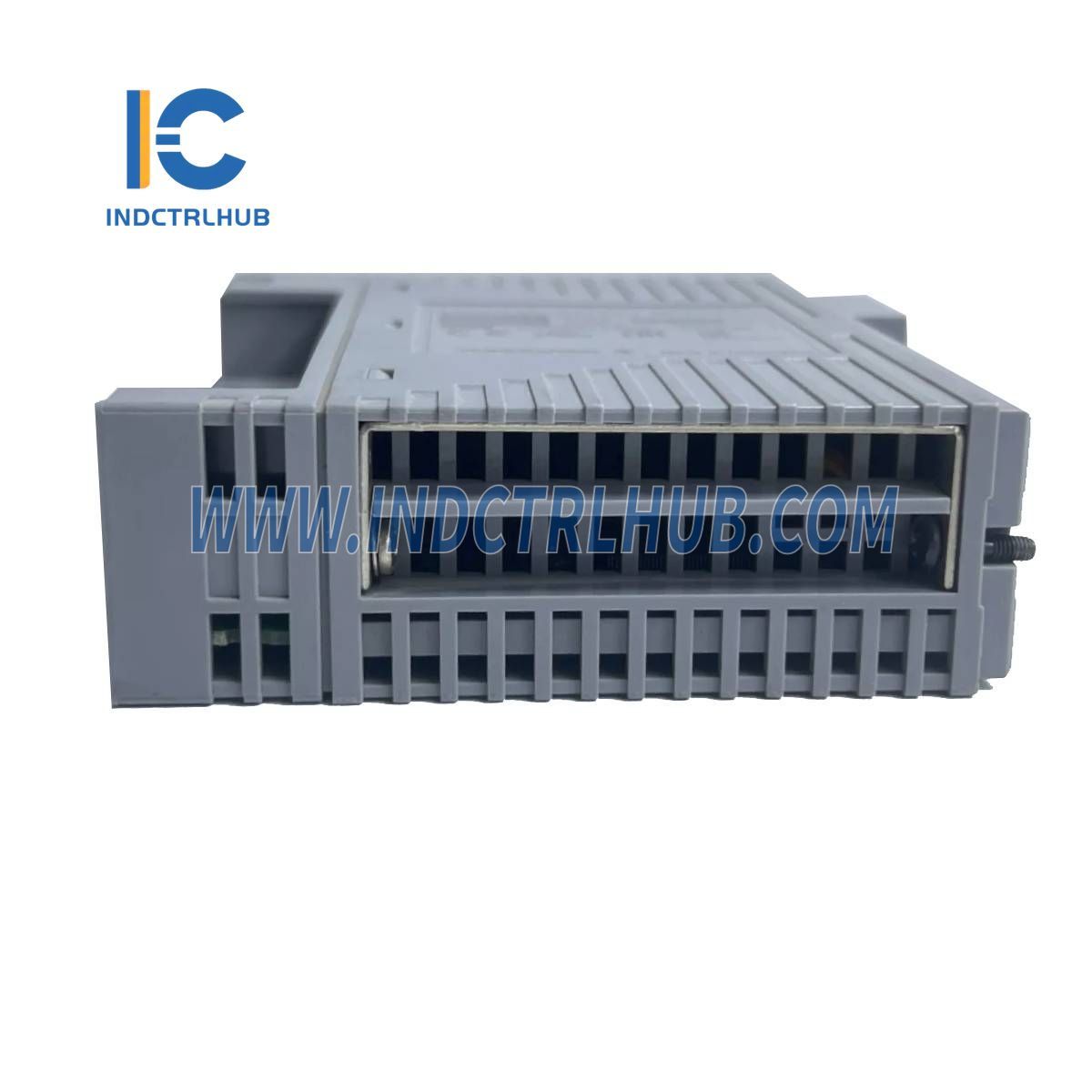

Yokogawa ADV551-P50 S2 Digital Output Module

Model/Part Number

ADV551-P50 S2

Description

Digital Output Module (32-channel, 24 V DC, Isolated)

Number of Output Channels

32

Rated Applied Voltage

24 V DC

External Power Supply Rating

24 V DC, 50 mA

External Power Supply Voltage Range

20.4 to 26.4 V DC

Output ON Voltage (Max)

2 V DC

Leak Current (Max when Output OFF)

0.1 mA

Output Format

Current Sink

Maximum Load Current (*1)

100 mA/channel, 26.4 V

Withstanding Voltage

2 kV AC (Between Output Signal and System, for 1 min)  500 V AC (Between Commons, for 1 min, common minus (-) side every 16-channel)

Functions

Status Output, Pulse Width Output, Time-Proportioning Output

Output Response Time

3 ms or less (for status output)  10 ms or less (for mixed status and pulse outputs)

Pulse Width

8 ms to 7200 s

Pulse Width Resolution

8 ms (ON/OFF delay of max 1 ms added)

Maximum Current Consumption

700 mA (5 V DC)  60 mA (External Power Supply)

Weight

Approx. 0.20 kg

External Connection

Pressure Clamp Terminal, Dedicated Cable (AKB331), MIL Connector Cable

-P

With Pulse Width Output Function / Time-Proportional Output Function

5

Without Status Display; No Explosion Protection

6

With Status Display; No Explosion Protection

E

Without Status Display; With Explosion Protection

F

With Status Display; With Explosion Protection

0

Basic Type

3

With ISA Standard G3 Option and Temperature (-20 to 70°C) Option

/D5A00

With KS Cable Interface Adapter for 32-Channel Digital (Model: ATD5A-00)

/D5S00

With Pressure Clamp Terminal Block for Digital Output (Model: ATD5S-00)

/D5S10

With Pressure Clamp Terminal Block for Digital Output (Surge Absorber) (Model: ATD5S-10)

/D5D00

With Dual Pressure Clamp Terminal Block for Digital Output (Model: ATD5D-00)

/D5D10

With Dual Pressure Clamp Terminal Block for Digital Output (Surge Absorber) (Model: ATD5D-10)

/CCC01

With Connector Cover for MIL Cable (Model: ACCC01)
