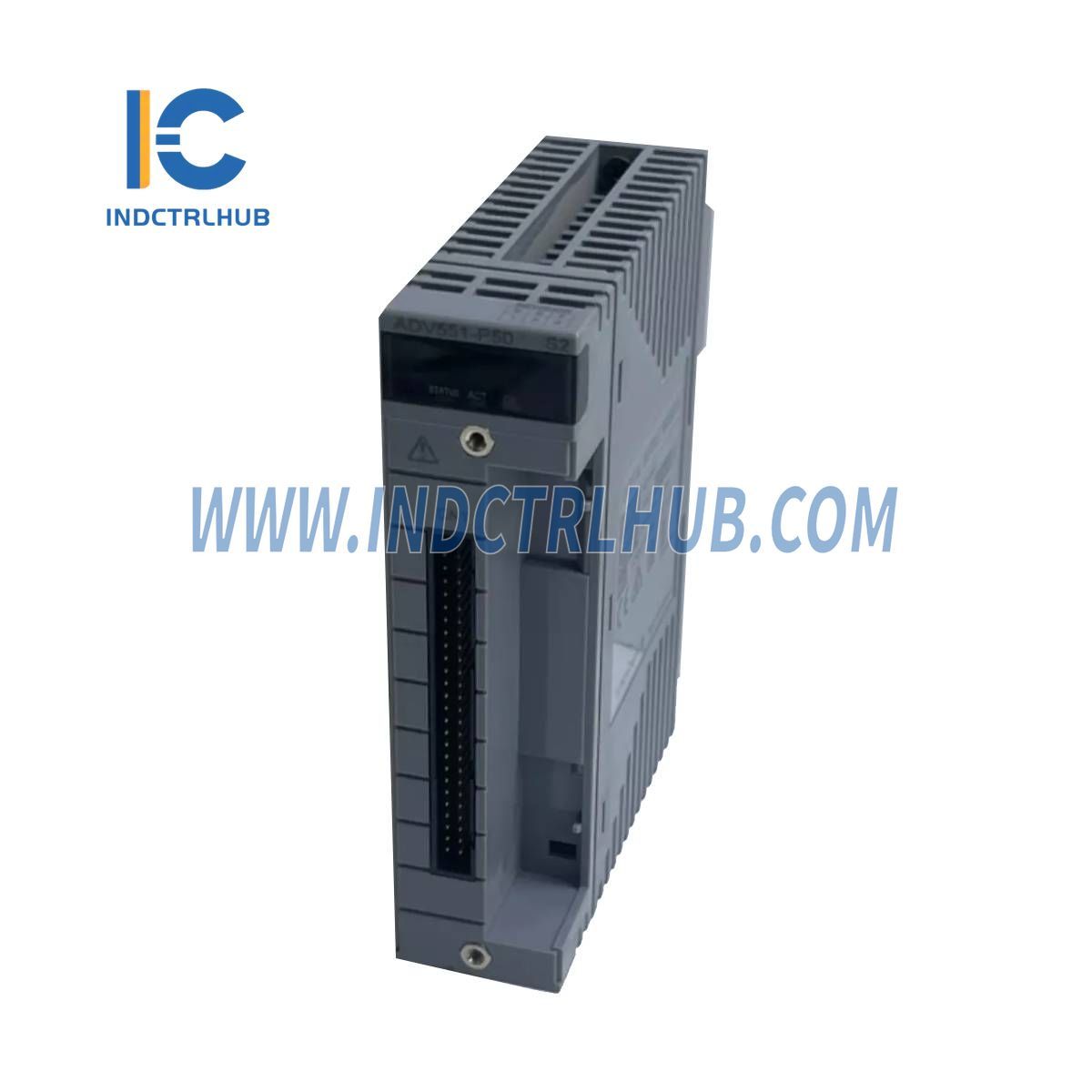

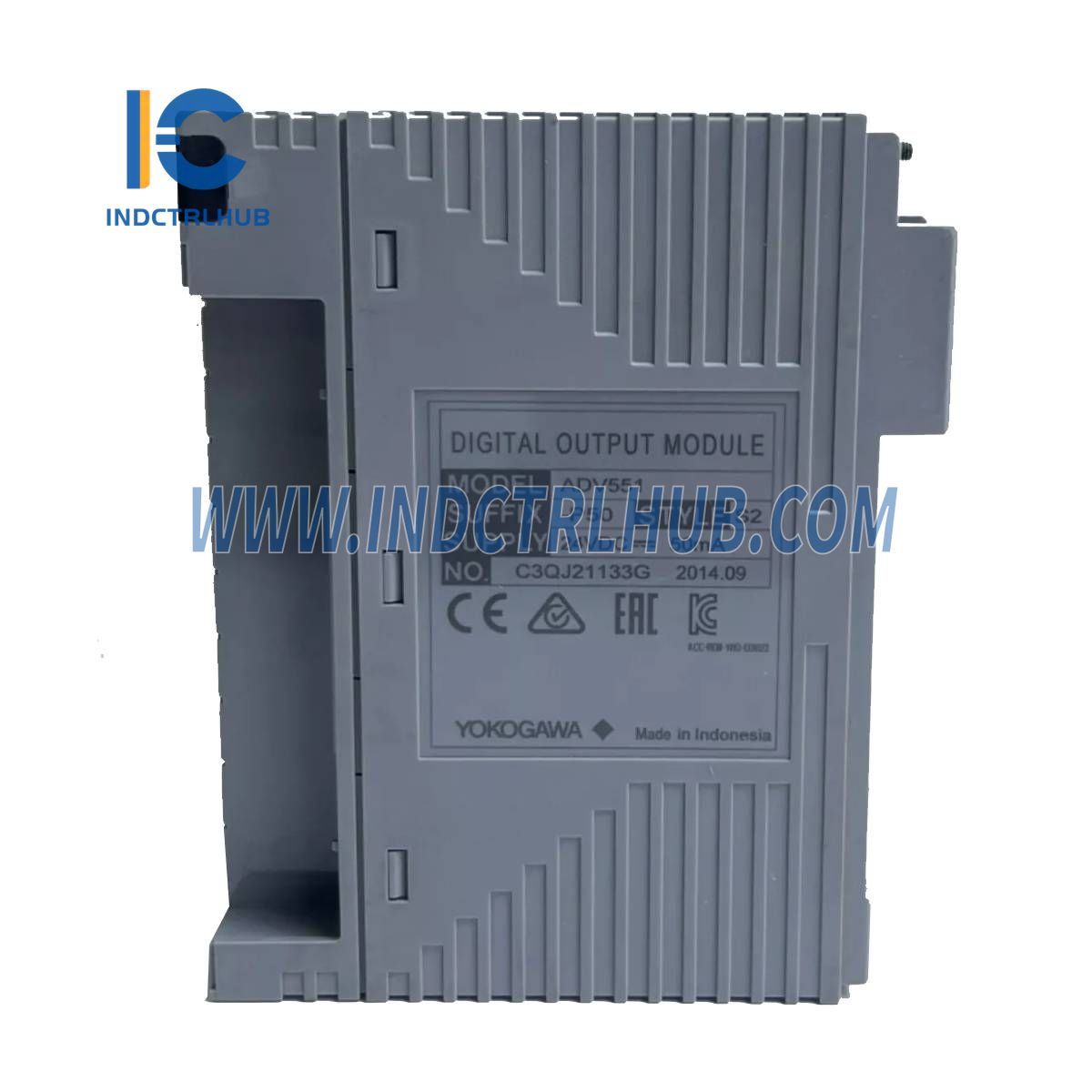

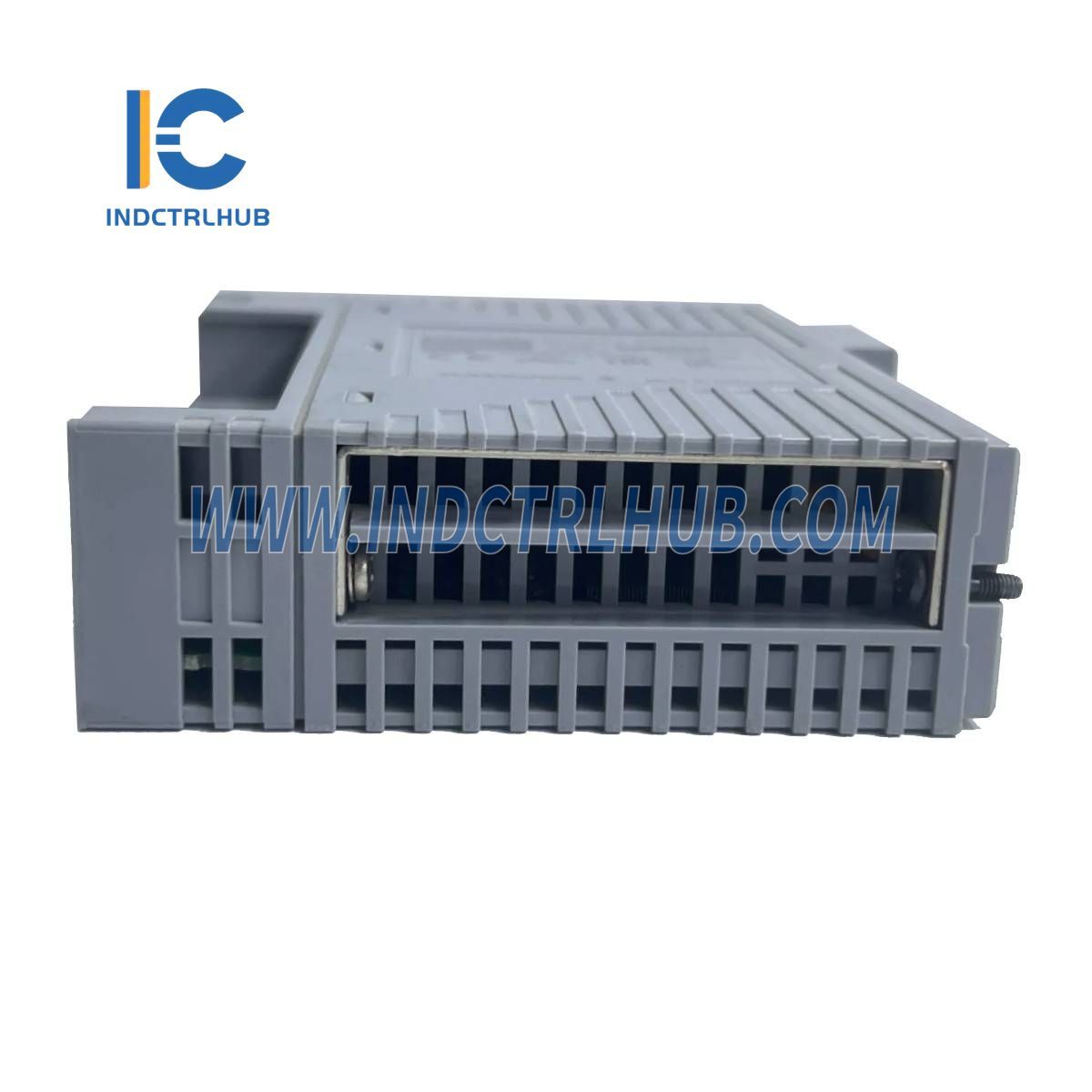

Yokogawa ADV551-P50 Digital Output Module

Yokogawa ADV551-P50 Digital Output Module

  • Manufacturer: Yokogawa

  • Product No.: ADV551-P50

  • Condition:1000 in stock

  • Product Type: Digital Output Module

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

Parameter

Value

Manufacturer

Yokogawa

Model/Part Number

ADV551-P50

Product Description

Digital Output Module (32-channel, 24 V DC, Isolated)

Specifications


Electrical & I/O Characteristics

Parameter

Value

Number of Output Channels

32

Rated Applied Voltage

24 V DC

External Power Supply Rating

24 V DC, 50 mA

External Power Supply Voltage Range

20.4 to 26.4 V DC

Maximum Output ON Voltage

2 V DC

Maximum Leak Current (Output OFF)

0.1 mA

Output Format

Current Sink

Maximum Load Current

100 mA/channel, 26.4 V

Withstanding Voltage

Between output signal and system: 2 kV AC, 1 minute  Between commons: 500 V AC, 1 minute (common minus (-) side every 16 channels)

Functional Features

Parameter

Value

Status Output

ON/OFF status output function

Pulse Width Output

One-shot pulse width output function

Time-Proportioning Output

Time-proportioning ON/OFF

Output Response Time

3 ms or less (for status output)  10 ms or less (for mixed status and pulse outputs)

Pulse Width

8 ms to 7200 s

Pulse Width Resolution

8 ms, with ON/OFF delay of max. 1 ms

Power & Physical Characteristics

Parameter

Value

Maximum Current Consumption

700 mA (5 V DC)  60 mA (external power supply)

Weight

Approx. 0.20 kg

External Connection

Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable

Model Variations & Options


Model Variations (Suffix Codes)

Suffix Code

Description

-P

With pulse width output function/time-proportional output function

5

Without status display; with no explosion protection

6

With status display; with no explosion protection

E

Without status display; with explosion protection

F

With status display; with explosion protection

0

Basic type

3

With ISA Standard G3 option and temperature (-20 to 70 °C) option

Optional Accessories (Option Codes)

Option Code

Description

/D5A00

KS Cable Interface Adapter for 32-channel Digital [Model: ATD5A-00]

/D5S00

Pressure Clamp Terminal Block for Digital Output [Model: ATD5S-00]

/D5S10

Pressure Clamp Terminal Block for Digital Output (surge absorber) [Model: ATD5S-10]

/D5D00

Dual Pressure Clamp Terminal Block for Digital Output [Model: ATD5D-00]

/D5D10

Dual Pressure Clamp Terminal Block for Digital Output (surge absorber) [Model: ATD5D-10]

/CCC01

Connector Cover for MIL Cable [Model: ACCC01]



View full details

Product Description

General Information

Parameter

Value

Manufacturer

Yokogawa

Model/Part Number

ADV551-P50

Product Description

Digital Output Module (32-channel, 24 V DC, Isolated)

Specifications


Electrical & I/O Characteristics

Parameter

Value

Number of Output Channels

32

Rated Applied Voltage

24 V DC

External Power Supply Rating

24 V DC, 50 mA

External Power Supply Voltage Range

20.4 to 26.4 V DC

Maximum Output ON Voltage

2 V DC

Maximum Leak Current (Output OFF)

0.1 mA

Output Format

Current Sink

Maximum Load Current

100 mA/channel, 26.4 V

Withstanding Voltage

Between output signal and system: 2 kV AC, 1 minute  Between commons: 500 V AC, 1 minute (common minus (-) side every 16 channels)

Functional Features

Parameter

Value

Status Output

ON/OFF status output function

Pulse Width Output

One-shot pulse width output function

Time-Proportioning Output

Time-proportioning ON/OFF

Output Response Time

3 ms or less (for status output)  10 ms or less (for mixed status and pulse outputs)

Pulse Width

8 ms to 7200 s

Pulse Width Resolution

8 ms, with ON/OFF delay of max. 1 ms

Power & Physical Characteristics

Parameter

Value

Maximum Current Consumption

700 mA (5 V DC)  60 mA (external power supply)

Weight

Approx. 0.20 kg

External Connection

Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable

Model Variations & Options


Model Variations (Suffix Codes)

Suffix Code

Description

-P

With pulse width output function/time-proportional output function

5

Without status display; with no explosion protection

6

With status display; with no explosion protection

E

Without status display; with explosion protection

F

With status display; with explosion protection

0

Basic type

3

With ISA Standard G3 option and temperature (-20 to 70 °C) option

Optional Accessories (Option Codes)

Option Code

Description

/D5A00

KS Cable Interface Adapter for 32-channel Digital [Model: ATD5A-00]

/D5S00

Pressure Clamp Terminal Block for Digital Output [Model: ATD5S-00]

/D5S10

Pressure Clamp Terminal Block for Digital Output (surge absorber) [Model: ATD5S-10]

/D5D00

Dual Pressure Clamp Terminal Block for Digital Output [Model: ATD5D-00]

/D5D10

Dual Pressure Clamp Terminal Block for Digital Output (surge absorber) [Model: ATD5D-10]

/CCC01

Connector Cover for MIL Cable [Model: ACCC01]
