Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
Yokogawa |
|
Model/Part Number |
ADV551-P00 |
|
Product Description |

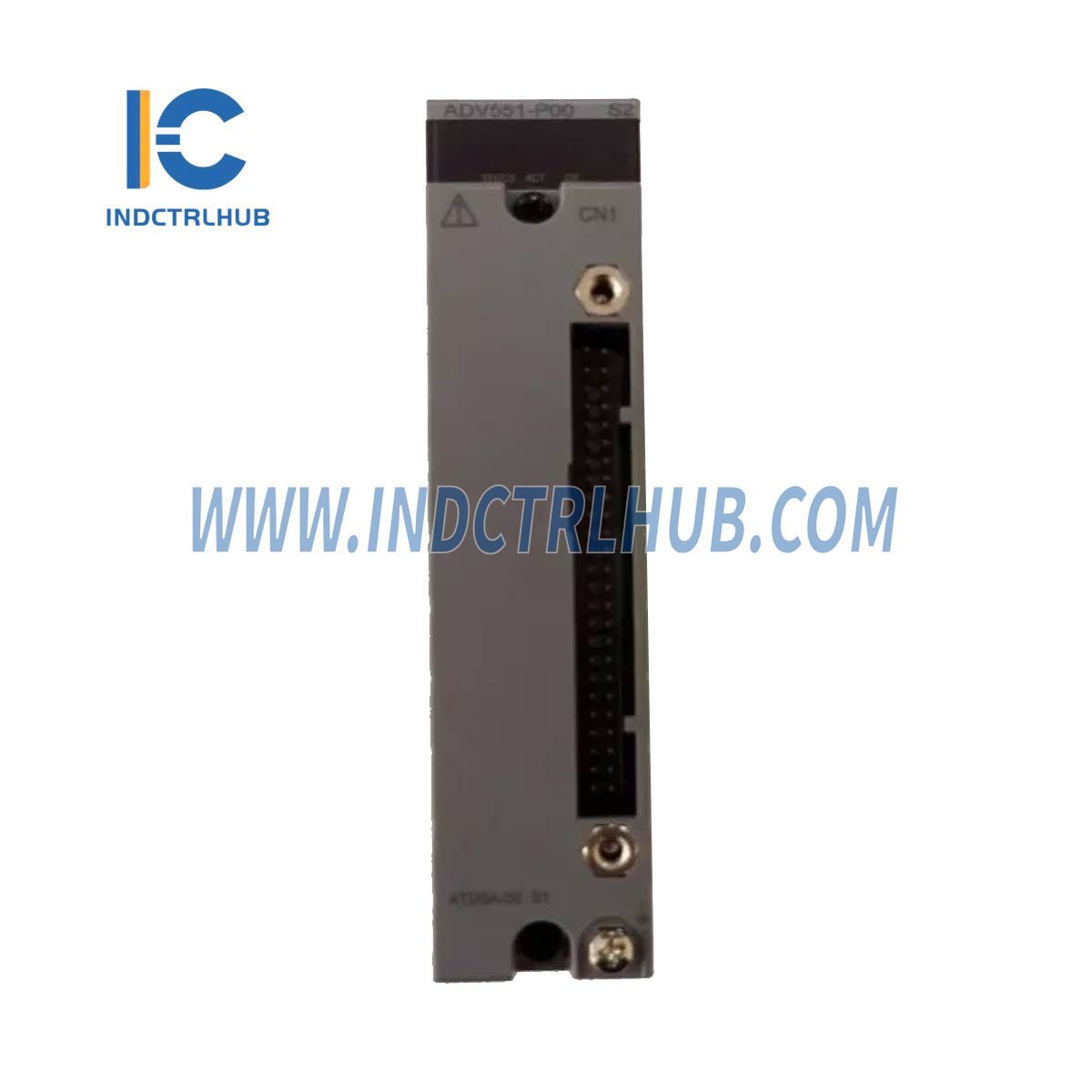

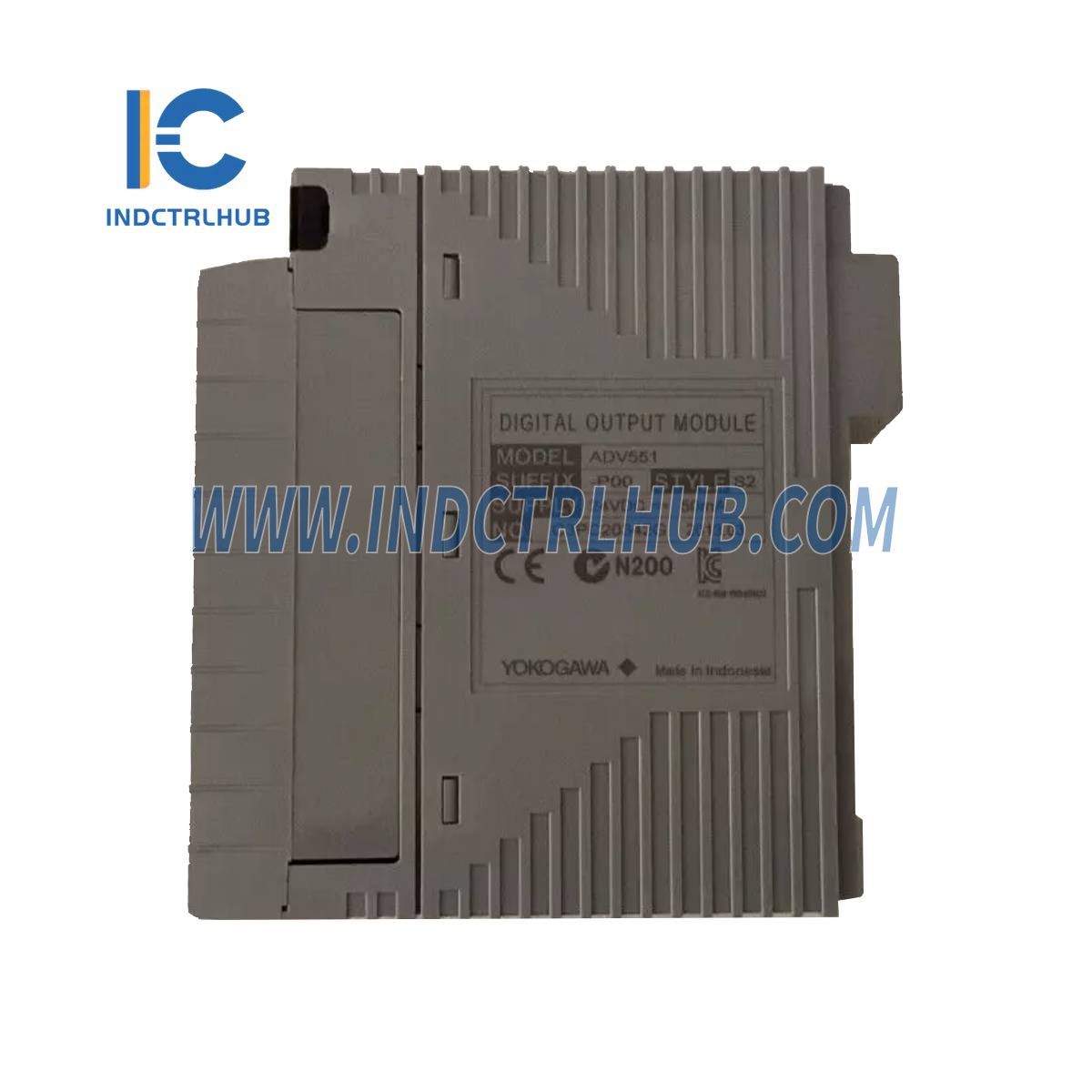

Digital Output Module (32-channel, 24 V DC, Isolated) |
Technical Specifications
|
Parameter |
ADV551 |
|---|---|
|
Number of Output Channels |
32 |
|
Rated Applied Voltage |
24 V DC |
|
External Power Supply Rating |
24 V DC, 50 mA |
|
External Power Supply Voltage Range |
20.4 to 26.4 V DC |
|
Output ON Voltage (Max Value) |
2 V DC |
|
Leak Current (Max Value When Output OFF) |
0.1 mA |
|
Output Format |
Current sink |
|
*Maximum Load Current (1) |
100 mA/channel, 26.4 V |
|
Withstand Voltage |
Between output signal and system: 2 kV AC (1 min) Between commons: 500 V AC (1 min, common minus (–) side every 16-channel) |
|
Functions |
Status output, Pulse width output, Time-proportioning output |
|
Output Response Time |
3 ms or less (for status output) 10 ms or less (for mixed status and pulse outputs) |
|
Pulse Width |
8 ms to 7200 s |
|
Pulse Width Resolution |
8 ms (ON/OFF delay of max. 1 ms is added) |
|
Maximum Current Consumption |
700 mA (5 V DC) 60 mA (external power supply) |
|
Weight |
Approx. 0.20 kg |
|
External Connection |
Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable |
Model and Suffix Codes
|
Suffix Code |
Description |
|---|---|
|
-P |
With pulse width output function/time-proportional output function |
|
5 |
Without status display; with no explosion protection |
|
6 |
With status display; with no explosion protection |
|
E |
Without status display; with explosion protection |
|
F |
With status display; with explosion protection |
|
0 |
Basic type |
|
3 |
With ISA Standard G3 and temperature (-20 to 70 °C) |
Option Codes
|
Option Code |
Description |
|---|---|
|
/D5A00 |
With KS Cable Interface Adapter for 32-channel Digital [Model: ATD5A-00] |
|
/D5S00 |
With Pressure Clamp Terminal Block for Digital Output [Model: ATD5S-00] |
|
/D5S10 |
With Pressure Clamp Terminal Block for Digital Output (surge absorber) [Model: ATD5S-10] |
|
/D5D00 |
With Dual Pressure Clamp Terminal Block for Digital Output [Model: ATD5D-00] |
|
/D5D10 |
With Dual Pressure Clamp Terminal Block for Digital Output (surge absorber) [Model: ATD5D-10] |
|
/CCC01 |
With Connector Cover for MIL Cable [Model: ACCC01] |
