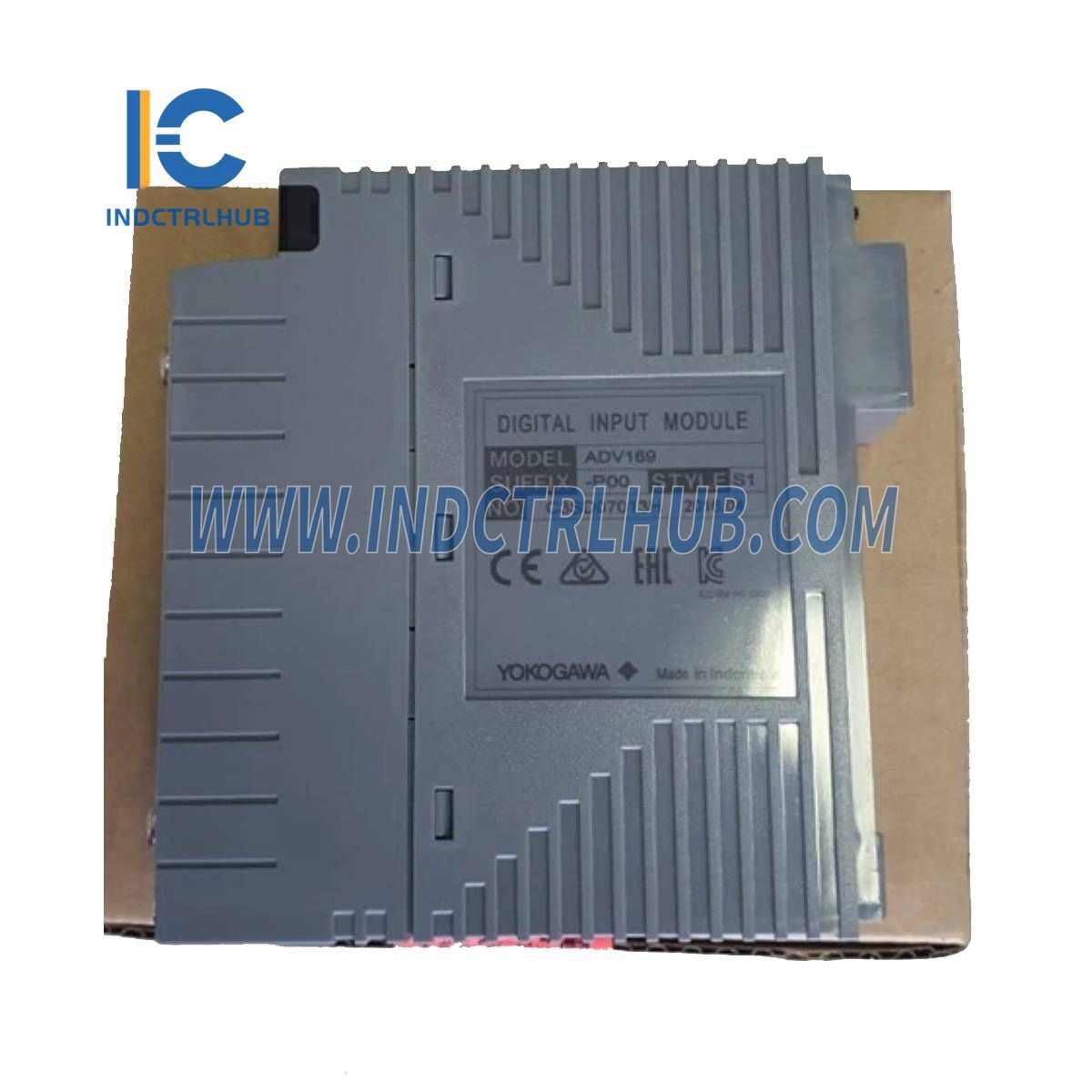

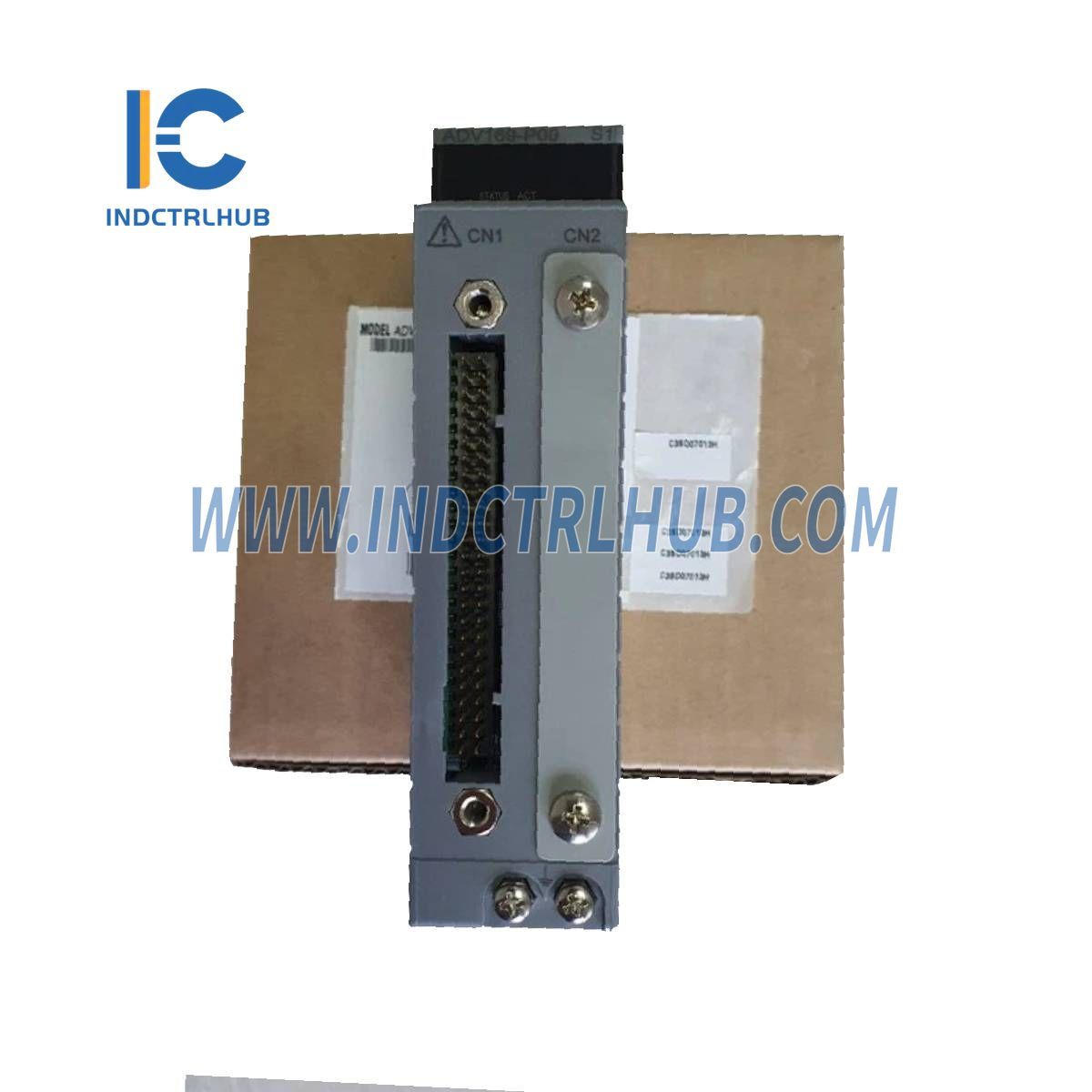

Yokogawa ADV169-P00 1001788838 Digital Input Module

Yokogawa ADV169-P00 1001788838 Digital Input Module

  • Manufacturer: Yokogawa

  • Product No.: ADV169-P00

  • Condition:1000 in stock

  • Product Type: Digital Input Module

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

Parameter

Value

Manufacturer

Yokogawa

Model/Part Number

ADV169-P00 (1001788838)

Product Description

Digital Input Module for ST6 compatibility, featuring 64 isolated input channels with a common minus side every 16 channels.

Specifications


I/O Characteristics

Parameter

Value

Number of I/O Channels

64-channel input

Signal Isolation

Common every 16 channels

Input Signal (Contact Input)

OFF: 100 kΩ or more, ON: 200 Ω or less

Minimum Current (Short-Circuited Contact)

1.25 mA

Voltage Input

OFF: 4.5 to 25 V DC, ON: ±1 V DC, 200 Ω or less

Input Contact Rating

5 V DC, 20 mA or more

Pushbutton Input Function

Not supported

Input Response Time

8 ms (for status input)

Electrical & Communication

Parameter

Value

Maximum Current Consumption

800 mA (5 V DC)

External Connection

Dedicated cable (KS9)

Compatible Card

ST6 compatible

Physical Characteristics

Parameter

Value

Weight

Approx. 0.30 kg

Model Variations

Suffix Code

Description

-P

Standard type

0

Always 0

0

Basic type

1

With ISA Standard G3 option



View full details

Product Description

General Information

Parameter

Value

Manufacturer

Yokogawa

Model/Part Number

ADV169-P00 (1001788838)

Product Description

Digital Input Module for ST6 compatibility, featuring 64 isolated input channels with a common minus side every 16 channels.

Specifications


I/O Characteristics

Parameter

Value

Number of I/O Channels

64-channel input

Signal Isolation

Common every 16 channels

Input Signal (Contact Input)

OFF: 100 kΩ or more, ON: 200 Ω or less

Minimum Current (Short-Circuited Contact)

1.25 mA

Voltage Input

OFF: 4.5 to 25 V DC, ON: ±1 V DC, 200 Ω or less

Input Contact Rating

5 V DC, 20 mA or more

Pushbutton Input Function

Not supported

Input Response Time

8 ms (for status input)

Electrical & Communication

Parameter

Value

Maximum Current Consumption

800 mA (5 V DC)

External Connection

Dedicated cable (KS9)

Compatible Card

ST6 compatible

Physical Characteristics

Parameter

Value

Weight

Approx. 0.30 kg

Model Variations

Suffix Code

Description

-P

Standard type

0

Always 0

0

Basic type

1

With ISA Standard G3 option



Download PDF file here:

Click to Download PDF
