Product Description
Product Overview

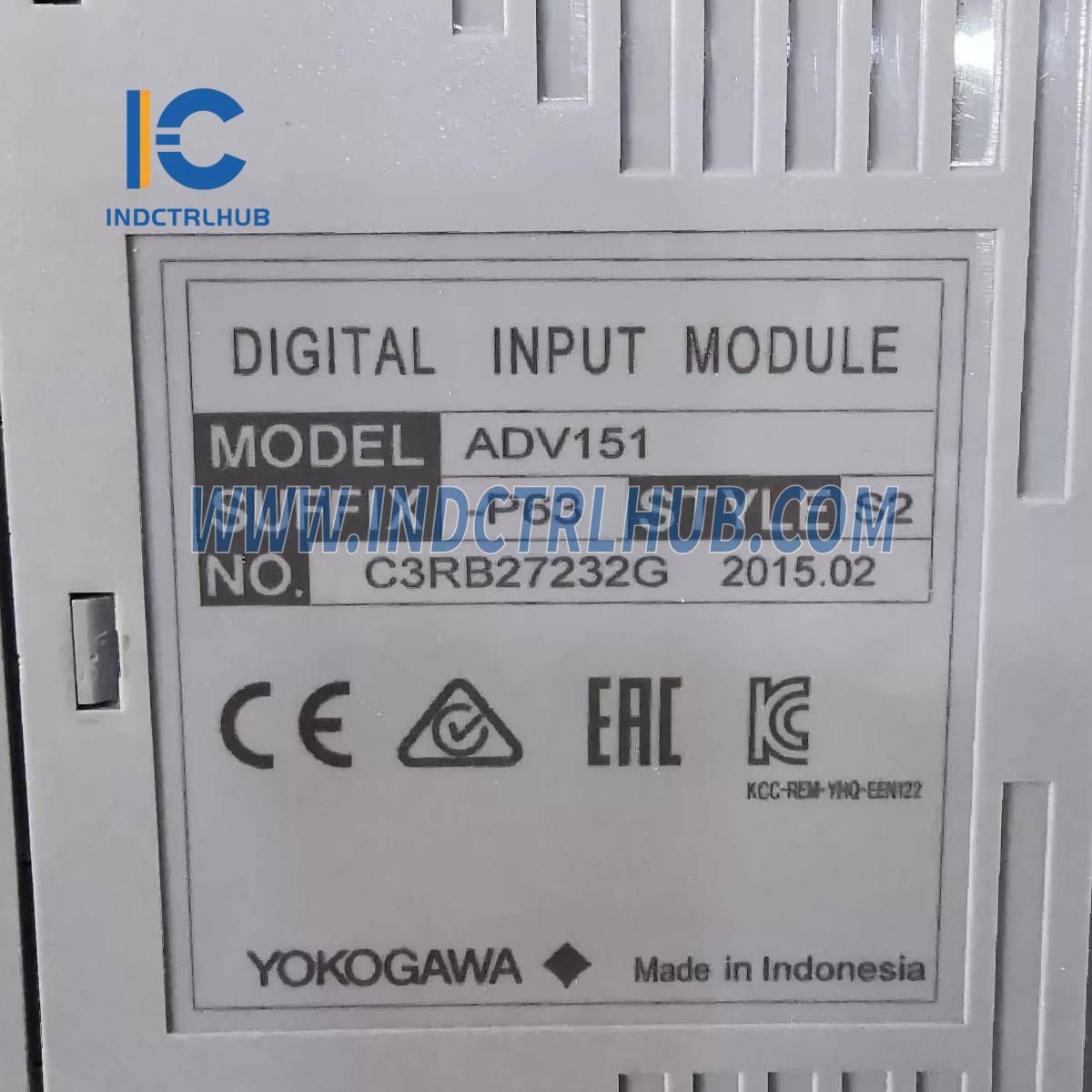

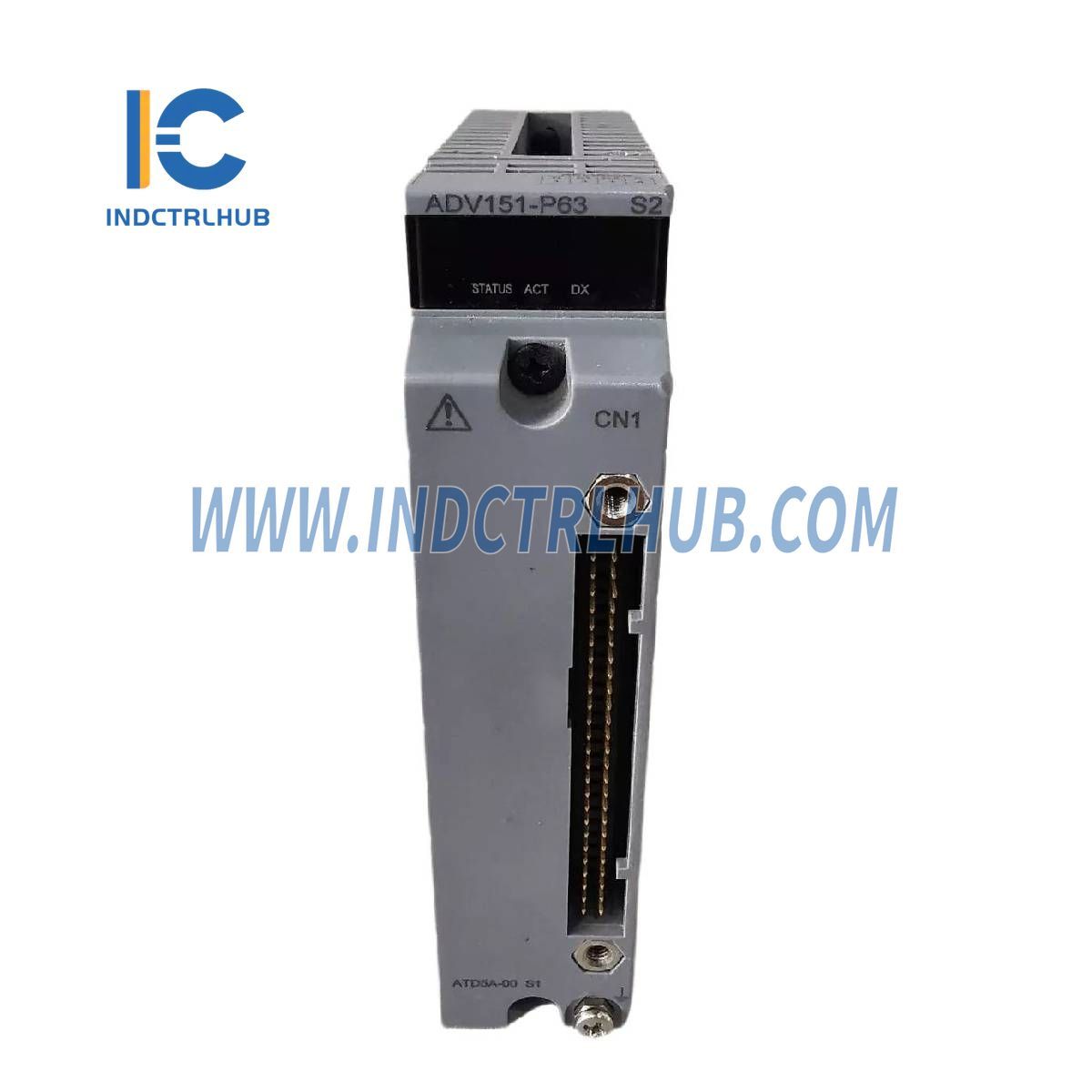

The Yokogawa ADV151-P63 is a Digital Input Module designed to receive 32-channel 24 V DC ON/OFF signals. It supports dual-redundant configuration and includes pushbutton input functionality with ISA Standard G3 and extended temperature range options, making it suitable for robust industrial applications.
Technical Specifications
The ADV151-P63 Digital Input Module has the following specifications (specific to ADV151-P unless otherwise noted):
| Item | Specification |
|---|---|
| Model | ADV151-P |
| Number of Input Channels | 32 |
| Rated Input Voltage (*2) | 24 V DC (sink/source) |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | 5.0 V DC or less |
| Input Current (at rated input voltage) | 4.1 mA ±20 % / channel |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Withstanding Voltage | Between input signal and system: 2 kV AC, for 1 minute Between commons: 500 V AC, for 1 minute, common every 16-channel (*3) |
| Functions |
Status Input: Function for detecting ON/OFF status Pushbutton Input: Function for counting the pushbutton edges |
| Input Response Time | 8 ms or less (for status input) |
| Minimum ON Detection Time | 20 ms (for pushbutton input) |
| Maximum ON/OFF Cycle | 25 Hz (for pushbutton input) |
| Maximum Current Consumption | 500 mA (5 V DC) |
| Weight | Approx. 0.30 kg |
| External Connection | Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable |
Model and Suffix/Option Codes
The ADV151-P63 includes the following configuration details:
| Category | Details |
|---|---|
| Model | ADV151 Digital Input Module (32-channel, 24 V DC, Isolated) |
| Suffix Codes |
|
