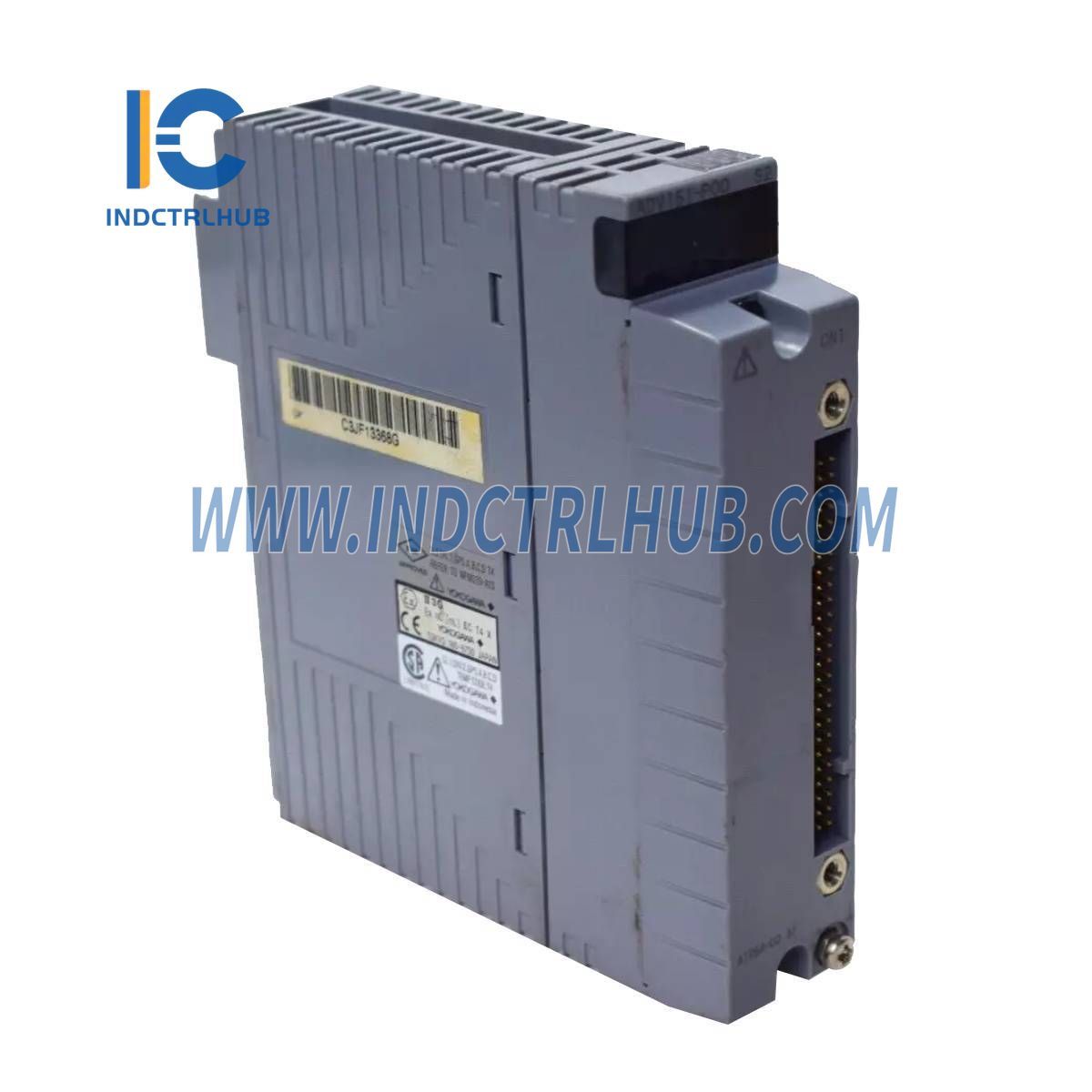

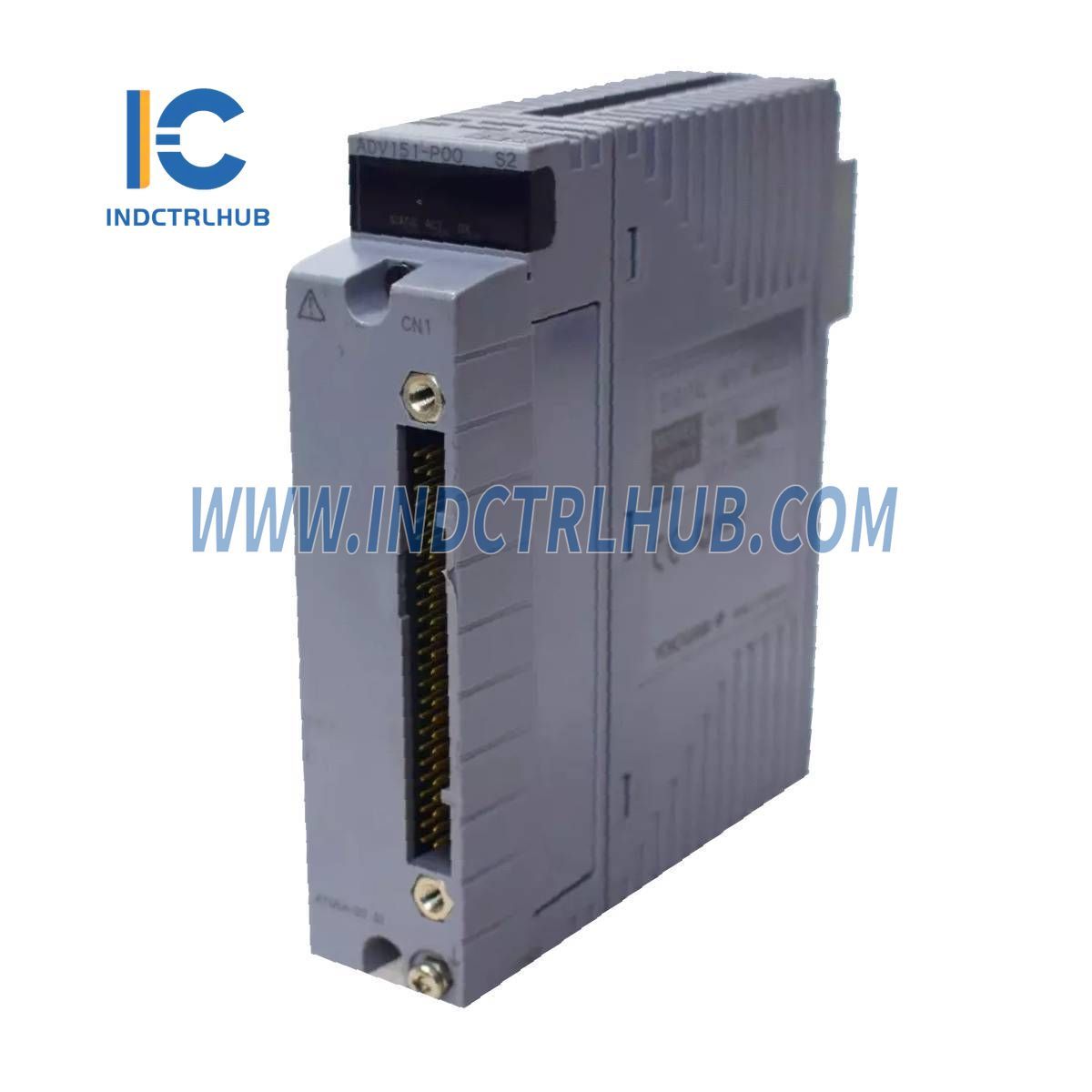

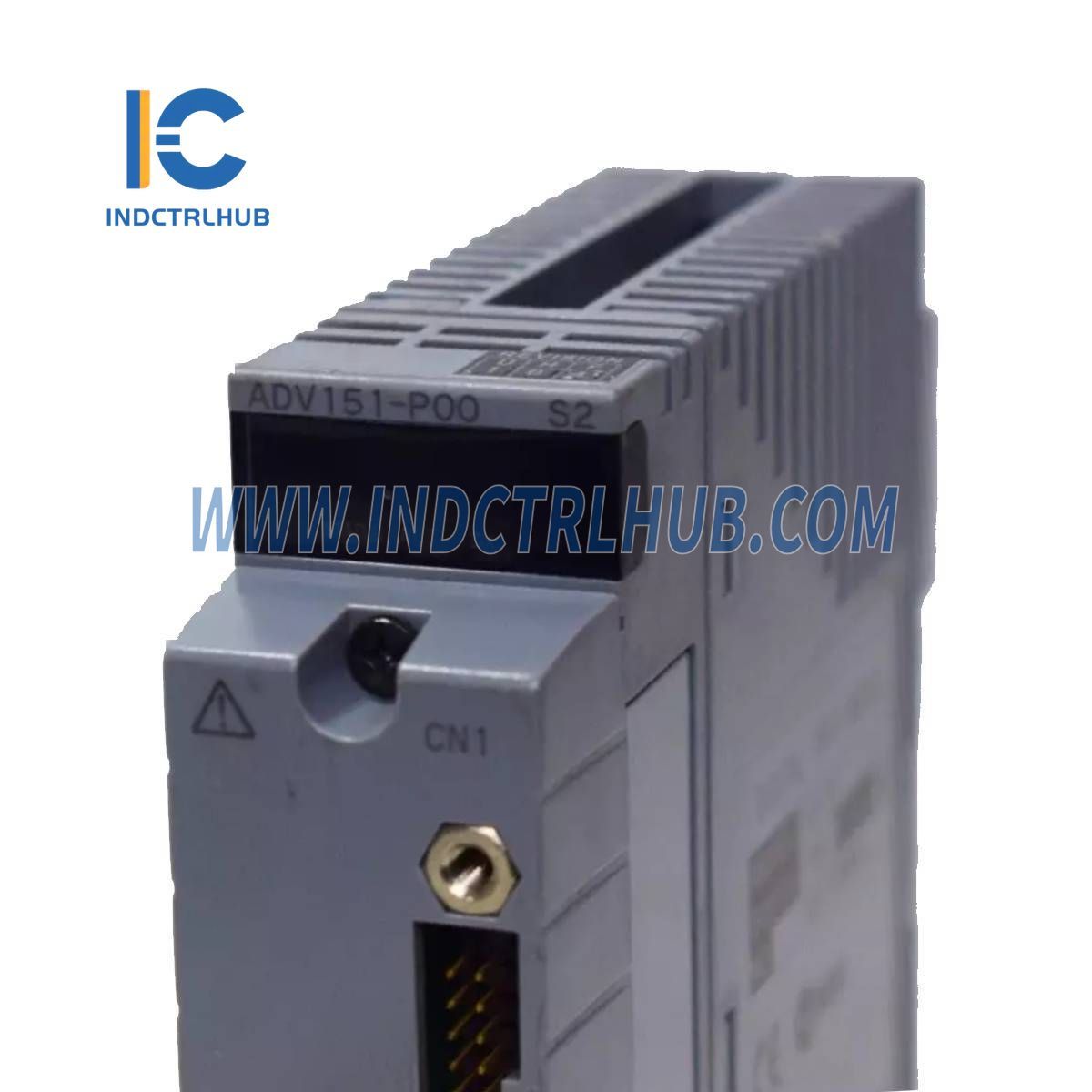

Product Description
General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
ADV151-P00 S2 |
|
Description |
Digital Input Module |
Specifications
|
Item |
ADV151-P |
|---|---|
|
Number of Input Channels |
32 |
|
Rated Input Voltage |
24 V DC (sink/source) |
|
Input ON Voltage |
18 to 26.4 V DC |
|
Input OFF Voltage |
5.0 V DC or less |
|
Input Current (at Rated Input Voltage) |
4.1 mA ±20% per channel |
|
Maximum Allowable Input Voltage |
30.0 V DC |
|
Withstanding Voltage |
2 kV AC (Between Input Signal and System, for 1 min) 500 V AC (Between Commons, for 1 min, common every 16-channel) |
|
Functions |
Status Input, Pushbutton Input, SOE Input |
|
Input Response Time |
8 ms or less (for status input) |
|
Minimum ON Detection Time |
20 ms (for pushbutton input) |
|
Maximum ON/OFF Cycle |
25 Hz (for pushbutton input) |
|
Maximum Current Consumption |
500 mA (5 V DC) |
|
Weight |
Approx. 0.30 kg |
|
External Connection |
Pressure Clamp Terminal, Dedicated Cable (AKB331), MIL Connector Cable |
Model Variations
|
Suffix Codes |
Description |
|---|---|
|
-P |
With pushbutton input |
|
-E |
With SOE capture |
|
5 |
Without status display; No explosion protection |
|
6 |
With status display; No explosion protection |
|
E |
Without status display; With explosion protection |
|
F |
With status display; With explosion protection |
|
0 |
Basic type |
|
3 |
With ISA Standard G3 option and temperature (-20 to 70°C) option |
Available Options
|
Option Codes |
Description |
|---|---|
|
/D5A00 |
With KS Cable Interface Adapter for 32-channel digital (Model: ATD5A-00) |
|
/B5S00 |
With Pressure Clamp Terminal Block for Digital Input (Model: ATB5S-00) |
|
/B5S10 |
With Pressure Clamp Terminal Block for Digital Input (surge absorber) (Model: ATB5S-10) |
|
/B5D00 |
With Dual Pressure Clamp Terminal Block for Digital Input (Model: ATB5D-00) |
|
/B5D10 |
With Dual Pressure Clamp Terminal Block for Digital Input (surge absorber) (Model: ATB5D-10) |
|
/CCC01 |
With Connector Cover for MIL Cable (Model: ACCC01) |
